Output Seal: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

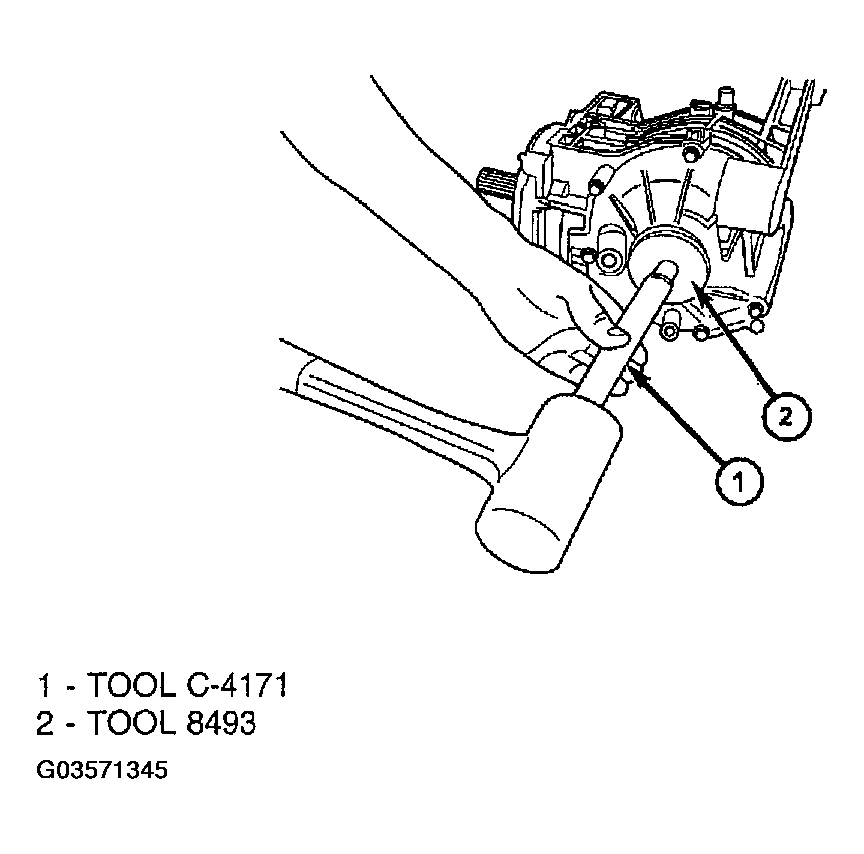

- Install output flange seal to differential housing using tool C4171A and 8493 (Fig 1 ).
- Install rear driveline module. (Refer to INSTALLATION )
- Check differential assembly fluid level and adjust as required. (Refer to STANDARD PROCEDURE - DIFFERENTIAL ASSEMBLY FLUID CHANGE )
