Power Latch: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power latch retaining bolts. Torque to 11 N.m (95 in. lbs.).
  2. Connect the power latch electrical connector and secure the wire harness push pin retainers.
  3. Connect the negative battery cable.
  4. Using an appropriate scan tool, check and erase any power liftgate control module diagnostic trouble codes related to the power latch.
  5. Verify power liftgate system and power cinch/release latch operation. Cycle the power liftgate through one complete open and close cycle, this will allow the power liftgate control module to relearn its cycle with the new components.
  6. Verify power liftgate manual operation. Pull door open using exterior liftgate handle switch.

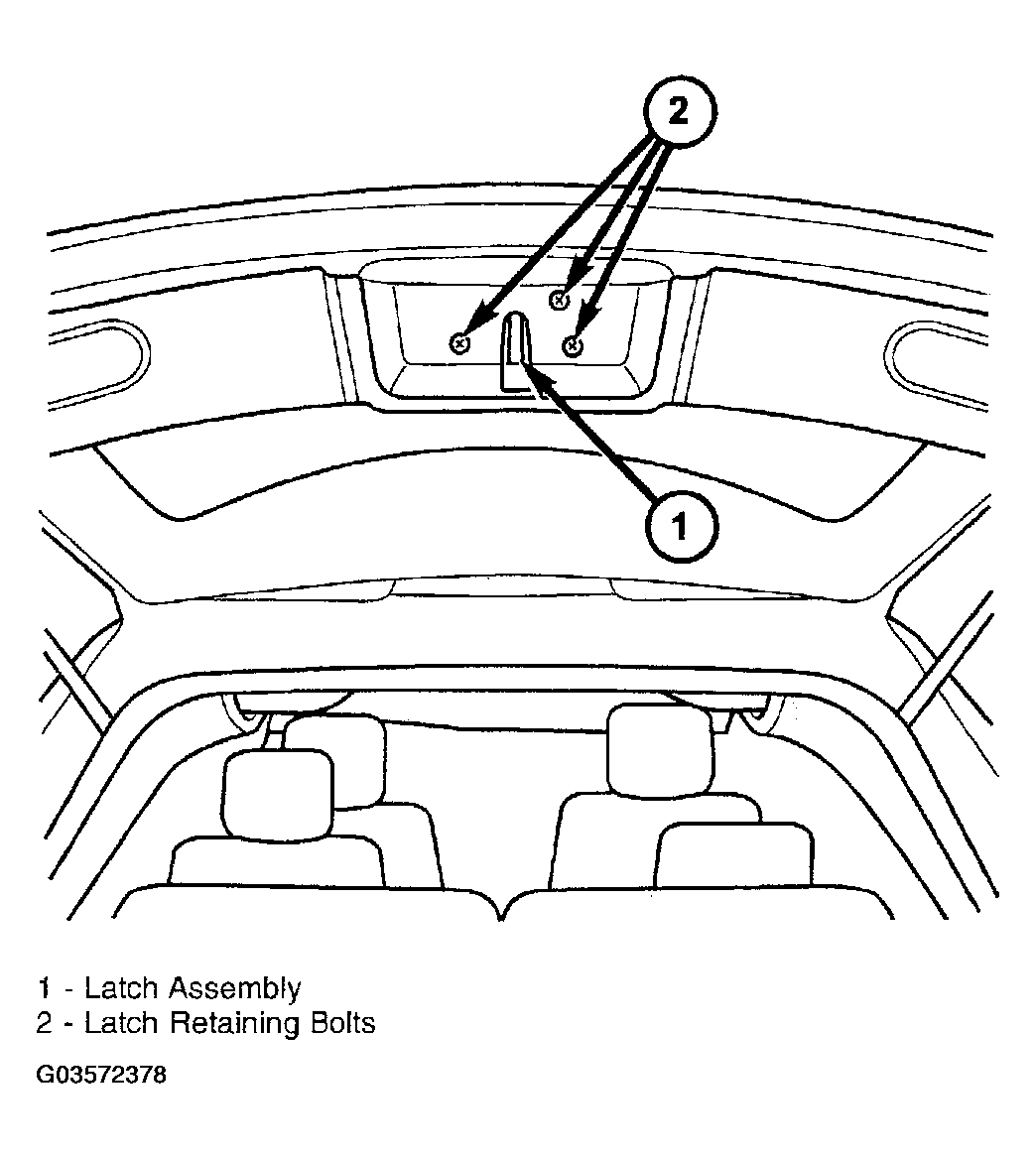

    Fig 1: Identifying CS Power Latch Retaining Bolts
    G03572378Courtesy of DAIMLERCHRYSLER CORP.
  7. Install the liftgate trim panel. Refer to LIFTGATE .
