Section 430 (Cruise Control Systems): Switch: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.

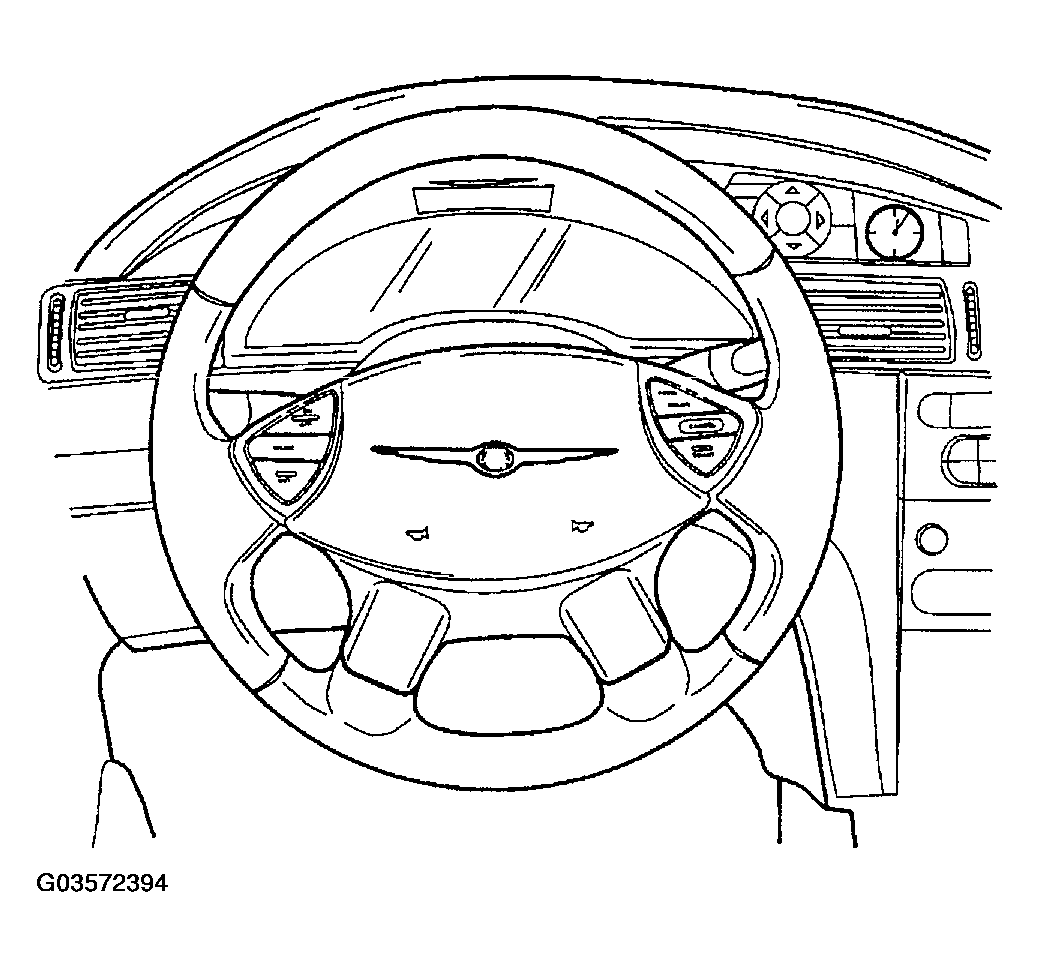

Fig 1: Identifying Steering Wheel & Switches
Courtesy of DAIMLERCHRYSLER CORP.
Remove the Driver side Airbag (Fig 2 ), (Refer to AIR BAG RESTRAINT SYSTEMS ).

Fig 2: Removing Driver Side Airbag
Courtesy of DAIMLERCHRYSLER CORP.
Remove the speed control switch mounting screw (Fig 3 ).

Fig 3: Removing Speed Control Switch Mounting Screw
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the electrical connector from switch.
Remove switch.
