Navigation Unit: Removal
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove rear floor stowage tray (Refer to INTERIOR
).

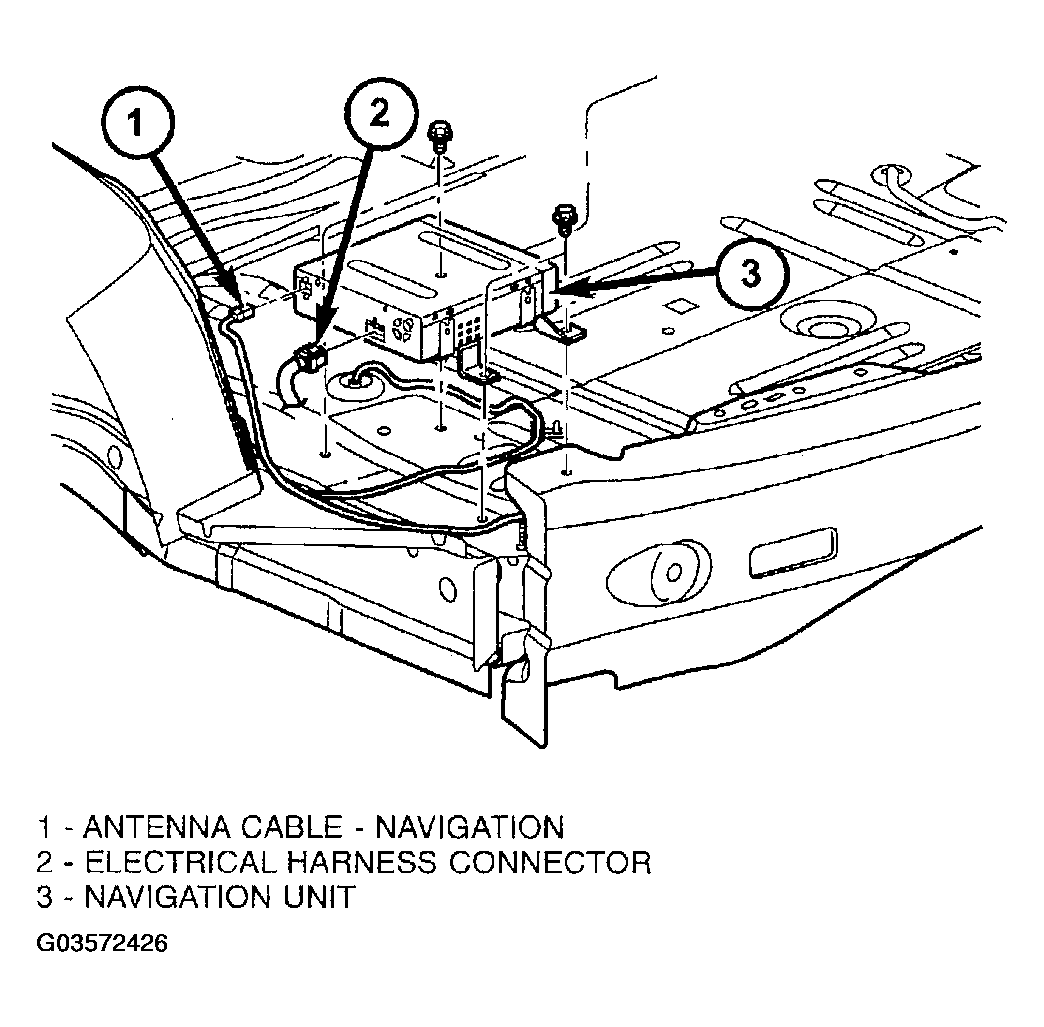

- Remove mounting fasteners (Fig 1
).
- Disconnect electrical harness connector and antenna cable from navigation unit.
- Remove navigation unit from mounting bracket.
Courtesy of DAIMLERCHRYSLER CORP.
