Map Sensor: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

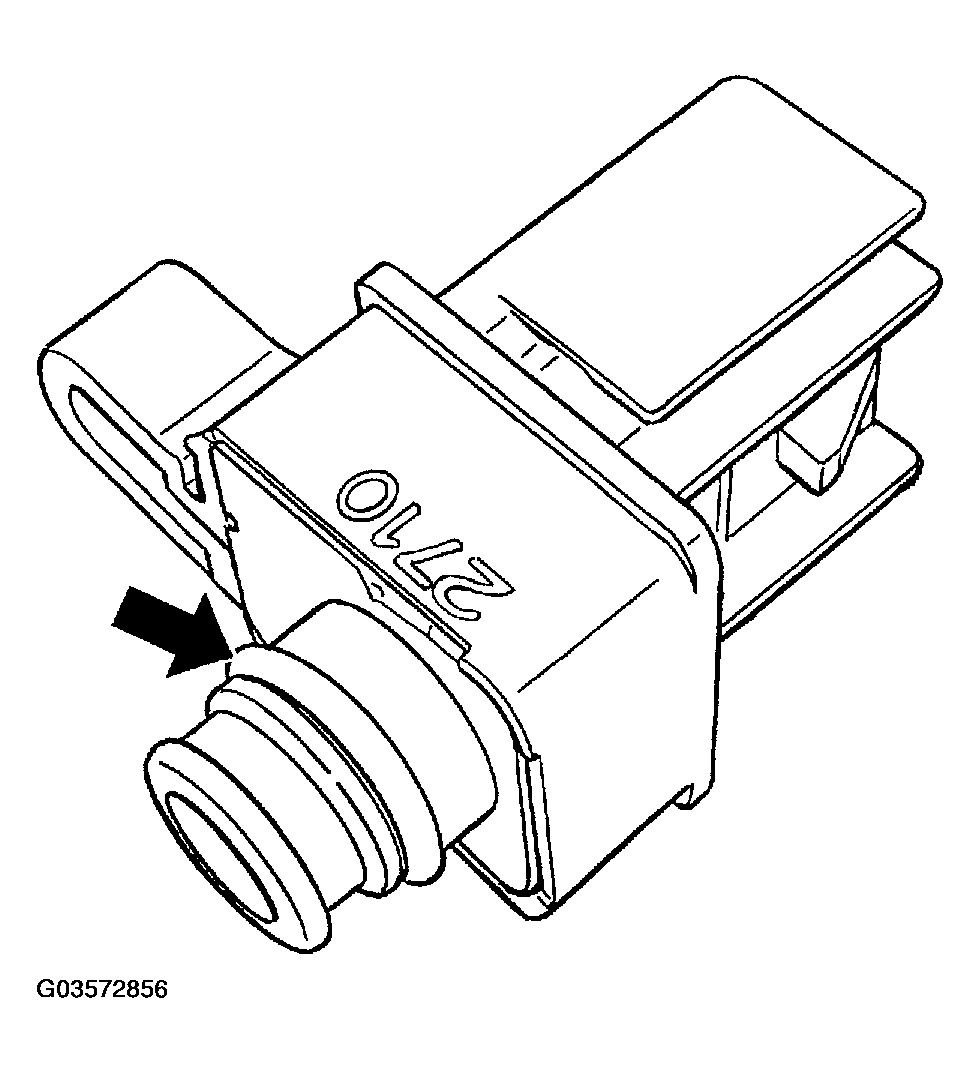

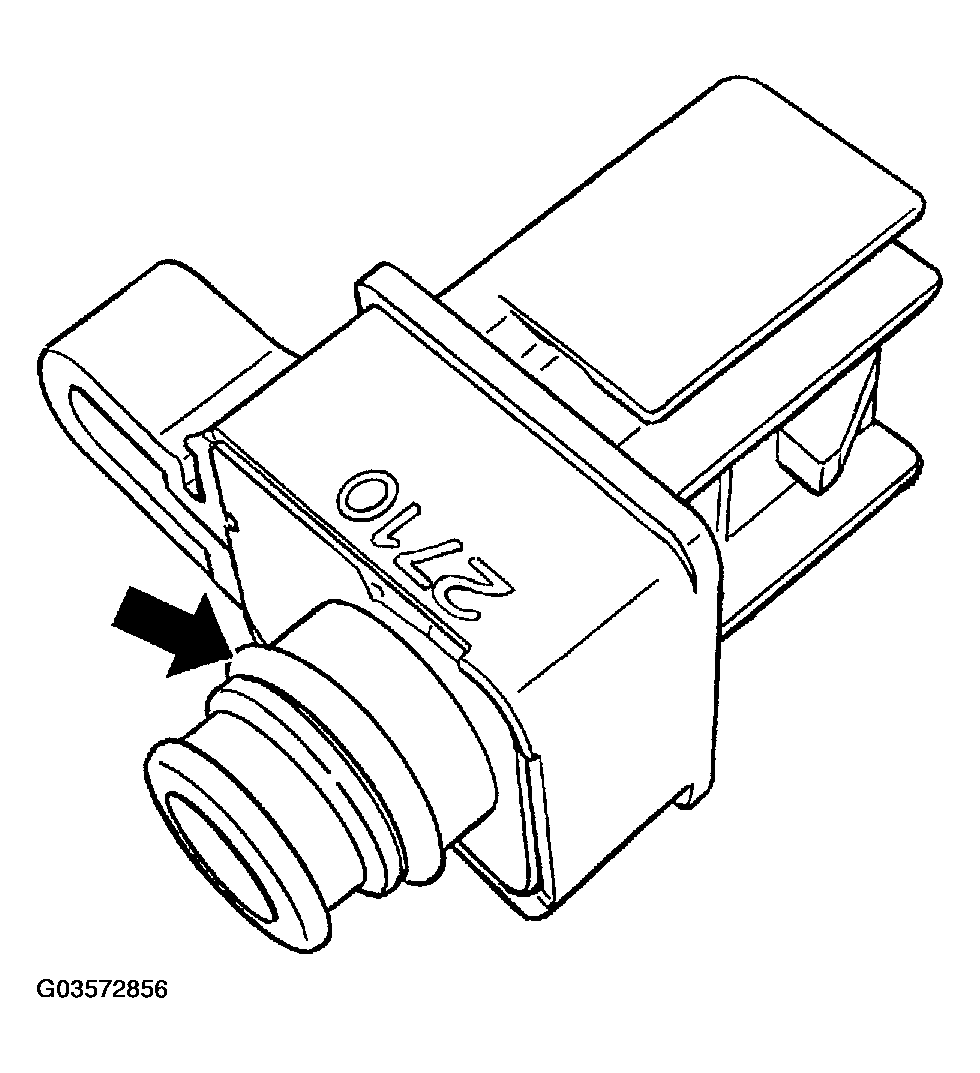

- The sensor mounts onto intake manifold plenum (Fig 1 ). Tighten screws to 4.5 N.m (40 in. lbs.) torque.
- Attach electrical connector to sensor.
- Install the negative battery cable.
