Throttle Position Sensor: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the TPS electrical connector (Fig 1 ).
  3. Remove the TPS mounting screws.
  4. Remove the TPS.

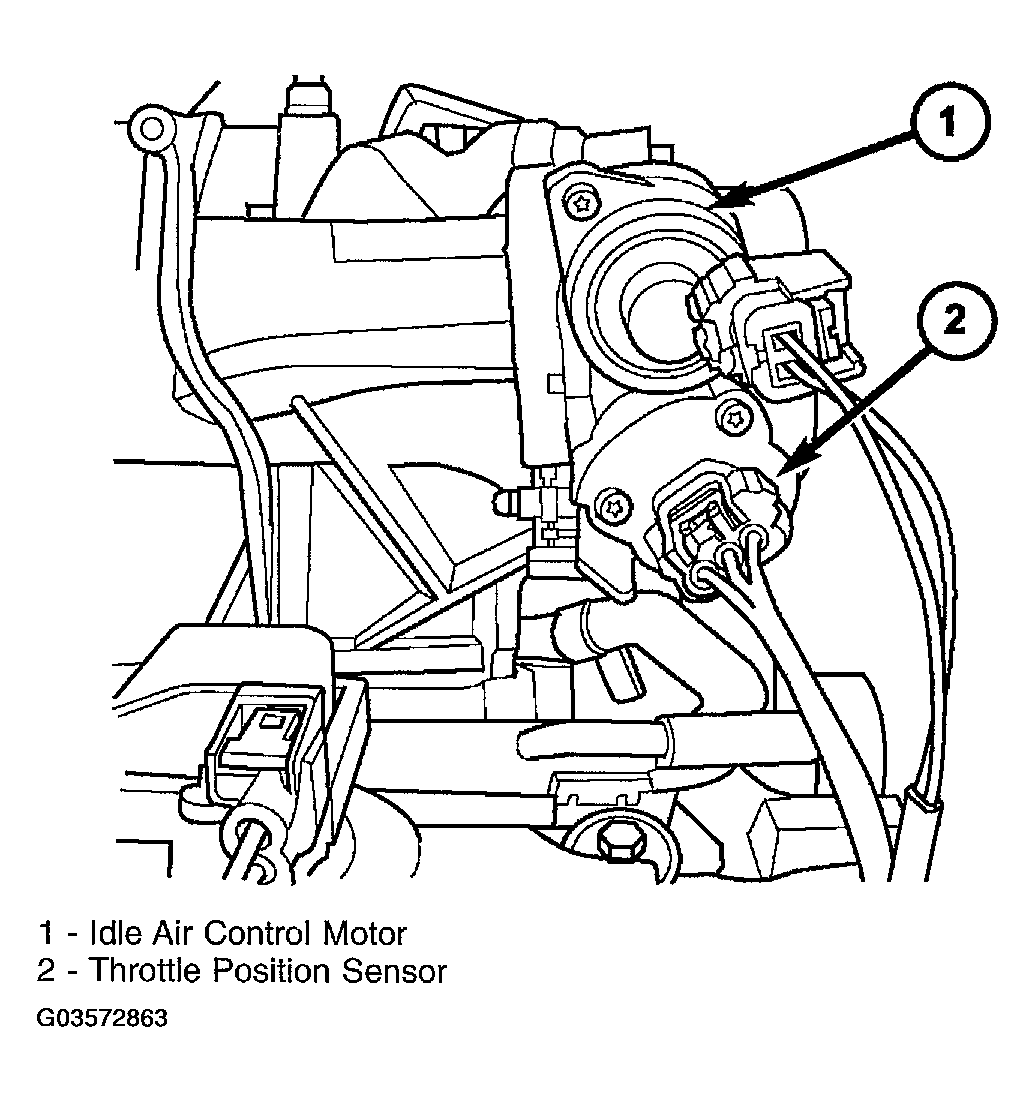

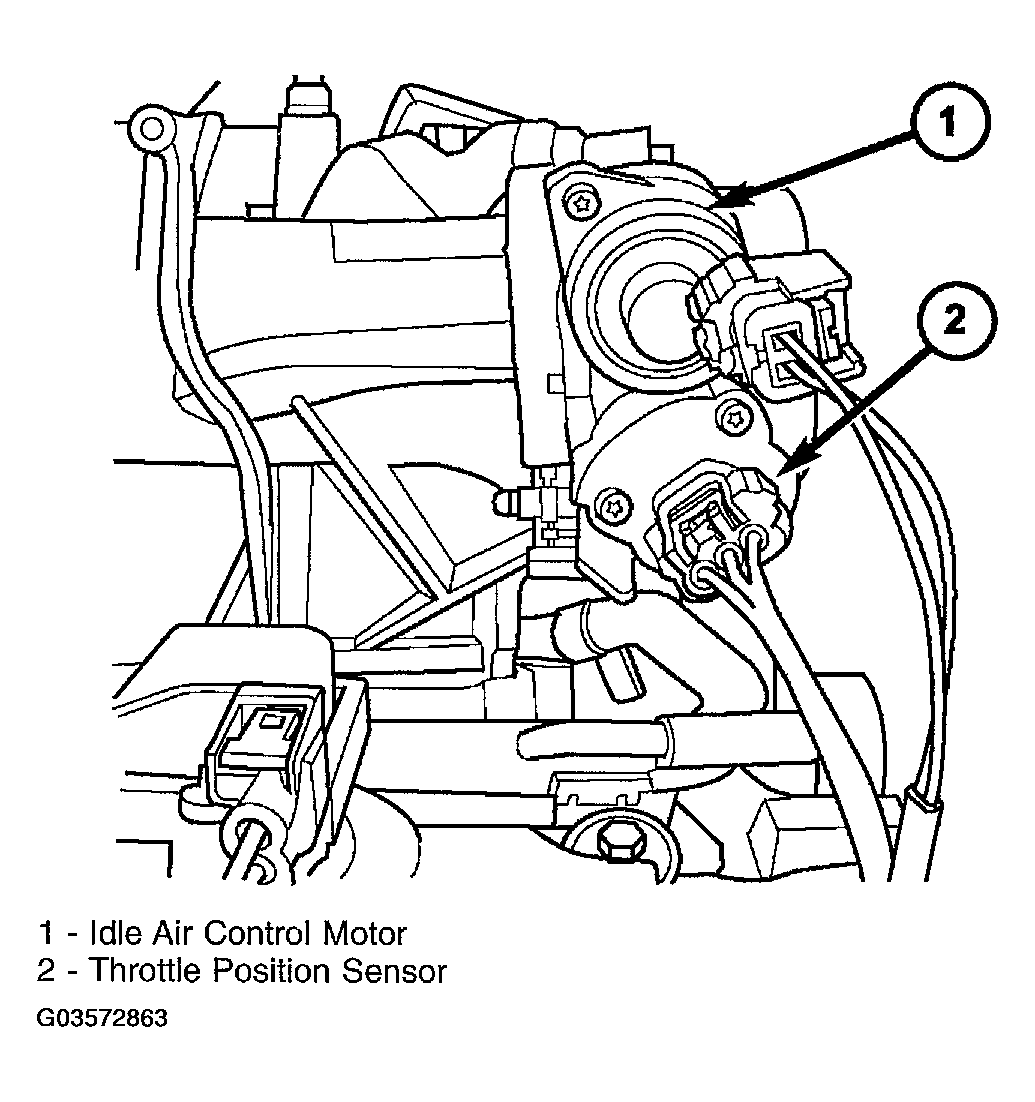

    Fig 1: Identifying TPS & IAC
    G03572863Courtesy of DAIMLERCHRYSLER CORP.
