Section 452 (Power Liftgate System): Hinge: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Use a suitable body sealer on the hinge to body mating surfaces prior to installation.
- If necessary, paint replacement hinge before installation.
- Place hinge in position on vehicle.
- Align hinge to marks on liftgate.

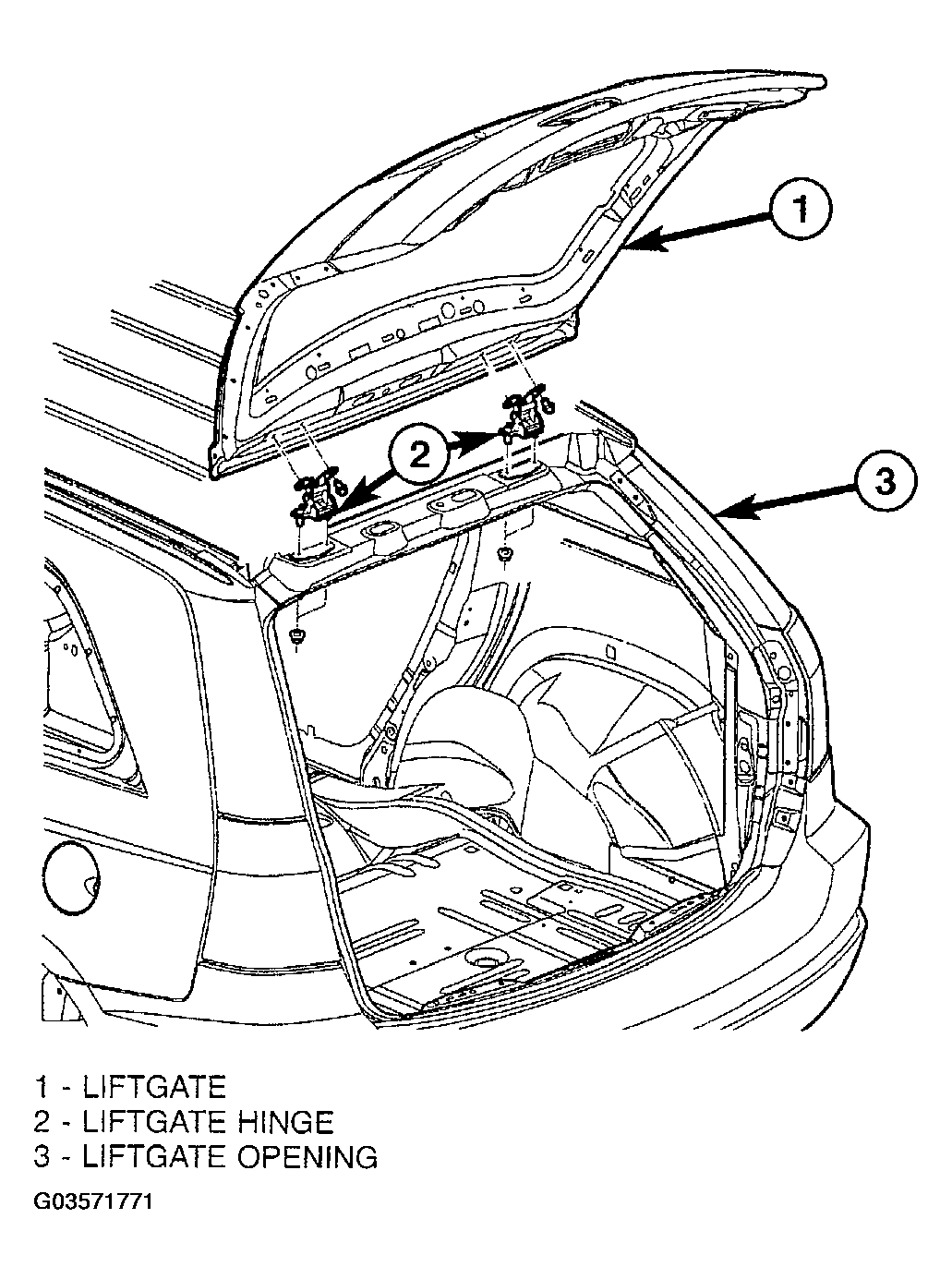

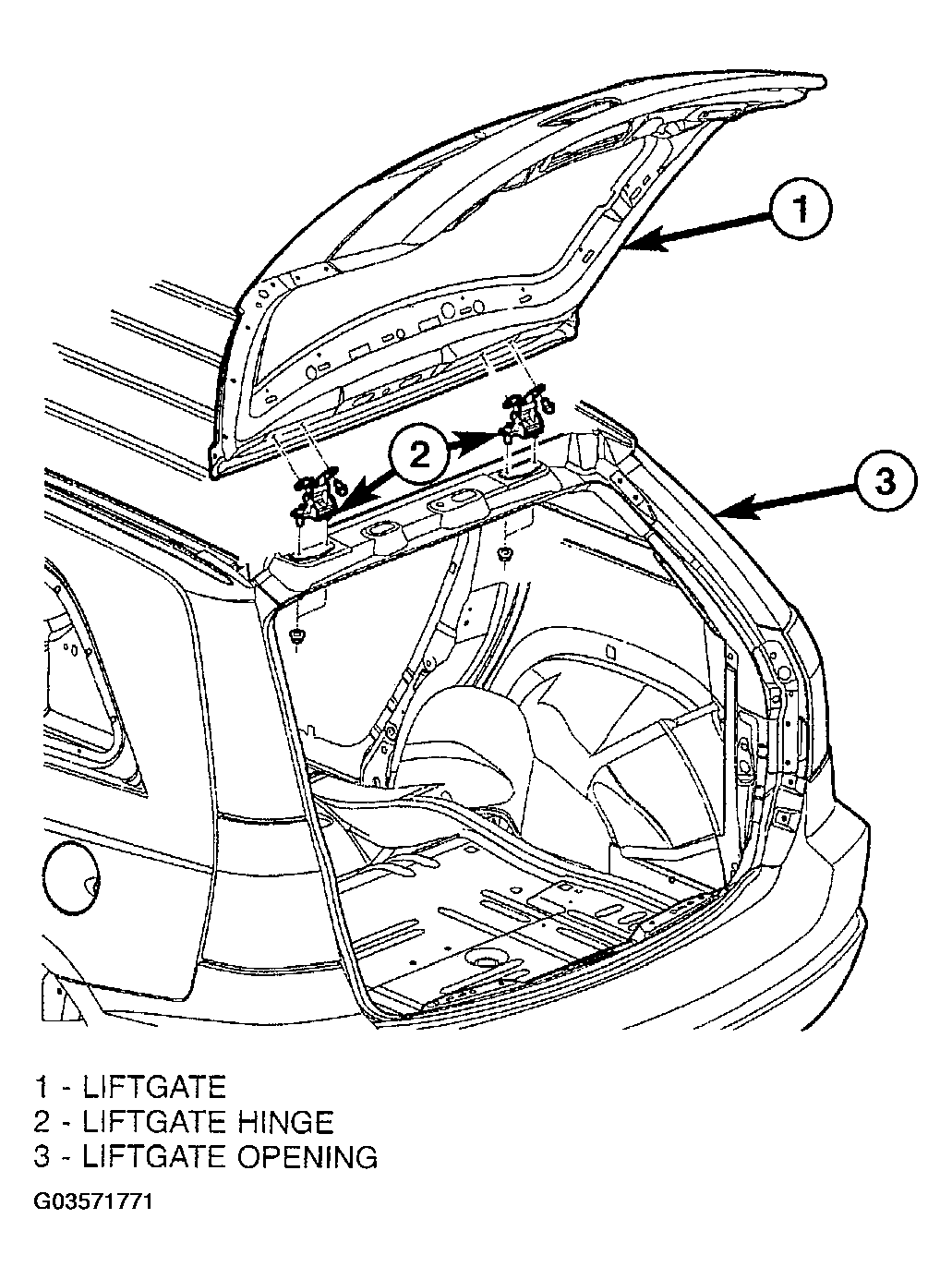

- Install bolts attaching hinge to liftgate (Figure ). Tighten bolts to 33 N.m (24 ft. lbs.) torque.
- Align hinge to marks on roof header.
- Install nuts attaching liftgate hinge to roof header. Tighten bolts to 23 N.m (17 ft. lbs.) torque.
- Verify liftgate alignment. (Refer to GAP AND FLUSH ).
