Latch Striker: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

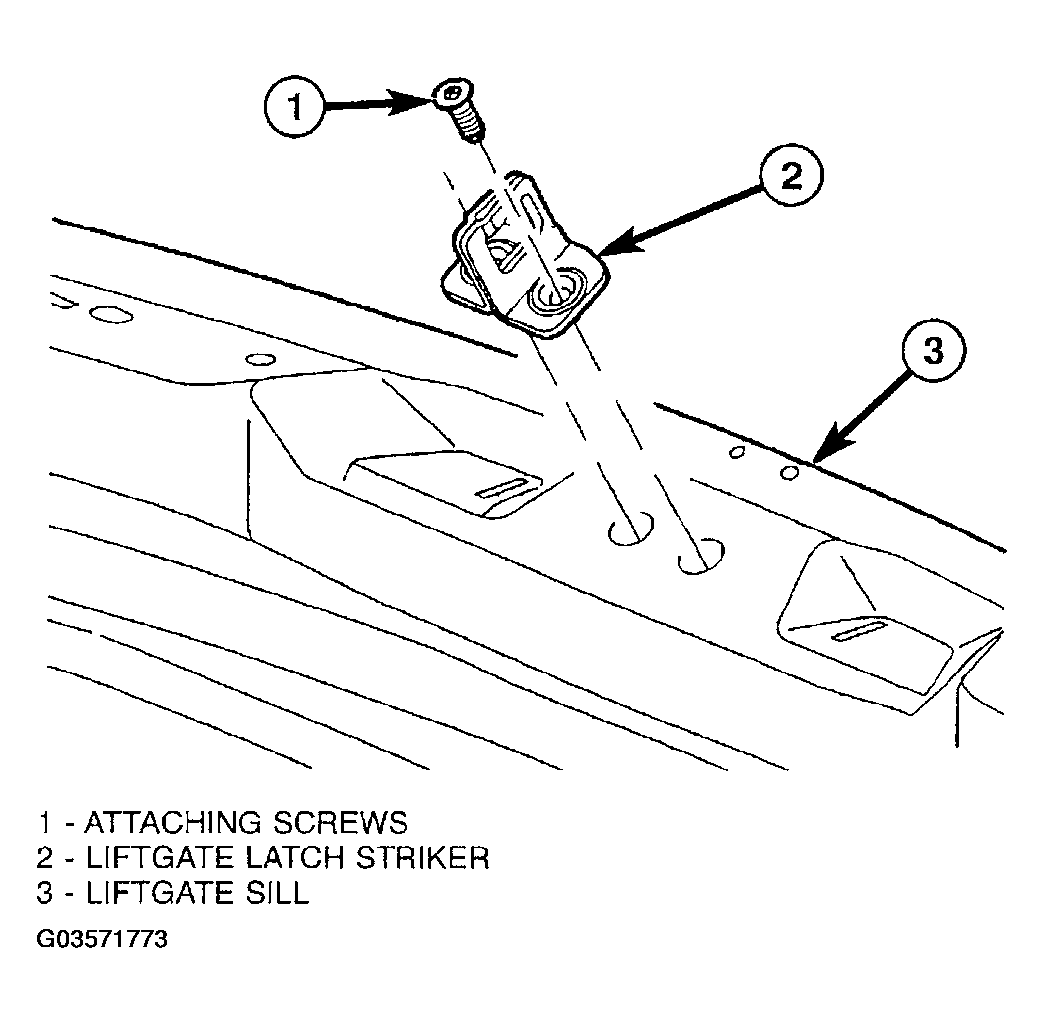

- Place striker in position on vehicle (Figure ).
- Align striker to outline mark on sill.
- Install screws attaching striker to sill. Tighten screws to 28 N.m (21 ft. lbs.) torque.
- Verify liftgate alignment and operation.
- Install liftgate sill scuff plate. (Refer to L1FTGATE SILL SCUFF PLATE ),
