Outside Handle: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

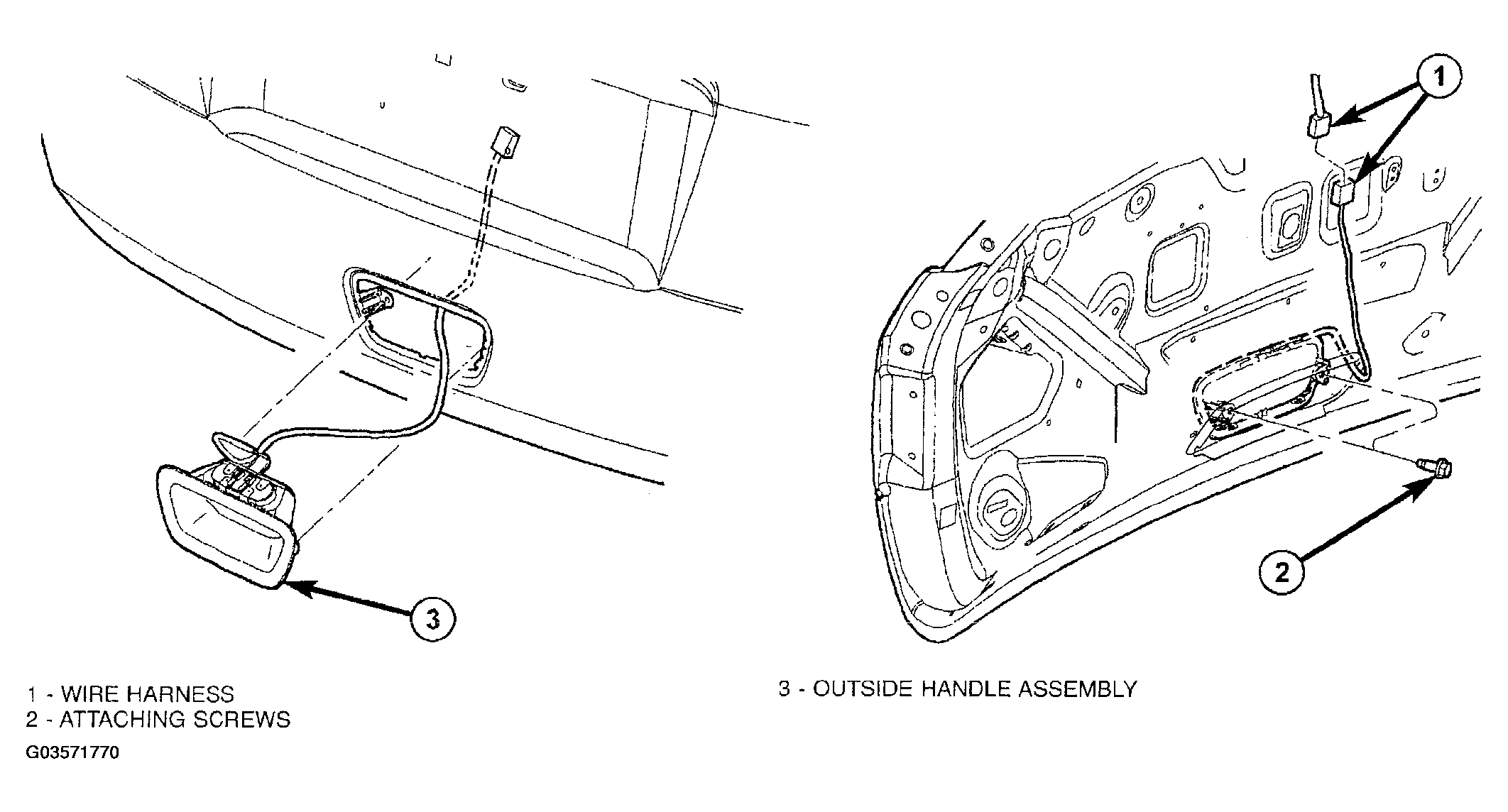

  1. Route the exterior handle electrical connector through the door and position handle (Figure ).
  2. Install the two out screws liftgate handle to liftgate inner panel. Tighten screws to 8 N.m (80 in. lbs.).
  3. Connect the electrical connector.
  4. Install the trim panel. (Refer to TRIM PANEL  ).
