Prop Rod Assembly: Removal
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Open the liftgate and support.

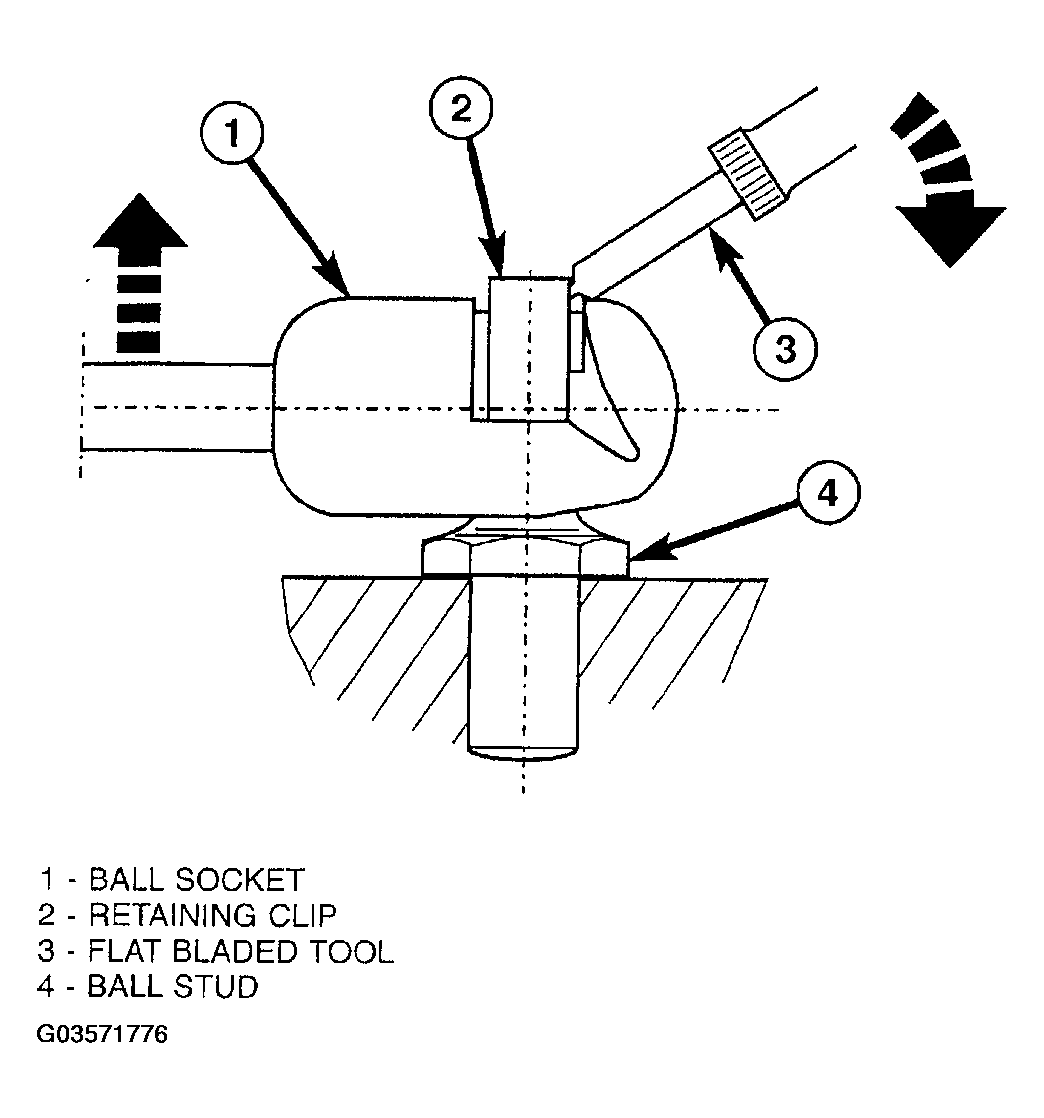

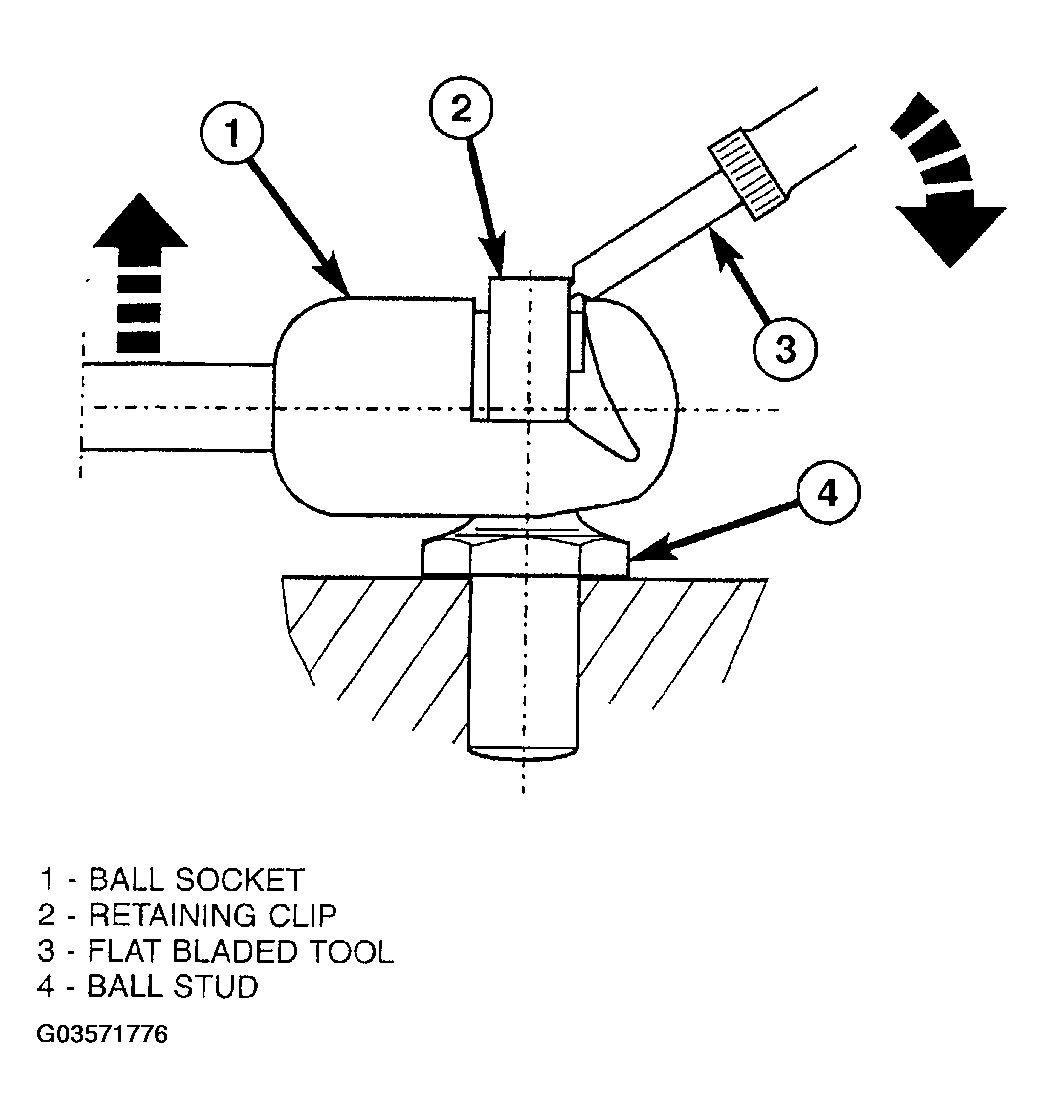

- Using a small flat bladed tool, or equivalent, release the retaining clips while pulling the ball socket away from the ball stud. (Fig 1
)
NOTE:

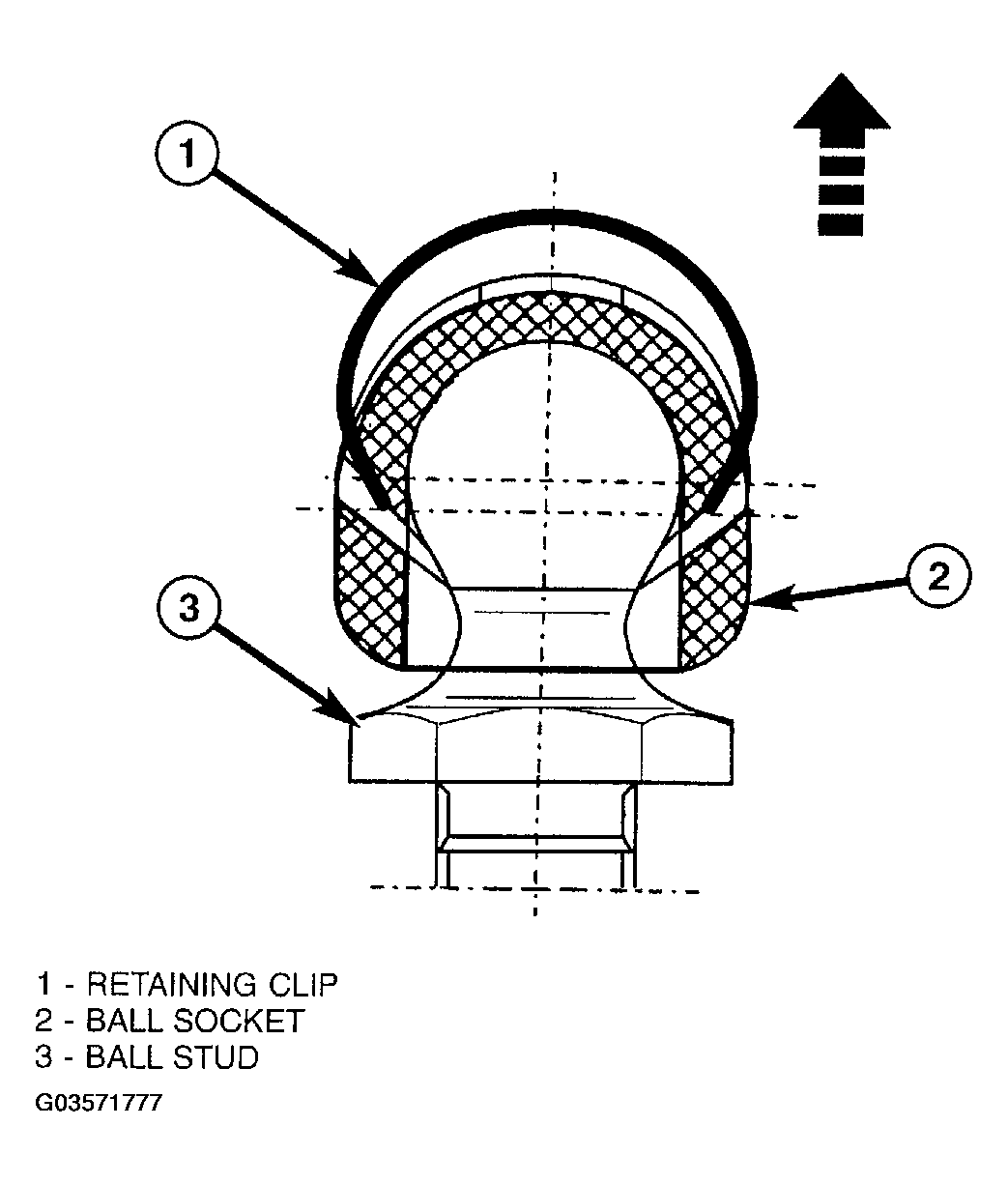

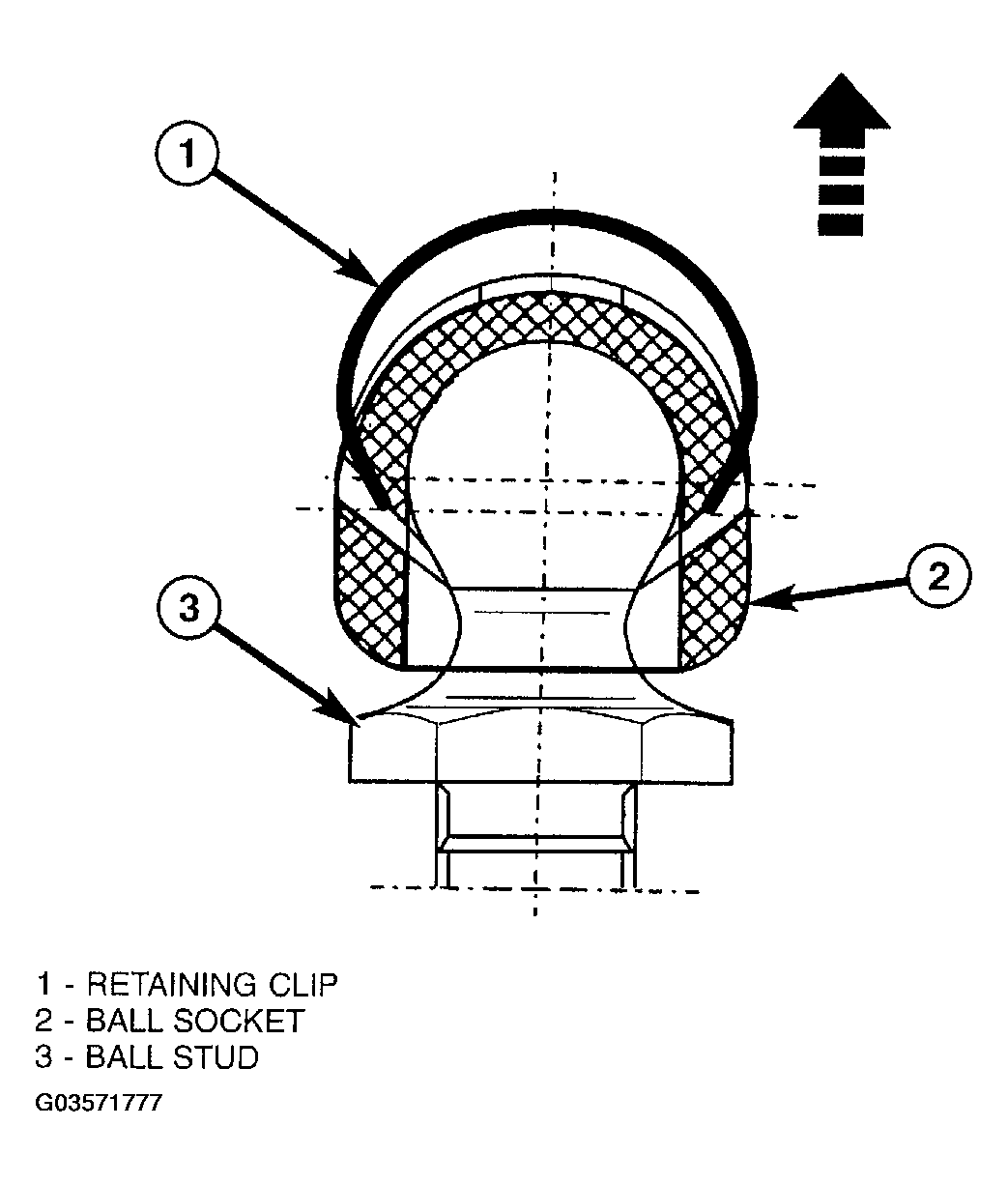

Lift the clips only enough to release the ball studs. (Fig 2
)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the support cylinder.
