Telltale Lamp ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.
SEE: COMPONENTS

REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE REPLACEMENT )
REMOVE TELLTALE LAMP ASSY
1. Disconnect the connector.
2. Disengage the 2 claws and then remove the telltale lamp assy.

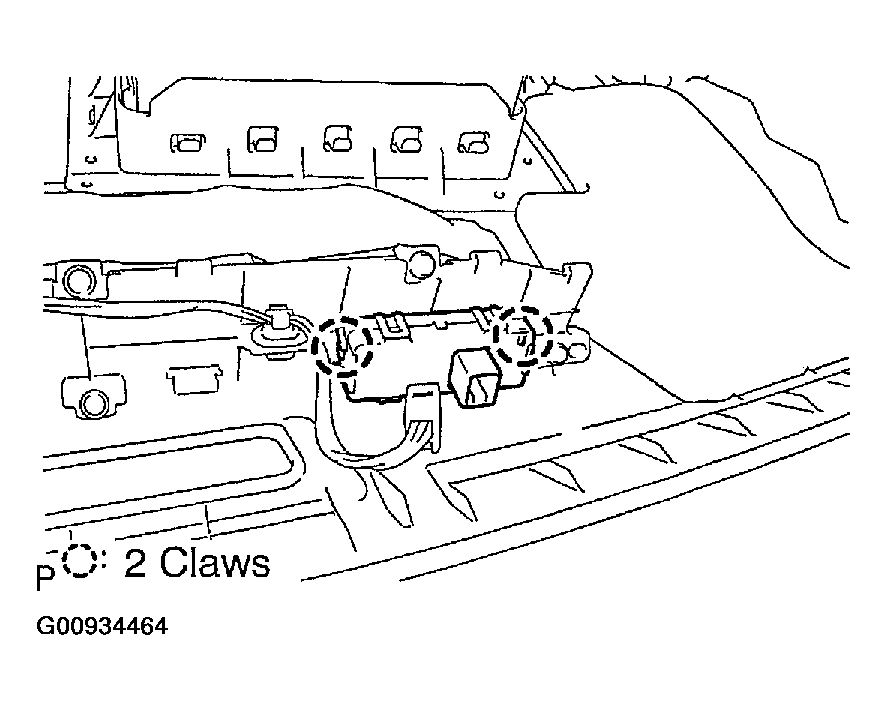

Fig 1: Removing Telltale Lamp Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE REPLACEMENT )
