Speed Sensor: Replacement

REMOVE BATTERY
REMOVE AIR CLEANER ASSY
REMOVE AIR CLEANER HOSE NO.1
REMOVE SPEED SENSOR (NT SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

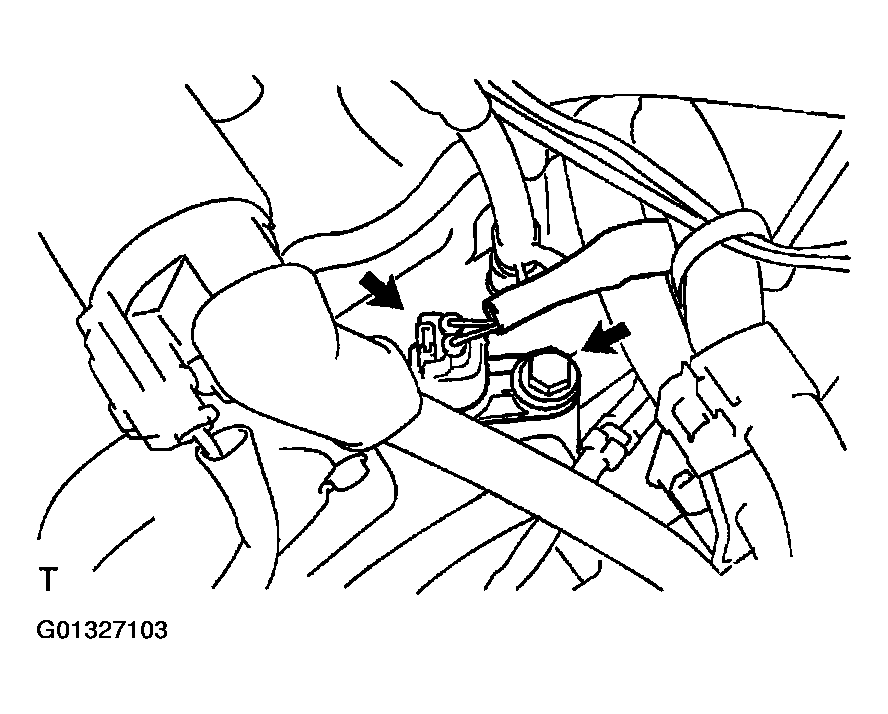

  Fig 1: Disconnecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SPEED SENSOR (NC SENSOR)
1. Disconnect the speed sensor connector.
2. Remove the bolt and speed sensor.

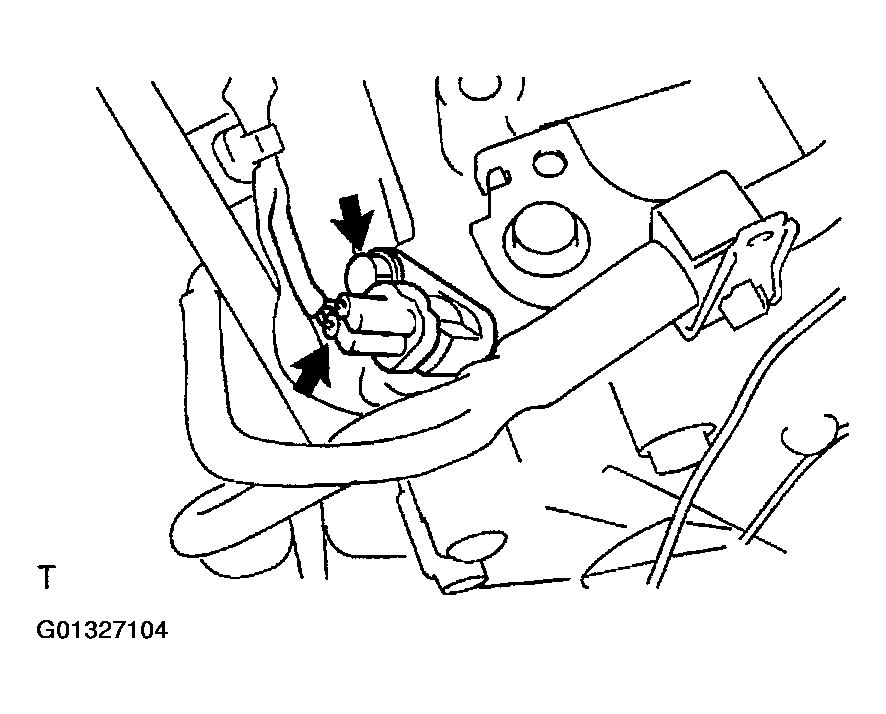

  Fig 2: Removing Speed Sensor (NC Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR (NC SENSOR)
1. Coat O-ring with ATF.
2. Install the speed sensor with the bolt.
  1. Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)
  HINT:

  Make sure of the manufacturer's name.
3. Connect the speed sensor connector.

  Fig 3: Installing Speed Sensor (NC Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR (NT SENSOR)
1. Coat O-ring with ATF.
2. Install the speed sensor with the bolt.
  1. Torque: 11.3 N.m (115 kgf.cm, 8 ft.lbf)
  HINT:

  Make sure of the manufacturer's name.
3. Connect the speed sensor connector.

  Fig 4: Installing Speed Sensor (NT Sensor)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER HOSE NO.1
INSTALL AIR CLEANER ASSY
1. Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)
INSTALL BATTERY
