Floor Shift ASSY: Overhaul

NOTE: For steps 1-11 (See REPLACEMENT )
  1. REMOVE FRONT DOOR SCUFF PLATE LH
  2. REMOVE FRONT DOOR SCUFF PLATE RH
  3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
  4. REMOVE INSTRUMENT PANEL SUB-ASSY LOWER
  5. REMOVE INSTRUMENT PANEL SUB-ASSY UPPER
  6. REMOVE INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH
  7. REMOVE CONSOLE BOX ASSY
  8. REMOVE CONSOLE BOX CARPET
  9. REMOVE CONSOLE BOX ASSY
  10. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
  11. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
  12. REMOVE AIR DUCT REAR NO.1 (See  HEATER & AIR CONDITIONER  )
  13. REMOVE AIR DUCT REAR NO.2 (See  HEATER & AIR CONDITIONER  )
  14. REMOVE CONSOLE BOX DUCT NO.1 (See  HEATER & AIR CONDITIONER  )
  15. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Disconnect the parking lock cable end from the lever pin of the floor shift assembly.

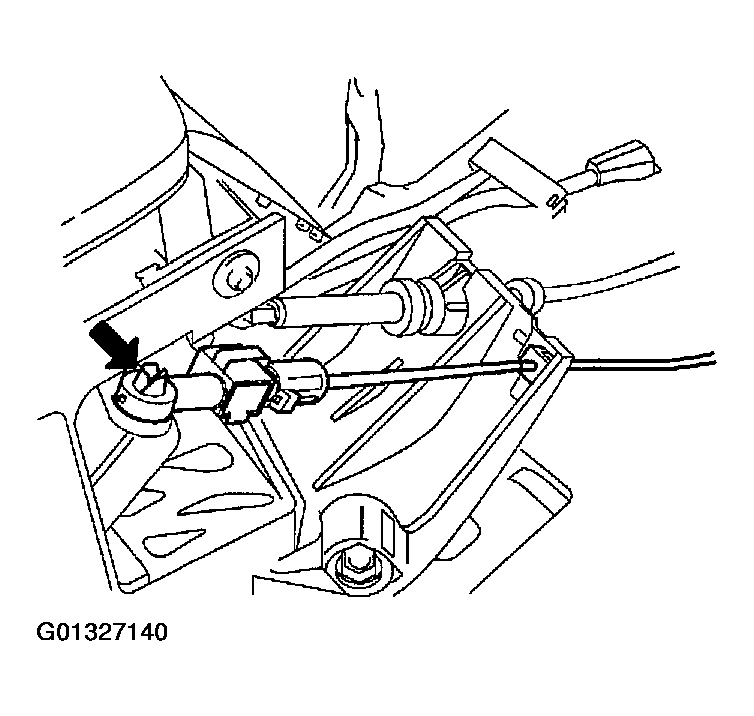

      Fig 1: Disconnecting Parking Lock Cable End From Lever Pin Of Floor Shift Assembly
      G01327140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, disconnect the parking lock cable from the floor shift assembly and clamp.
    3. Disconnect the cable clamp.

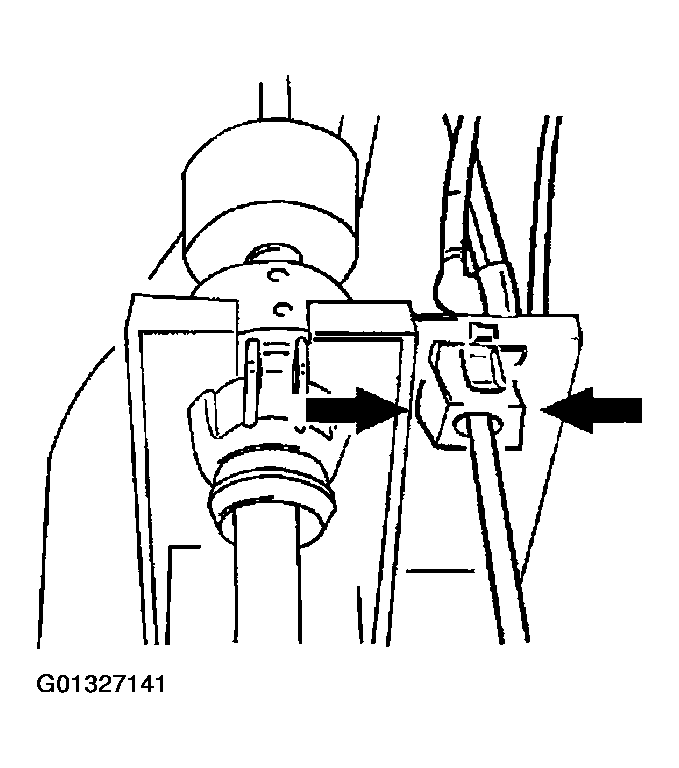

      Fig 2: Disconnecting Parking Lock Cable From Floor Shift Assembly And Clamp
      G01327141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. DISCONNECT FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
    1. Disconnect the floor shift transmission control cable from the rod of the floor shift assy.

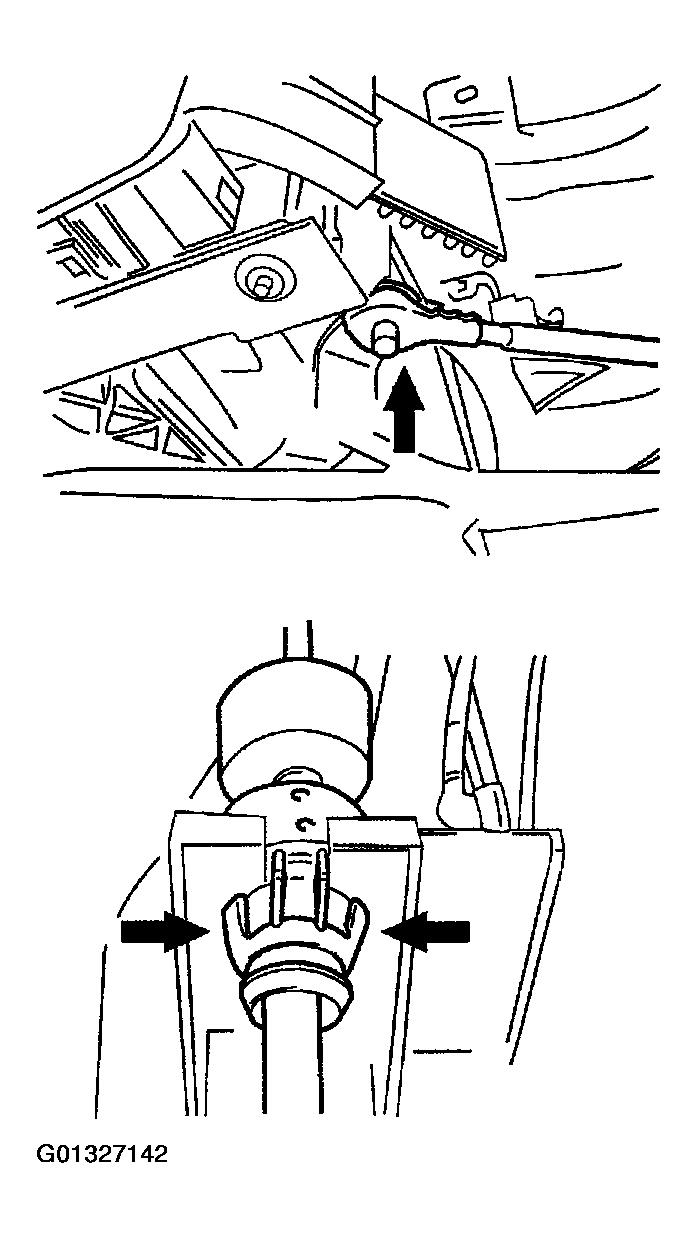

      Fig 3: Disconnecting Floor Shift Transmission Control Cable Assy
      G01327142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FLOOR SHIFT ASSY
    1. Disconnect the shift lock control computer connector.
    2. Disconnect the indicator lamp wire connector.
    3. Remove the 4 bolts and transmission floor shift assy.

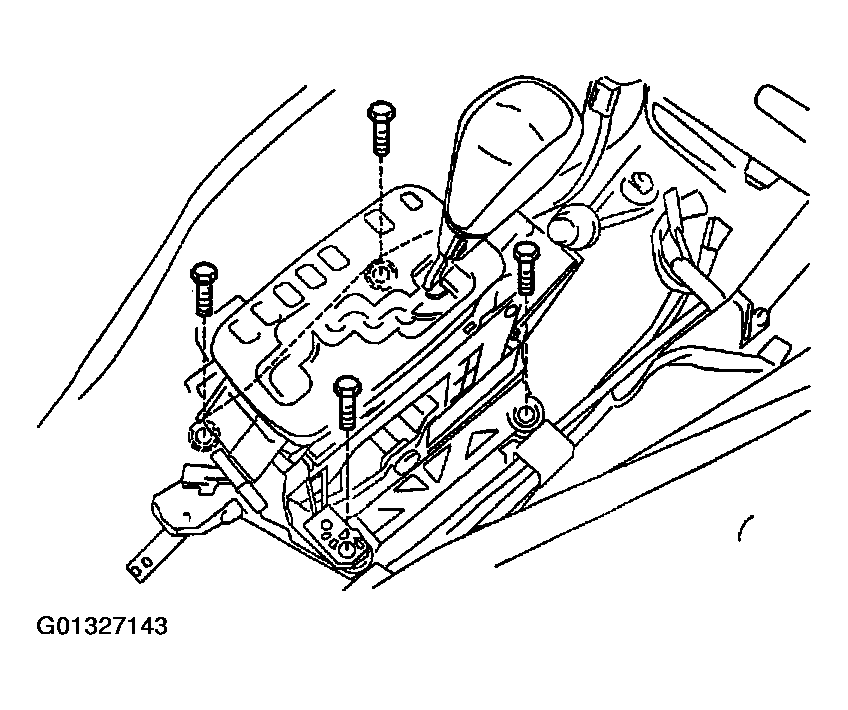

      Fig 4: Removing Floor Shift Assy
      G01327143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY
    1. Remove the floor shift lever knob from the shift lever.

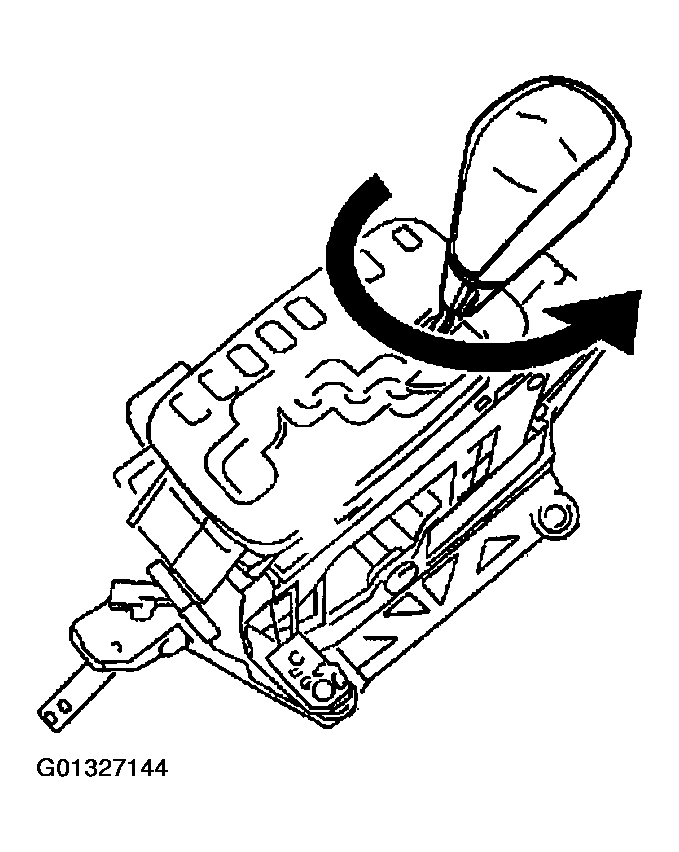

      Fig 5: Removing Floor Shift Lever Knob Sub-Assy
      G01327144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSY
    1. Disconnect the wire harness from the clamp.

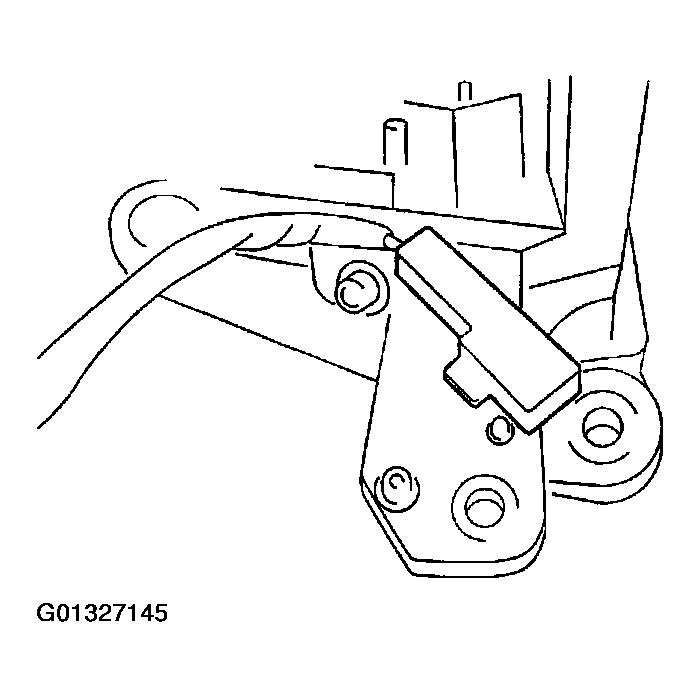

      Fig 6: Disconnecting Wire Harness From Clamp
      G01327145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, release the 4 claws and remove the position indicator housing.

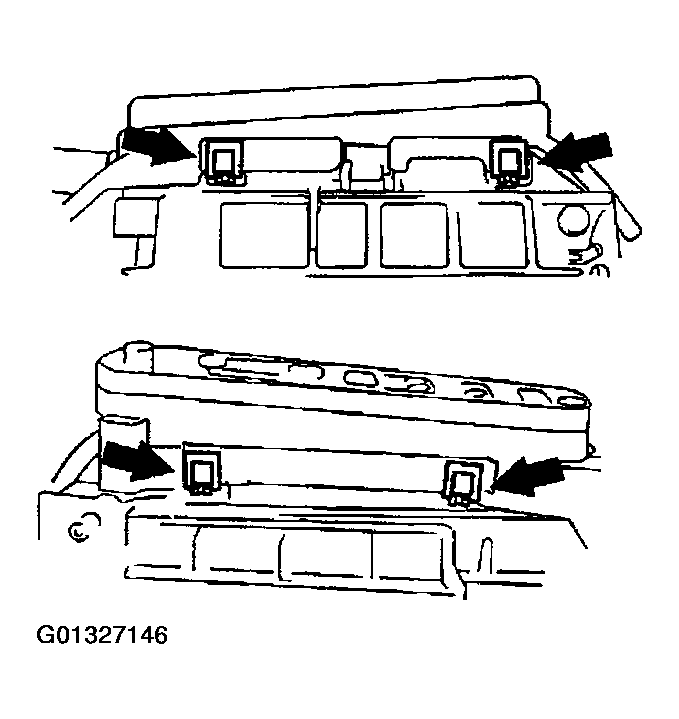

      Fig 7: Removing Position Indicator Housing
      G01327146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE POSITION INDICATOR LIGHT GUIDE
    1. Using a screwdriver, release the 4 claws and remove the position indicator light guide.

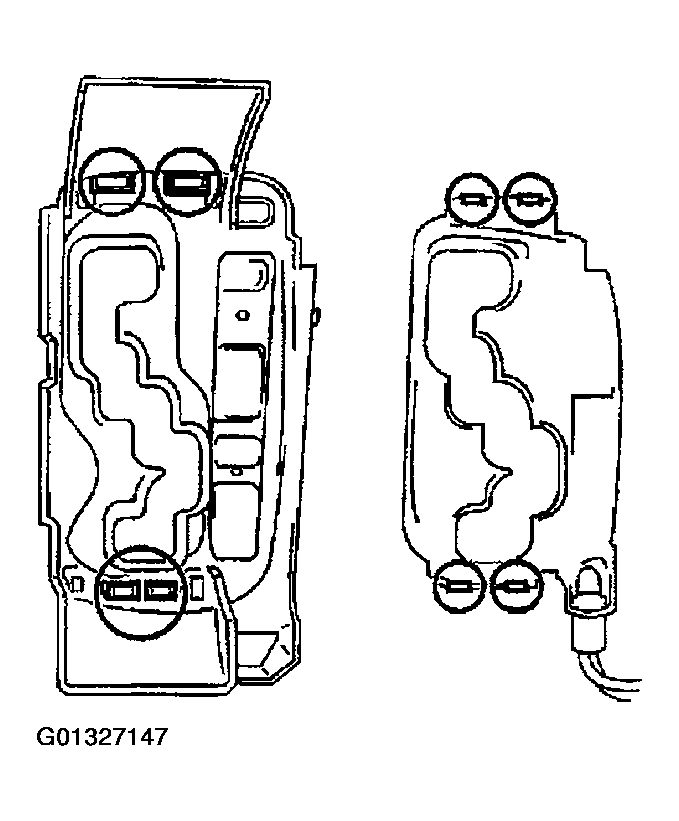

      Fig 8: Removing Position Indicator Light Guide
      G01327147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE INDICATOR LAMP WIRE SUB-ASSY
    1. Remove the indicator lamp wire from the position indicator light guide.

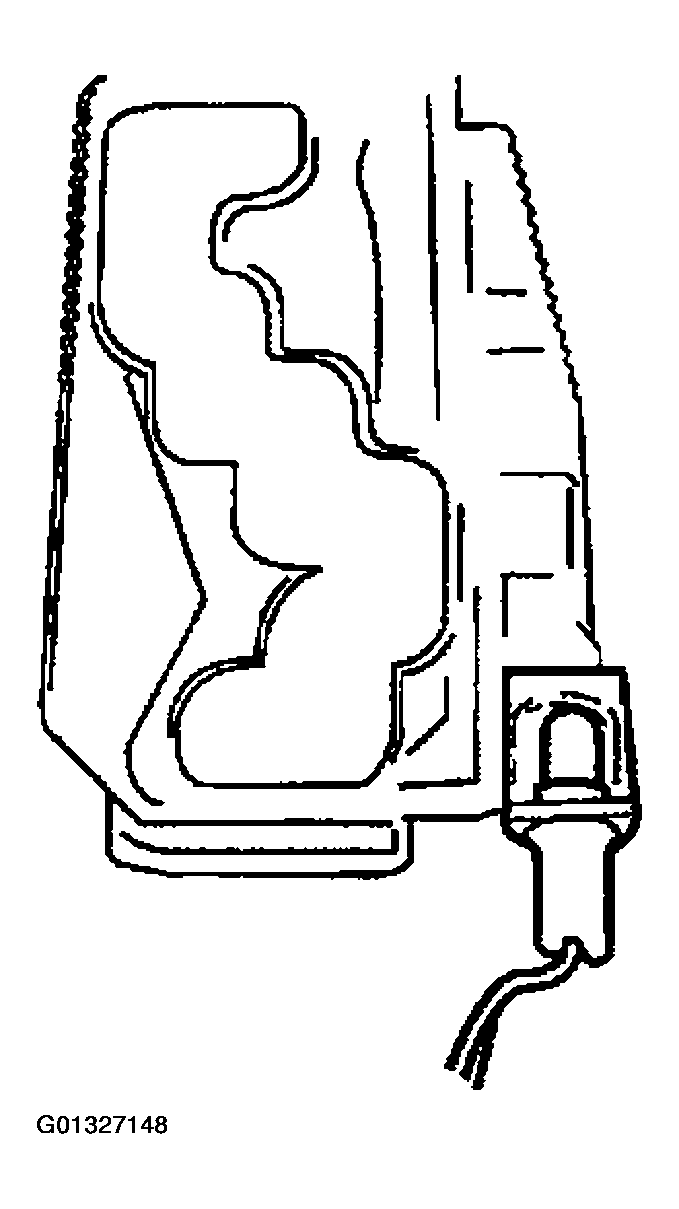

      Fig 9: Removing Indicator Lamp Wire Sub-Assy
      G01327148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE FLOOR SHIFT POSITION INDICATOR LAMP CAP
    1. Remove the floor shift position indicator lamp cap from the floor shift position indicator lamp bulb.
  23. REMOVE FLOOR SHIFT POSITION INDICATOR LAMP BULB
    1. Remove the floor shift position indicator lamp bulb from the indicator lamp wire.
  24. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    1. Using a screwdriver, remove the shift lock release button cover.

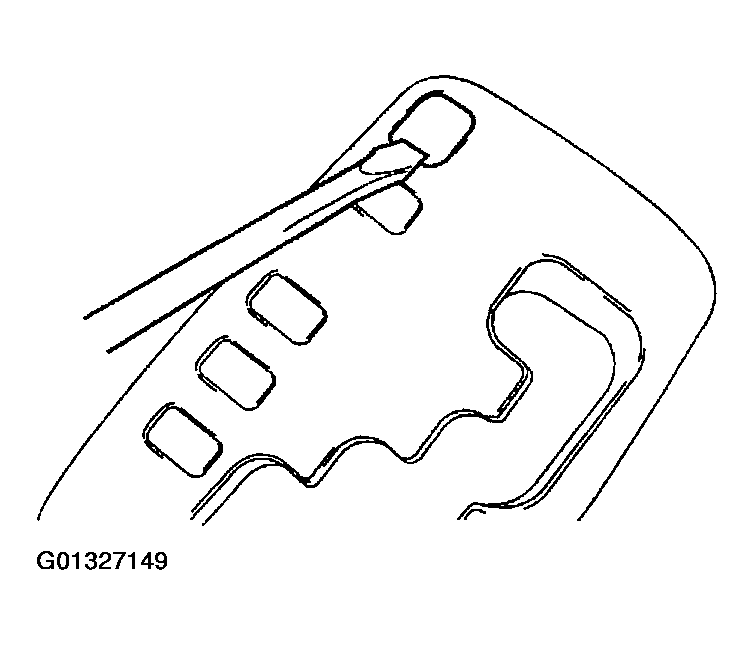

      Fig 10: Removing Shift Lock Release Button Cover
      G01327149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover from the shift lever.

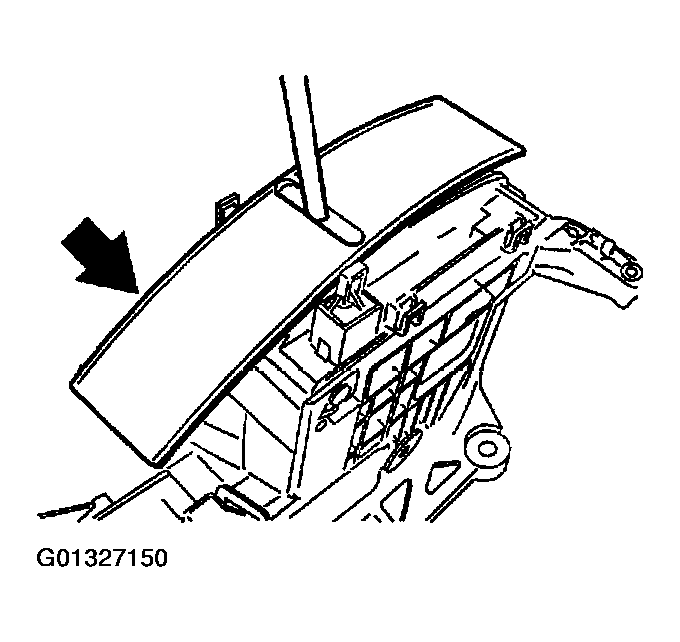

      Fig 11: Removing Position Indicator Slide Cover
      G01327150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover from the position indicator slide cover.

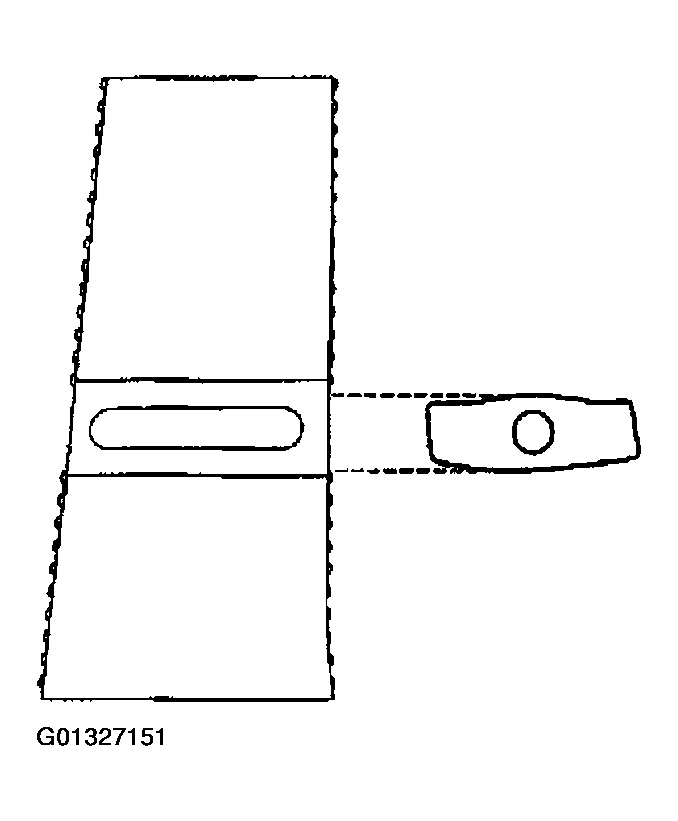

      Fig 12: Removing Position Indicator Slide Cover
      G01327151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE SHIFT LOCK RELEASE BUTTON
    1. While pressing the 2 claws, remove the shift lock release button and shift lock release spring.

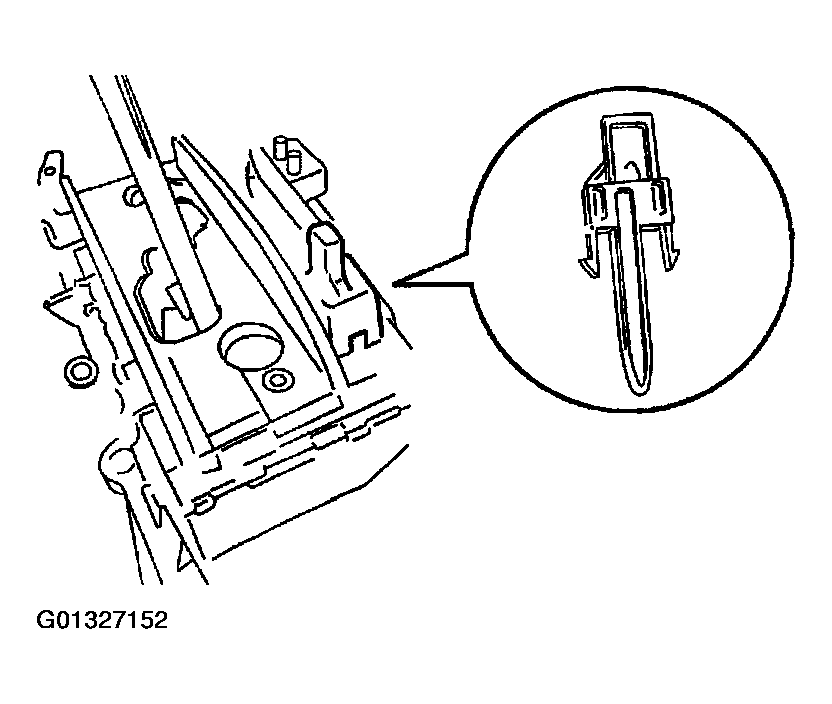

      Fig 13: Removing Shift Lock Release Button
      G01327152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL SHIFT LOCK RELEASE BUTTON
    1. Apply MP grease to the shift lock release spring and shift lock release button.
    2. Install the shift lock release button and shift lock release spring to the shift lever.

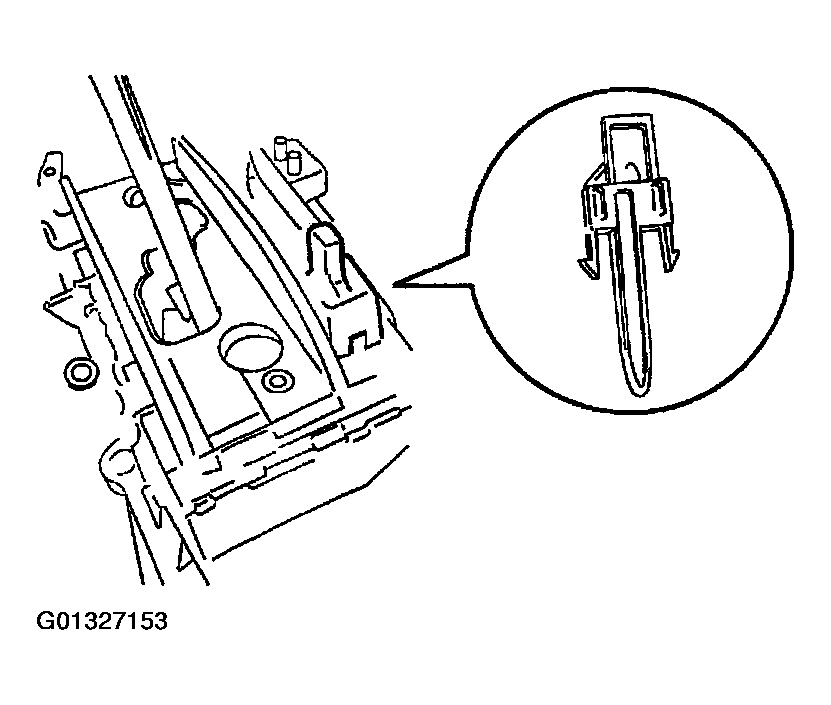

      Fig 14: Installing Shift Lock Release Button
      G01327153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover to the position indicator slide cover.

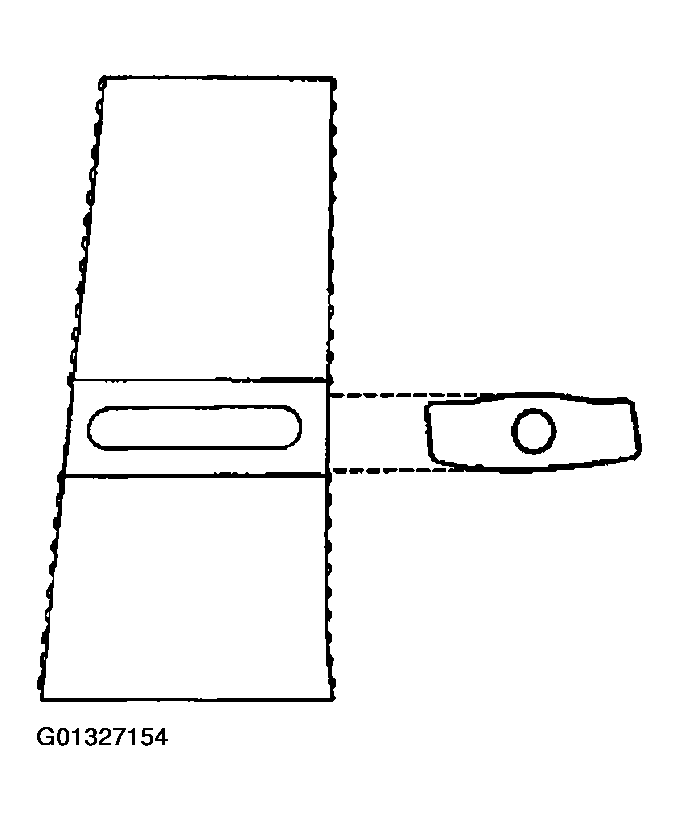

      Fig 15: Installing Position Indicator Slide Cover
      G01327154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover to the shift lever.

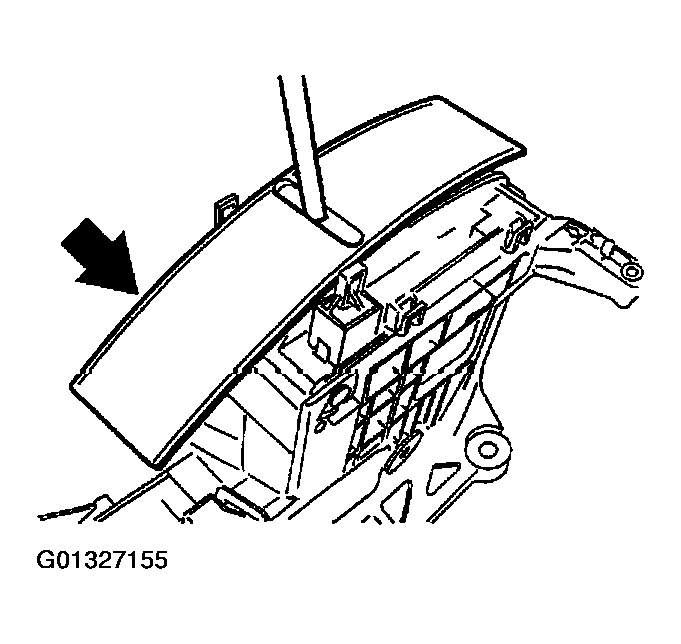

      Fig 16: Installing Position Indicator Slide Cover
      G01327155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FLOOR SHIFT POSITION INDICATOR LAMP BULB
    1. Install the floor shift position indicator lamp bulb to the indicator lamp wire.
  32. INSTALL FLOOR SHIFT POSITION INDICATOR LAMP CAP
    1. Install the floor shift position indicator lamp cap to the floor shift position indicator lamp bulb.
  33. INSTALL INDICATOR LAMP WIRE SUB-ASSY
    1. Install the indicator lamp wire to the position indicator light guide.

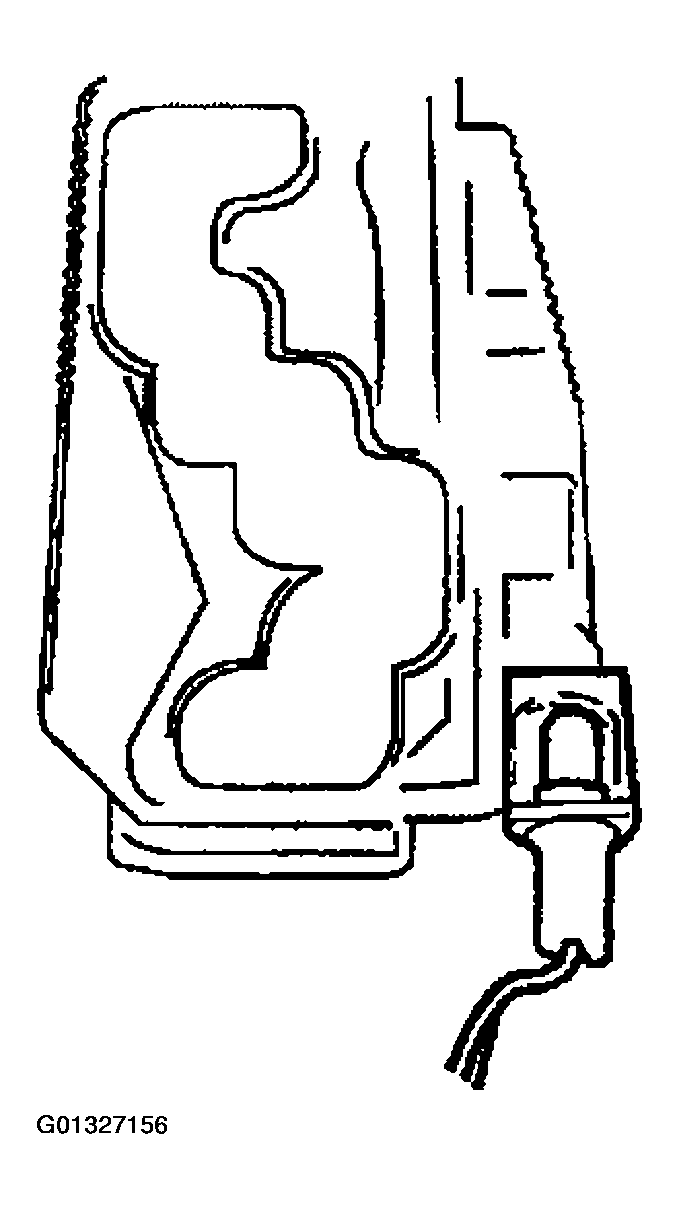

      Fig 17: Installing Indicator Lamp Wire Sub-Assy
      G01327156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL POSITION INDICATOR LIGHT GUIDE
    1. Install the position indicator light guide to the floor shift position indicator housing.

      HINT:

      Fit the claws securely.

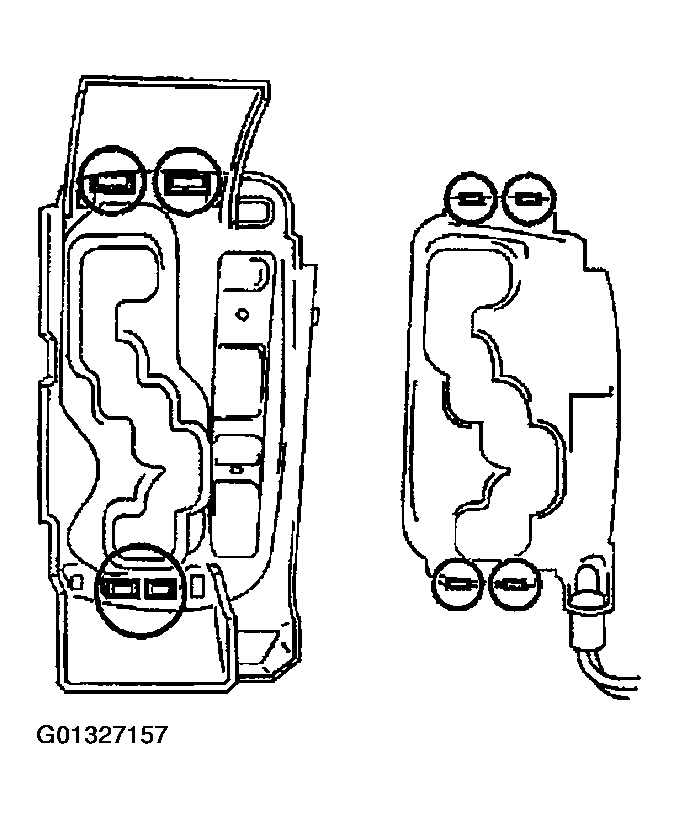

      Fig 18: Installing Position Indicator Light Guide
      G01327157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSY
    1. Install the floor shift position indicator housing to the shift lever.

      HINT:

      Fit the claws securely.

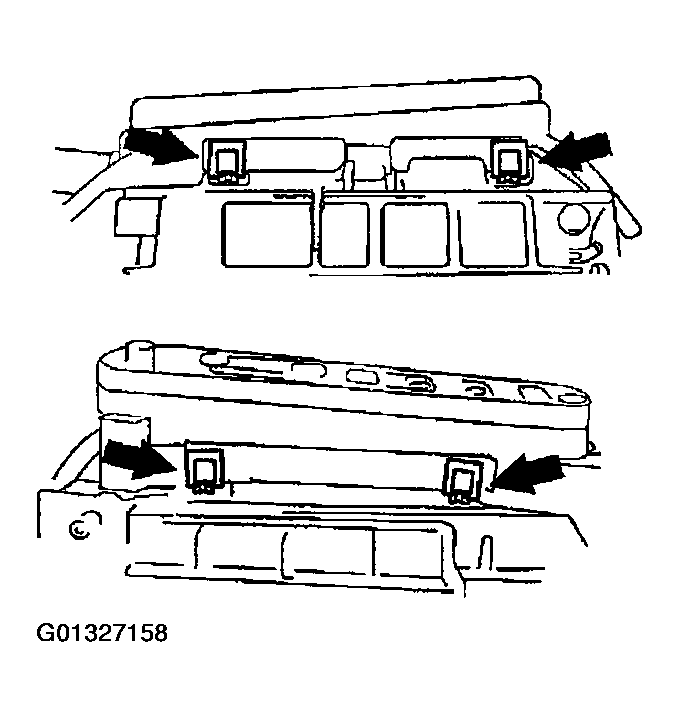

      Fig 19: Installing Floor Shift Position Indicator Housing Sub-Assy
      G01327158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL SHIFT LOCK RELEASE BUTTON COVER
    1. Install the shift lock release button cover to the position indicator housing.

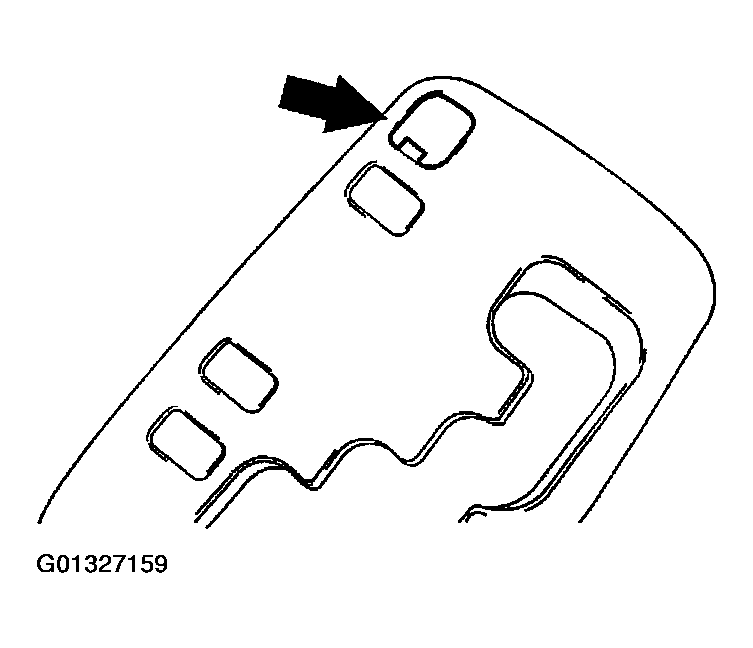

      Fig 20: Installing Shift Lock Release Button Cover
      G01327159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSY
    1. Install the floor shift lever knob to the shift lever.

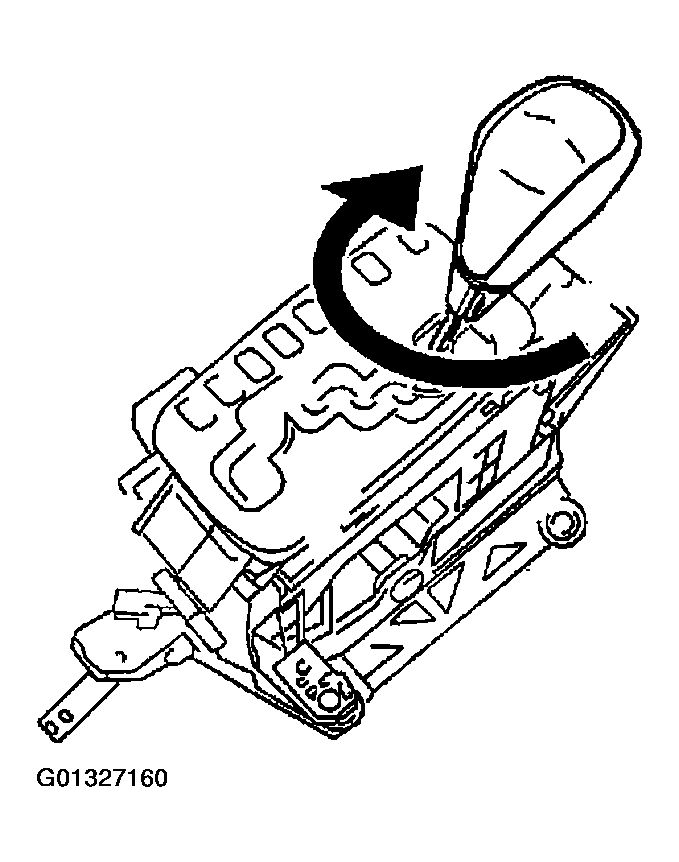

      Fig 21: Installing Floor Shift Lever Knob Sub-Assy
      G01327160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FLOOR SHIFT ASSY
    1. Install the floor shift assy to the vehicle with the 4 bolts.
      1. Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)
    2. Connect the shift lock control computer.
    3. Connect the indicator lamp wire connector.

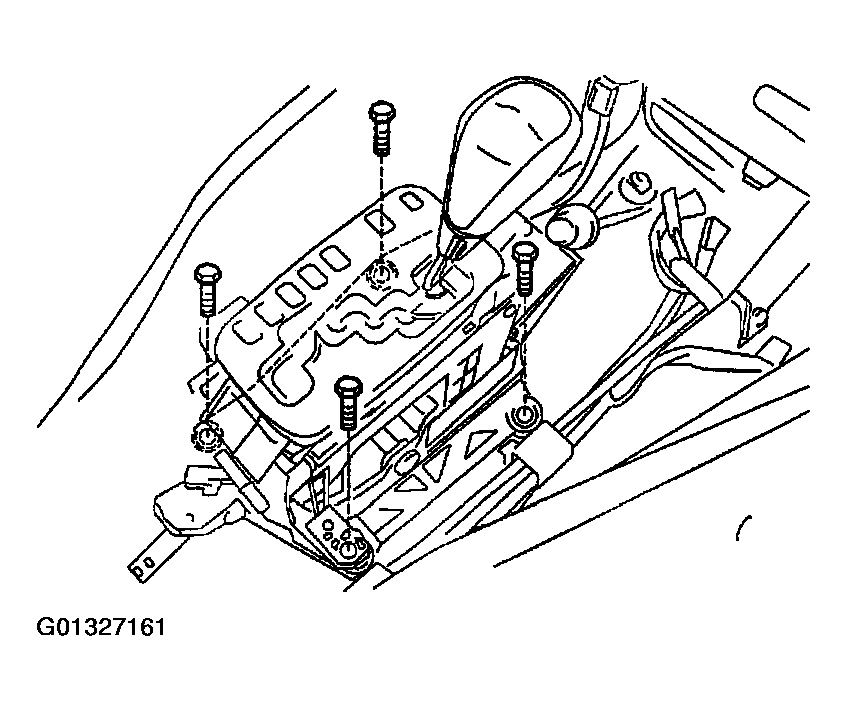

      Fig 22: Installing Floor Shift Assy
      G01327161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. INSTALL FLOOR SHIFT TRANSMISSION CONTROL CABLE ASSY
    1. Install the floor shift transmission control cable to the shift lever.

      HINT:

      Install it with the uneven surface facing up.

      Fig 23: Installing Floor Shift Transmission Control Cable Assy
      G01327162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  40. INSTALL FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Using a screwdriver, unlock the claw of the lock key of automatic adjustment part.

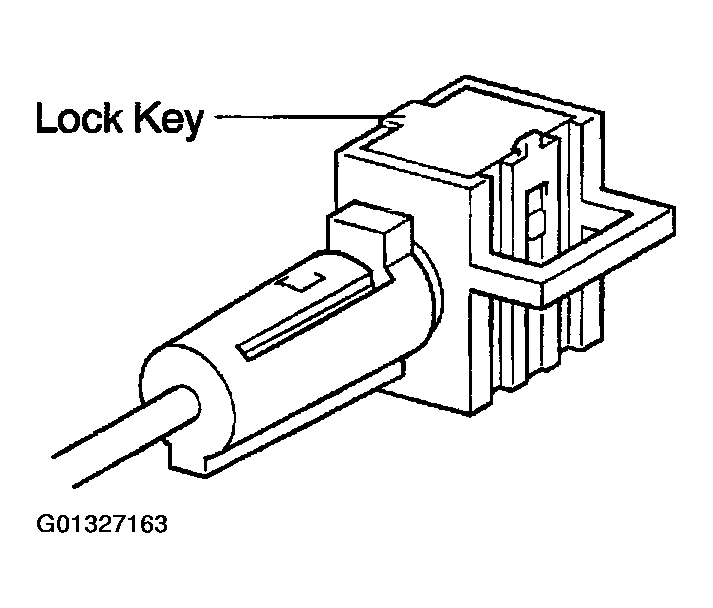

      Fig 24: Identifying Lock Key Of Automatic Adjustment Part
      G01327163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Insert the slide cap into the through hole and install.
    3. Shift the shift lever to P position and turn the ignition switch to Lock.

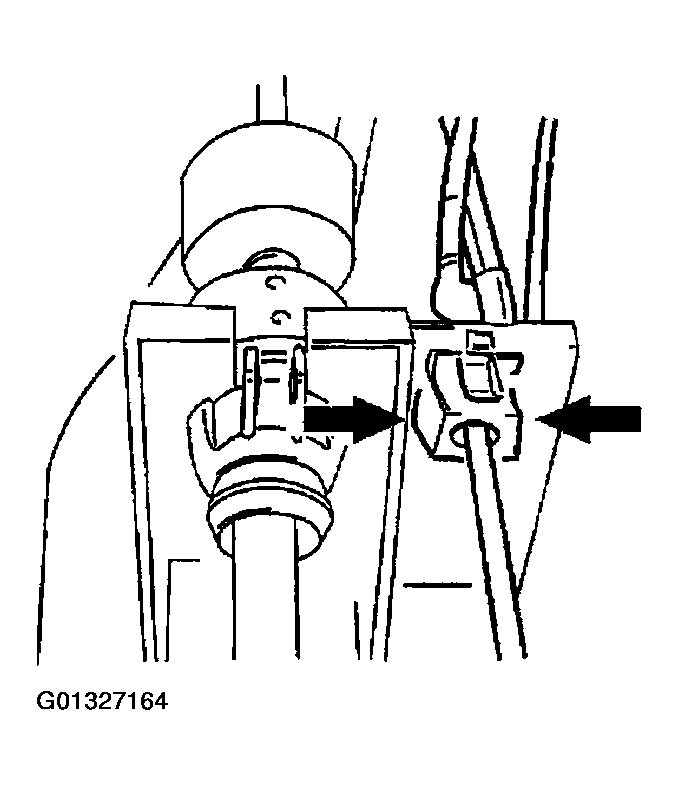

      Fig 25: Installing Slide Cap
      G01327164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Insert the lever pin into the hole of the parking lock cable.

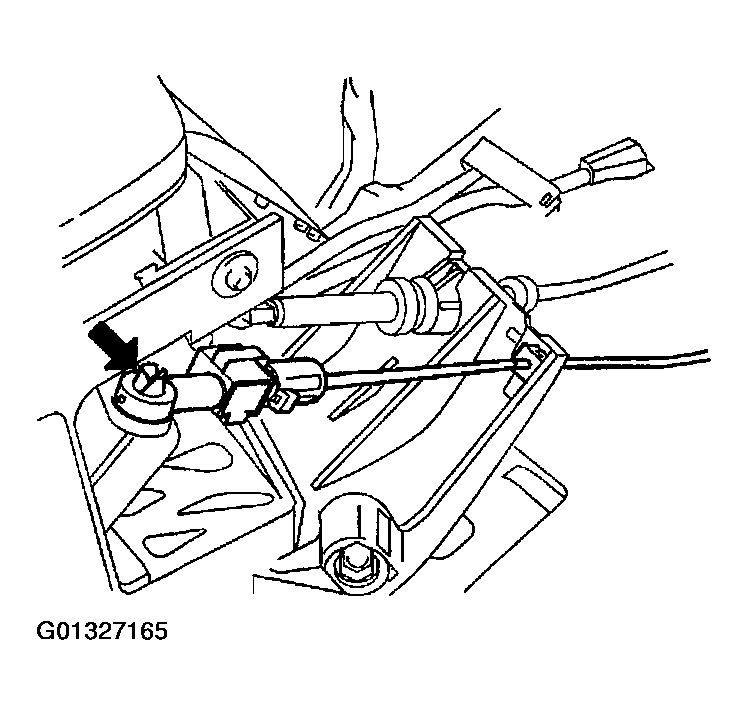

      Fig 26: Inserting Lever Pin Into Hole Of Parking Lock Cable
      G01327165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Lock the lock key.

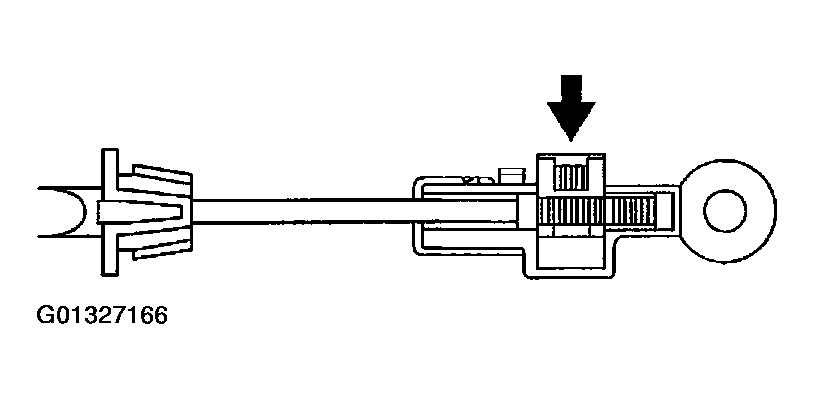

      Fig 27: Locking Lock Key
      G01327166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL BATTERY
  42. ADJUST SHIFT LEVER POSITION (See  ADJUSTMENT   )
  43. INSPECT SHIFT LEVER POSITION (See  ADJUSTMENT   )
  44. INSPECT CHECK KEY INTERLOCK OPERATION (See  SHIFT LOCK SYSTEM   )
  45. INSPECT CHECK SHIFT LOCK OPERATION (See  SHIFT LOCK SYSTEM   )
  46. INSPECT CHECK SHIFT LOCK RELEASE BUTTON OPERATION (See  SHIFT LOCK SYSTEM   )
  47. INSTALL CONSOLE BOX DUCT NO.1
  48. INSTALL AIR DUCT REAR NO.2
  49. INSTALL AIR DUCT REAR NO.1
  50. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
  51. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
  52. INSTALL CONSOLE BOX ASSY
  53. INSTALL CONSOLE BOX CARPET
  54. INSTALL CONSOLE PANEL UPPER REAR
  55. INSTALL INSTRUMENT PANEL INSERT SUB-ASSY LOWER LH
  56. INSTALL INSTRUMENT PANEL SUB-ASSY UPPER
  57. INSTALL INSTRUMENT PANEL SUB-ASSY LOWER
  58. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO.1
  59. INSTALL FRONT DOOR SCUFF PLATE RH
  60. INSTALL FRONT DOOR SCUFF PLATE LH
