Check Pattern Select Switch

PREPARATION:

Disconnect the pattern select switch connector.

CHECK:

Check continuity between each terminal of pattern select switch connector when the select switch is set to PWR, NORM and SNOW positions.

OK:

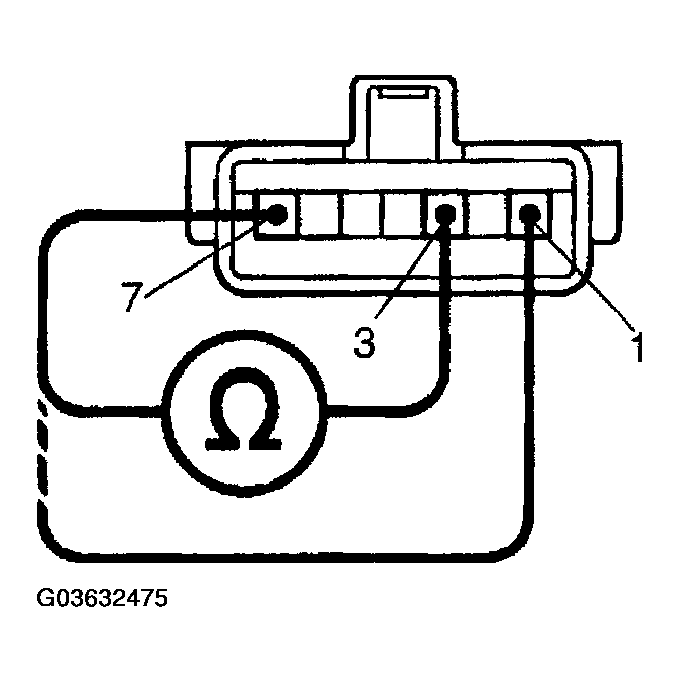

Fig 1: Checking Continuity Between Each Terminal Of Pattern Select Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the continuity is not as specified, replace the switch.

1. NG: Replace pattern select switch.
2. OK: Go  CHECK HARNESS AND CONNECTOR BETWEEN PATTERN SELECT SWITCH AND BODY ECU NO. 1, PATTERN SELECT SWITCH AND BODY GROUND   .
