TAIWAN Models:

INSPECT ELECTRICAL RETRACT MOTOR OPERATION

1. When folded front position:
   1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror operates at retract position.
   2. Reverse the polarity, check that the mirror does not operate.

   If operation is not as specified, replace the mirror assembly.

2. Between folded front position and driving position:
   1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror operates at retract position.
   2. Reverse the polarity, check that the mirror operate at folded front position.

   If operation is not as specified, replace the mirror assembly.

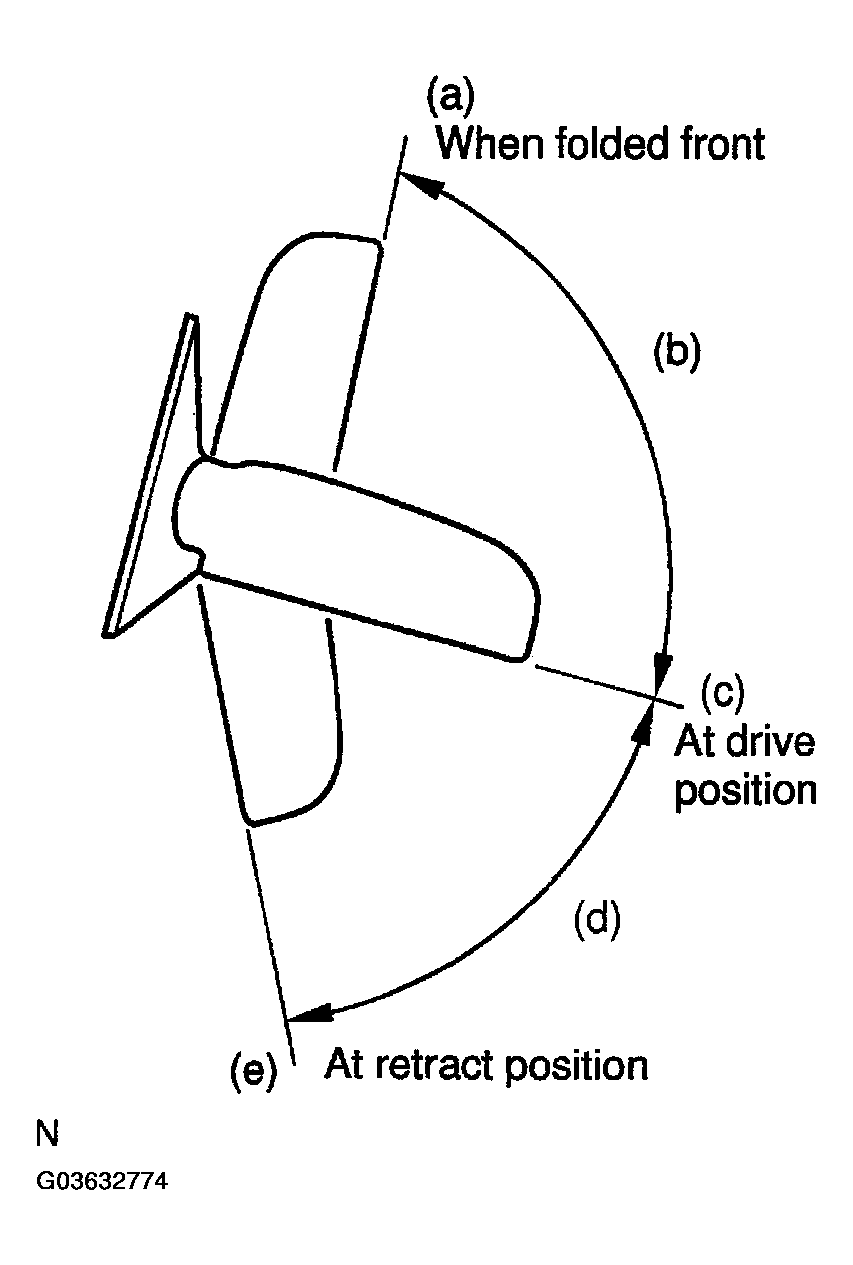

   Fig 1: Inspecting Electrical Retract Motor Operation (TAIWAN)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. When driving position:
   1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror operates at retract position.
   2. Reverse the polarity, check that the mirror does not operate.

   If operation is not as specified, replace the mirror assembly.

4. Between driving position and retract position:
   1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror operates at retract position.
   2. Reverse the polarity, check that the mirror operate at return position (Stopping at driving position).

   If operation is not as specified, replace the mirror assembly.

5. When retract position:
   1. Connect the positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, check that the mirror does not operates.
   2. Reverse the polarity, check that the mirror operate at return position (Stopping at driving position).

   If operation is not as specified, replace the mirror assembly.
