USA/CANADA Models:

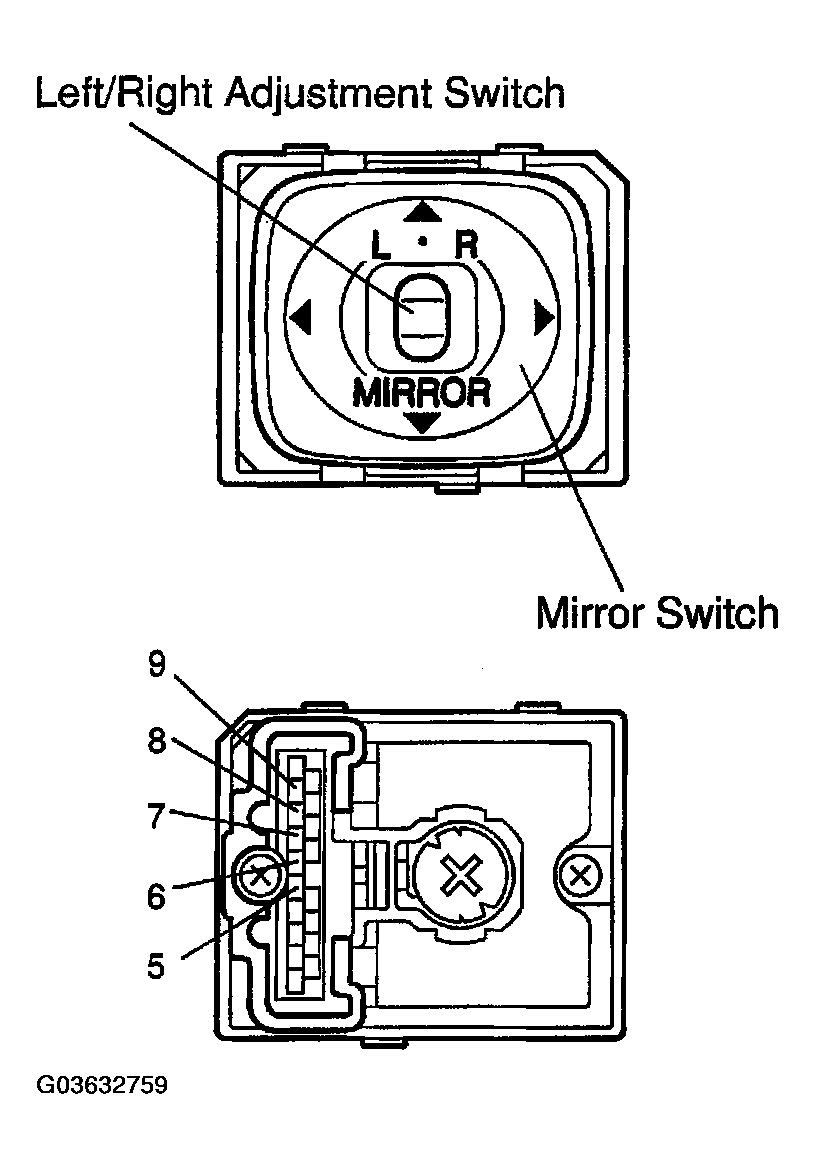

INSPECT MIRROR SWITCH CONTINUITY
MIRROR SWITCH CONTINUITY USA/CANADA (1 OF 2)
| Switch position | Tester connection | Resistance (Ω) |
|---|---|---|
| LEFT | 8-9 | 100 |
| RIGHT | 8-9 | 0 |
| Illumination | 5-6 | Continuity |
Measure resistance between terminals 7 and 9.
MIRROR SWITCH CONTINUITY USA/CANADA (2 OF 2)
| Switch position | Resistance (Ω) |
|---|---|
| UP | Approx. 100 |
| RIGHT | 250 |
| DOWN | 470 |
| LEFT | 800 |
If continuity is not as specified, replace the switch.
INSPECT MIRROR SWITCH CIRCUIT
(See MIRROR SWITCH CIRCUIT )
