W/ Driving Position Memory:

INSPECT MIRROR MOTOR OPERATION

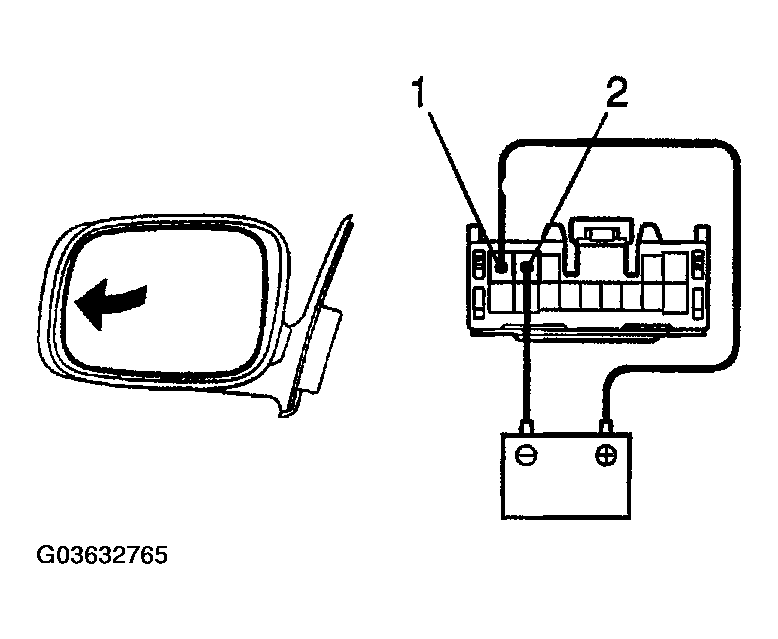

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the mirror turns to the left side.
   Fig 1: Inspecting Mirror Motor Operation (W/ Driving Position Memory) (1 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

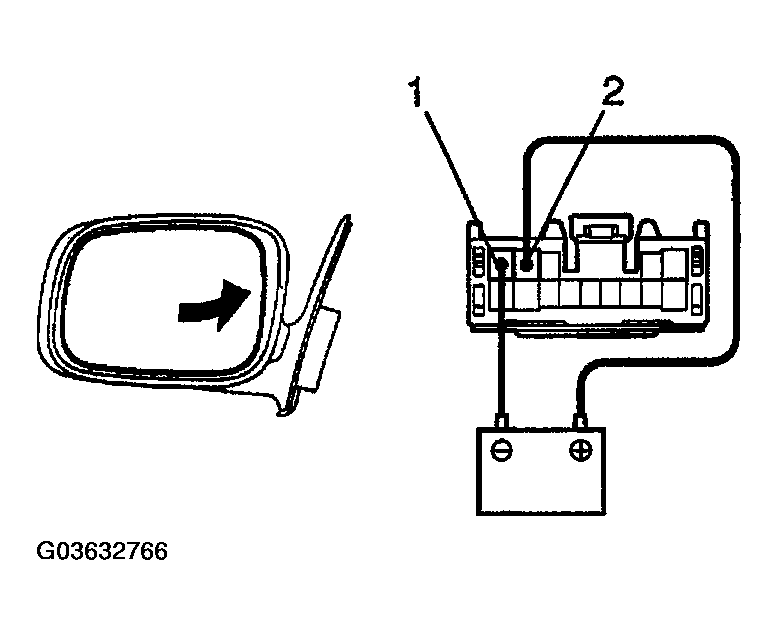

2. Reverse the polarity, and check that the mirror turns to the right side.
   Fig 2: Inspecting Mirror Motor Operation (W/ Driving Position Memory) (2 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

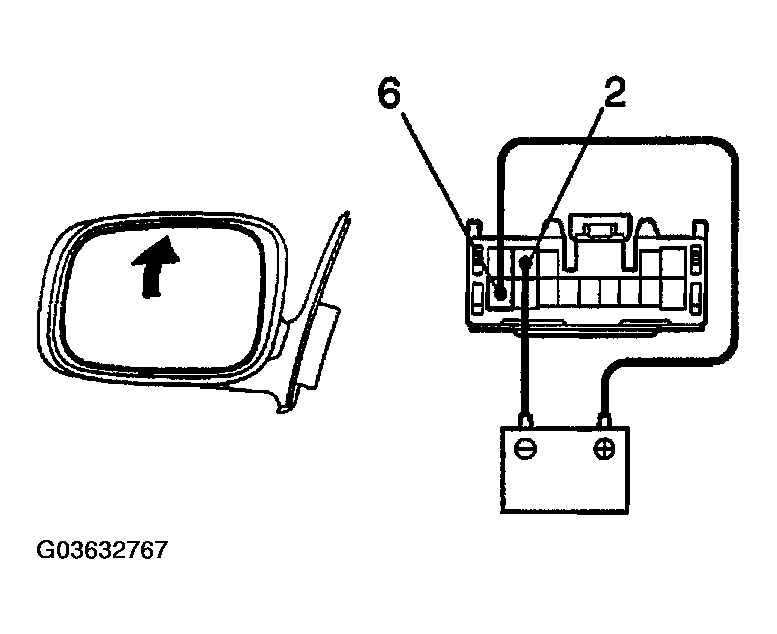

3. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2, and check that the mirror turns upward.
   Fig 3: Inspecting Mirror Motor Operation (W/ Driving Position Memory) (3 Of 3)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

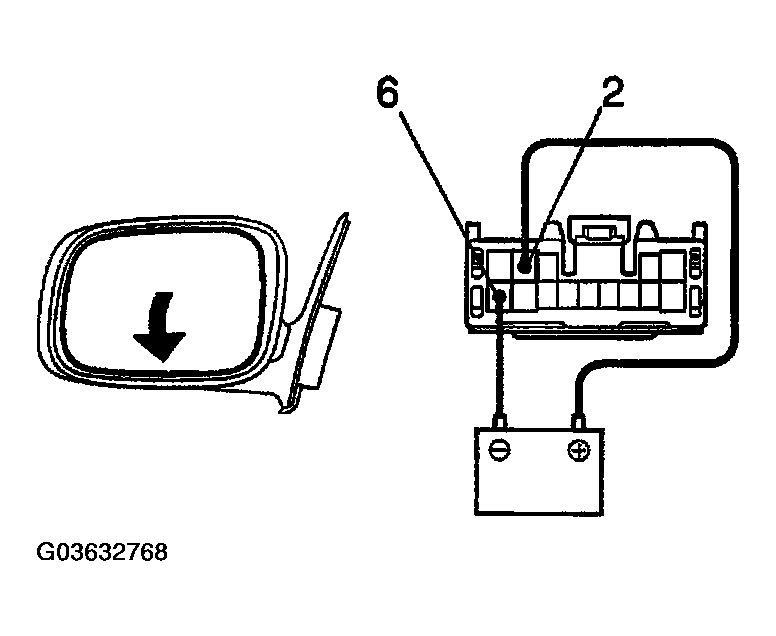

4. Reverse the polarity, and check that the mirror turns downward.

If operation is not as specified, replace the mirror assembly.

INSPECT MIRROR MOTOR CIRCUIT

Left side: (See  MIRROR MOTOR CIRCUIT  )

Right side: (See  MIRROR MOTOR CIRCUIT  )

Fig 1: Inspecting Mirror Motor Circuit (W/ Driving Position Memory)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
