Instrument Panel: Components

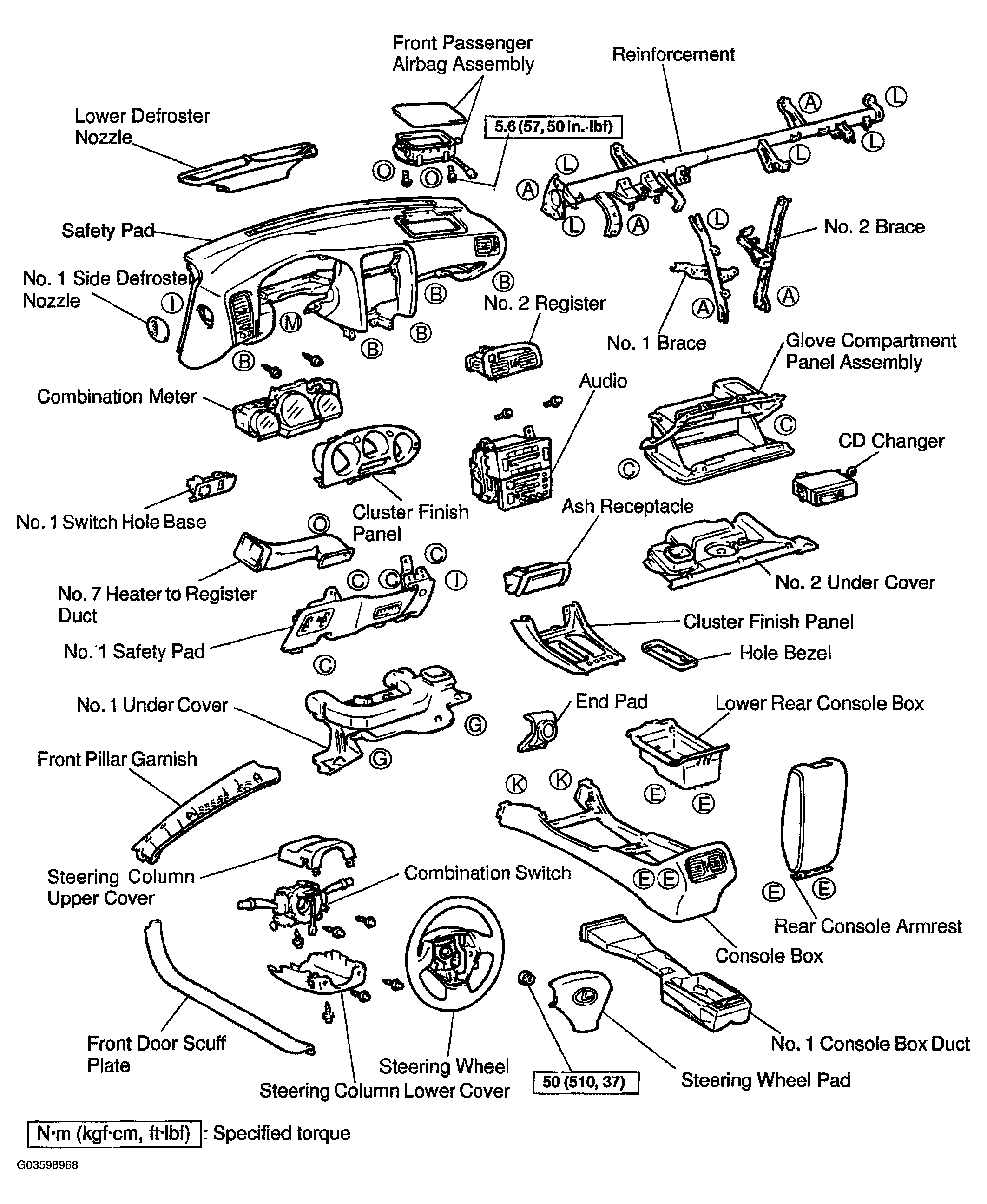

Fig 1: Exploded View Of Instrument Panel (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

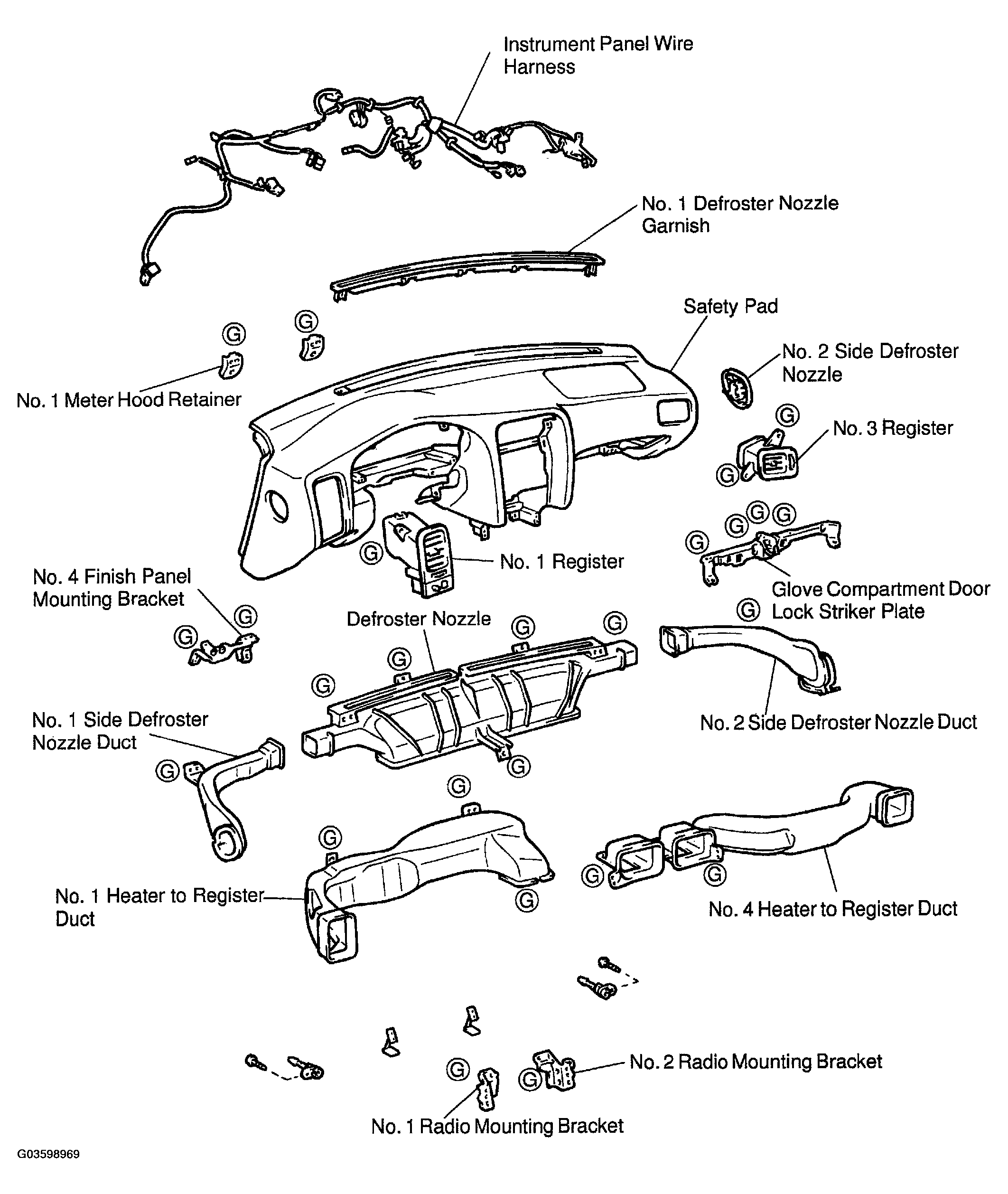

Fig 2: Exploded View Of Instrument Panel (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Screw shapes and size are indicated in Fig 3 . The codes ("A" - "O") correspond to those indicated on the previous pages.

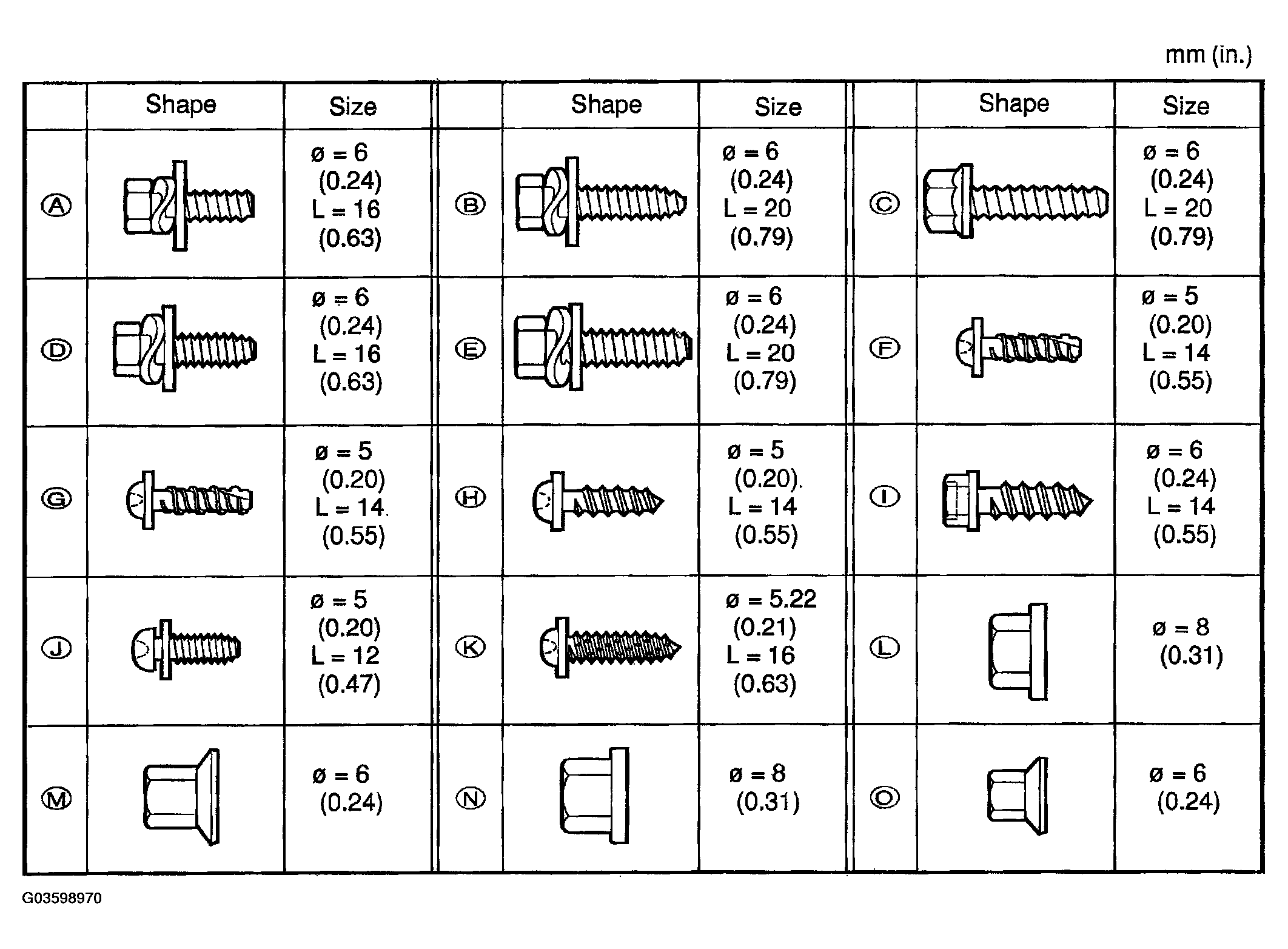

Fig 3: Identifying Screw Shapes And Size Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
