Service Data

ENGINE MECHANICAL

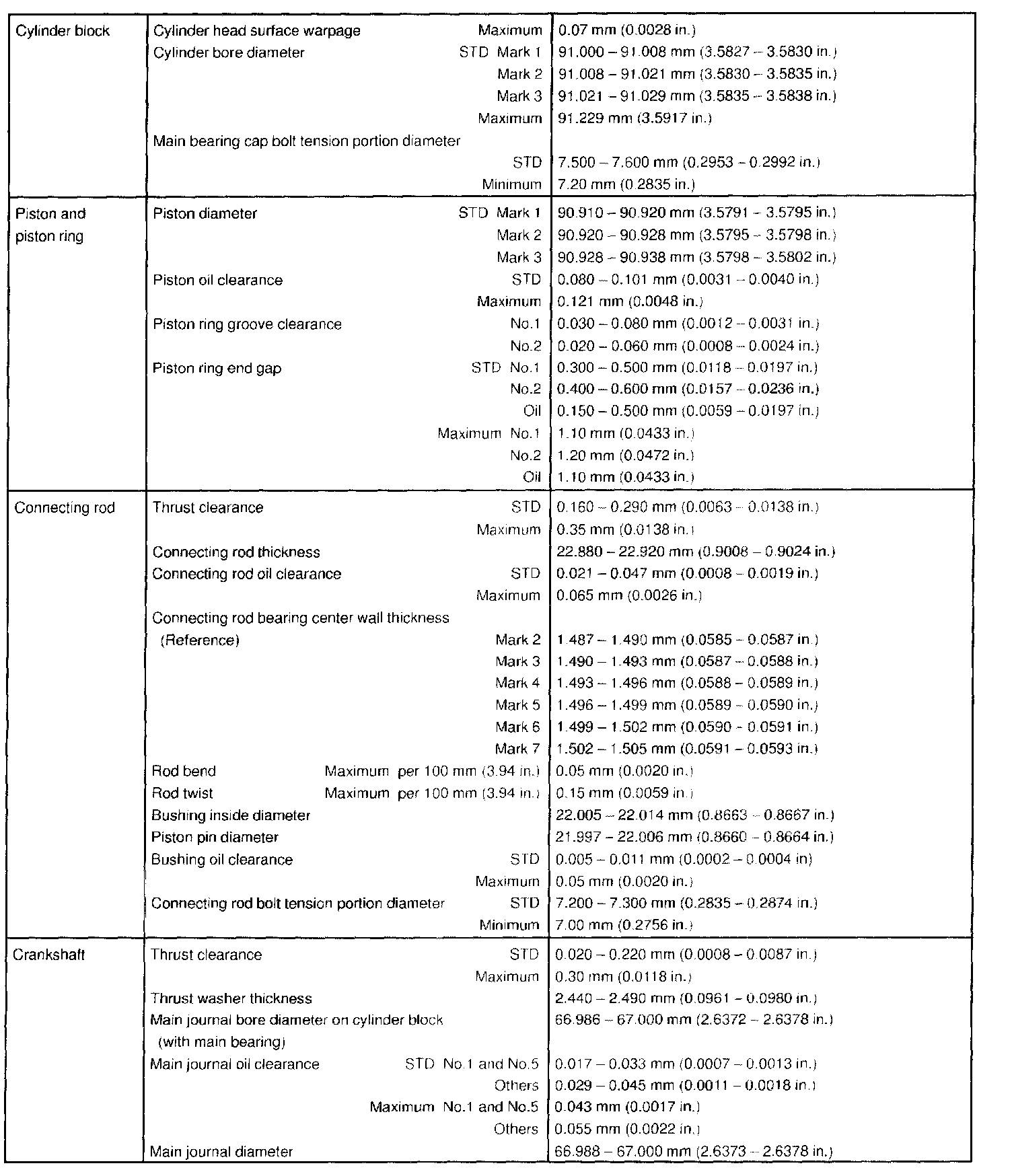

Part 1 Of 4:

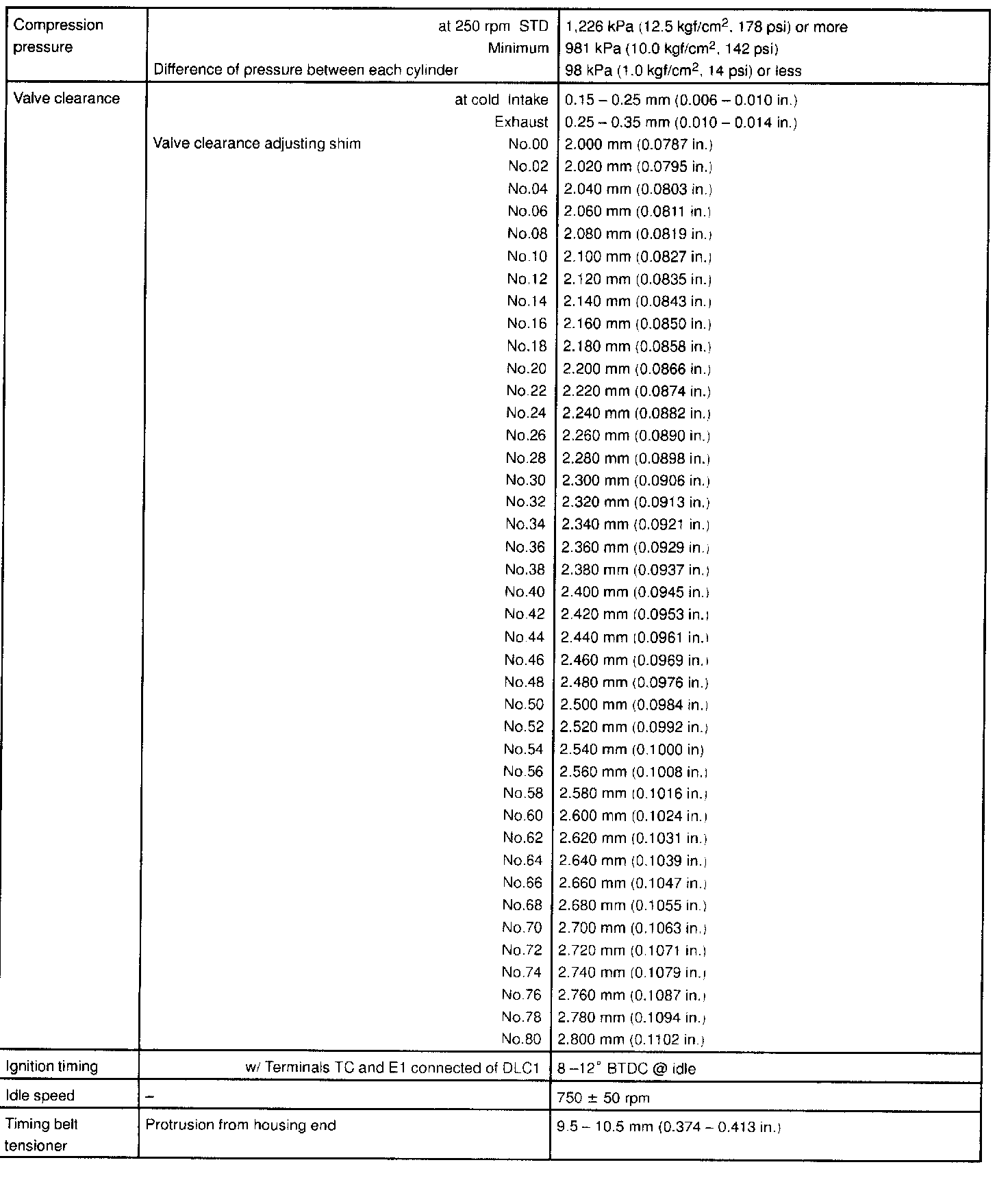

Part 2 Of 4:

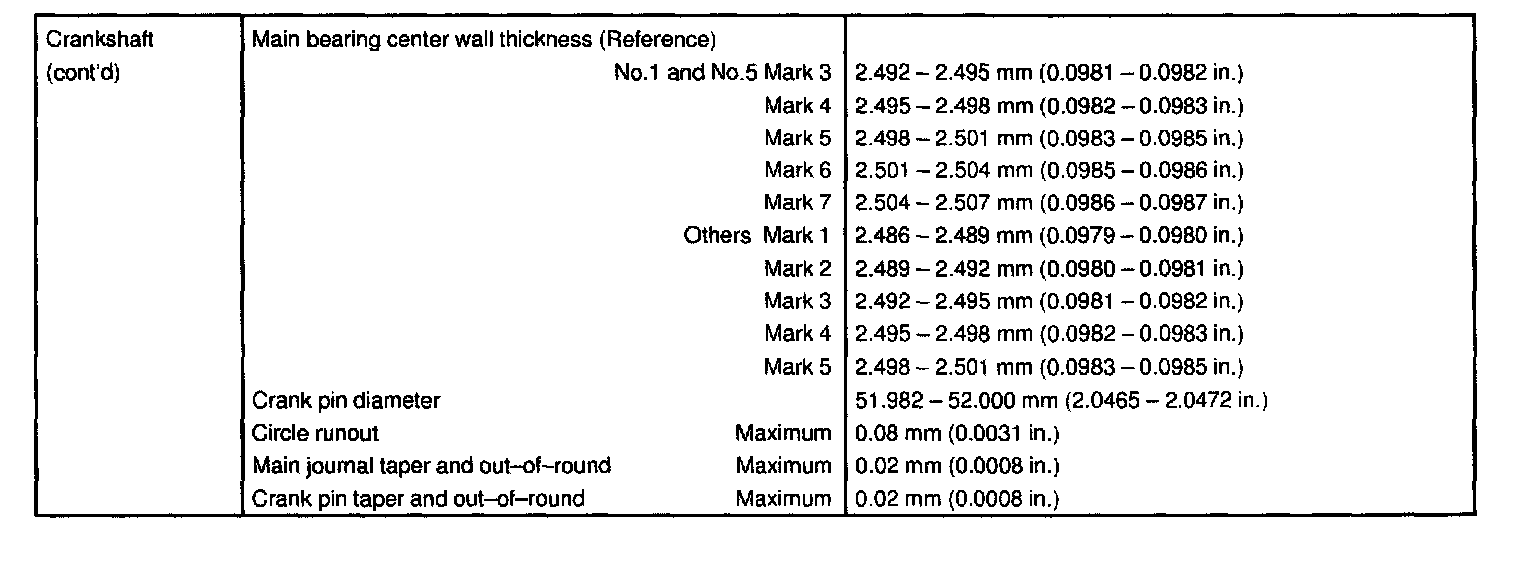

Part 3 Of 4:

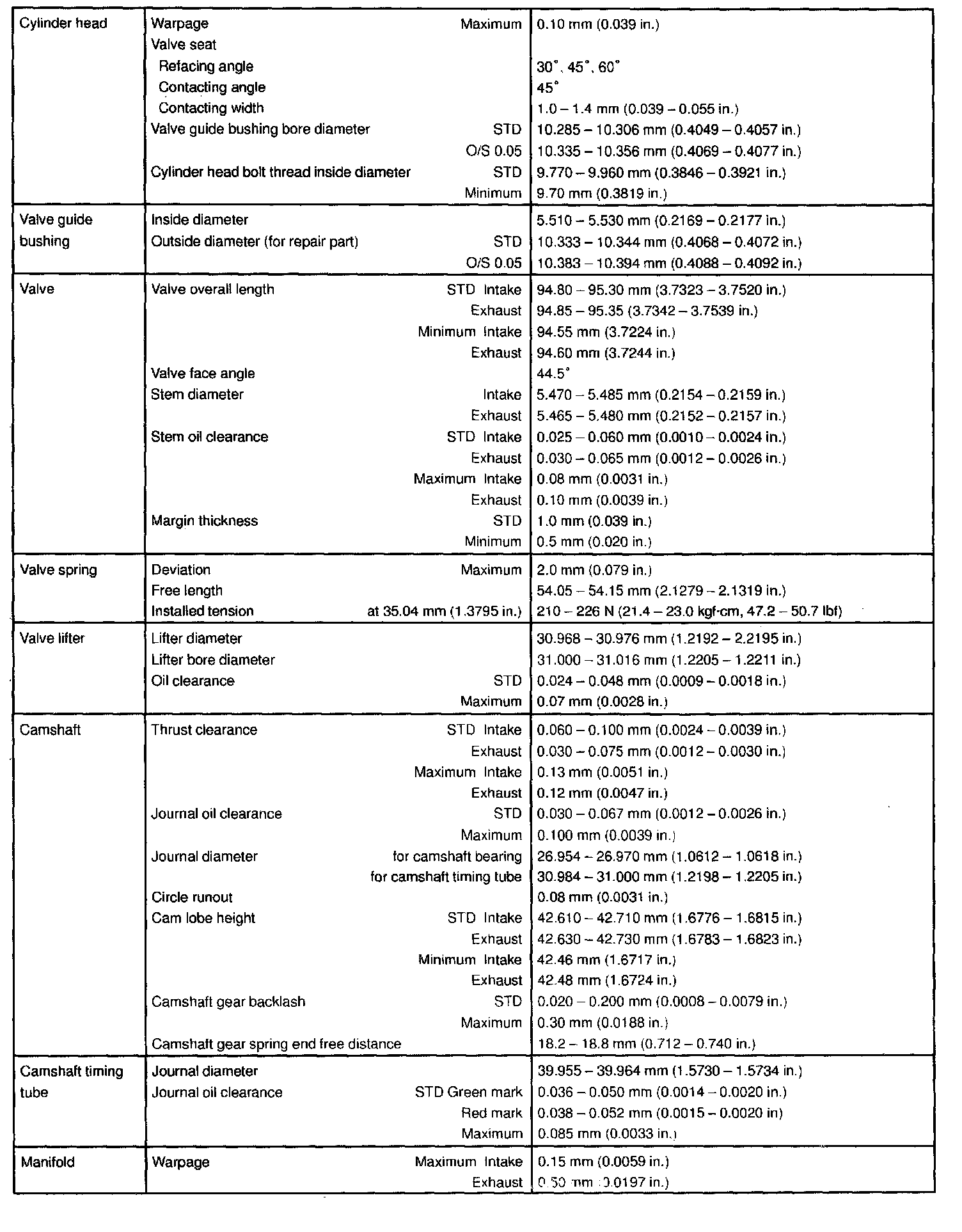

Part 4 Of 4:





SERVICE DATA
