Engine Unit: Components — 2003 Lexus GS 430 Service Manual ~ LEMON Manuals

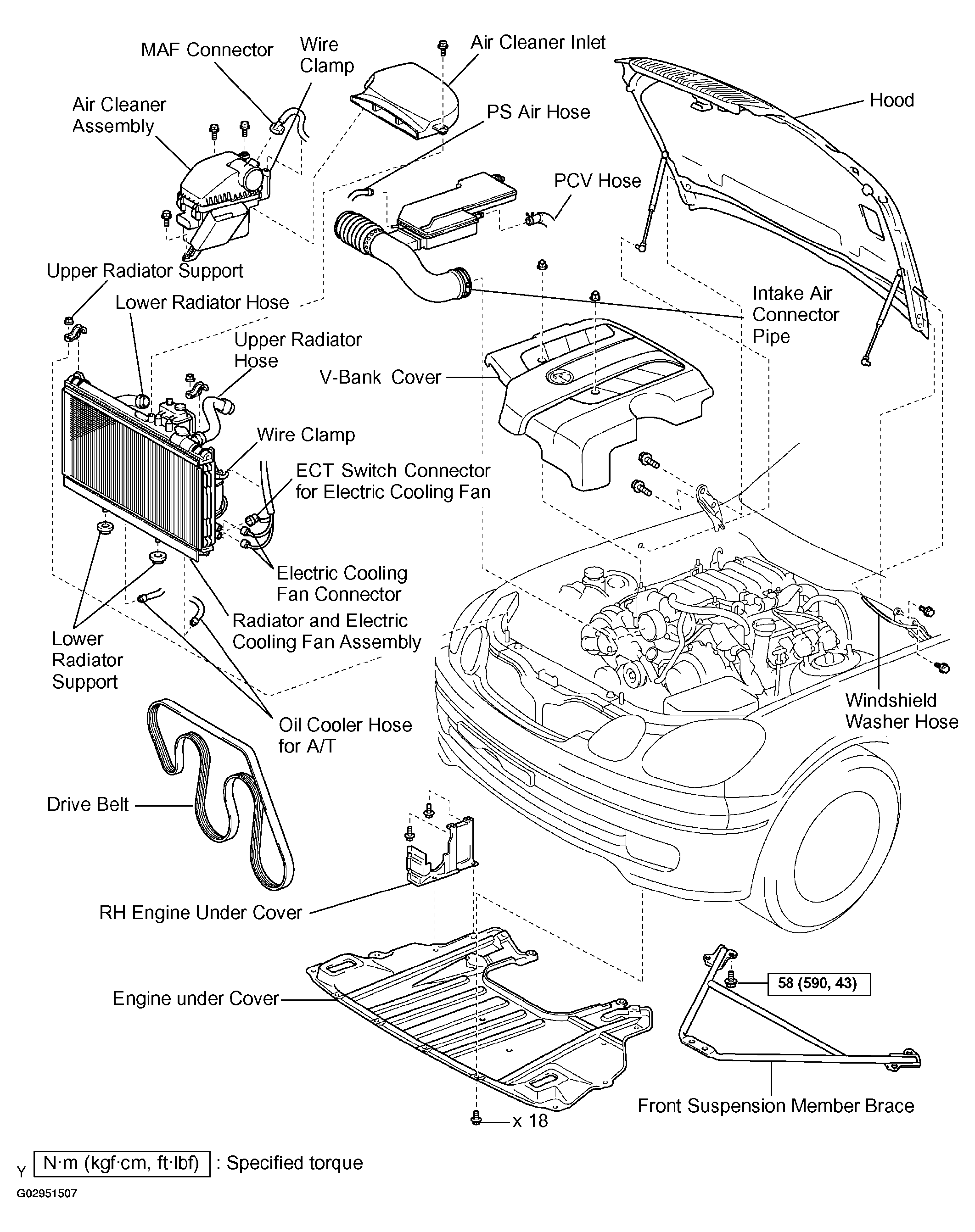

Fig 1: Identifying Engine Unit Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

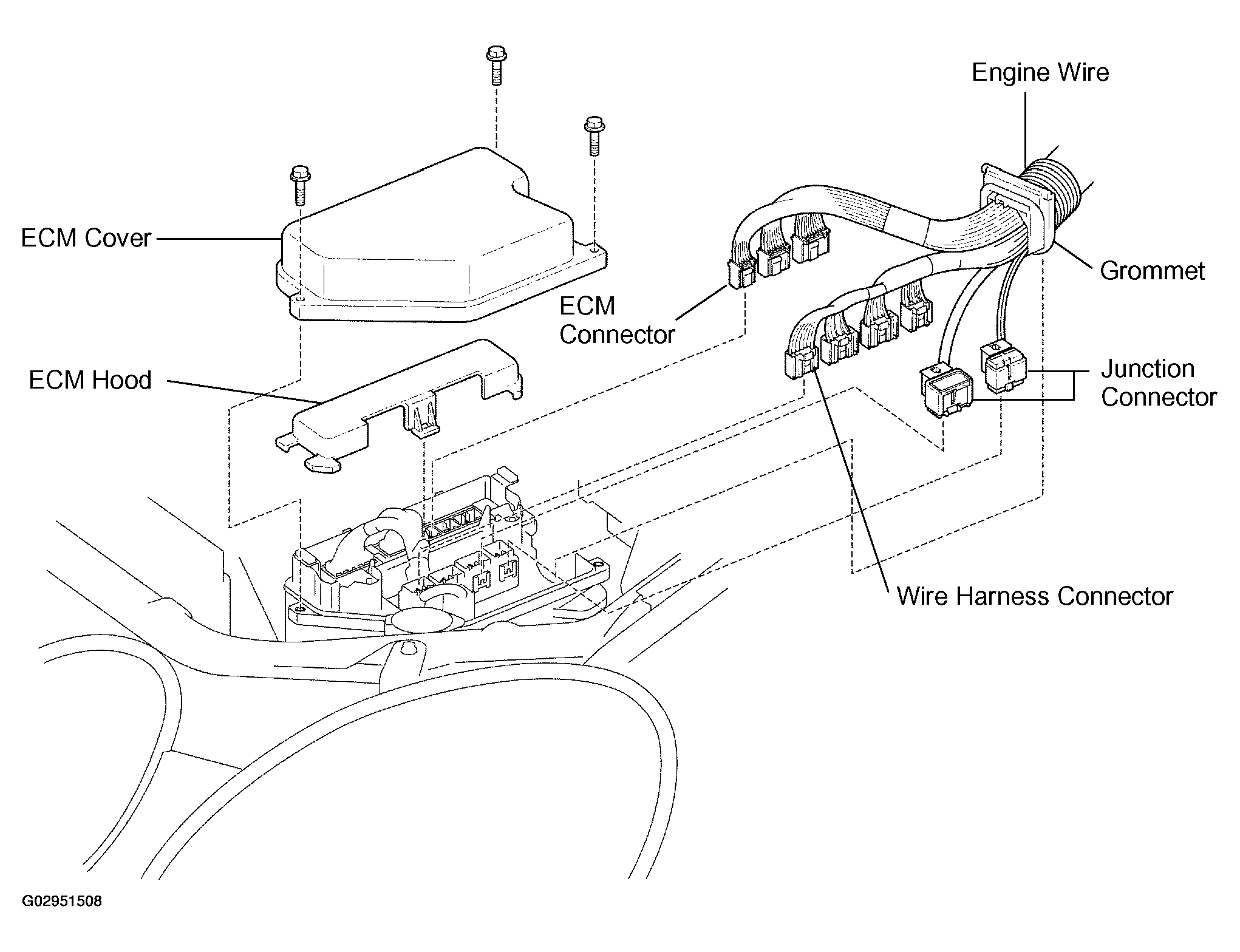

Fig 2: Identifying Engine Unit Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

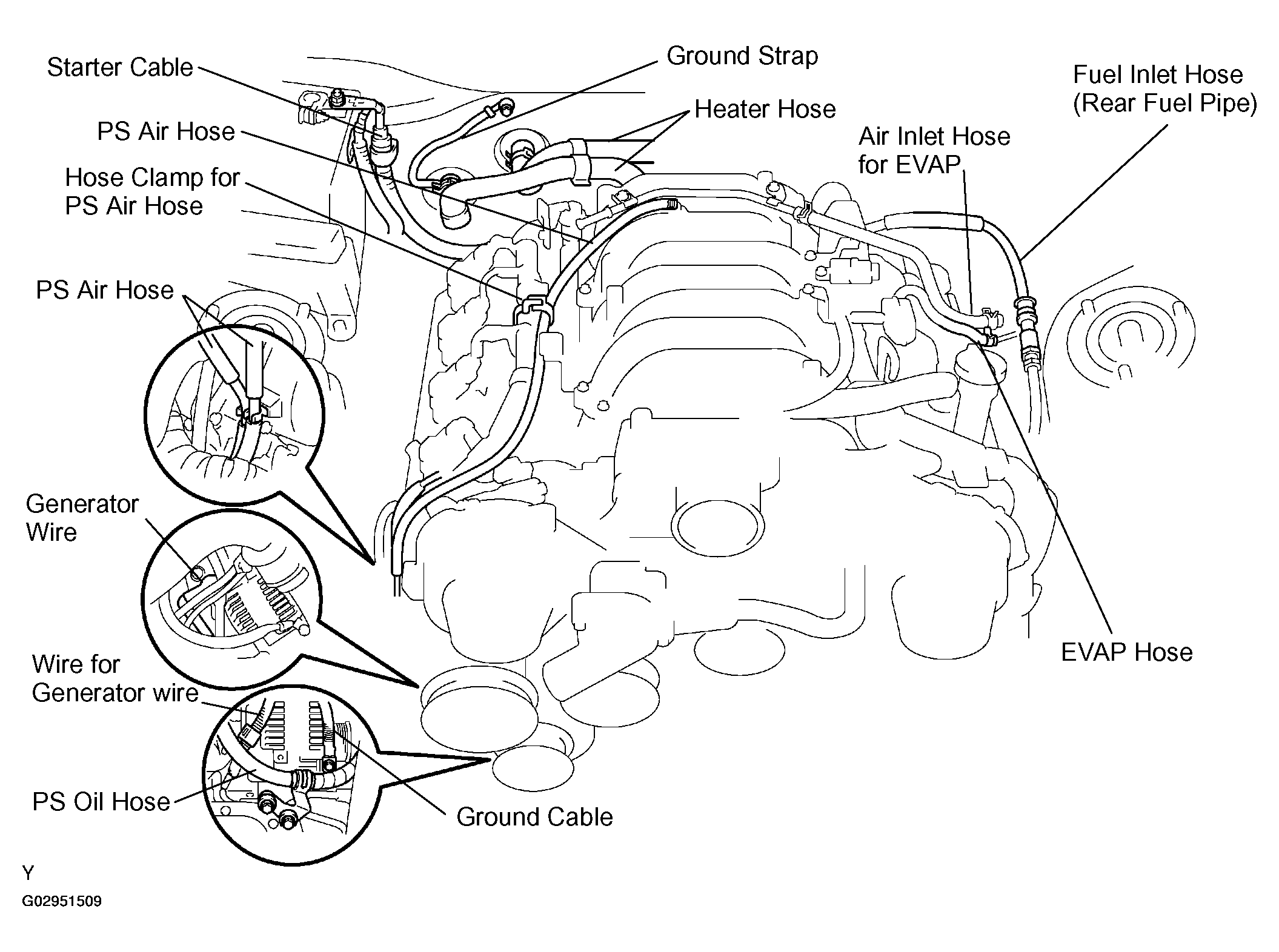

Fig 3: Identifying Engine Unit Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

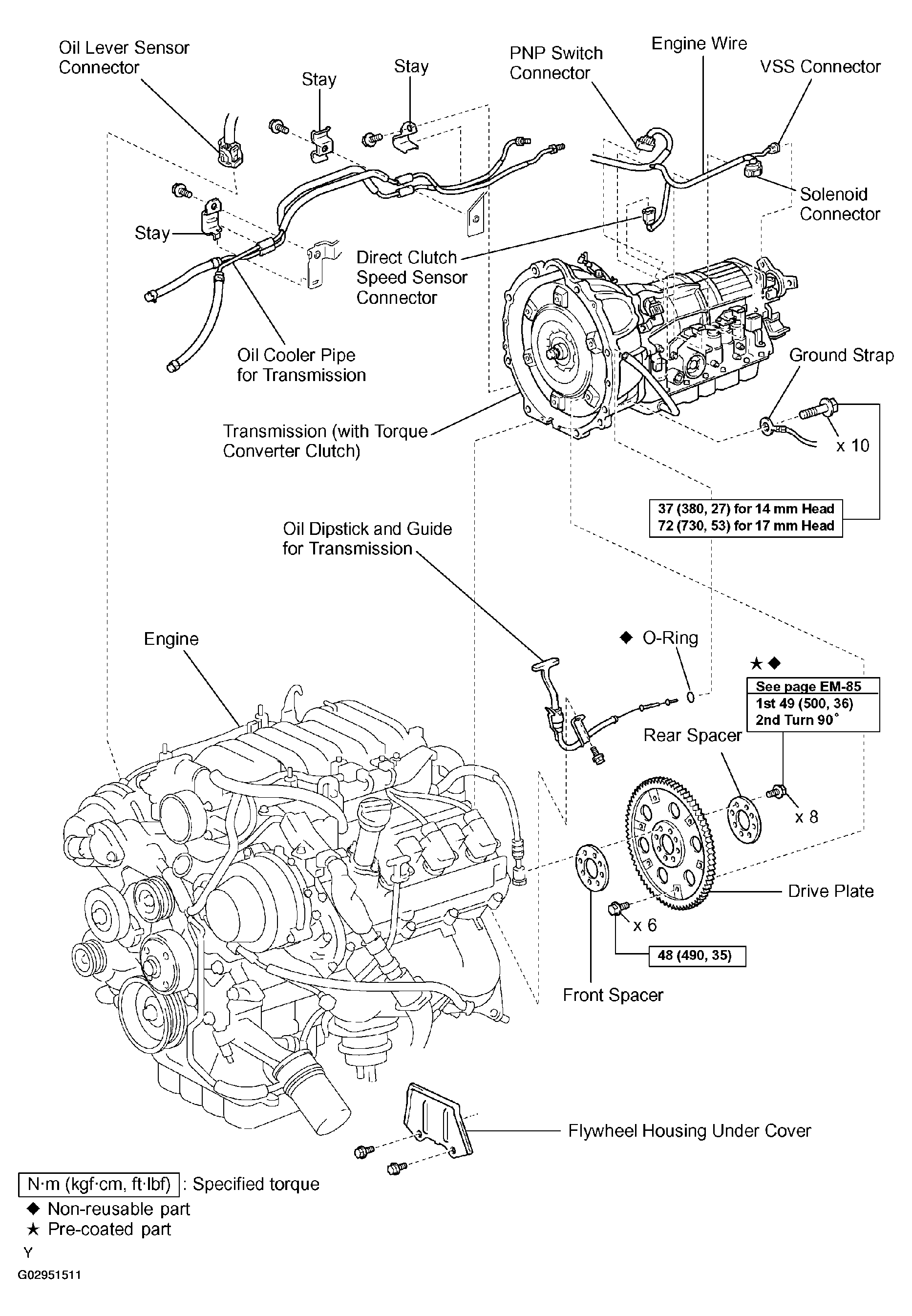

Fig 4: Identifying Engine Unit Components (4 Of 5)

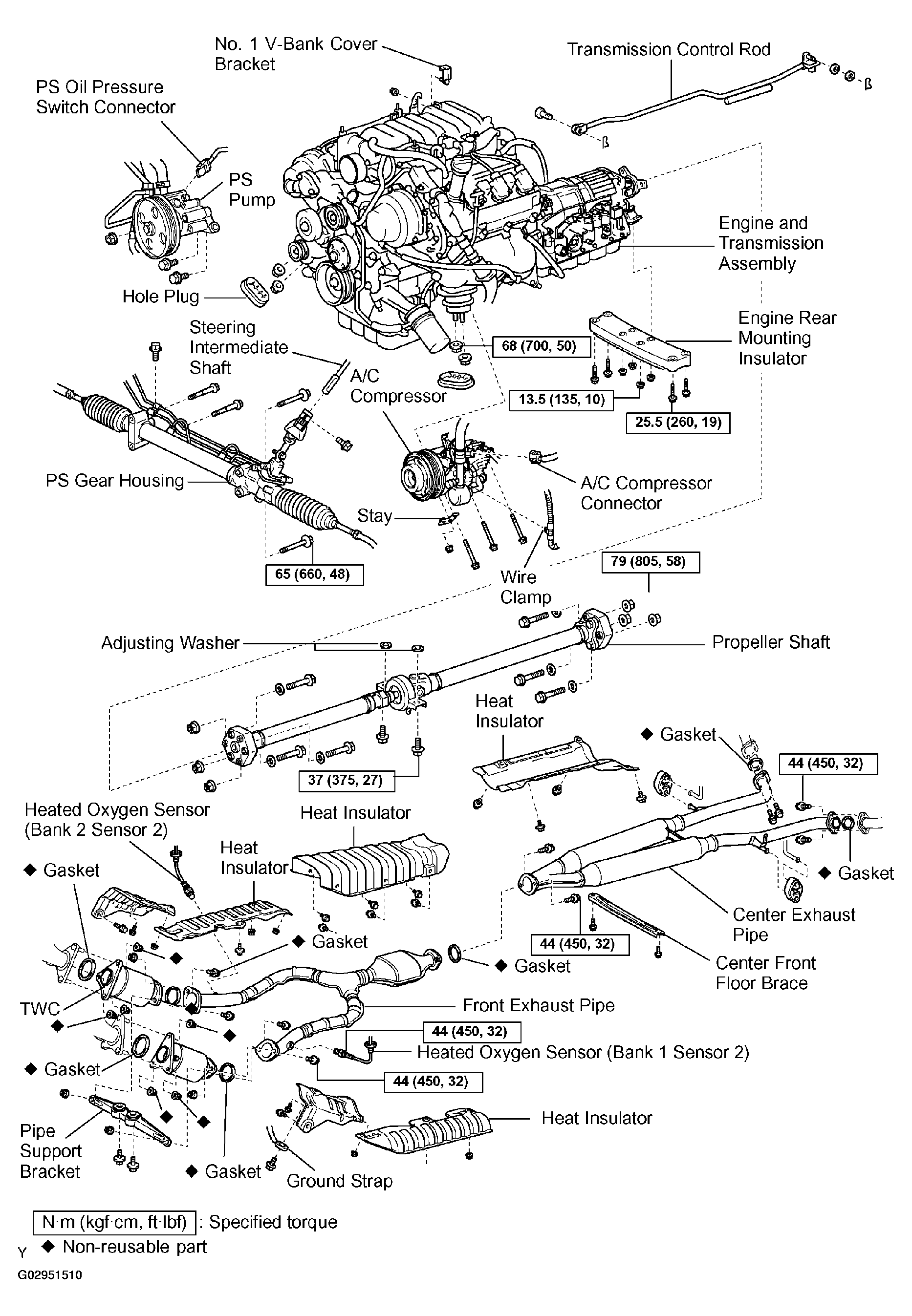

Fig 5: Identifying Engine Unit Components (5 Of 5)
