Seat Belt: Components

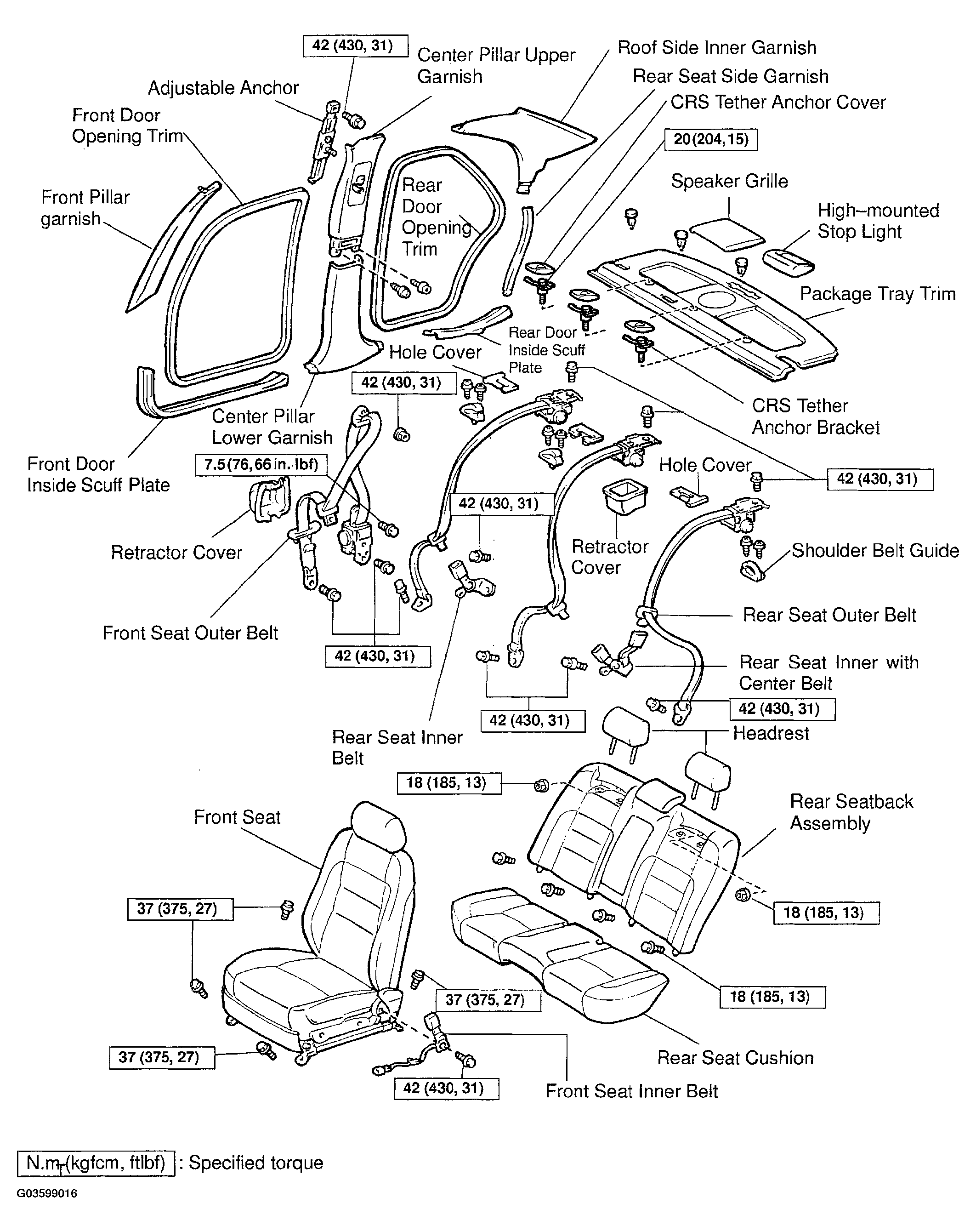

Fig 1: Exploded View Of Seat Belts
G03599016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
