Front Door:

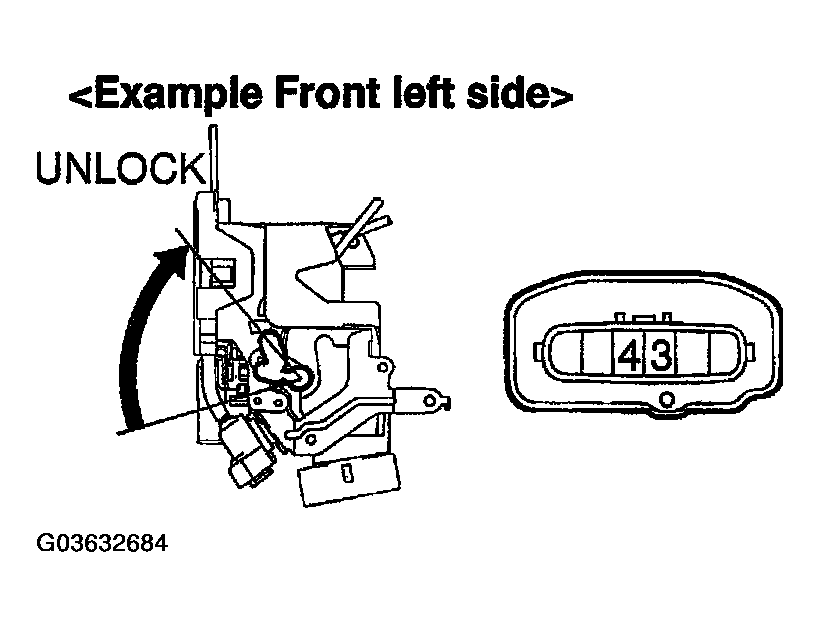

INSPECT DOOR UNLOCK DETECTION SWITCH CONTINUITY
TESTER CONNECTION SPECIFICATION
| Switch position | Tester connection | Specified condition |
|---|---|---|
| OFF (Door Lock set to LOCK) | - | No continuity |
| ON (Door Lock set to UNLOCK) | 3-4 | Continuity |
If continuity is not as specified, replace the switch.
INSPECT DOOR UNLOCK DETECTION SWITCH CIRCUIT
Driver side: (See DOOR UNLOCK DETECTION SWITCH CIRCUIT )
Passenger side (See DOOR UNLOCK DETECTION SWITCH )
