Hood Lock Control: Removal

REMOVE LH FENDER LINER
REMOVE HOOD RELEASE LEVER
REMOVE RADIATOR SUPPORT UPPER SEAL
REMOVE HOOD LOCK
REMOVE HOOD LOCK CONTROL CABLE
1. Using a screwdriver, disconnect the cable from the clamps.
  HINT:

  Tape the screwdriver tip before use.

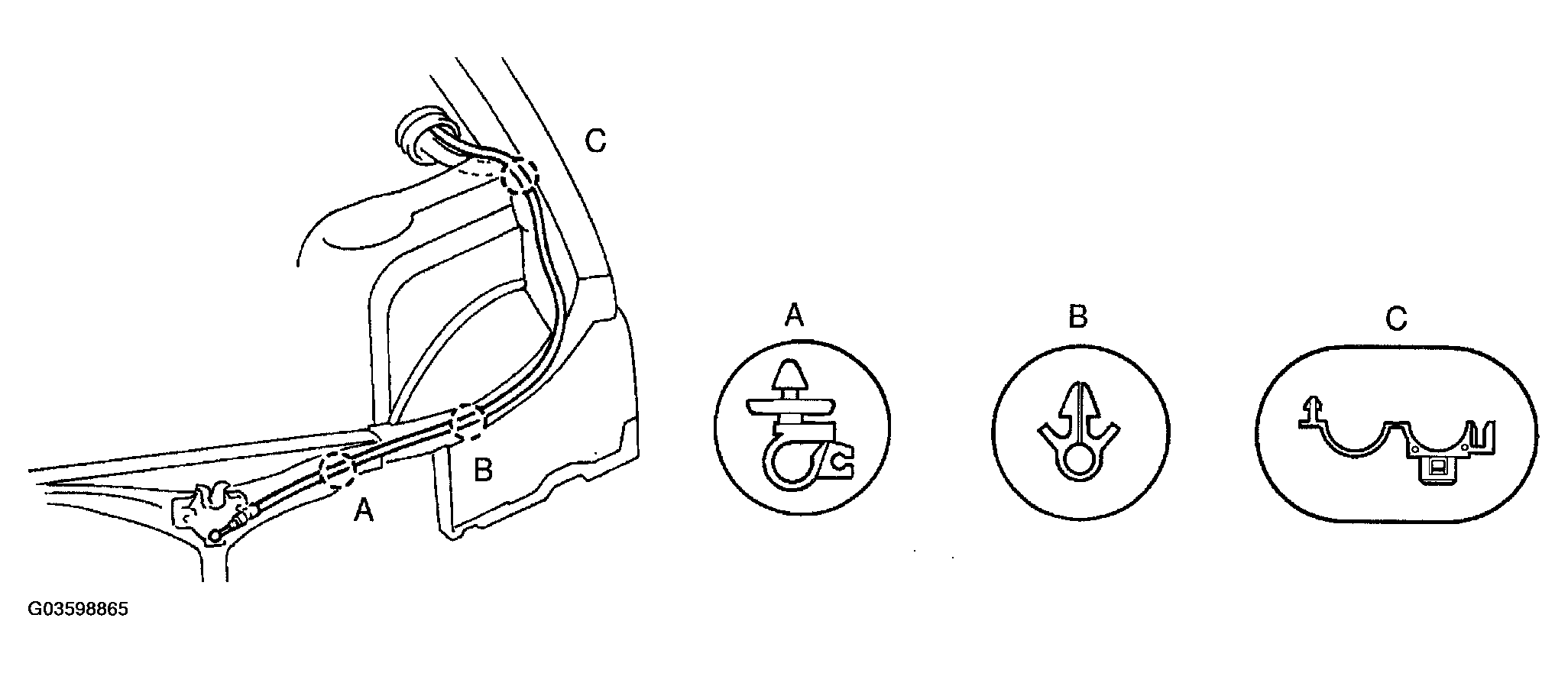

  Fig 1: Disconnecting Cable From Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, pry out the cable stopper from the grommet.
  HINT:
  - Tape the screwdriver tip before use.
  - Do not damage the grommet with the screwdriver.

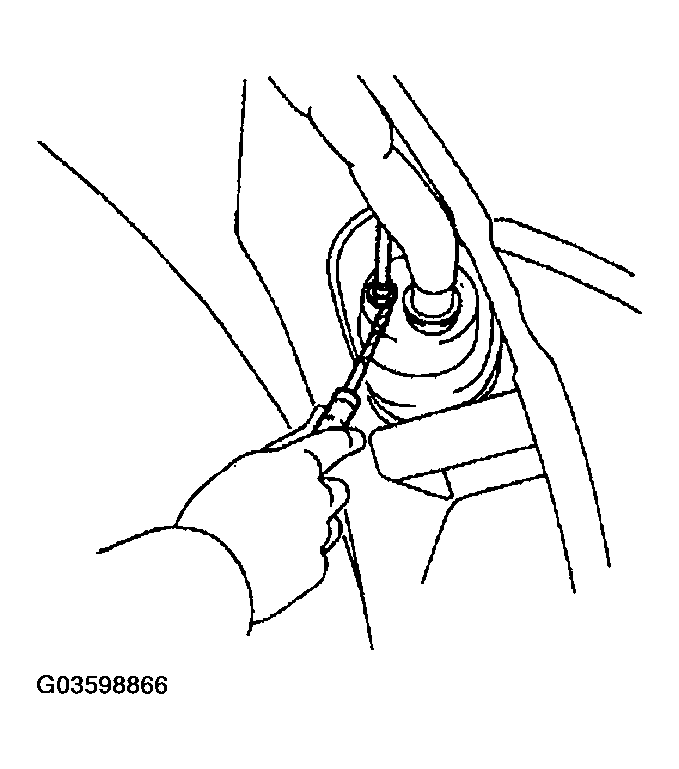

  Fig 2: Removing Cable Stopper From Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull the cable from the front wheel housing to remove it.

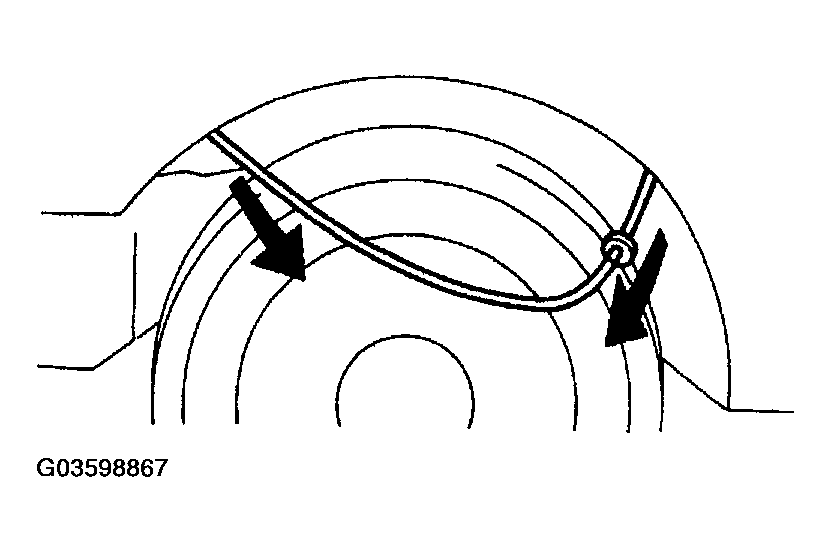

  Fig 3: Pulling Cable From Front Wheel Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
