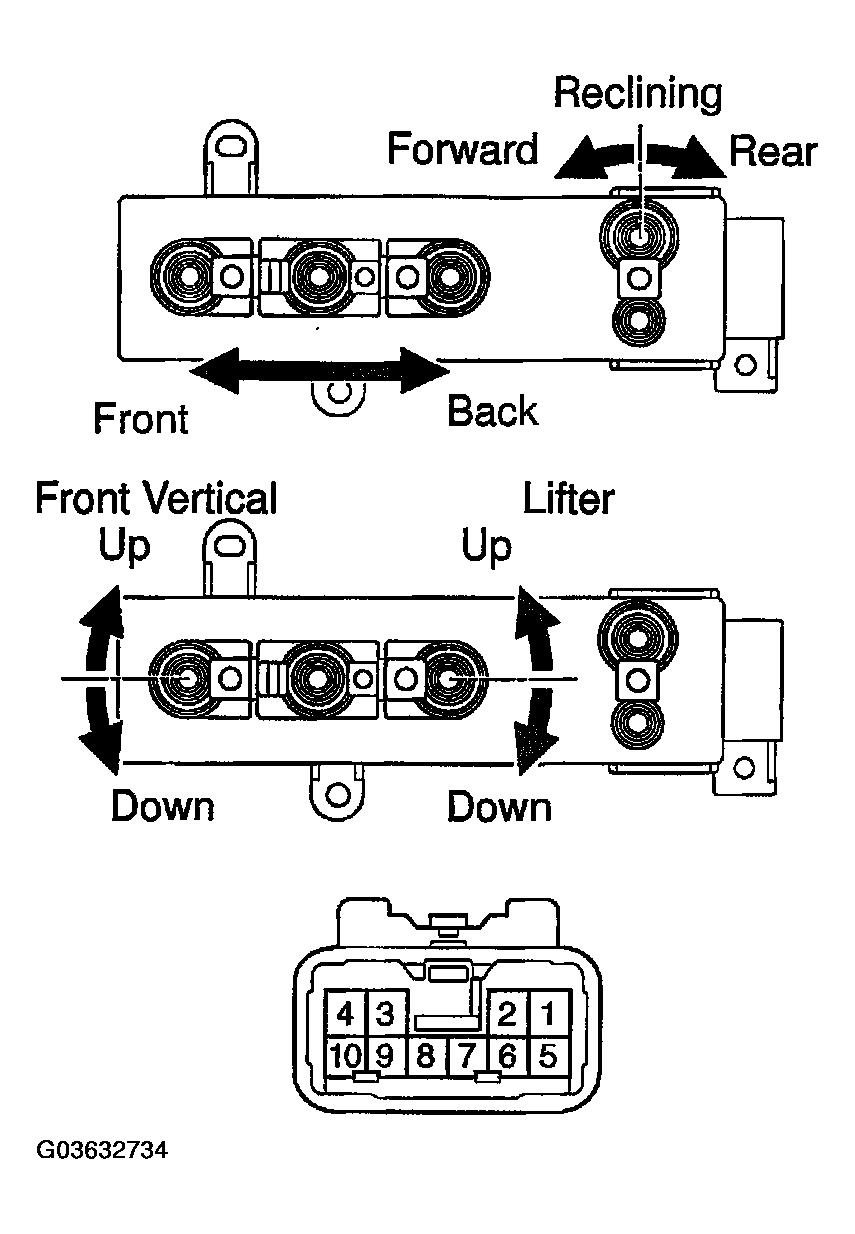

Inspect Driver's Power Seat Switch Continuity: Notes
Slide switch:
If continuity is not as specified in any one of these switches, replace the switch.
SLIDE SWITCH CONTINUITY
| Switch position | Tester connection | Specified condition |
|---|---|---|
| FRONT | 1 - 9 | Continuity |
| 4 - 6 | ||
| OFF | 4 - 6 | Continuity |
| 4 - 9 | ||
| BACK | 1 - 6 | Continuity |
| 4 - 9 |
Front vertical switch:
FRONT VERTICAL SWITCH CONTINUITY
| Switch position | Tester connection | Specified condition |
|---|---|---|
| UP | 1 - 10 | Continuity |
| 4 - 5 | ||
| OFF | 4 - 5 | Continuity |
| 4 - 10 | ||
| DOWN | 1 - 5 | Continuity |
| 4 - 10 |
Lifter switch:
LIFTER SWITCH CONTINUITY
| Switch position | Tester connection | Specified condition |
|---|---|---|
| UP | 1 - 7 | Continuity |
| 4 - 8 | ||
| OFF | 4 - 7 | Continuity |
| 4 - 8 | ||
| DOWN | 1 - 8 | Continuity |
| 4 - 7 |
Reclining switch:
RECLINING SWITCH CONTINUITY
| Switch position | Tester connection | Specified condition |
|---|---|---|
| FORWARD | 1 - 3 | Continuity |
| 2 - 4 | ||
| OFF | 2 - 4 | Continuity |
| 3 - 4 | ||
| REAR | 1 - 2 | Continuity |
| 3 - 4 |
