Inspect Front Vertical Motor Operation

1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, check that the motor turns counterclockwise.
2. Reverse the polarity, check that the motor turns clockwise.

If operation is not as specified, replace the seat adjuster.

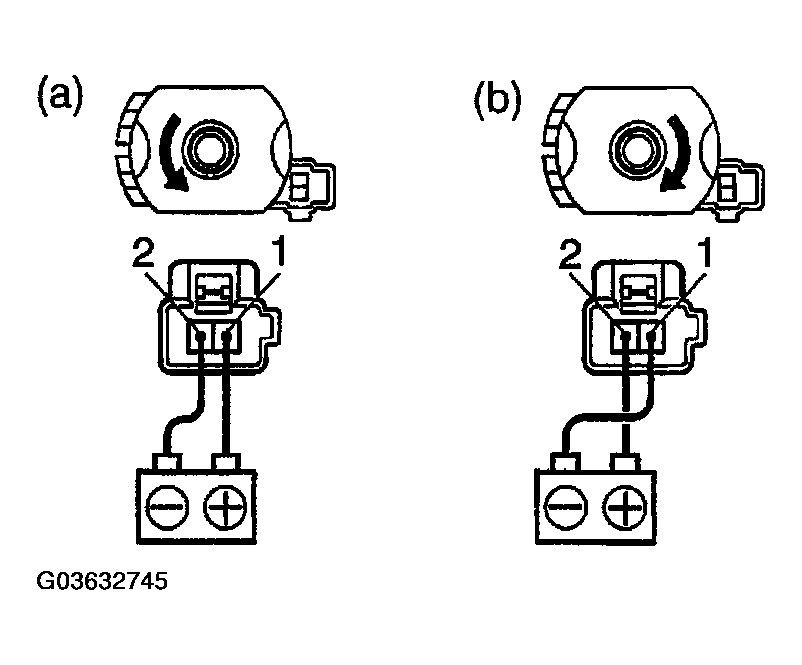

Fig 1: Inspecting Front Vertical Motor Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
