Inspect Power Window Switch Illumination

Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2, and check that the indicator light lights up.

If operation is not as specified, replace the switch.

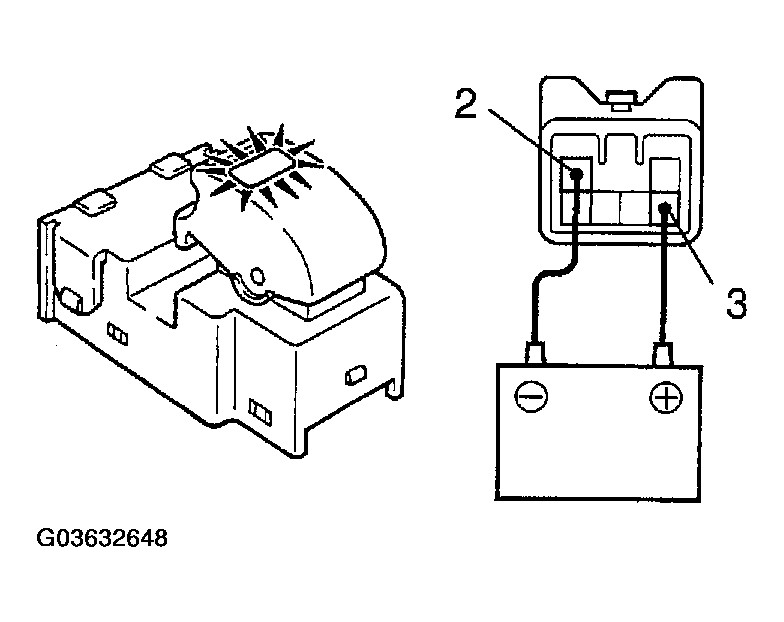

Fig 1: Inspecting Power Window Switch Illumination
G03632648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
