Rear RH Side Door (Window Up):

INSPECT JAM PROTECTION LIMIT SWITCH OPERATION

Connect the positive (+) lead from the ohmmeter to terminal 2 and the negative (-) lead to terminal 6.
Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1.
Check that the continuity exists when the window goes up.

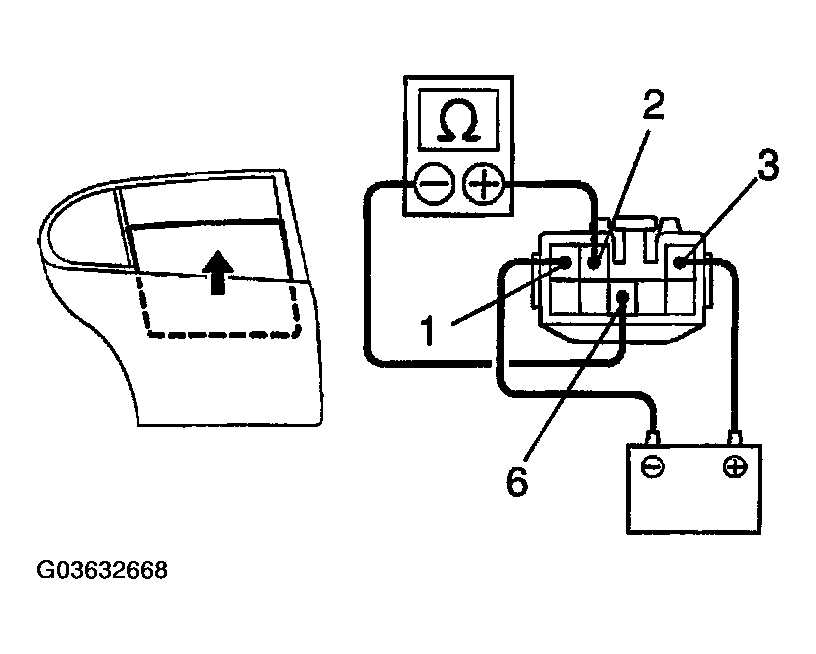

Fig 1: Inspecting Jam Protection Limit Switch Operation (Rear RH Side Door - Window Up) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Check that the no continuity exists when the window is in the fully closed position.

If operation is not as specified, replace the motor.

NOTE: If connecting the wire harness wrongly, the sensor might be damaged so caution is necessary.

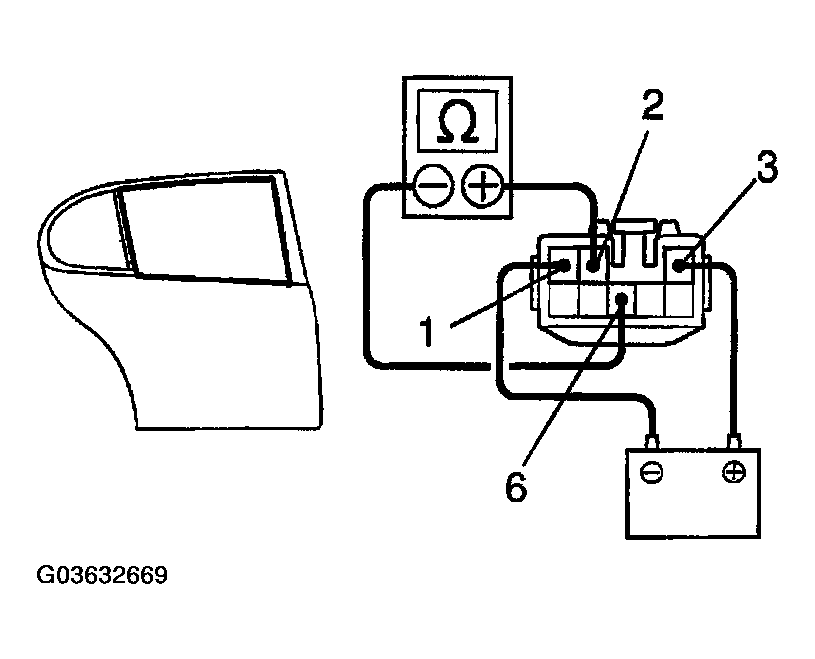

Fig 2: Inspecting Jam Protection Limit Switch Operation (Rear RH Side Door - Window Up) (2 Of 2)
