Testing Procedure

For testing procedure, see Fig 1.

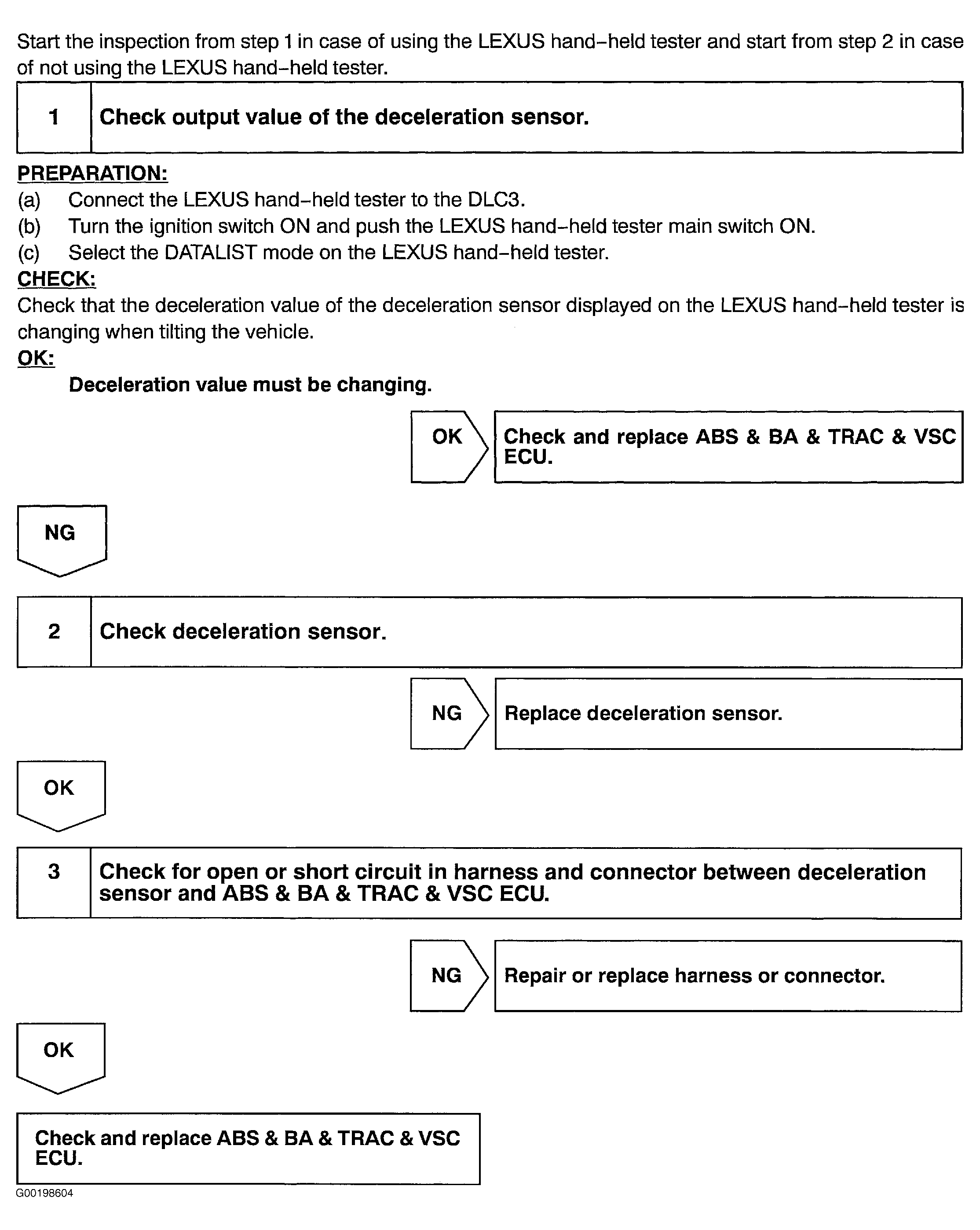

Fig 1: Testing Procedure Malfunction In Deceleration Sensor
G00198604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
