Circuit Description
If ABS ECU detects trouble, it lights ABS warning light while at the same time prohibiting ABS control. At this time, ABS ECU records a DTC in memory.

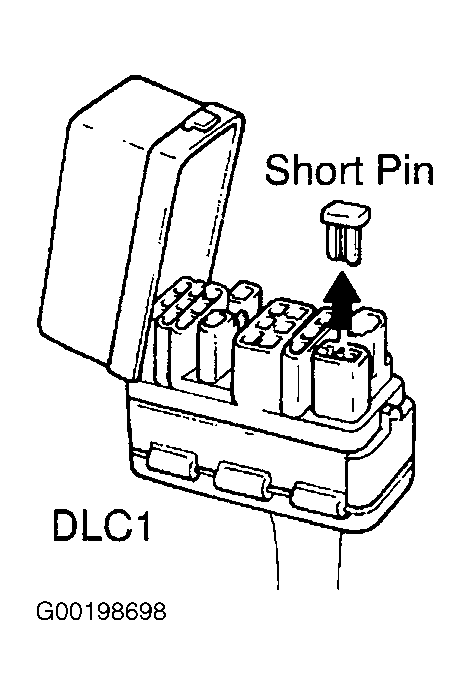

After removing short pin of (DLC1), jumper between terminals Tc and E1 of (DLC1) (or Tc and CG of (DLC3)) to make ABS warning light flash DTC code. See Figure and Figure .
