Combination Meter: Location

The vehicle shown in Fig 1 and Fig 2 is "GS430".
All components of "GS300" other than the ones used for engine are same as "GS430".

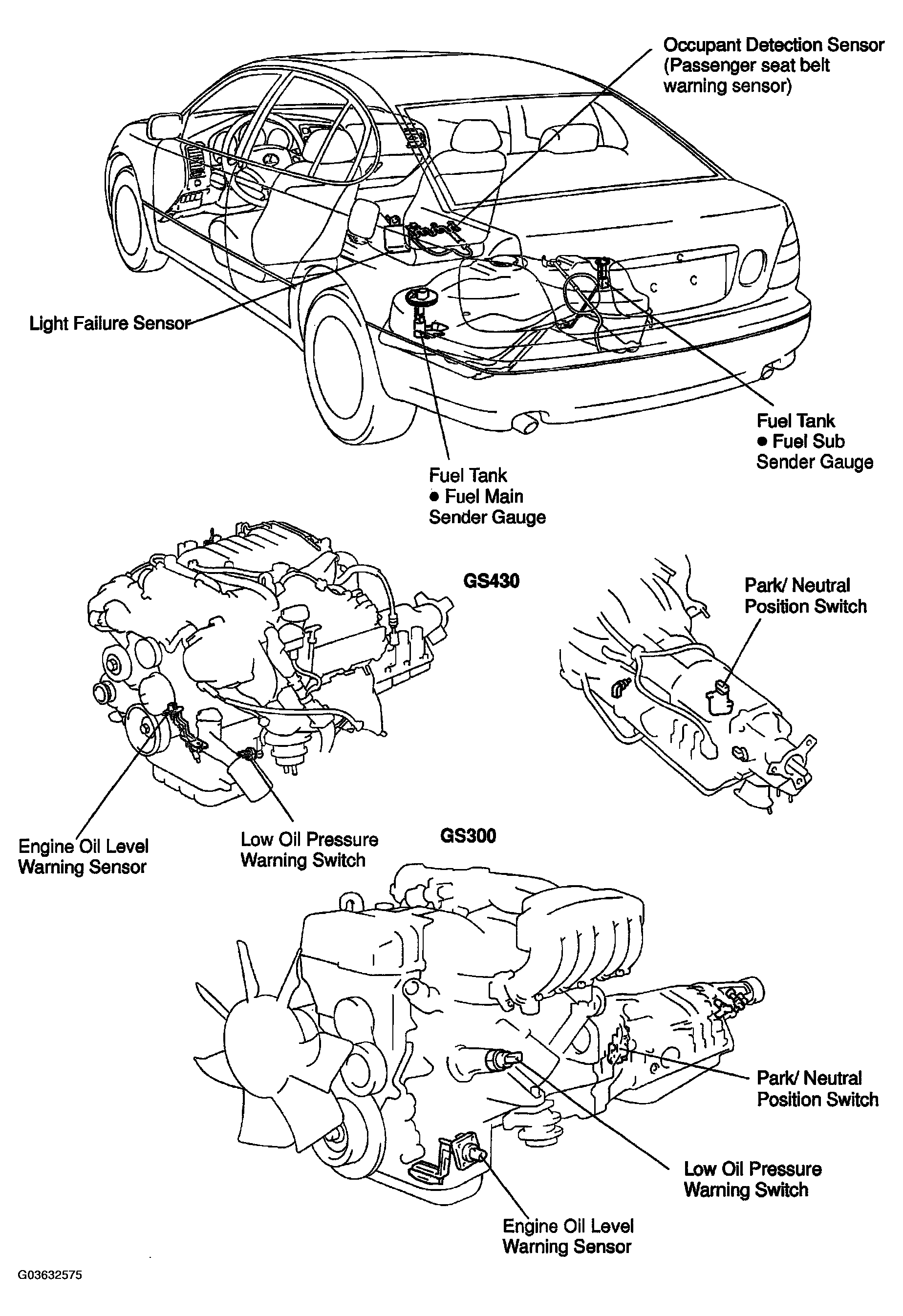

Fig 1: Identifying Component Location Of Combination Meter (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

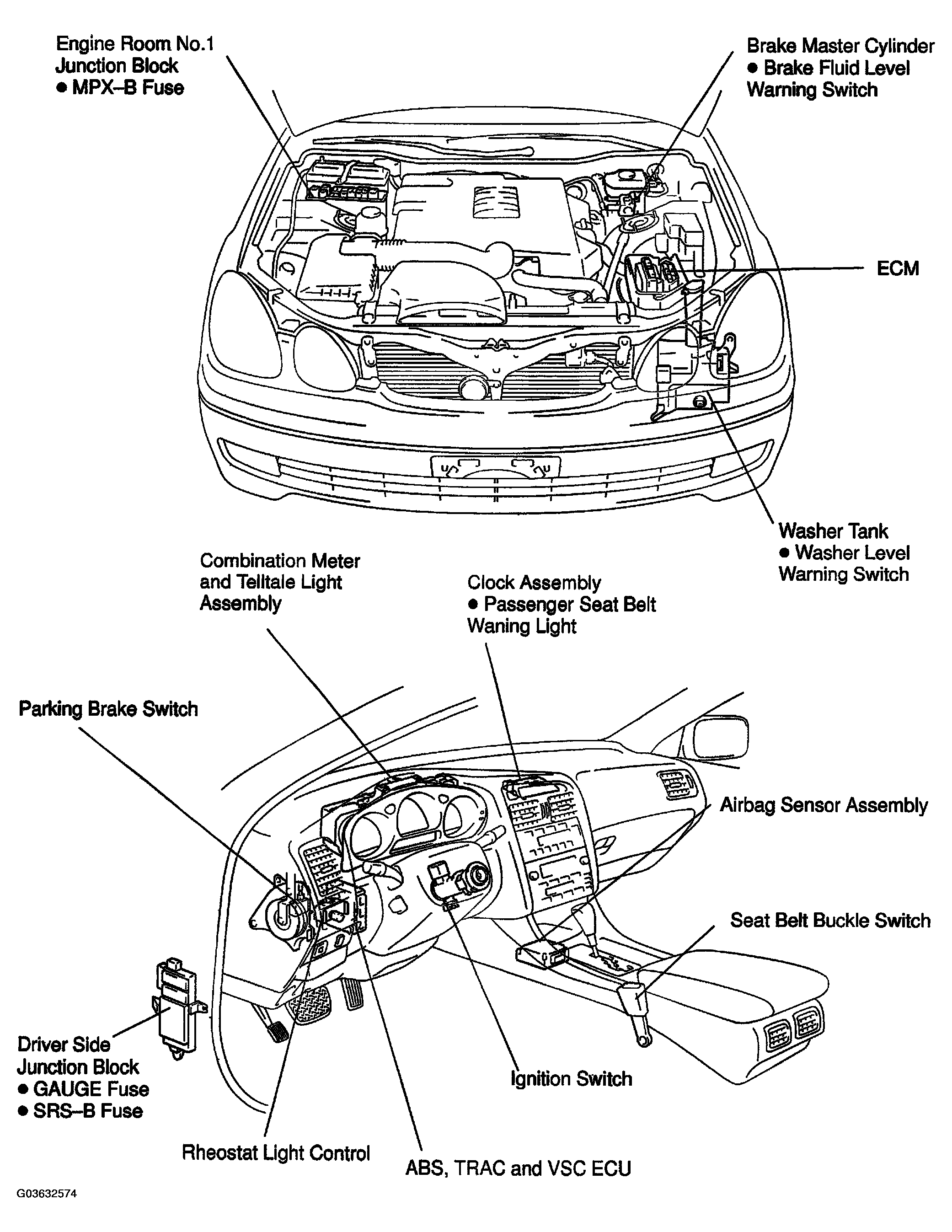

Fig 2: Identifying Component Location Of Combination Meter (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
