Fuel Lid Opener System: Location

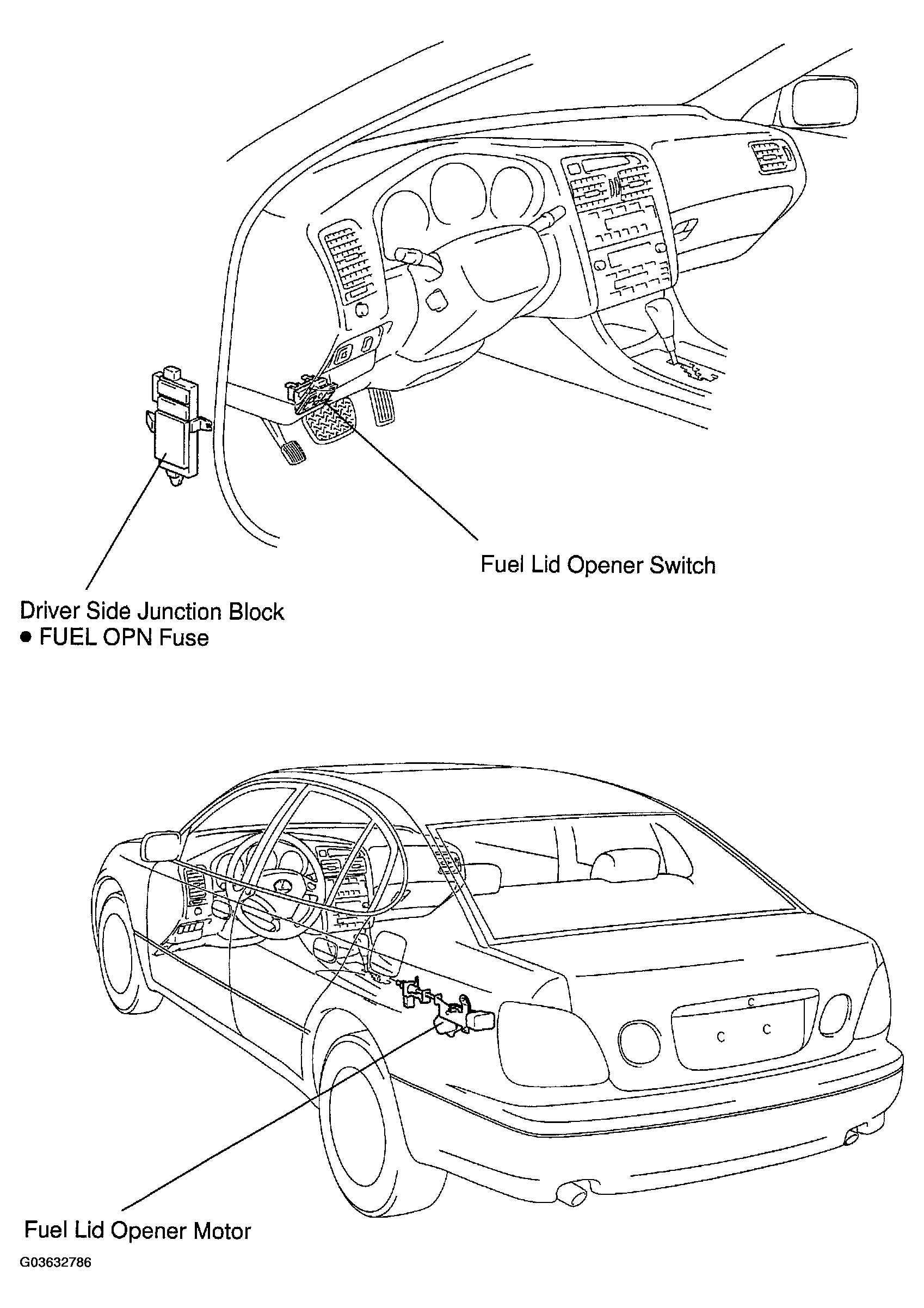

Fig 1: Identifying Component Location Of Fuel Lid Opener System
G03632786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
