Terminals Of Ecu: Notes

WARNING: This page is about a different car, the 2004 Lexus GS 430 and 2004 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

MULTI DISPLAY

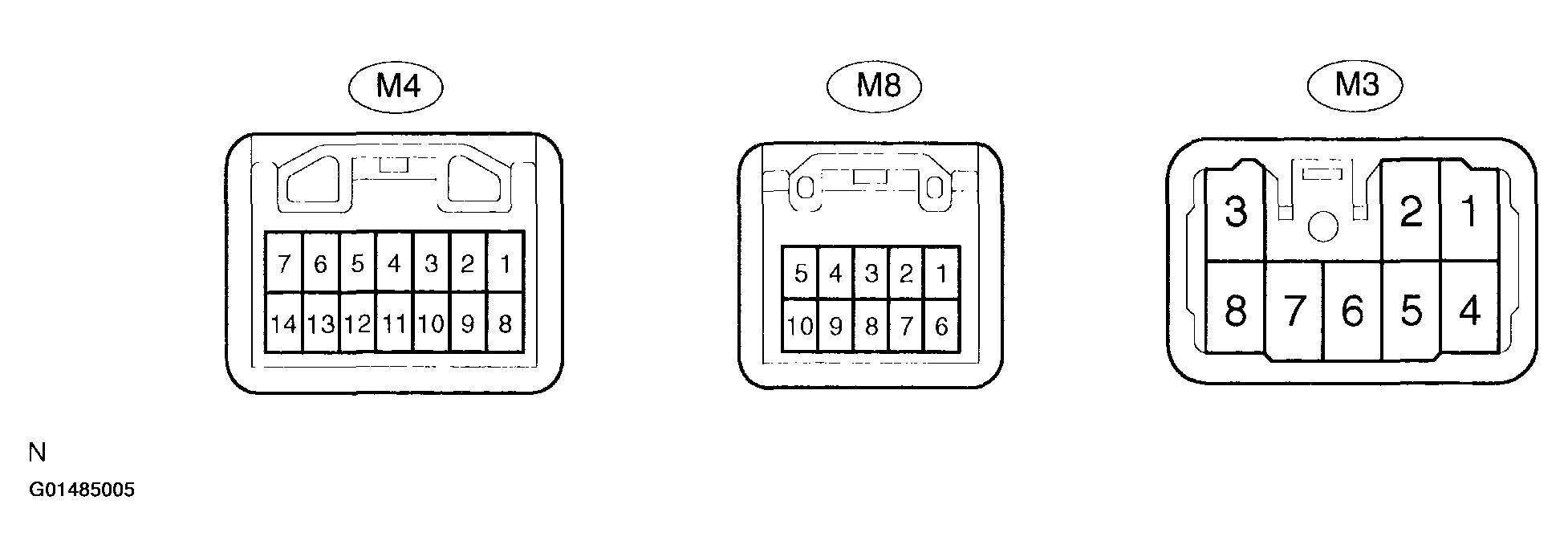

Fig 1: Identifying Multi Display ECU
G01485005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

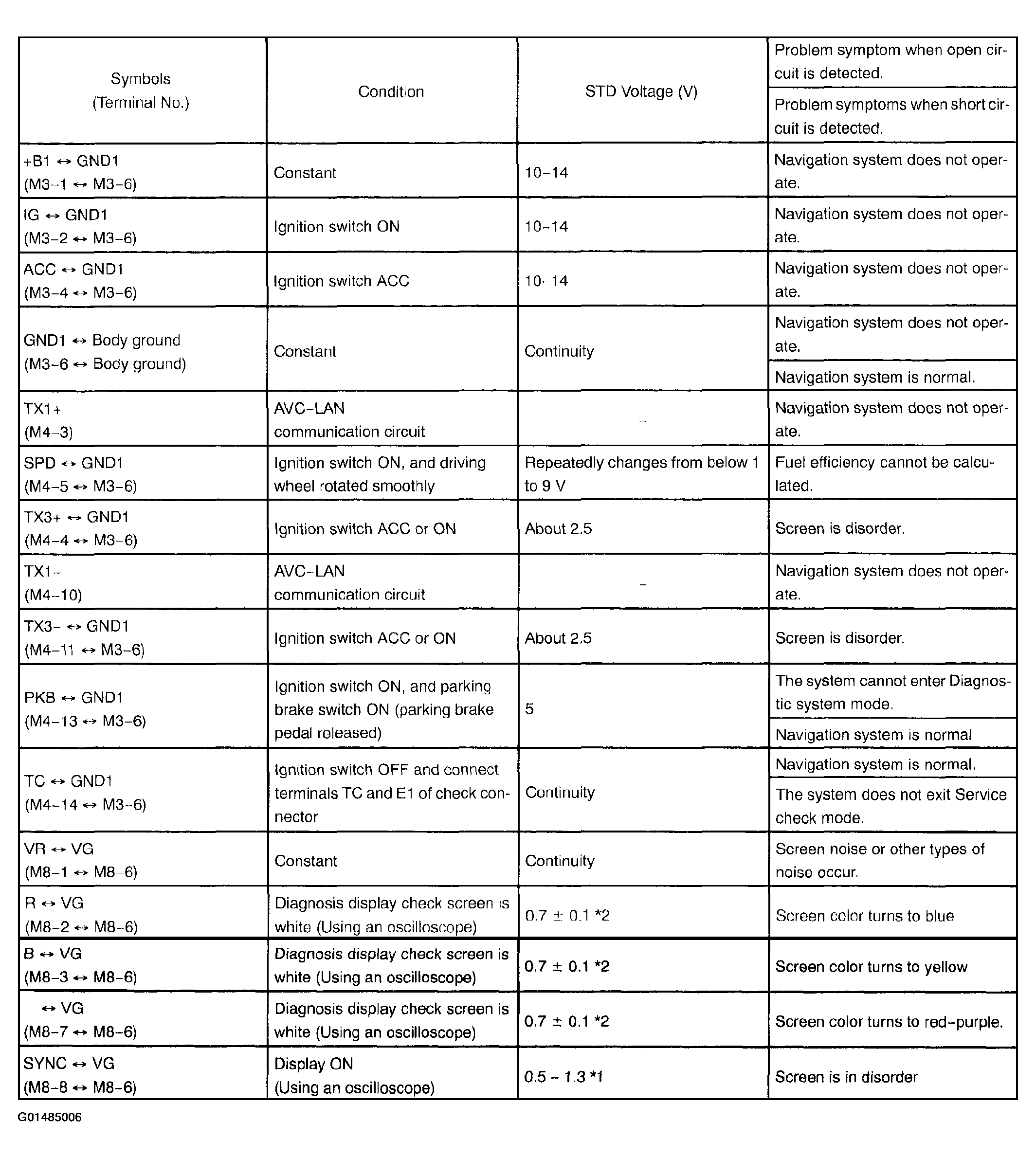

Fig 2: Terminal Problem Symptom Chart
G01485006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
