Check Short Circuit

If the wire harness is ground shorted as in Fig 1, locate the section by conducting a "continuity check with ground".

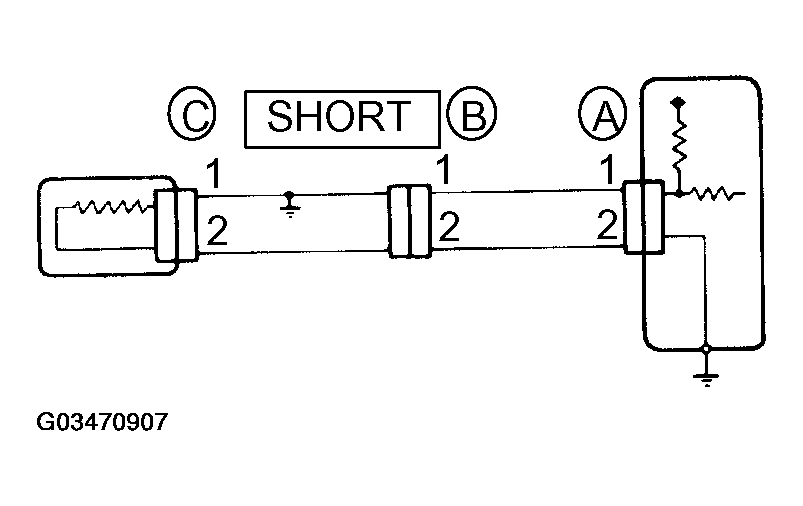

Fig 1: Checking Continuity With Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check the continuity with ground.

1. Disconnect connectors "A" and "C" and measure the resistance between terminal 1 and 2 of connector "A" and body ground.

   In the case of Fig 2:

   Between terminal 1 of connector "A" and body ground --> Continuity (short)

   Between terminal 2 of connector "A" and body ground --> No continuity

   Therefore, it is found out that there is a short circuit between terminal 1 of connector "A" and terminal 1 of connector "C".

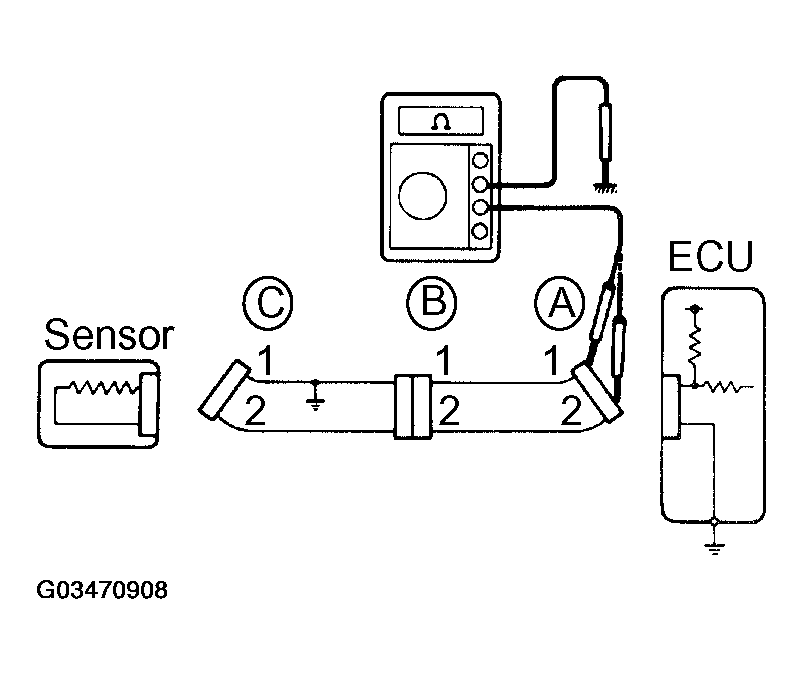

   Fig 2: Measuring Resistance Between Terminal 1 And 2 Of Connector "A" And Body Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect connector "B" and measure the resistance between terminal 1 of connector "A" and body ground, and terminal 1 of connector "B2" and body ground.

   In the case of Fig 3:

   Between terminal 1 of connector "A" and body ground --> No continuity

   Between terminal 1 of connector "B2" and body ground --> Continuity (short)

   Therefore, it is found out that there is a short circuit between terminal 1 of connector "B2" and terminal 1 of connector "C".

   Fig 3: Measuring Resistance Between Terminal 1 Of Connector "A" And Body Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
