Resistance Check (Short Circuit Check)

1. Disconnect the connectors on both ends.
2. Measure the resistance between the applicable terminals of the connectors and body ground. Be sure to carry out this check on the connectors on both ends.

   Resistance: 1 MΩ. or higher

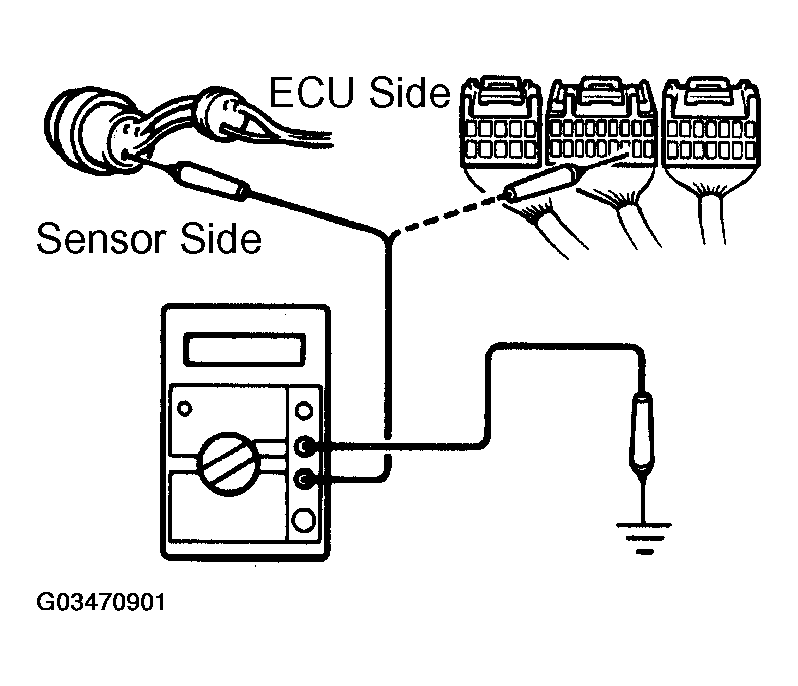

   Fig 1: Measuring Resistance Between Applicable Terminals Of Connectors And Body Ground

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Measure the resistance while lightly shaking the wire harness vertically and horizontally.
