Electric Tension Reducer System: Location

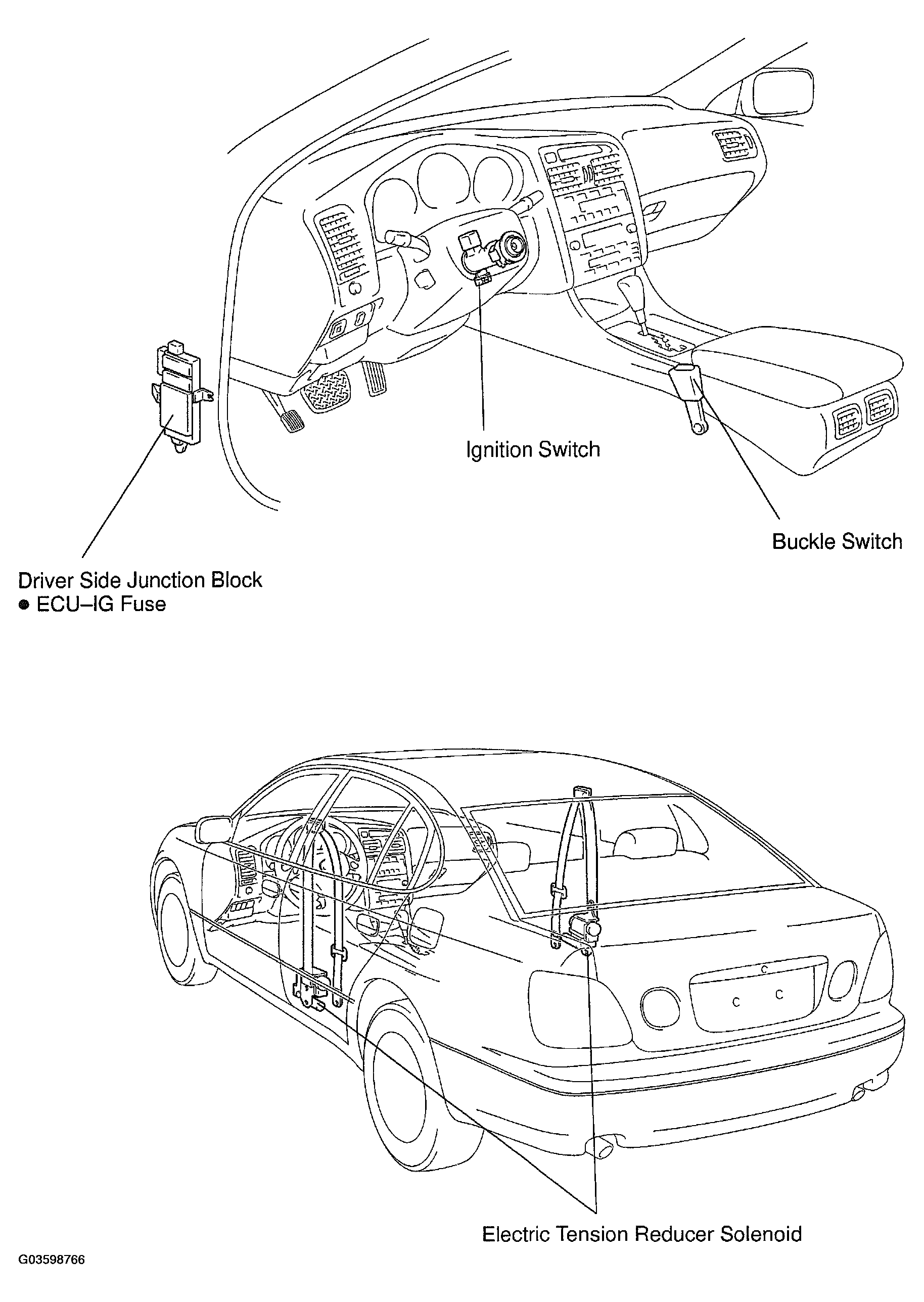

Fig 1: Identifying Electric Tension Reducer System Components
G03598766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
