Seat Belt: Inspection

CAUTION: Replace the seat belt assembly (outer belt, inner belt, bolts or nuts) if it has been used in a severe impact. The entire assembly should be replaced even if damage is not obvious.

RUNNING TEST (IN SAFE AREA)
1. Fasten the front seat belts.
2. Drive the car at 10 mph (16 km/h) and slam on the brakes. Check that the belt locks and cannot be extended at this time.

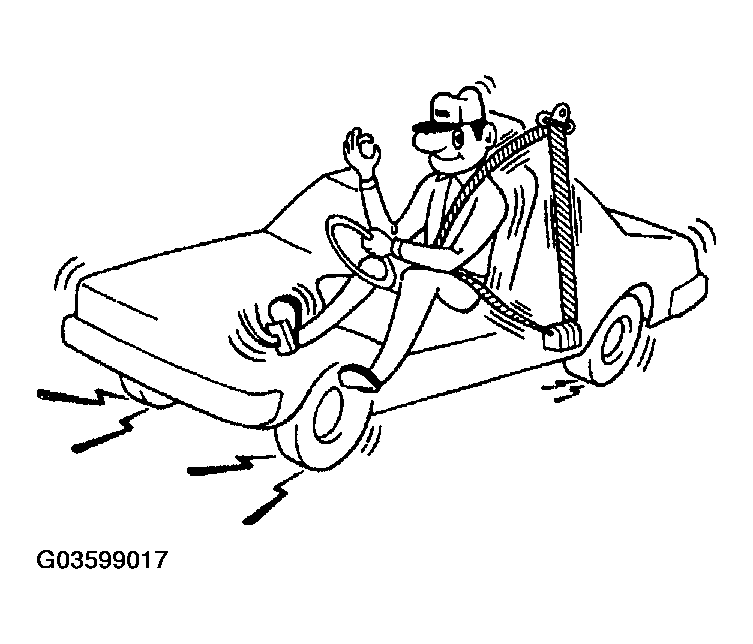

Fig 1: Identifying Running Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Conduct this test in a safe area. If the belt does not lock, remove the belt mechanism assembly and conduct the following static check. Also, whenever installing a new belt assembly, verify the proper operation before installation.
DRIVER'S SEAT BELT (ELR): STATIC TEST
1. Make sure that the belt locks when pulled out quickly.
2. Remove the locking retractor assembly.
3. Tilt the retractor slowly.
4. Make sure that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out over 45 degrees of tilt.

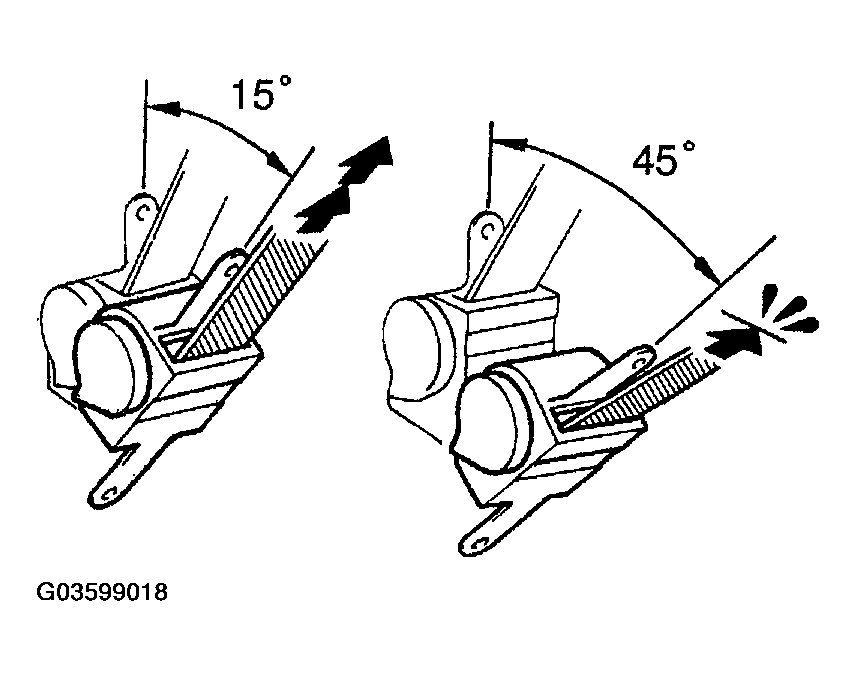

Fig 2: Driver's Seat Belt (ELR): Static Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If a problem is found, replace the assembly.
EXCEPT DRIVER'S SEAT BELT (ELR/ALR): STATIC TEST
1. Make sure that the belt locks when pulled out quickly.
2. Remove the locking retractor assembly.
3. Pull out the whole belt and measure the length of the whole belt.
  Then retract the belt slightly and pull it out again
4. Make sure that the belt cannot be extended further.
  If a problem is found, replace the assembly.
5. Retract the whole belt, then pull out the belt until 200 mm (7.87 in.) of belt remains retracted.
6. Tilt the retractor slowly.

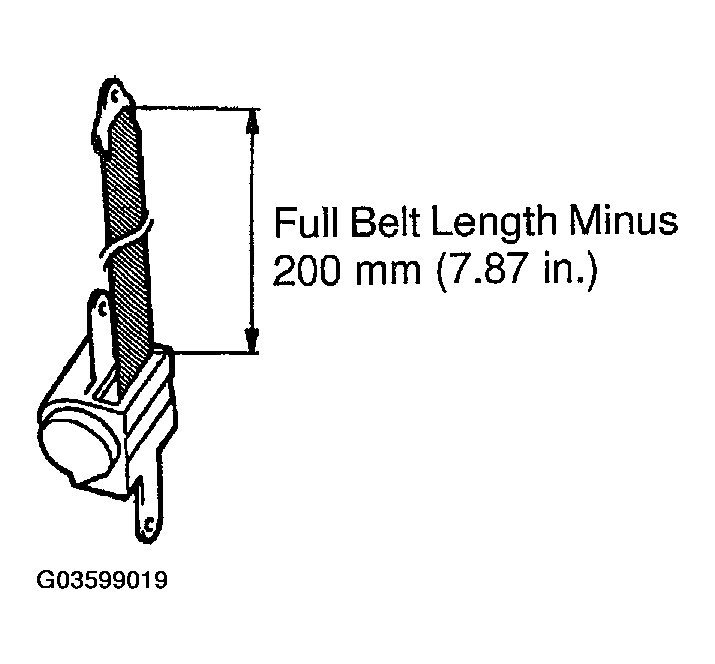

  Fig 3: Identifying Full Belt Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Make sure that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out at over 45 degrees of tilt.
  If a problem is found, replace the assembly.

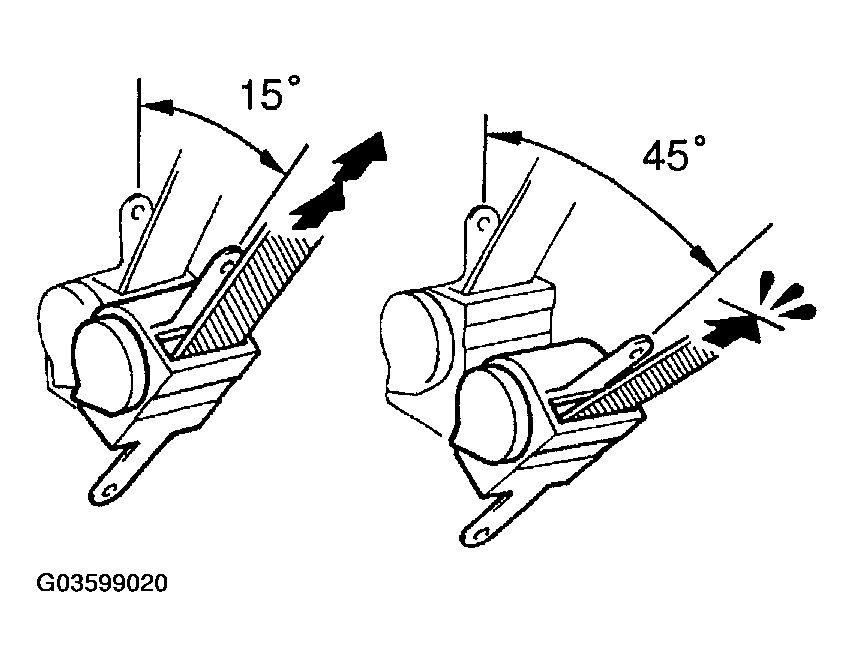

Fig 4: Seat Belt Release Or Lock Degree Angle Static Test
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
