Floor Shift Assembly: Disassembly

REMOVE SHIFT LEVER KNOB AND SHIFT LEVER KNOB COVER
REMOVE WIRE PROTECTOR
Using a screwdriver, remove the wire protector.

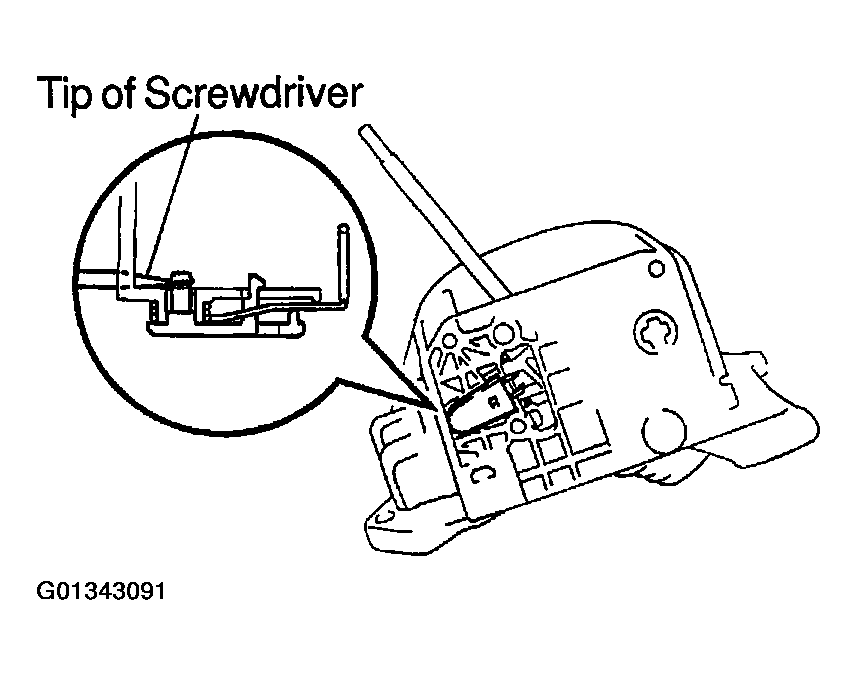

Fig 1: Removing Wire Protector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

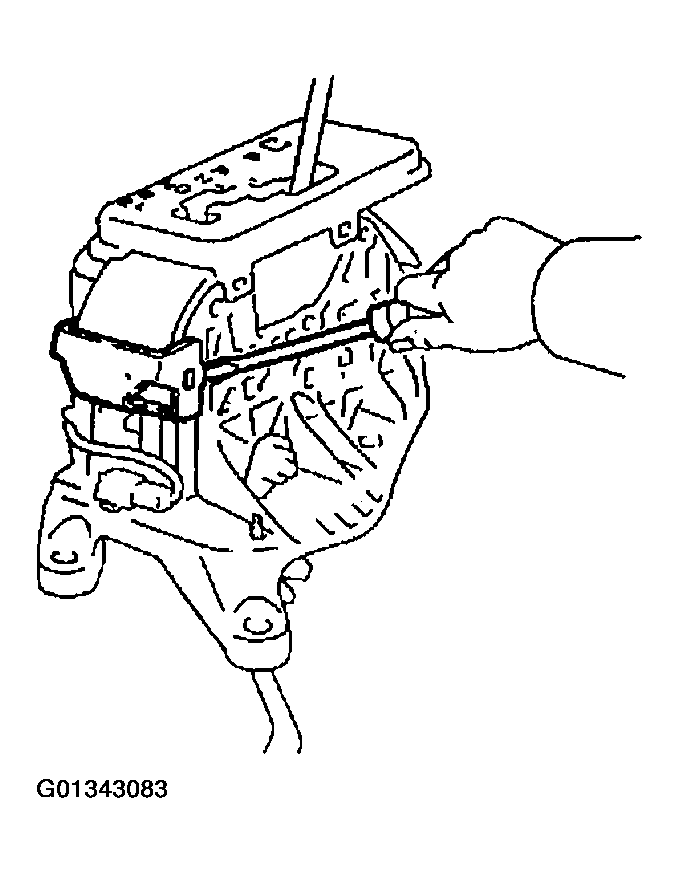

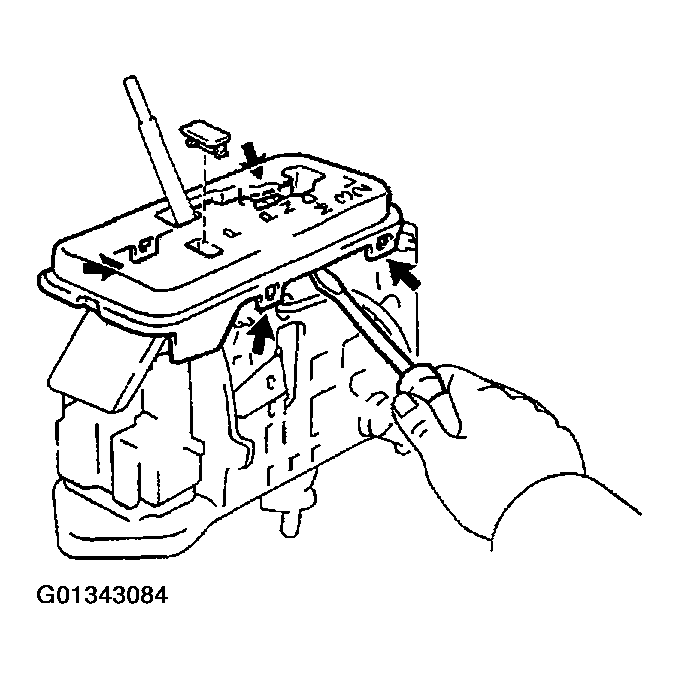

REMOVE POSITION INDICATOR HOUSING
1. Using a screwdriver, remove the position indicator housing.
2. Using a screwdriver, remove the shift lever cap from the position indicator housing.

  Fig 2: Removing Shift Lever Cap From Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

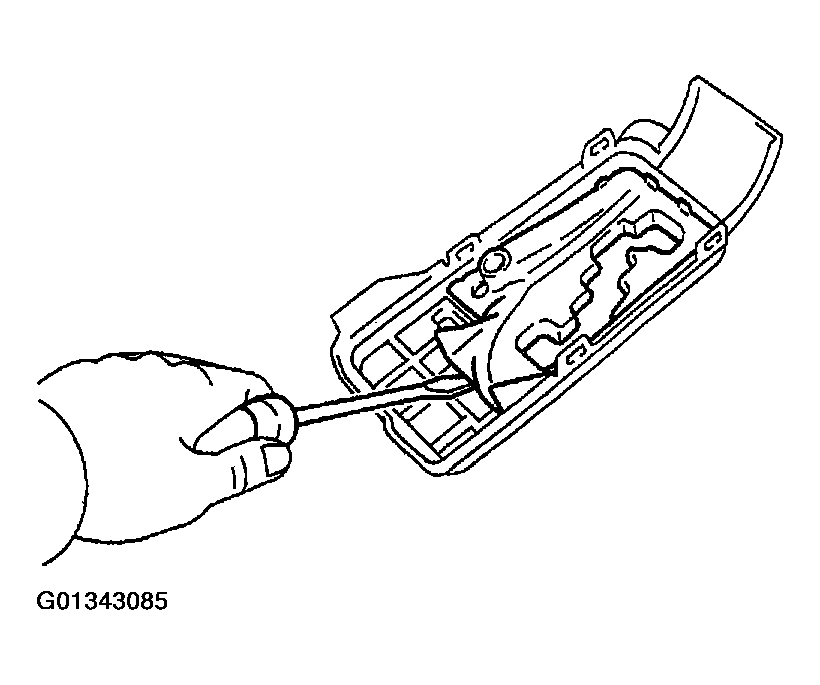

REMOVE POSITION INDICATOR LENS
Using a screwdriver, remove the position indicator lens from the position indicator housing.

Fig 3: Removing Position Indicator Lens
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SLIDE COVER

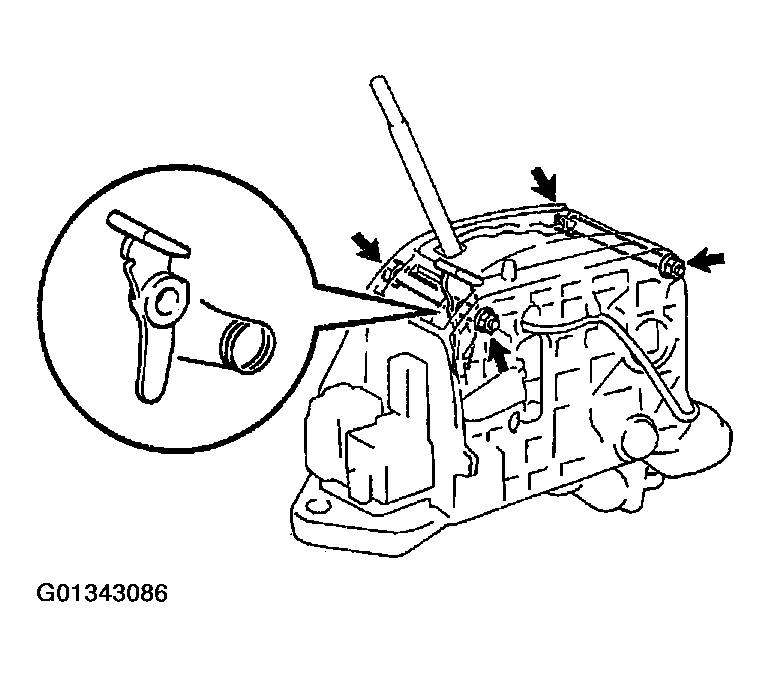

REMOVE SHIFT LOCK RELEASE LINK AND SPRING
1. Remove the 2 shift lever housing set bolts and nuts with the shift lock release link and spring.
2. Using a screwdriver, separate the shift lock release spring from the shift lock release link.

  Fig 4: Removing Shift Lock Release Link & Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

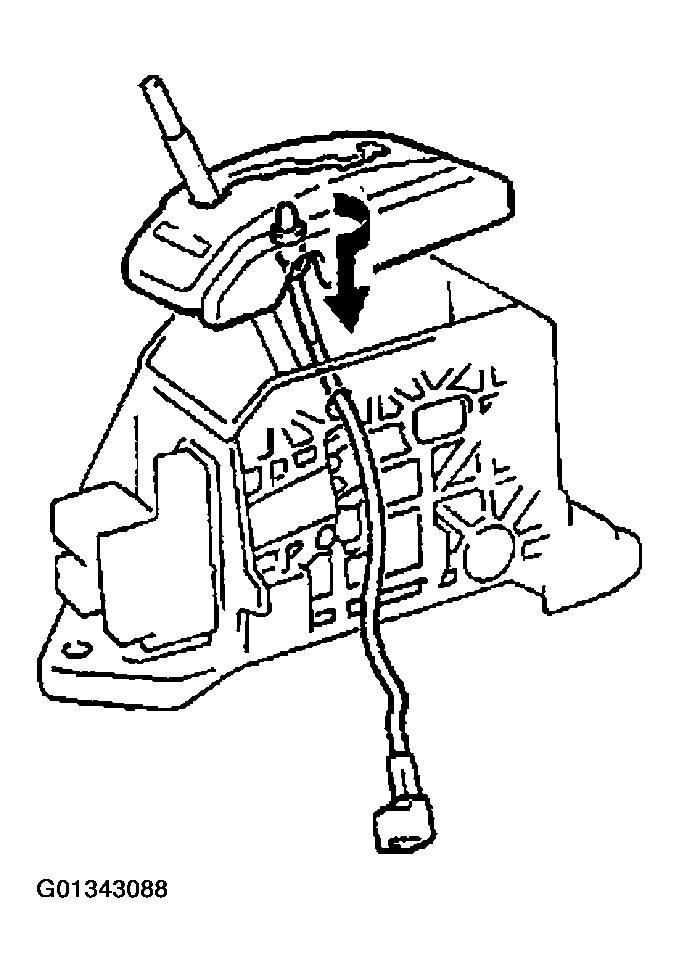

REMOVE SHIFT LEVER GUIDE HOUSING AND INDICATOR LAMP SUB-ASSEMBLY

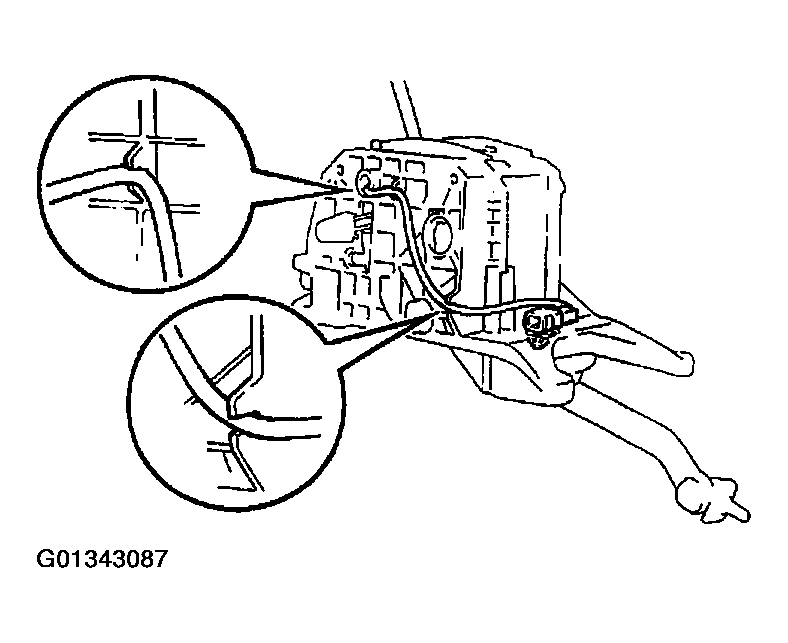

1. Disconnect the indicator lamp wire and connector from the shift lever plate.

  Fig 5: Disconnecting Indicator Lamp Wire & Connector From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift lever guide housing with the indicator lamp sub-assembly from the shift lever plate.
3. Remove the indicator lamp sub-assembly from the shift lever guide housing.

  Fig 6: Removing Indicator Lamp Sub-Assembly From Shift Lever Guide Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

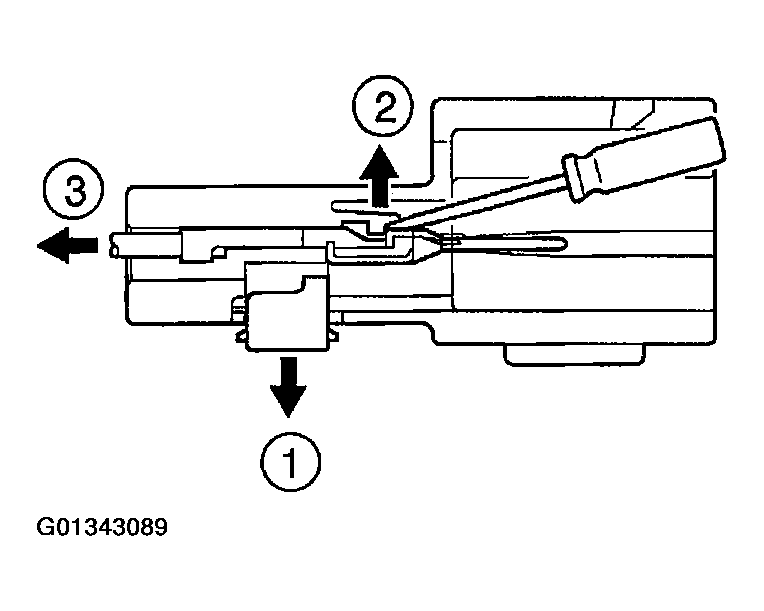

DISASSEMBLE INDICATOR LAMP SUB-ASSEMBLY
1. Remove the bulb from the indicator lamp wire sub-assembly.
2. Using a small screwdriver, remove the terminals of the indicator lamp wire sub-assembly from the connector, as shown in the illustration.

  Fig 7: Disassembling Indicator Lamp Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

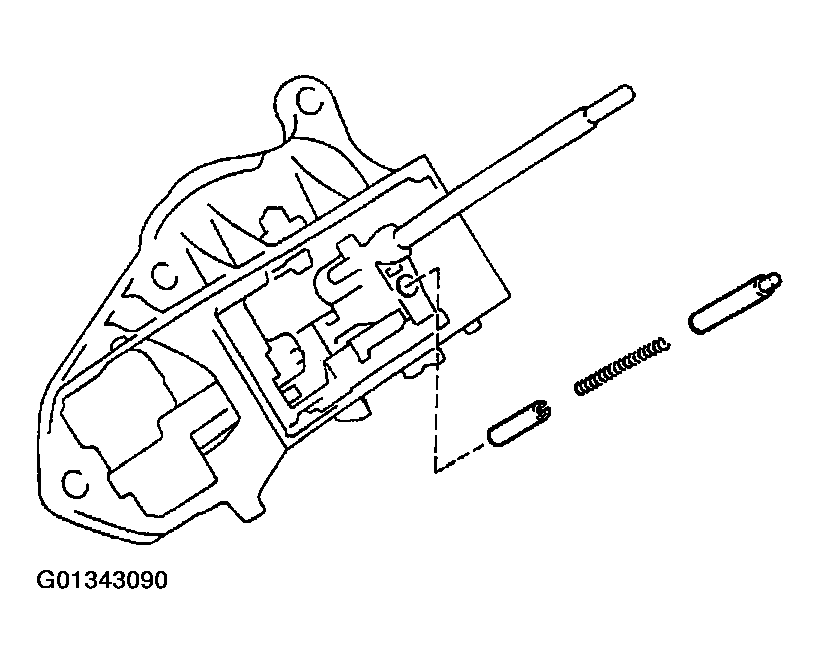

REMOVE SHIFT LEVER DETENT PIN, SHIFT LEVER SPRING DAMPER AND COMPRESSION SPRING FROM SHIFT LEVER SUB-ASSEMBLY

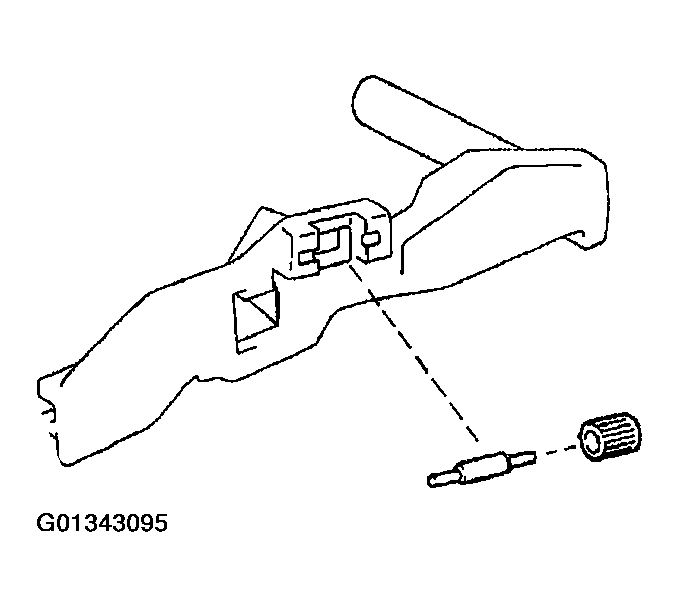

Fig 8: Removing Shift Lever Detent Pin
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

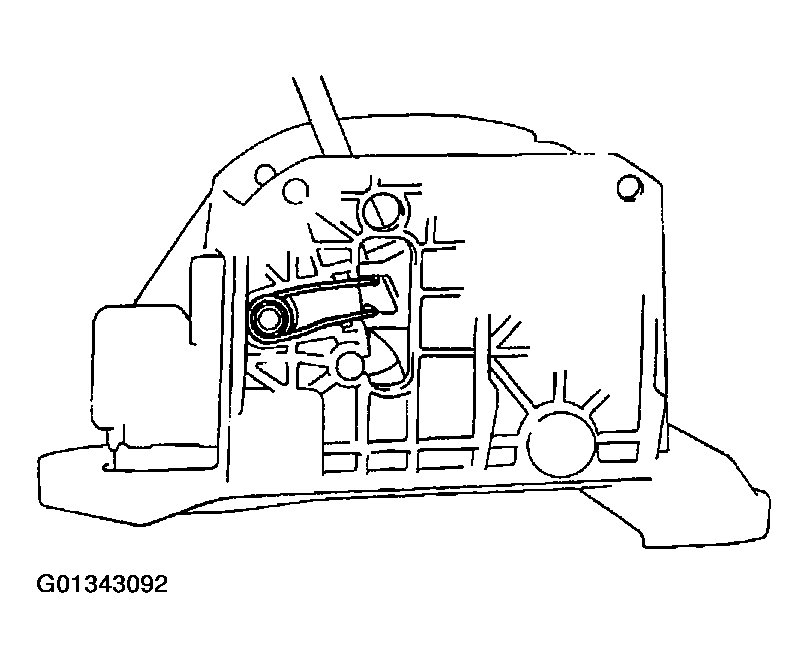

REMOVE SPRING HOLDER AND SHIFT LEVER TORSION SPRING
1. Using a screwdriver, remove the spring holder.

  Fig 9: Removing Spring Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift lever torsion spring.

  Fig 10: Removing Shift Lever Torsion Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

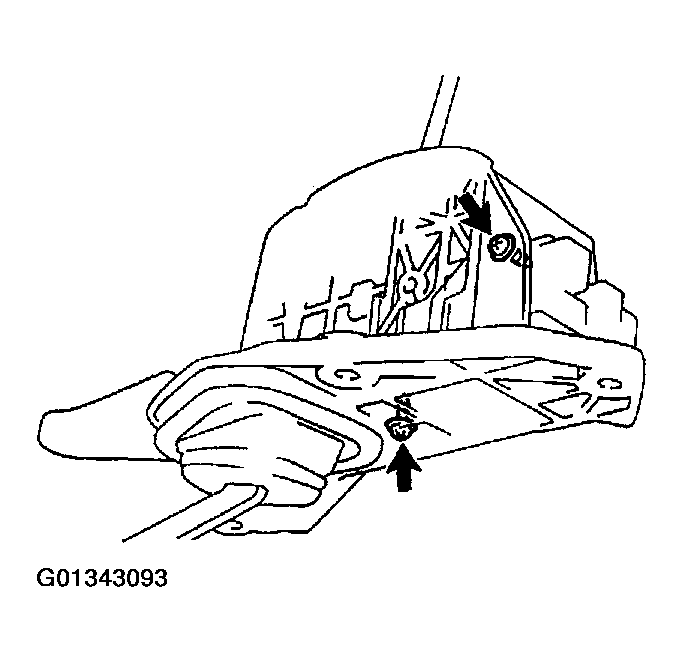

REMOVE 2 SHIFT LOCK CONTROL UNIT ASSEMBLY SET SCREWS

Fig 11: Removing Shift Lock Control Unit Assembly Set Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

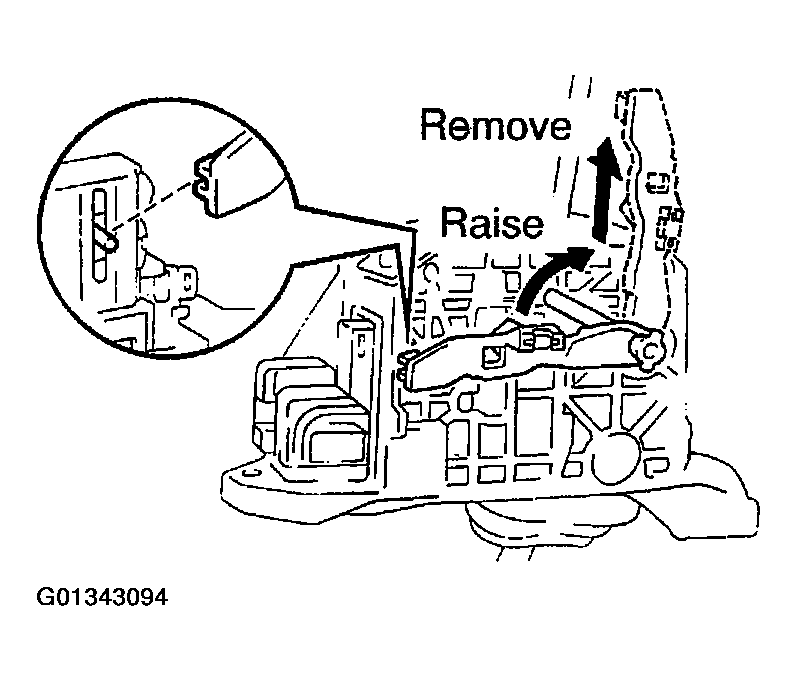

REMOVE NO. 1 SHIFT LOCK SWITCH PLATE
1. Disconnect the groove of the No. 1 shift lock switch plate from the projection of the shift lock control unit.
2. Raise the plate up to the direction shown in the illustration.
3. Remove the plate.

  Fig 12: Removing Shift Lock Switch Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the roller and shift lever anti-rattle cushion from the plate.
5. Separate the shift lever anti-rattle cushion from the roller.

  Fig 13: Removing Roller & Shift Lever Anti-Rattle Cushion From Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

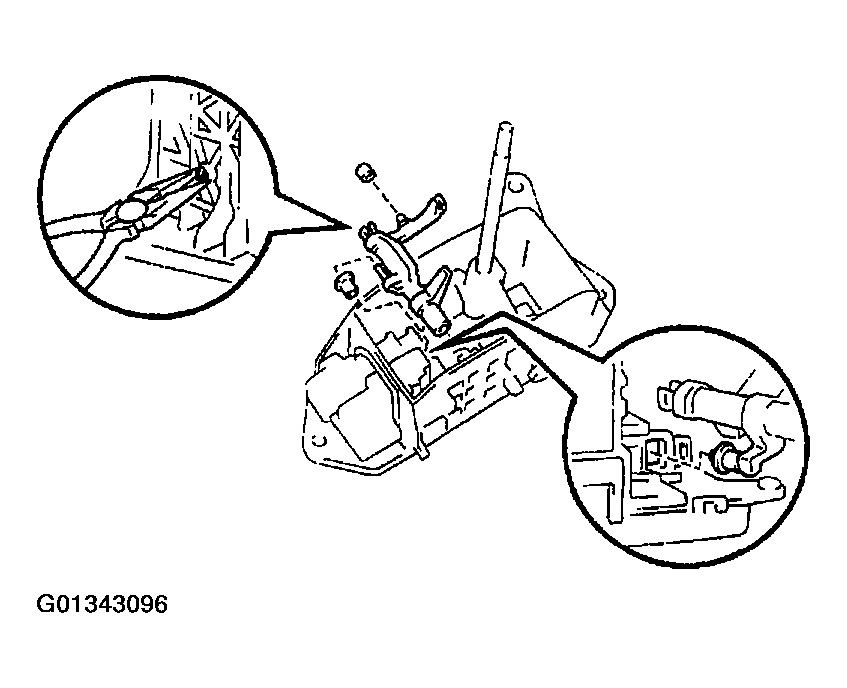

REMOVE SHIFT LOCK PLATE STOPPER
1. Using pliers, remove the stopper.
2. Remove the shift lever anti-rattle cushion and shift lock plate stopper cap from the shift lock release stopper.
3. Remove the shift lock release spring from the shift lock plate stopper.

  Fig 14: Removing Shift Lock Plate Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

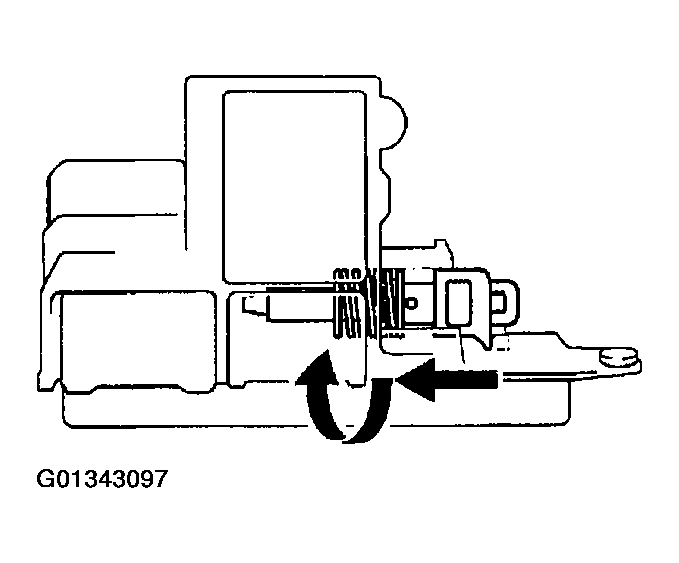

REMOVE SHIFT LOCK CONTROL UNIT ASSEMBLY
1. Remove the shift lock control unit assembly from the shift lever plate.
2. Push the shift lock solenoid link lightly, turn and remove it.
3. Remove the compression spring.
4. Remove the slotted spring pin and separate the shift lock solenoid link.

  Fig 15: Removing Shift Lock Control Unit Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

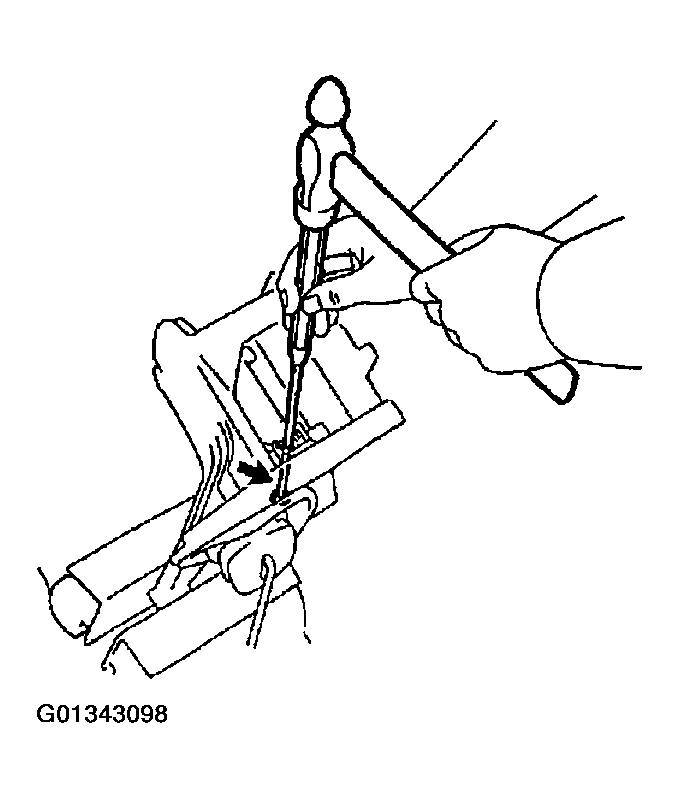

REMOVE SHIFT LEVER SUB-ASSEMBLY
1. Using a pin punch and hammer, driver out the pin.
2. Remove the shift lever sub-assembly.

  Fig 16: Using A Pin Punch & Hammer To Driver Out Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the shift lever nut from the shift lever sub-assembly.

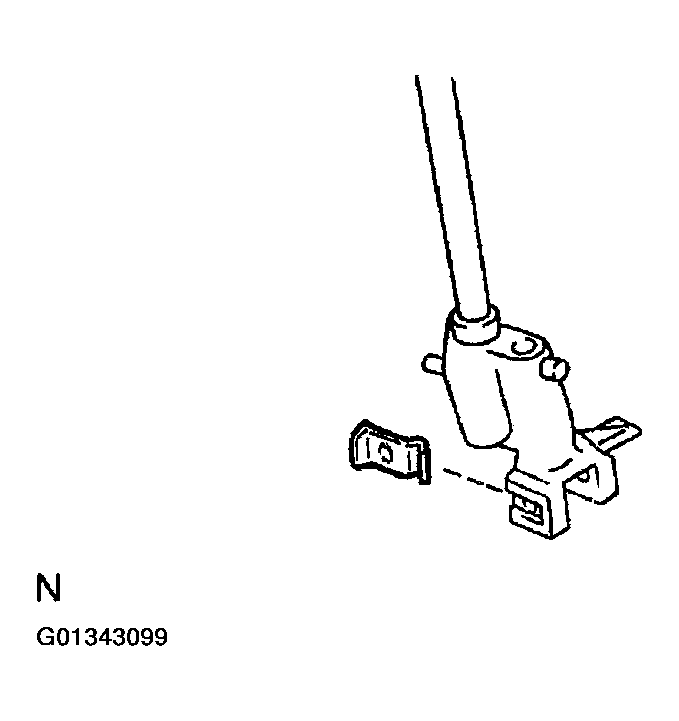

  Fig 17: Removing Shift Lever Nut From Shift Lever Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

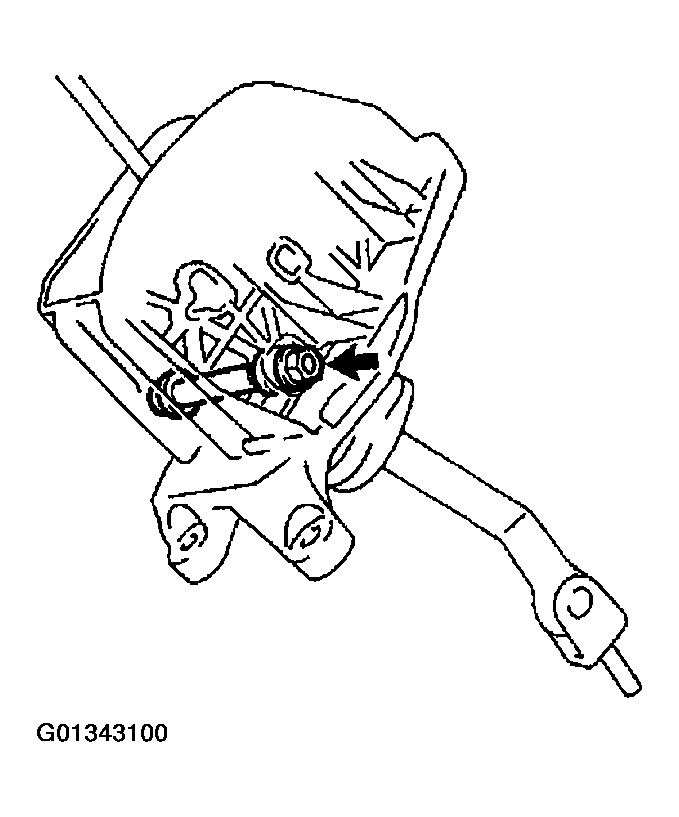

REMOVE CONTROL LEVER, SPACER AND CONTROL SHAFT
1. Remove the nut.
2. Remove the 2 spacers and control shaft from the shift lever plate.

  Fig 18: Removing Spacers & Control Shaft From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the shift lever boot from shift lever plate.
4. Remove the control lever.

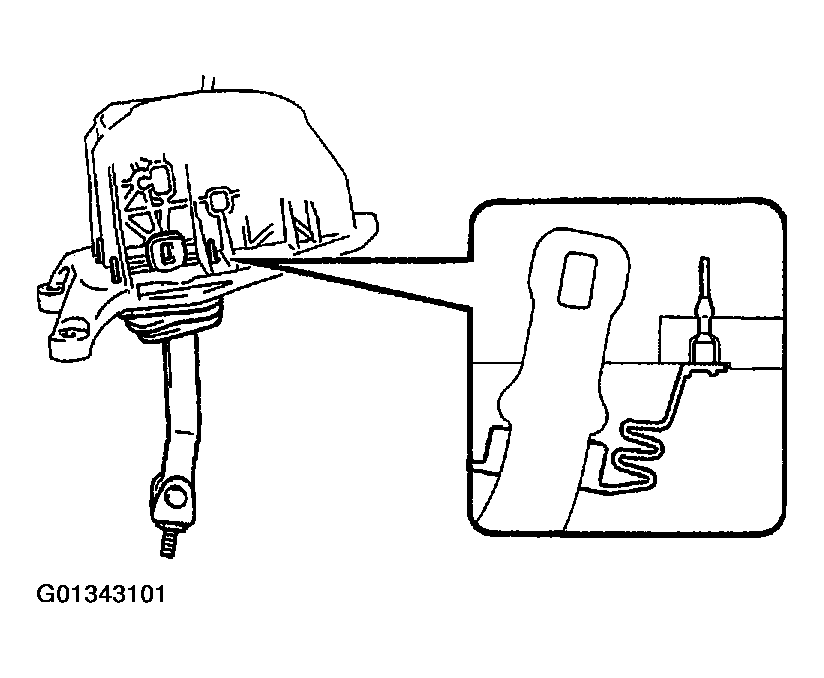

  Fig 19: Removing Shift Lever Boot From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

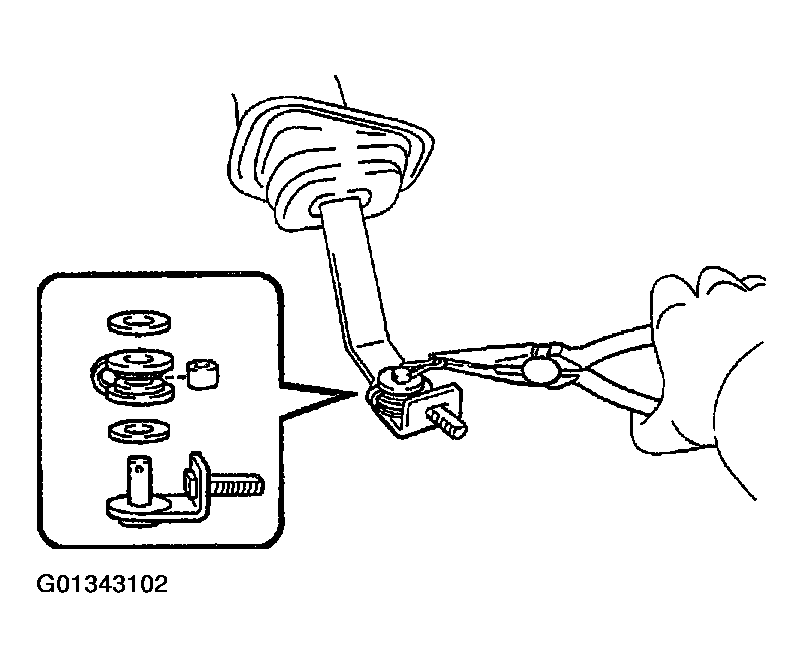

REMOVE CLIP, CONNECTING ROD SWIVEL, LOWER CONTROL SHAFT BUSHING, LOWER CONTROL SHAFT PIECE, PLATE WASHER AND SHIFT LEVER BOOT FROM CONTROL LEVER
1. Using pliers, remove the clip.
2. Remove the connecting rod swivel, lower control shaft bushing, lower control shaft piece, 2 plate washers and shift lever boot from the control lever.

  Fig 20: Removing Connecting Rod Swivel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
