Floor Shift Assembly: Removal

RAISE VEHICLE
NOTE: Make sure that the vehicle is securely supported.
REMOVE FRONT EXHAUST PIPE
3UZ-FE Engine:

Fig 1: Identifying Exhaust System Components (3UZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2JZ-GE Engine:

Fig 2: Identifying Exhaust System Components (2JZ-GE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEAT INSULATOR
Remove the 6 bolts and heat insulator.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
DISCONNECT SHIFT CONTROL ROD
3UZ-FE Engine: (See REMOVAL ).

2JZ-GE Engine: (See REMOVEL ).
LOWER VEHICLE
REMOVE THESE PARTS: (Refer to INSTRUMENT PANEL - REMOVAL & INSTALLATION ).
- Grove compartment panel assembly
- Box plate
- No. 2 under cover
- No. 1 safety pad
- No. 1 under cover
- Cluster finish panel
- Lower rear console box
- Console box and rear console armrest
- No. 3 console box mounting bracket
- Ash receptacle
- No. 1 console box duct
- Finish plate
- End pad
REMOVE SHIFT LEVER ASSEMBLY
1. Disconnect the connectors and wire harness from the shift lever assembly.
2. Remove the 4 bolts and shift lever assembly.
  Torque: 8.3 N.m (85 kgf.cm, 74 in.lbf)

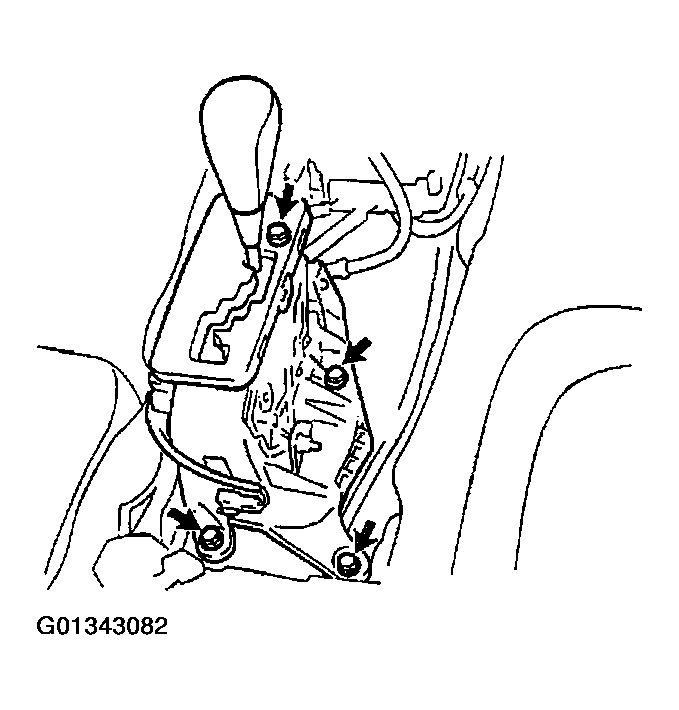

  Fig 3: Identifying Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
