On-Vehicle Repair

  1. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR

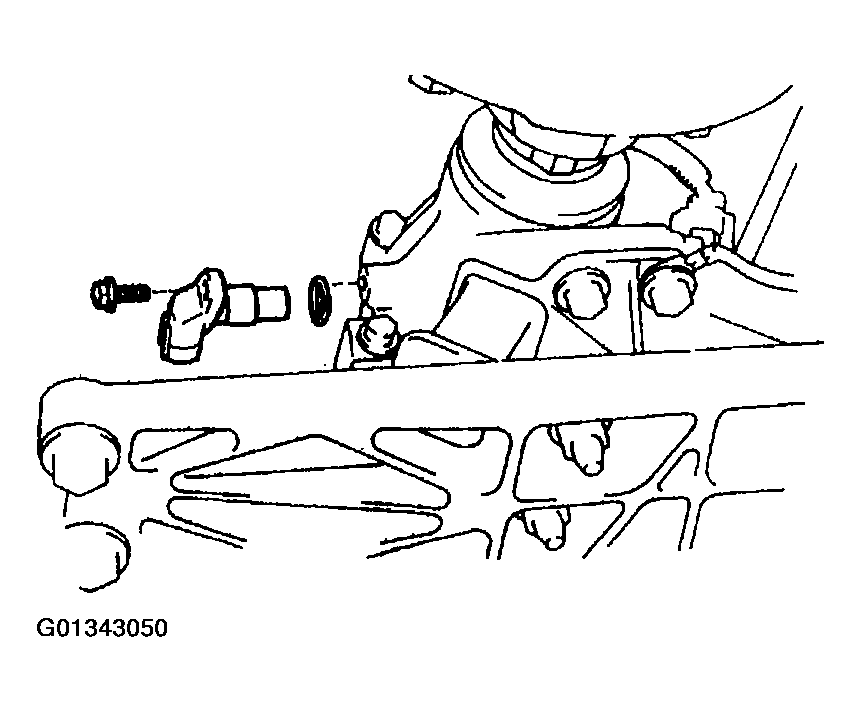

    2. Fig 1: Identifying Vehicle Speed Sensor
    G01343050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE VEHICLE SPEED SENSOR
    1. Remove the bolt and vehicle speed sensor.
    2. Remove the O-ring from the sensor.
  3. INSTALL VEHICLE SPEED SENSOR
    1. Coat a new O-ring with ATF and install it to the speed sensor.
    2. Install the speed sensor with the bolt.

      Torque: 5.4 N.m (55kgf.cm, 48 in.lbf)

  4. CONNECT VEHICLE SPEED SENSOR CONNECTOR
