Diagnostic Trouble Code Table
If a DTC is displayed during the DTC check, check the table.
DTC
| DTC | Description | ||
|---|---|---|---|
| DTC P0500 | Vehicle Speed Sensor "A" | ||
| DTC P0705 | Transmission Range Sensor Circuit Malfunction (PRNDL Input) | ||
| DTC P0710, P0712, P0713 | Transmission Fluid Temperature Sensor "A" Circuit | ||
| DTC P0711 | Transmission Fluid Temperature Sensor "A" Performance | ||
| DTC P0717 | Input Speed Sensor Circuit No Signal | ||
| DTC P0724 | Brake Switch "B" Circuit High | ||
| DTC P0751, P0756, P0761 | Shift Solenoid "A" Performance (Shift Solenoid Valve S1) | ||
| DTC P0973, P0974, P0976, P0977, P0979, P0980 | Shift Solenoid "A" Control Circuit Low (Shift Solenoid Valve S1) | ||
| DTC P0982, P0983 | Shift Solenoid "D" Control Circuit Low (Shift Solenoid Valve S4) | ||
| DTC P2716 | Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT) | ||
| DTC P2725 | Pressure Control Solenoid "E" Electrical (Shift Solenoid Valve SLN) | ||
| DTC P2757 | Torque Converter Clutch Pressure Control Solenoid Performance(Shift Solenoid Valve SLU) | ||
| DTC P2759 | Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) | ||
|
HINT:
|
|||

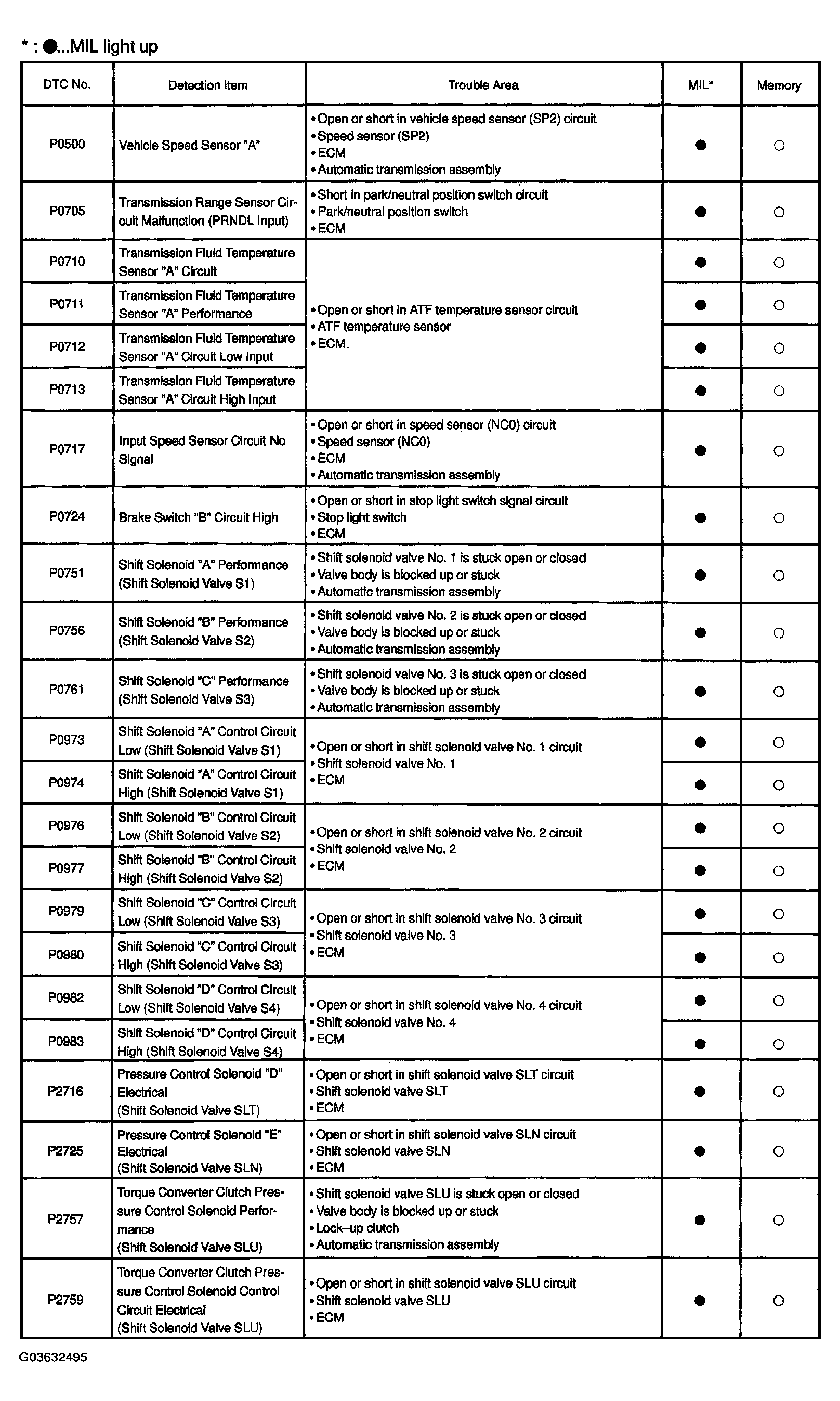

For more DTC information see Fig 1.
HINT:
DTC may be output when the clutch, brake and gear components etc. inside the automatic transmission are damaged.
