Valve Body Assembly: Installation

Raise and support vehicle.
Install solenoid valves using the following steps:
1. Install solenoid valves SLU and SLT and lock plate with bolt.
2. Coat 2 new "O" rings with automatic transmission fluid.
3. Install 2 "O" rings to solenoid valves No. 2 and 4.
4. Install solenoid valve SLN with bolt.
5. Install solenoid valves No. 1, 2, 3 and 4 with 4 bolts. See Fig 5.
Install check ball body and spring. See Fig 4.
Install valve body using the following steps:
1. Align the groove of manual valve with pin of lever. See Fig 6.
2. Install the 21 bolts. See Fig 3.
3. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
Install solenoid valve wiring with ATF temperature sensor using the following steps:
1. Install solenoid valve connector with bolt. See Fig 2.
2. Connect 7 connectors to solenoid valves.
3. Install clamp with bolt. See Fig 1.
4. Connect ATF temperature sensor.
Install oil filter. See DRAINING & REFILLING .
Install oil pan. See DRAINING & REFILLING .
Install NEW gasket and drain plug.
Lower vehicle.
Fill and add automatic transmission fluid. See DRAINING & REFILLING .

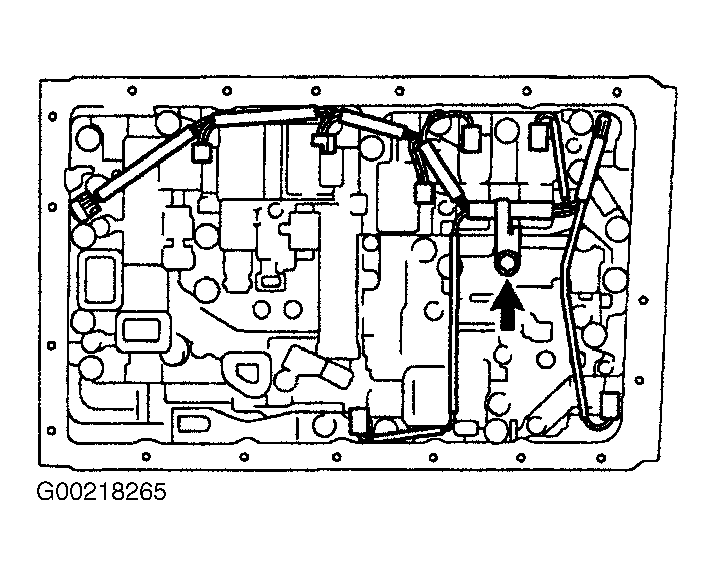

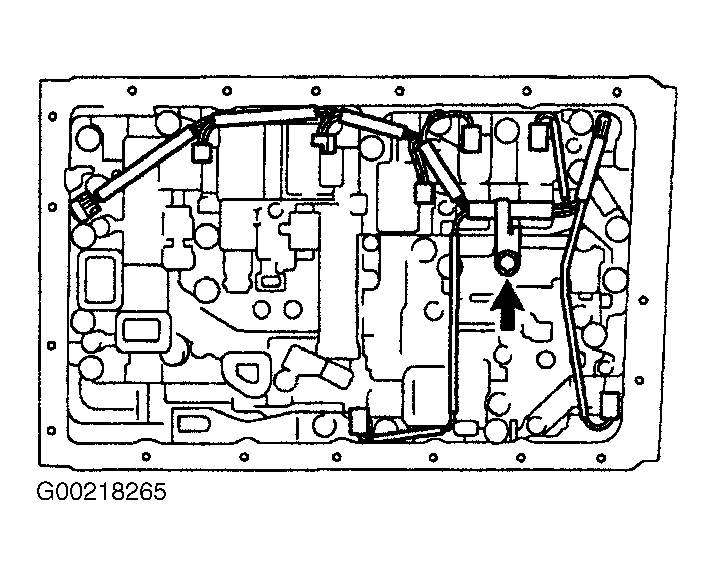

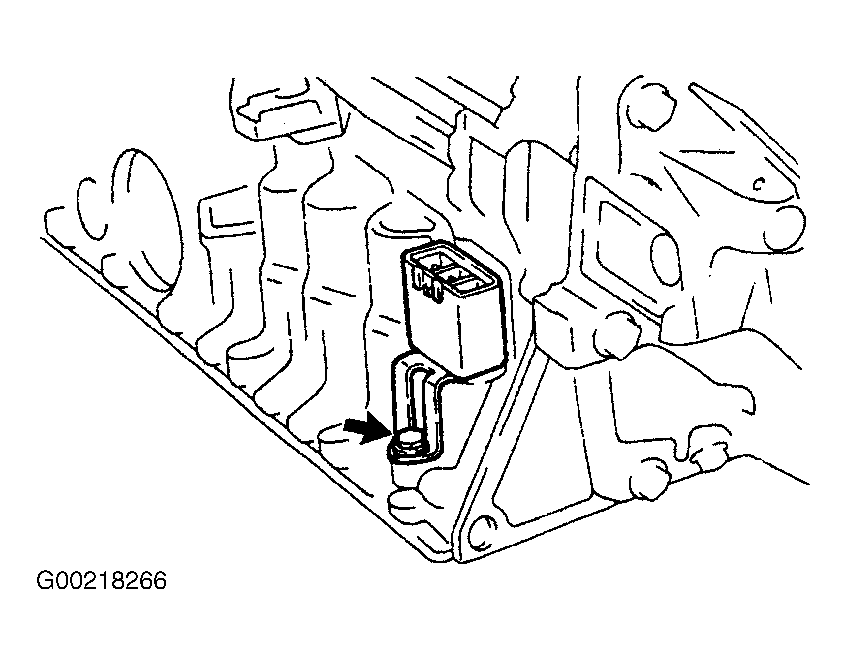

Fig 1: Removing & Installing Solenoid Valve Wiring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

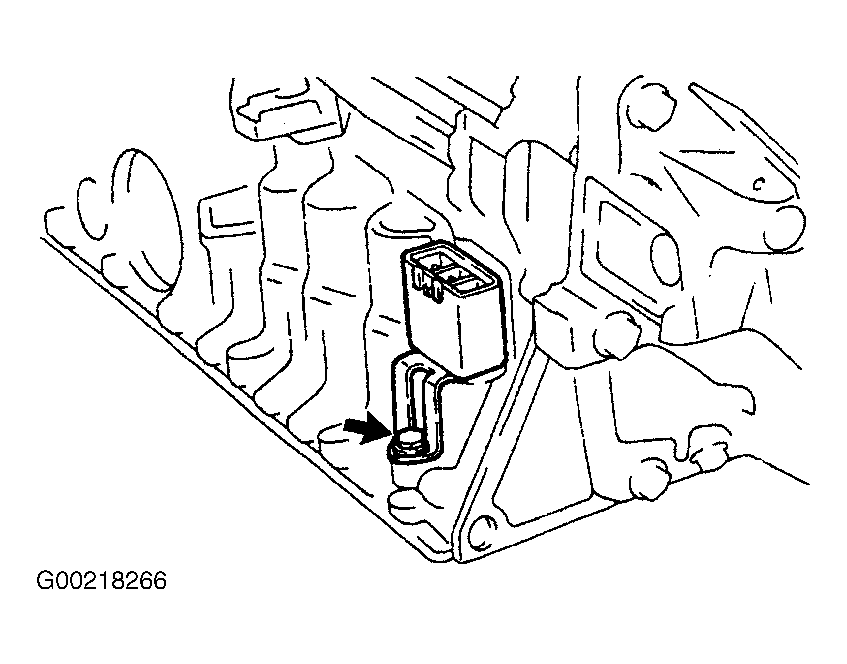

Fig 2: Removing & Installing Solenoid Valve Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

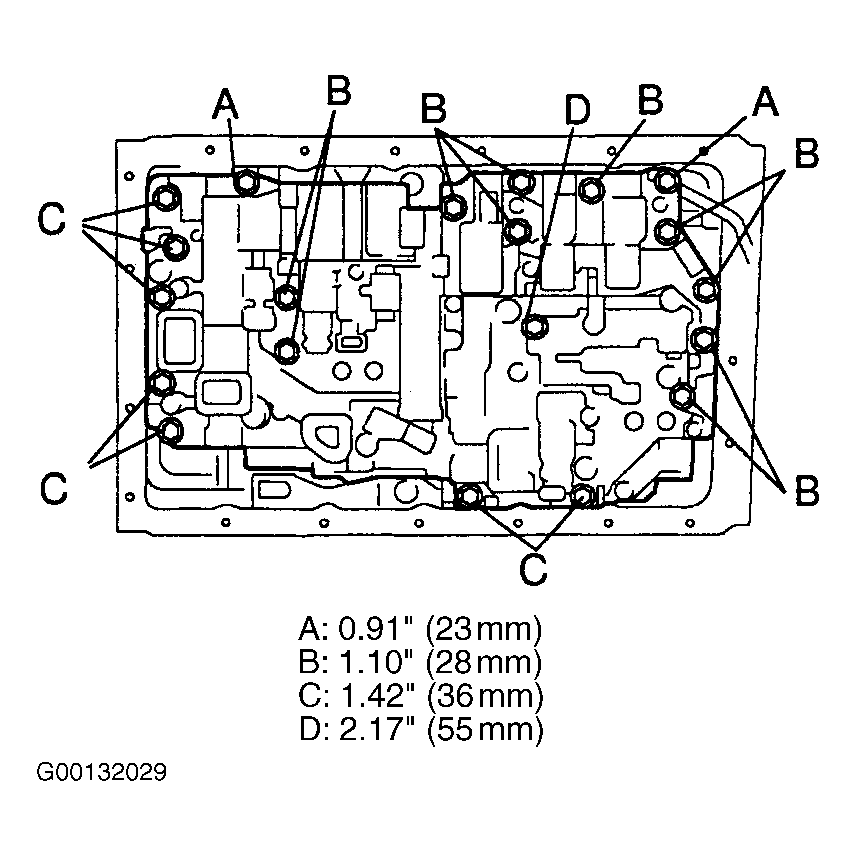

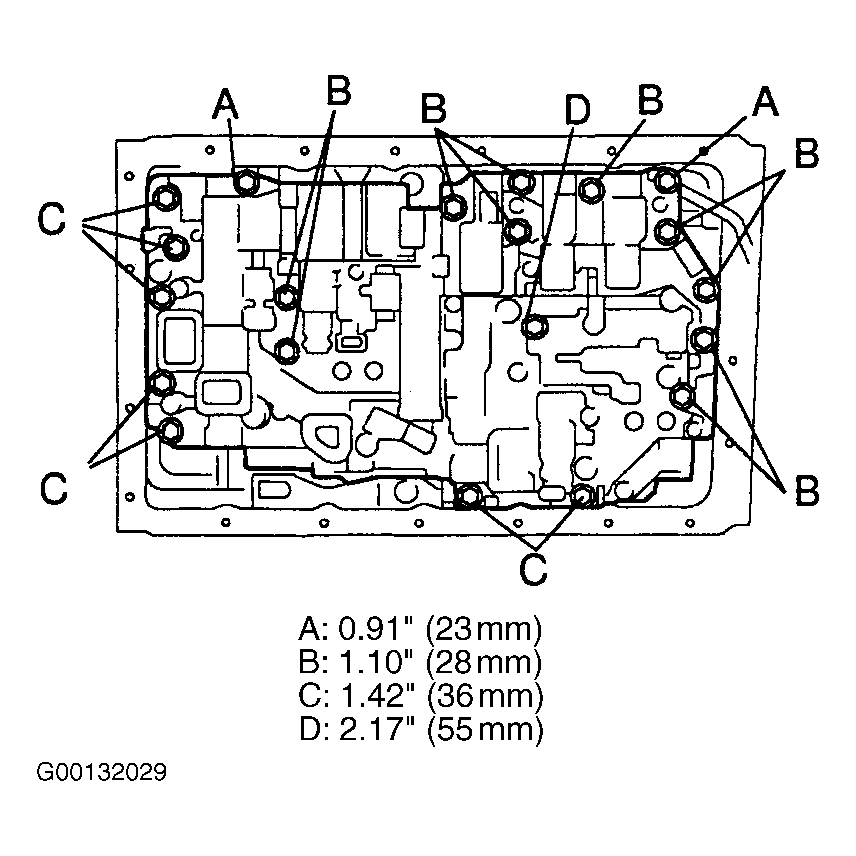

Fig 3: Identifying Lengths & Locations Of Valve Body Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

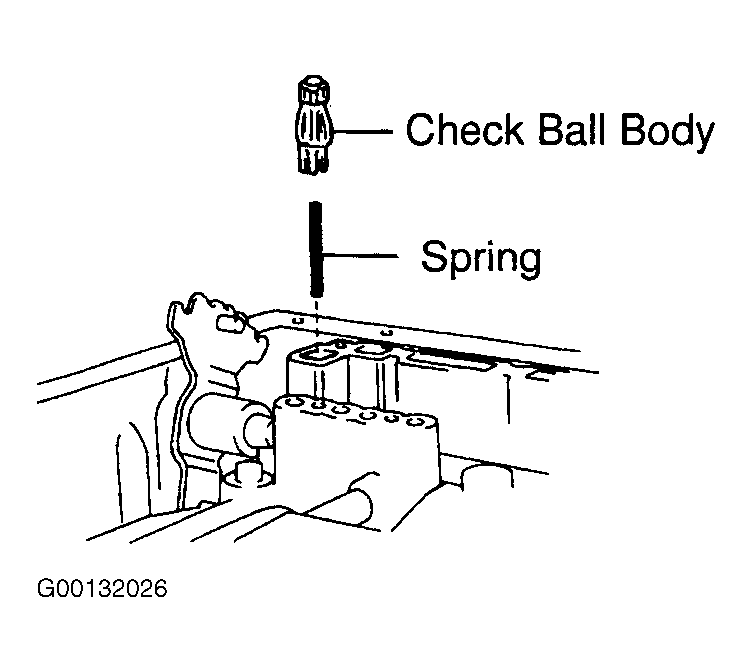

Fig 4: Removing & Installing Check Ball Body & Spring

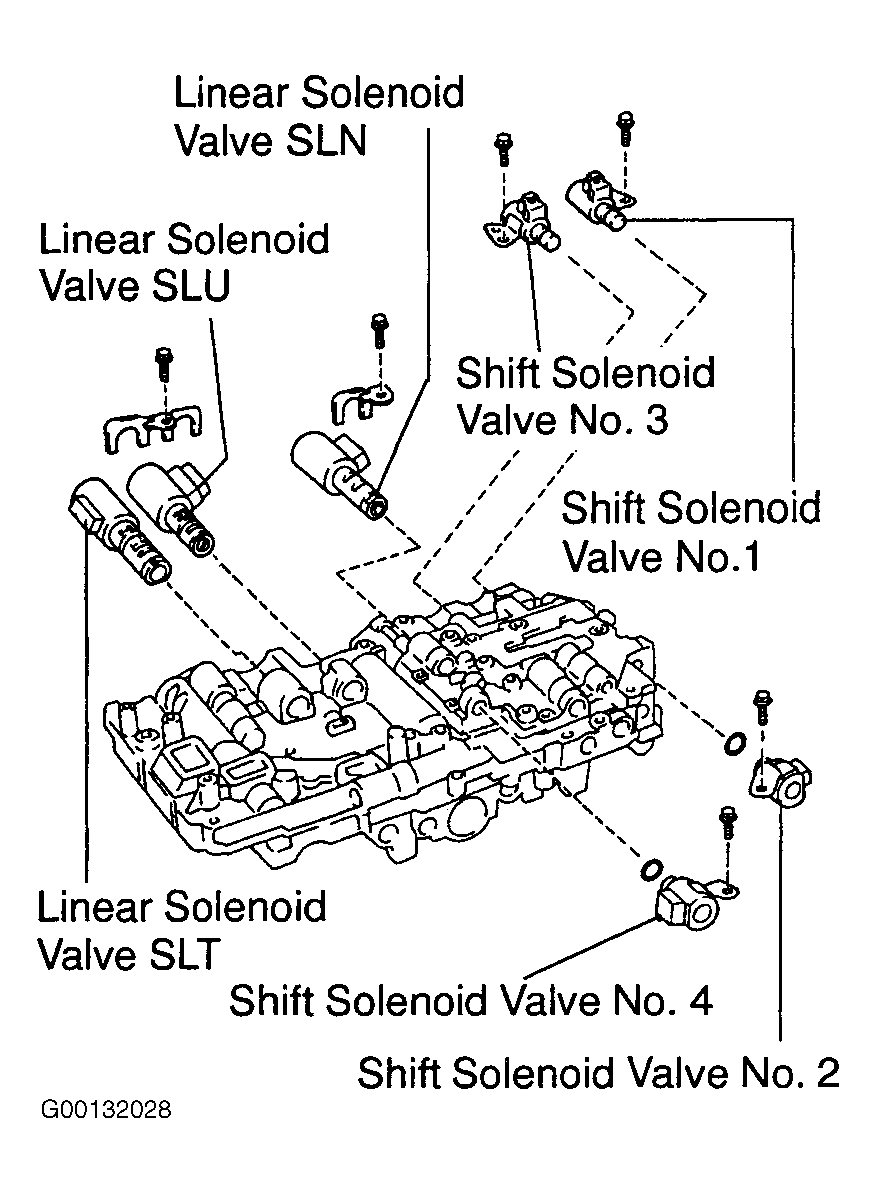

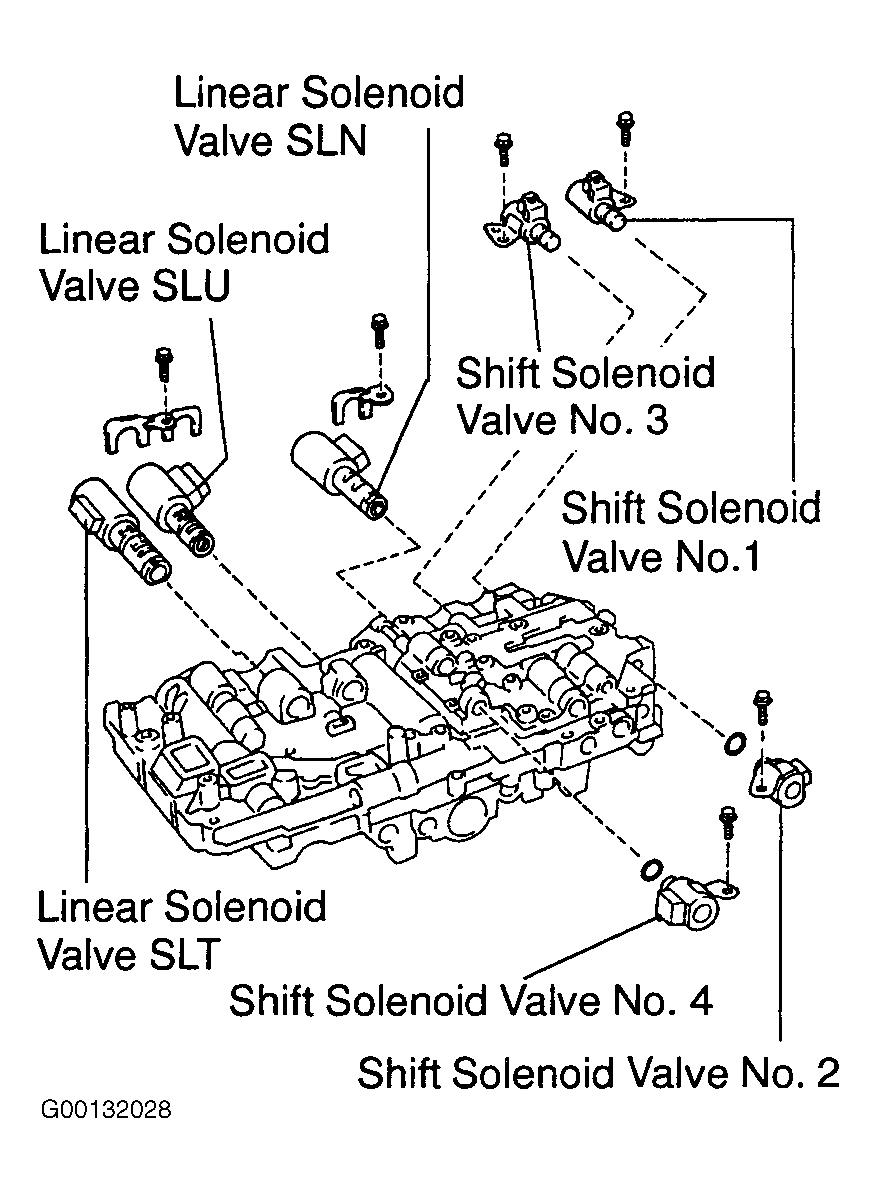

Fig 5: Removing & Installing Solenoid Valves In Valve Body

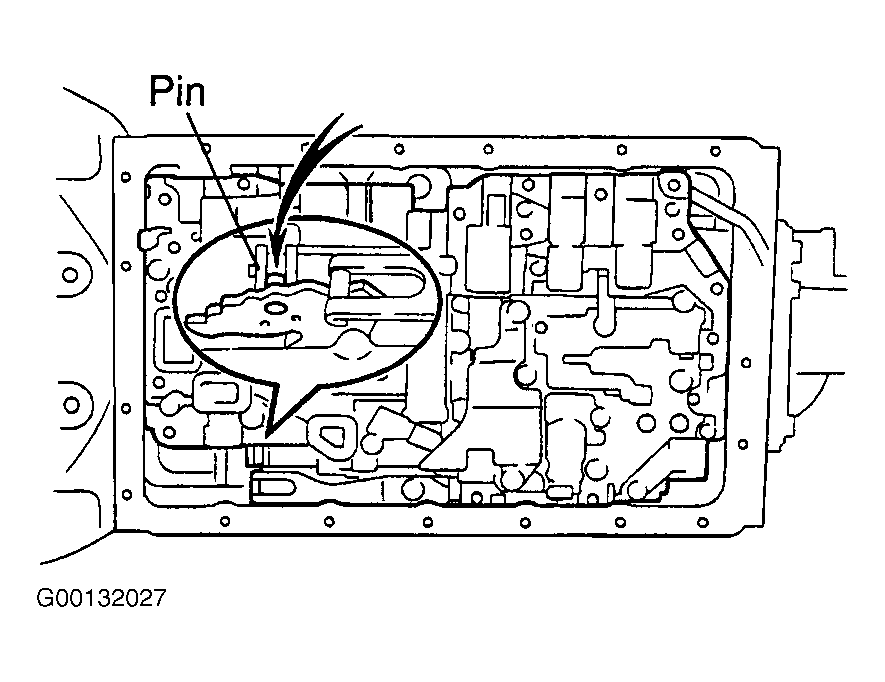

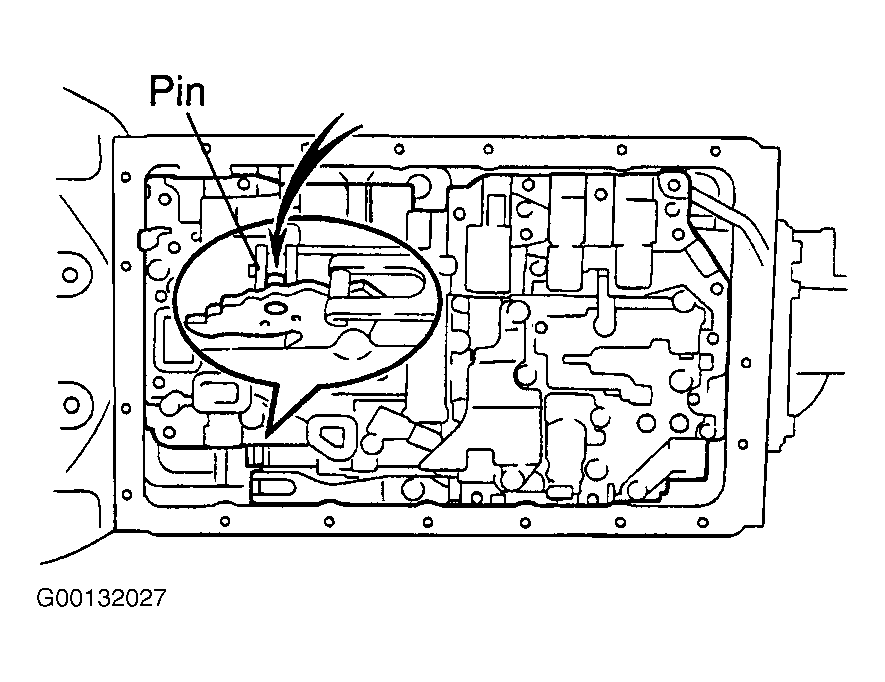

Fig 6: Removing & Installing Valve Body Assembly
