Keyless Entry Transmitter: Service and Repair

REPLACEMENT

HINT: The installation is in the reverse order of the removal.




1. REMOVE TRANSMITTER SUB-ASSEMBLY MODULE SET DOOR CONTROL

NOTE: Special caution should be taken for handling each component as they are precise electronic components

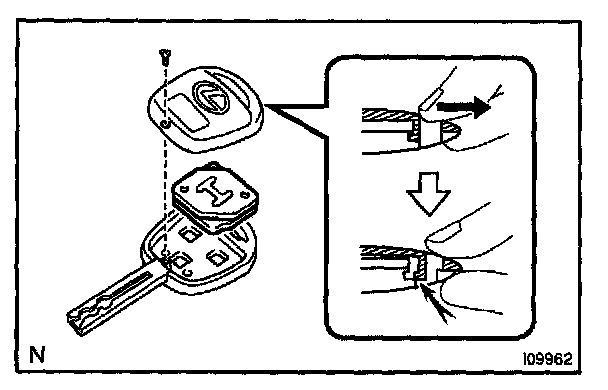

a. Using a screwdriver, remove the screw.
b. Push the cover with your finger, as shown in the illustration, so a gap appears, then pry out the cover using that gap

NOTE: Do not forcibly pry the cover up
