Data List

DATA LIST

HINT: According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor actuator, etc. on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.




a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.

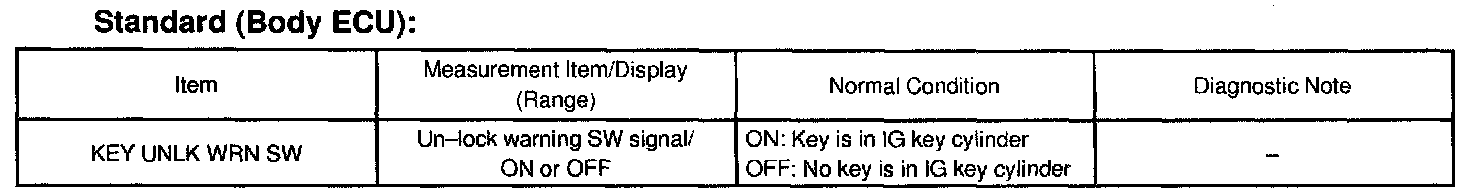

c. According to the display on the tester, read the DATA LIST.
