Control Module HVAC: Testing and Inspection

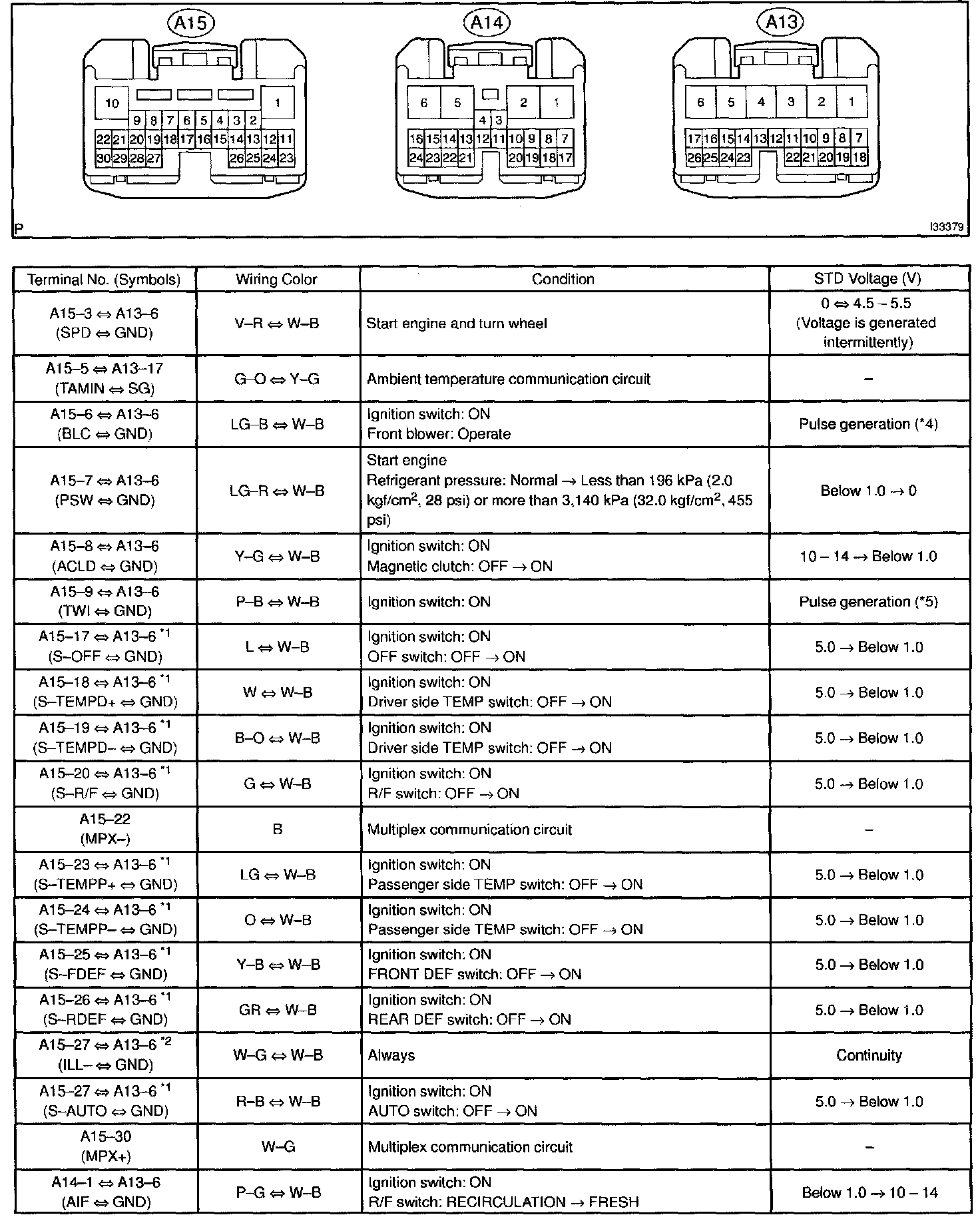

Terminals Of ECU/pinouts - Air Conditioner Amplifier Assay Part 1:

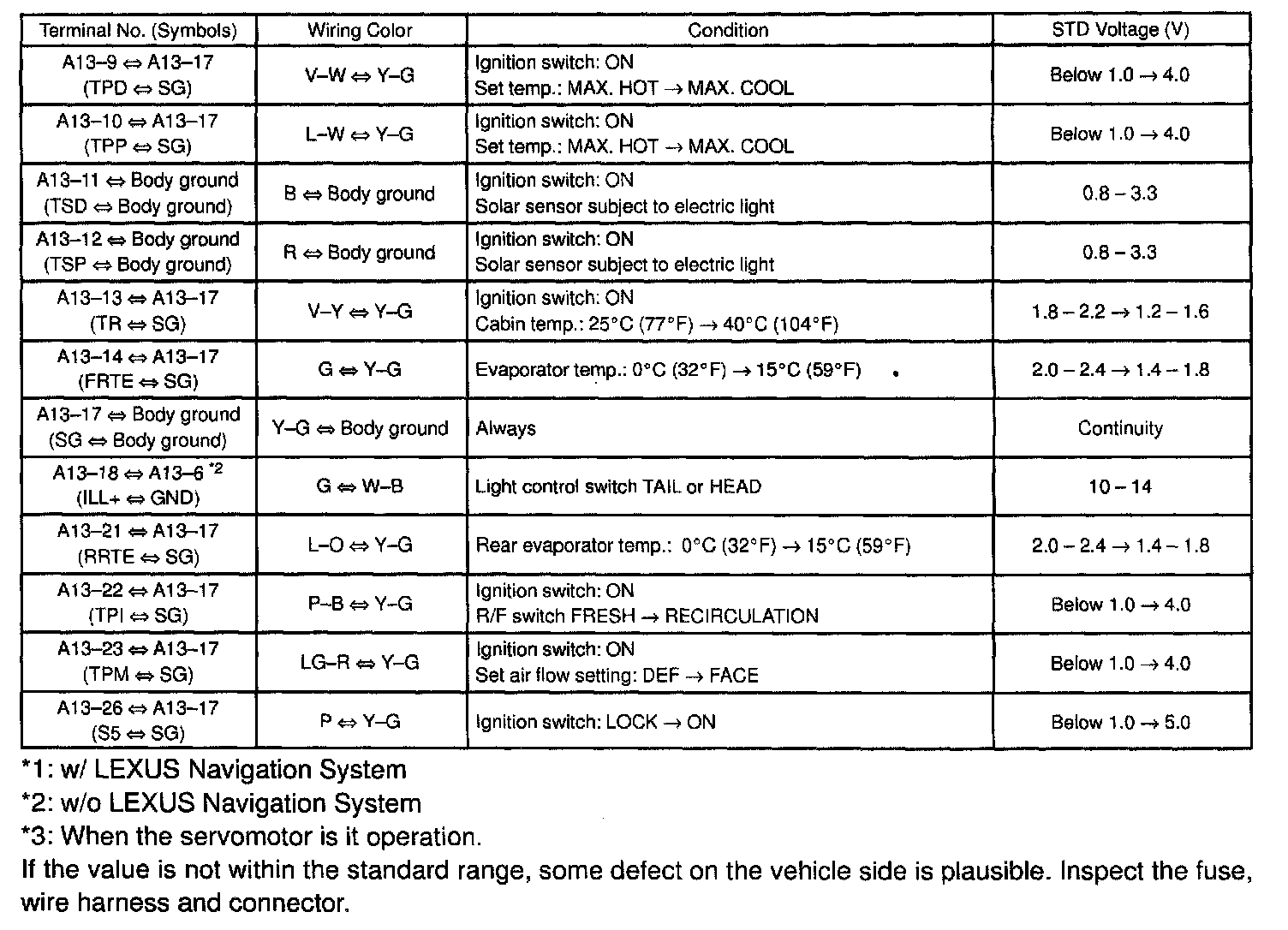

Terminals Of ECU/pinouts - Air Conditioner Amplifier Assay Part 2:

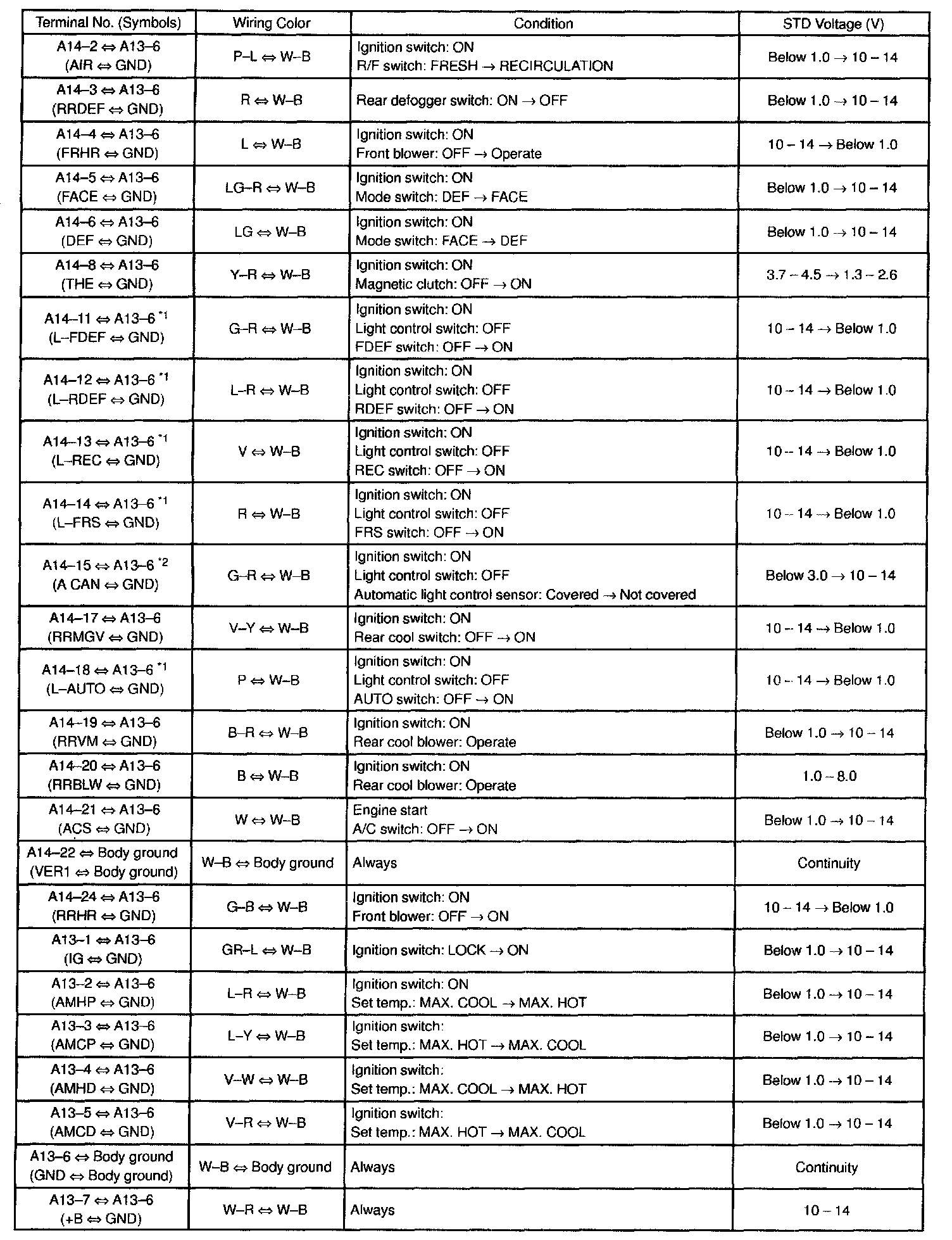

Terminals Of ECU/Pinouts - Air Conditioner Amplifier Assy Part 3:

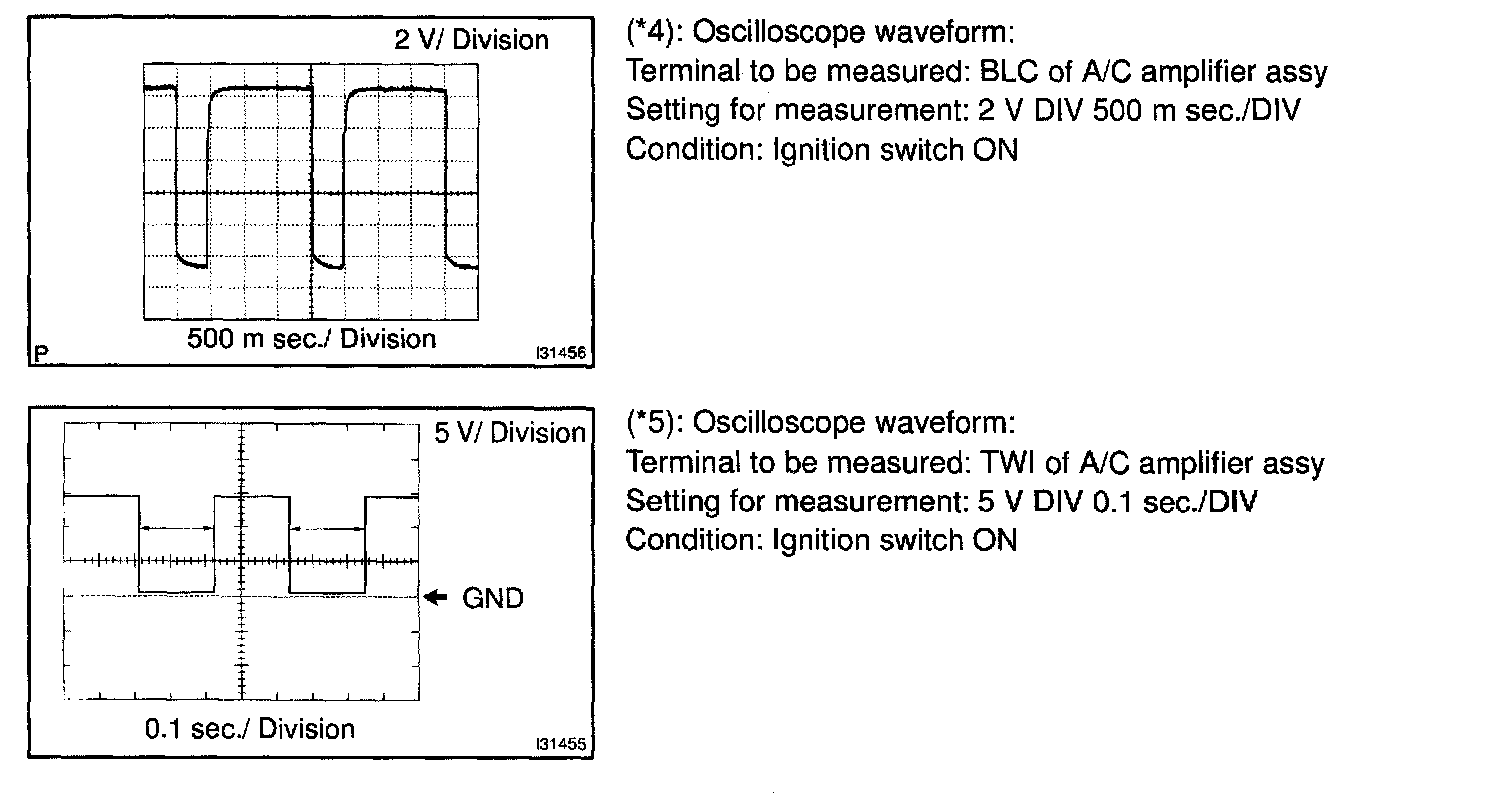

Oscilloscope Waveforms:

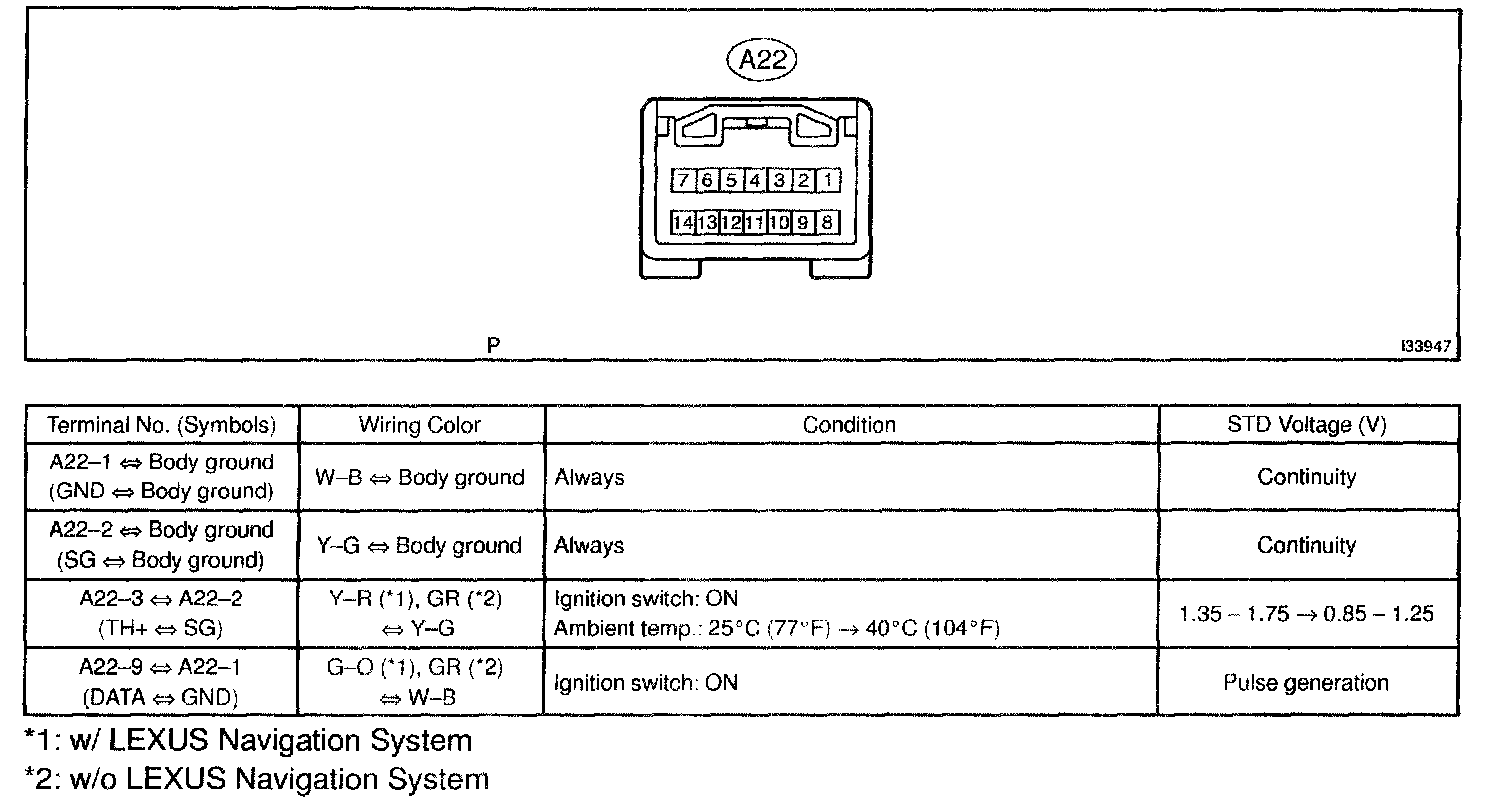

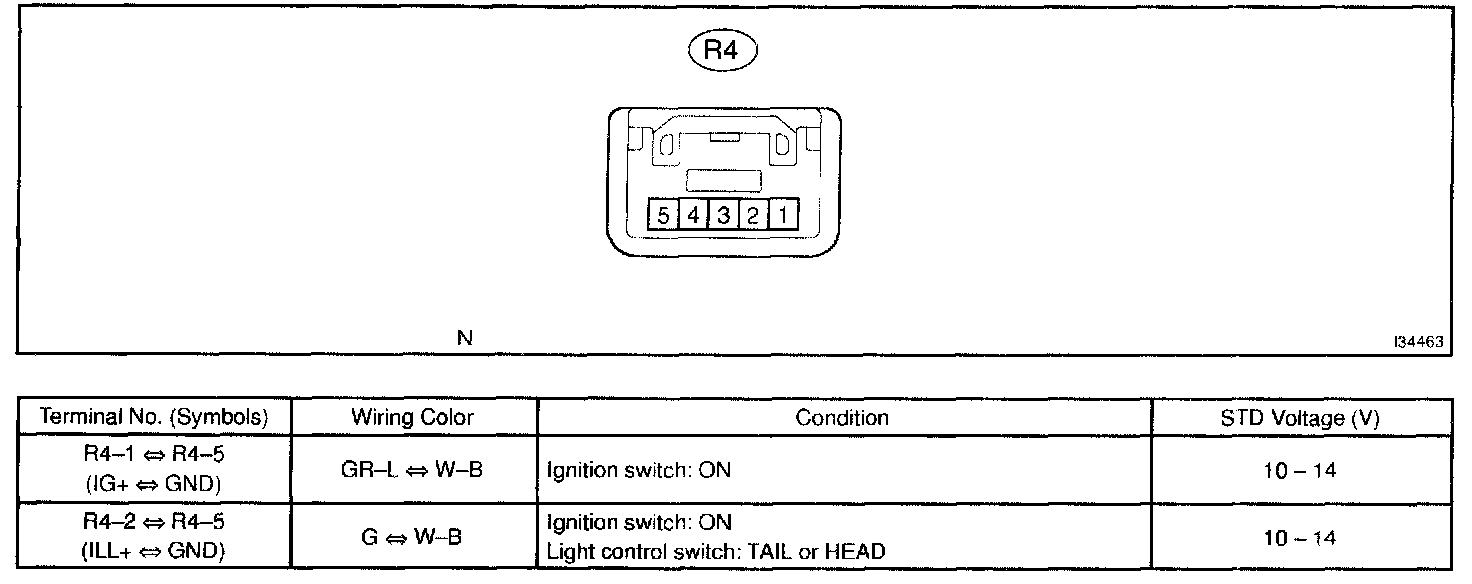

Terminals Of ECU/Pinouts - Accessory Meter:

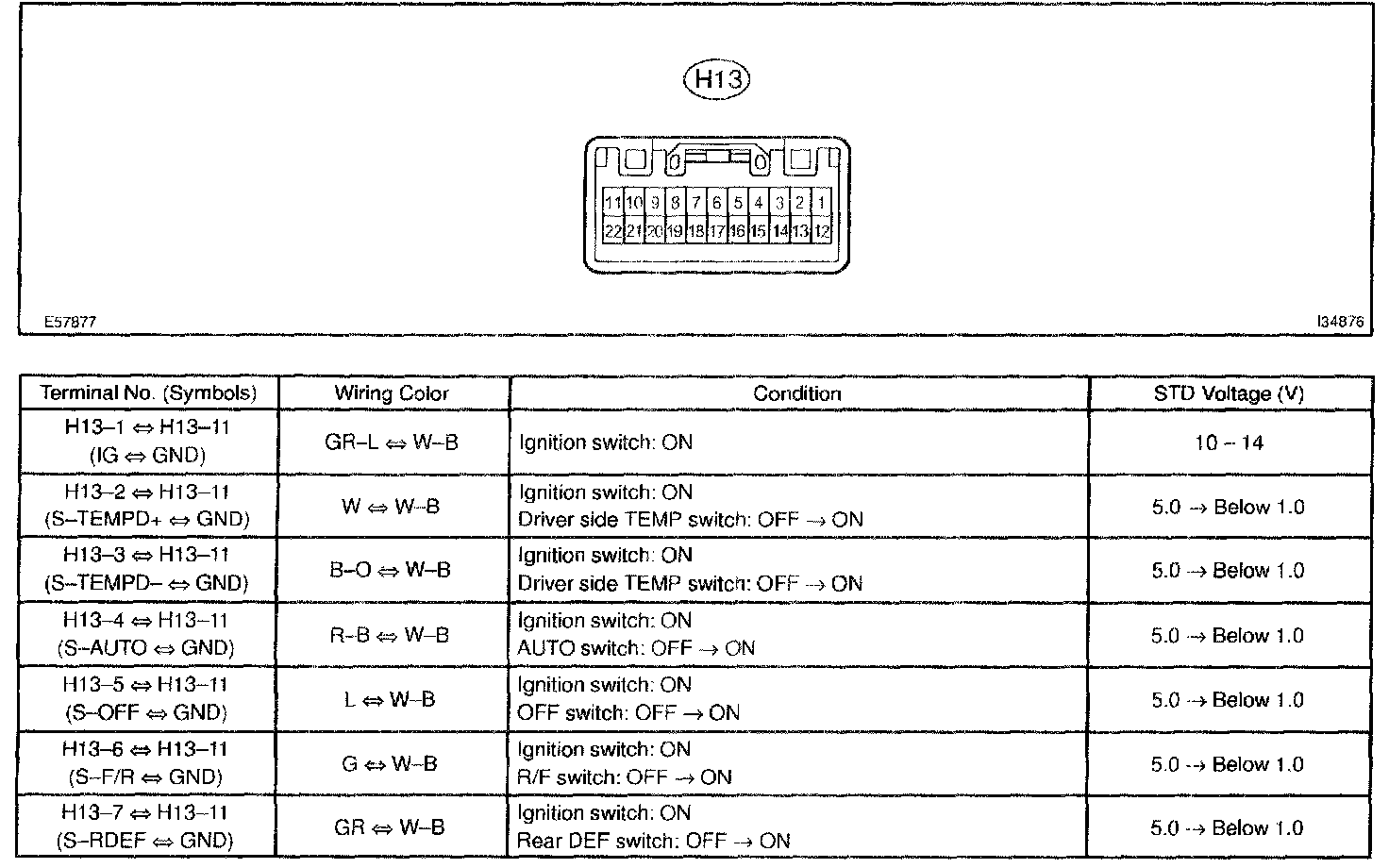

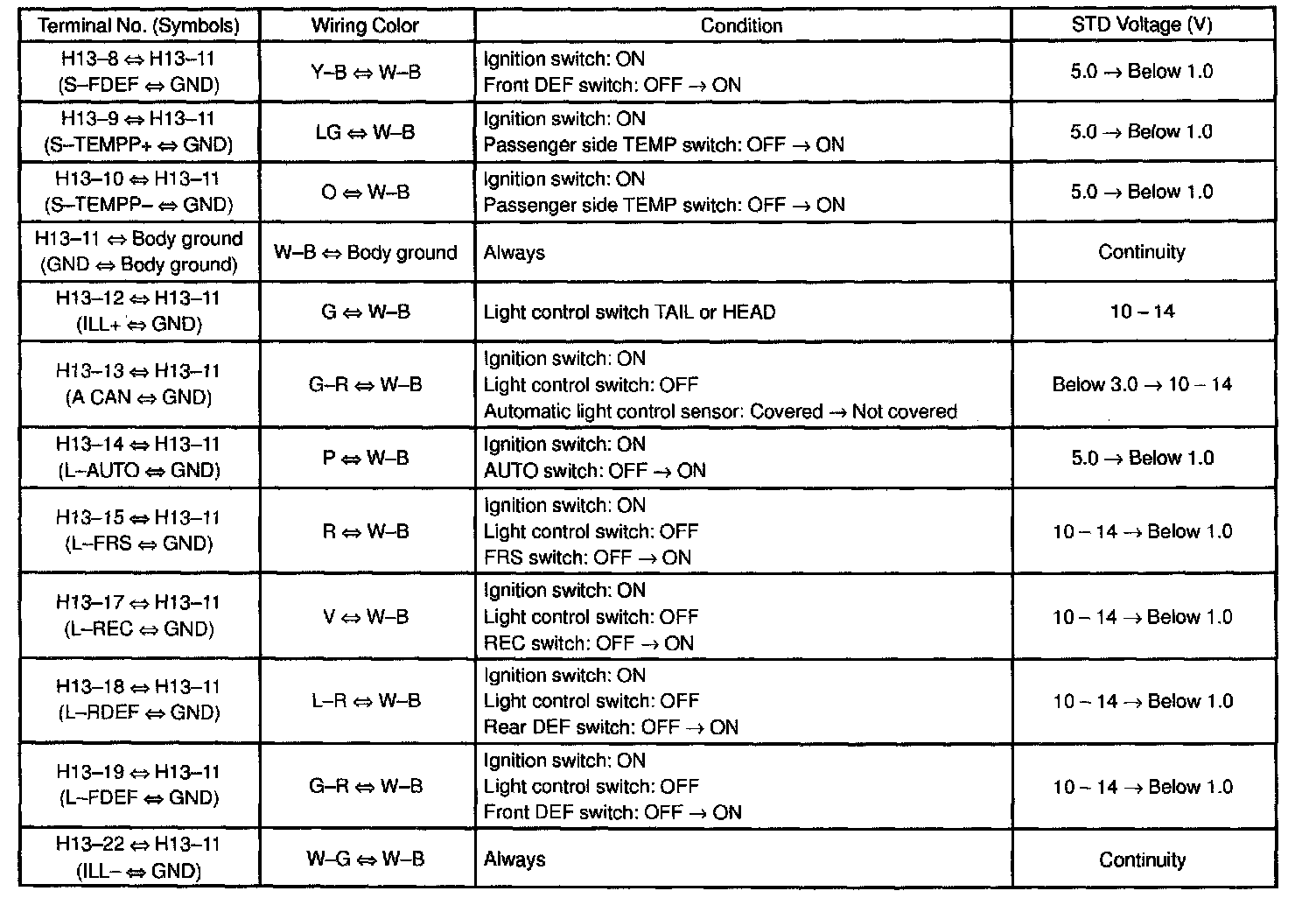

Terminals Of ECU/pinouts - Heater Control Switch (W/ Lexus Navigation System) Part 1:

Terminals Of ECU/Pinouts - Heater Control Switch (W/ Lexus Navigation System) Part 2:

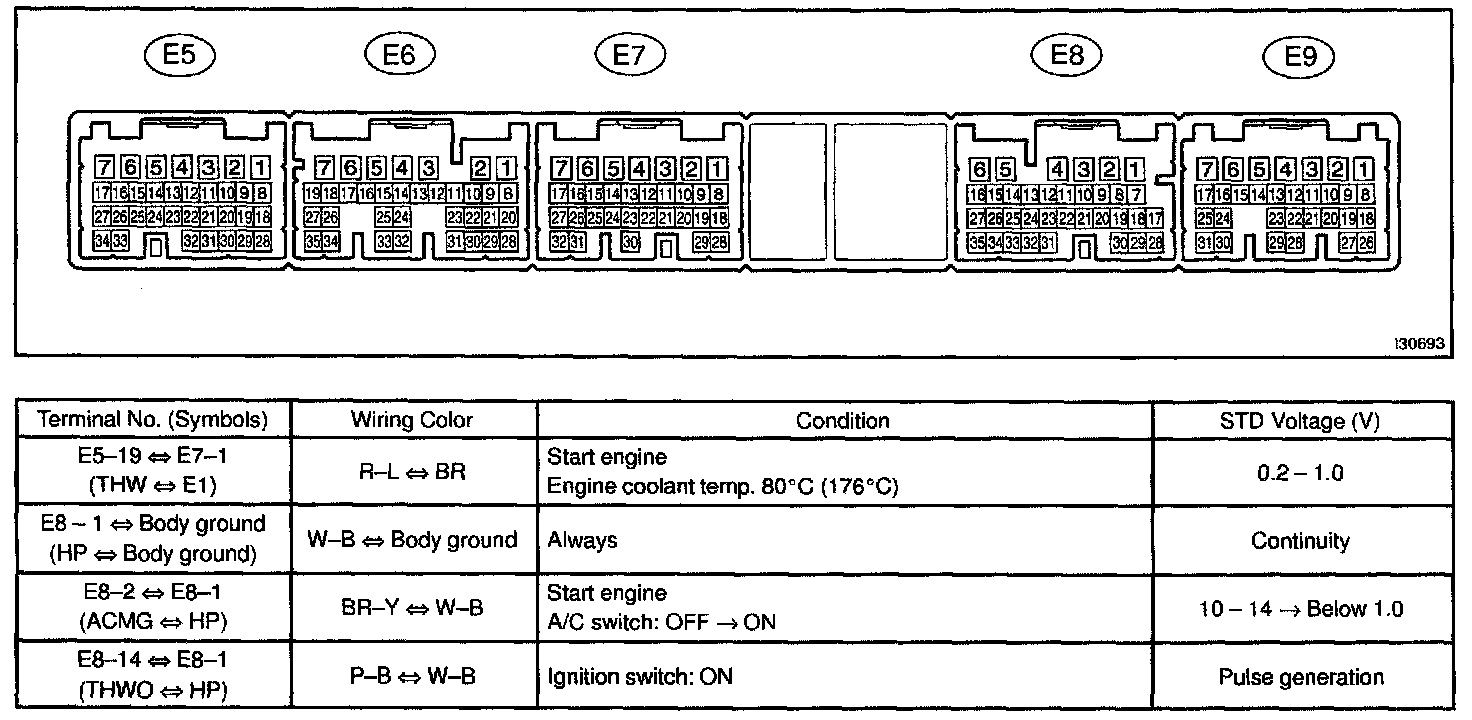

Terminals Of ECU/Pinouts - ECM Part 1:

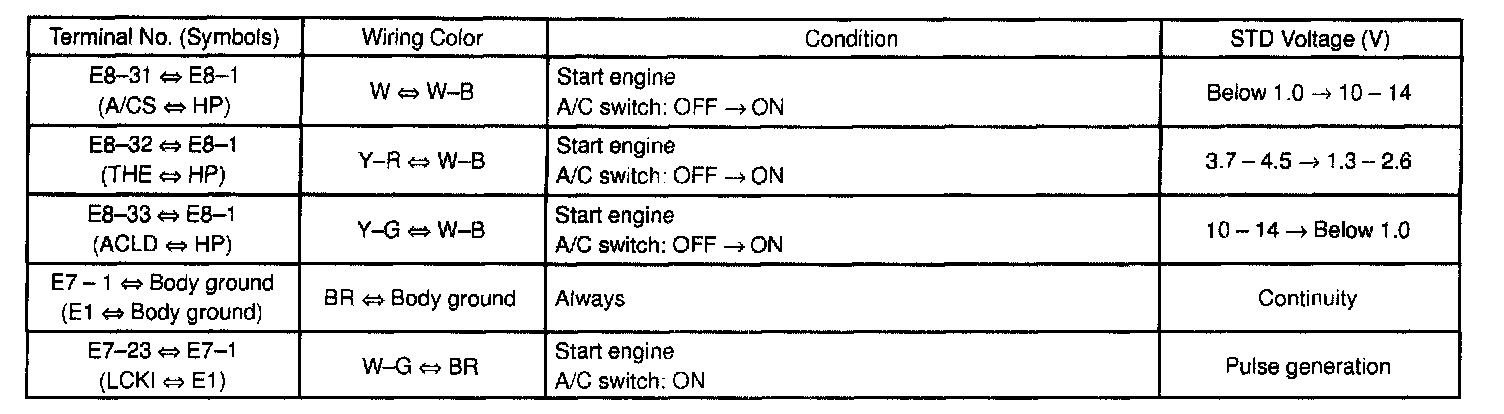

Terminals Of ECU/Pinouts - ECM Part 2:

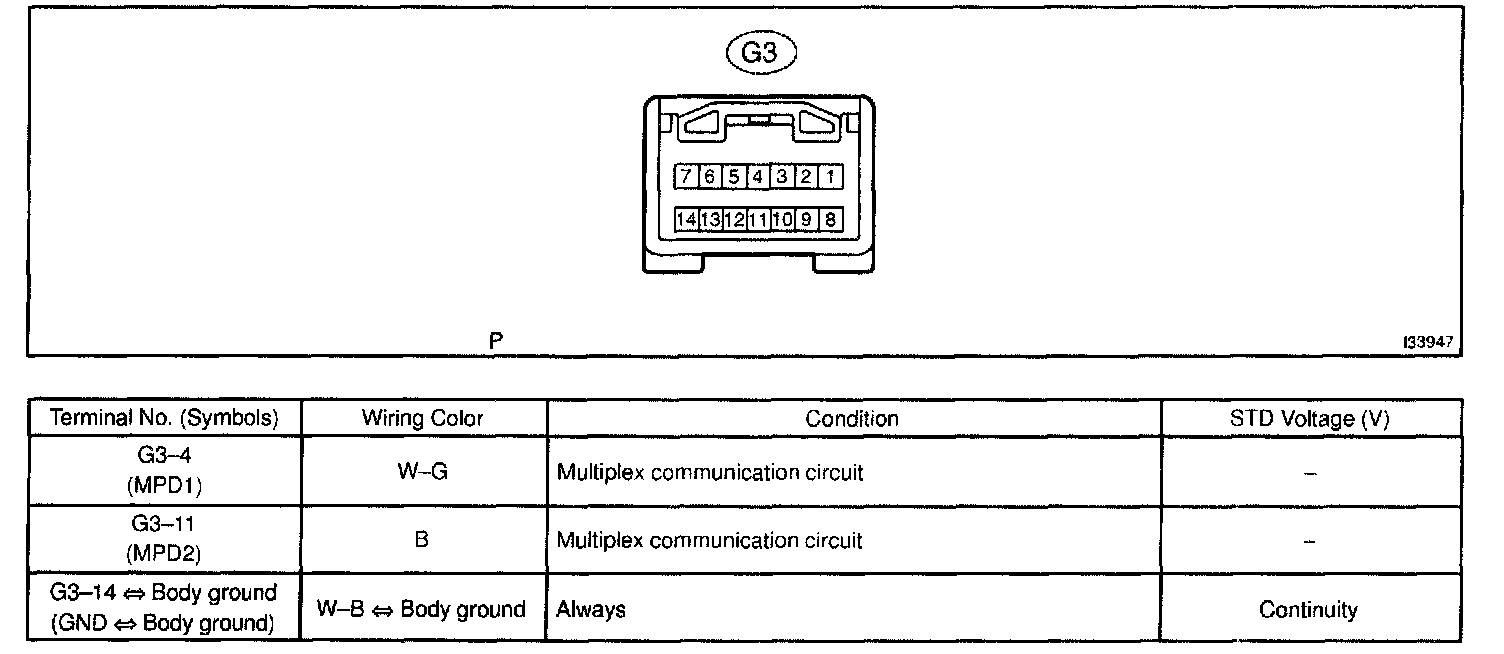

Terminals Of ECU/Pinouts - Network Gateway ECU:

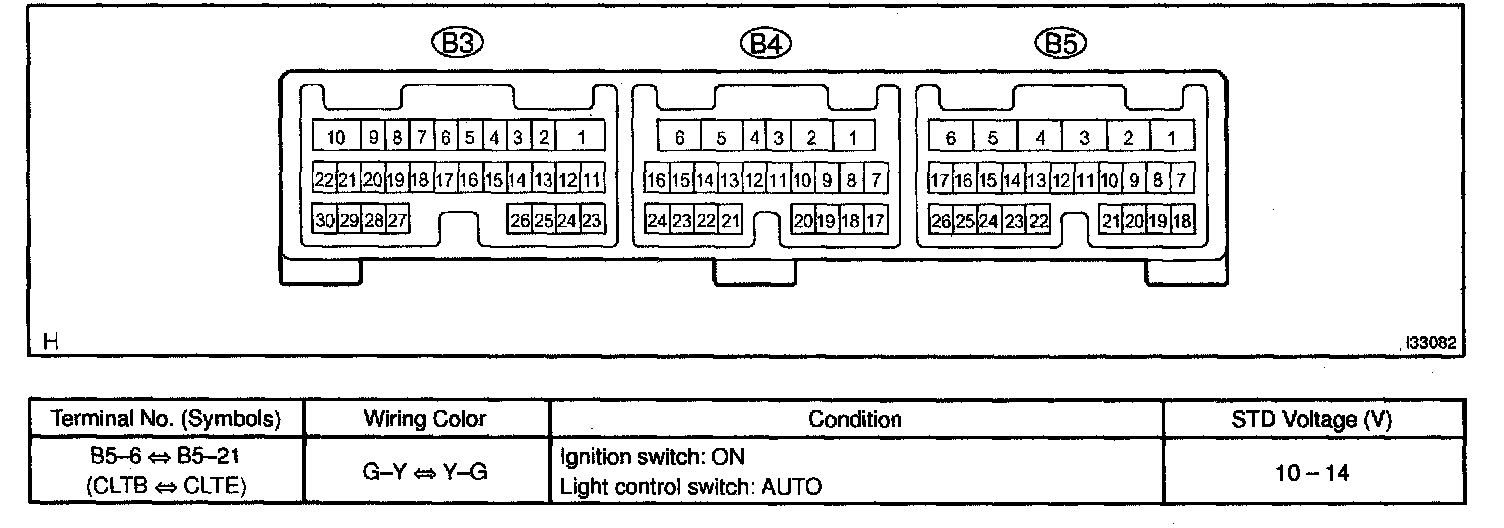

Terminals Of ECU/Pinouts - Cooler Control Panel Part 1:

Terminals Of ECU/Pinouts - Cooler Control Panel Part 2:

Terminals Of ECU/Pinouts - Body ECU:
