Main Relay (Computer/Fuel System): Testing and Inspection

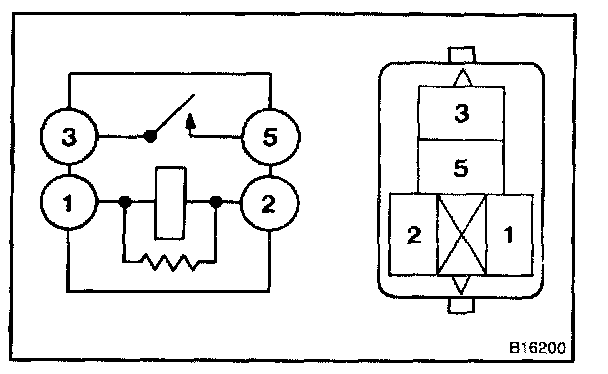

INSPECT CIRCUIT OPENING RELAY







a. Continuity inspection.

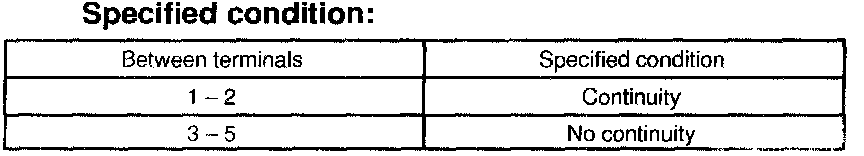

1. Using an Ohmmeter, check for continuity between each terminal.

2. Using an Ohmmeter, check for continuity between terminals 3 and 5 when the battery voltage is applied across terminals 1 and 2.

Specified condition: Continuity

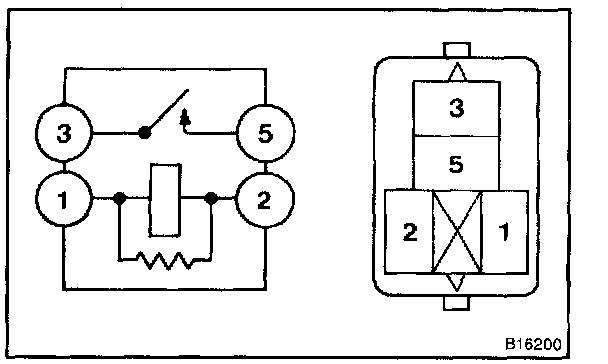

INSPECT EFI RELAY







a. Continuity inspection.

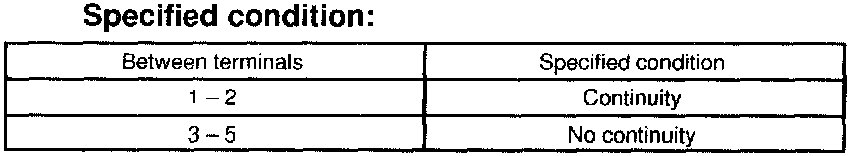

1. Using an Ohmmeter, check for continuity between each terminal.

2. Using an Ohmmeter, check for continuity between terminals 3 and 5 when the battery voltage is applied across terminals 1 and 2.

Specified condition: Continuity
