Body Control Module: Locations

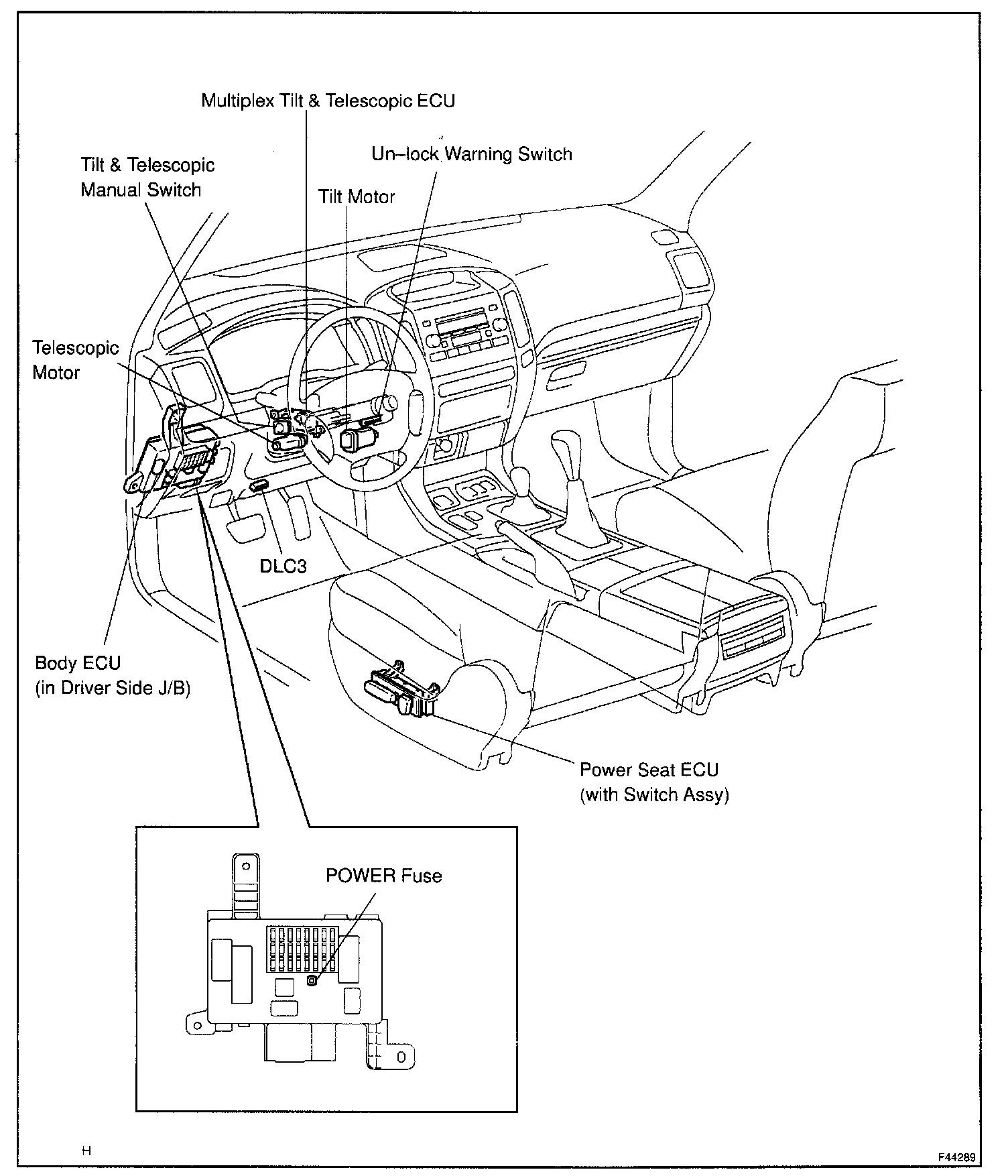

Power Tilt And Power Telescopic Strewing Column:

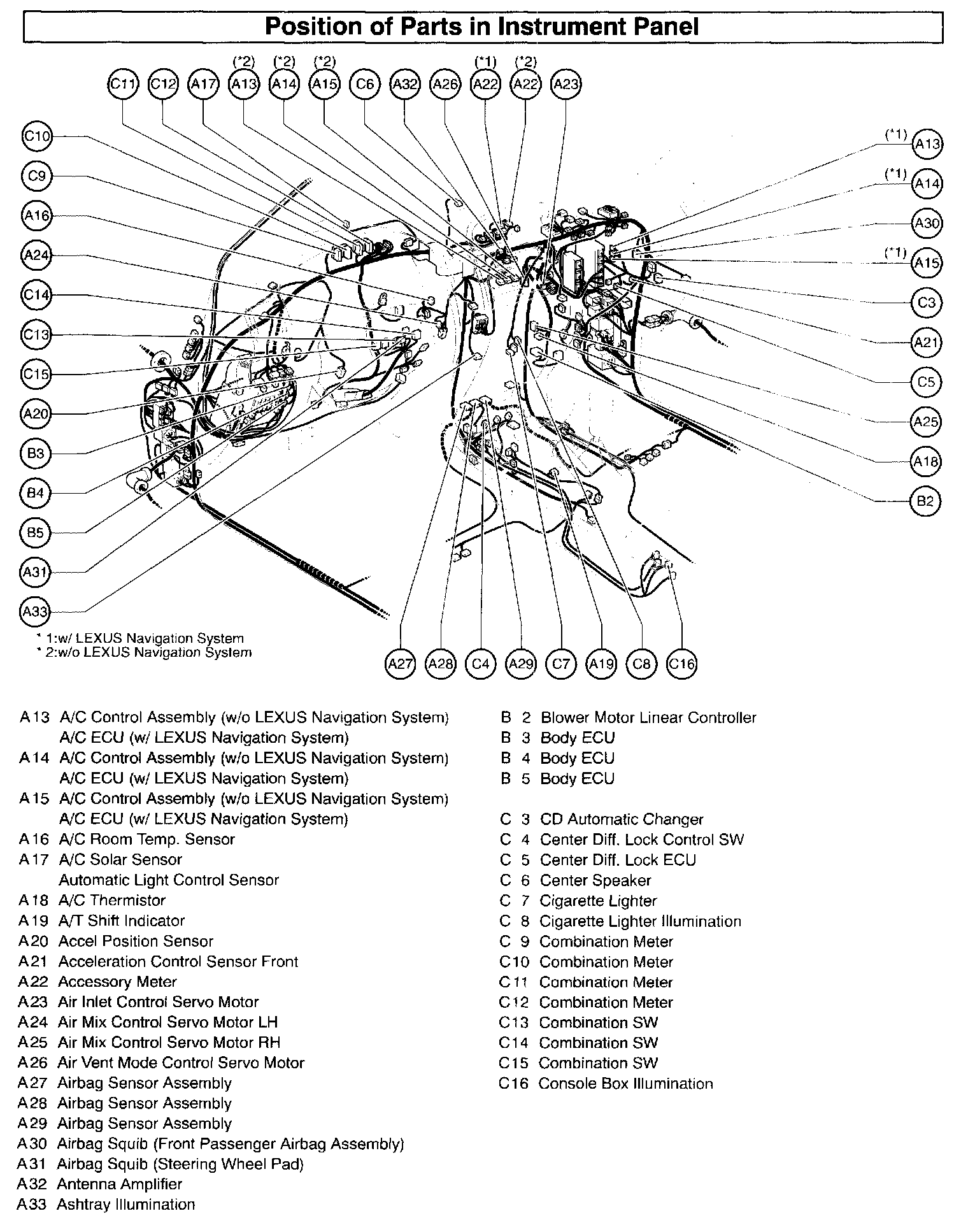

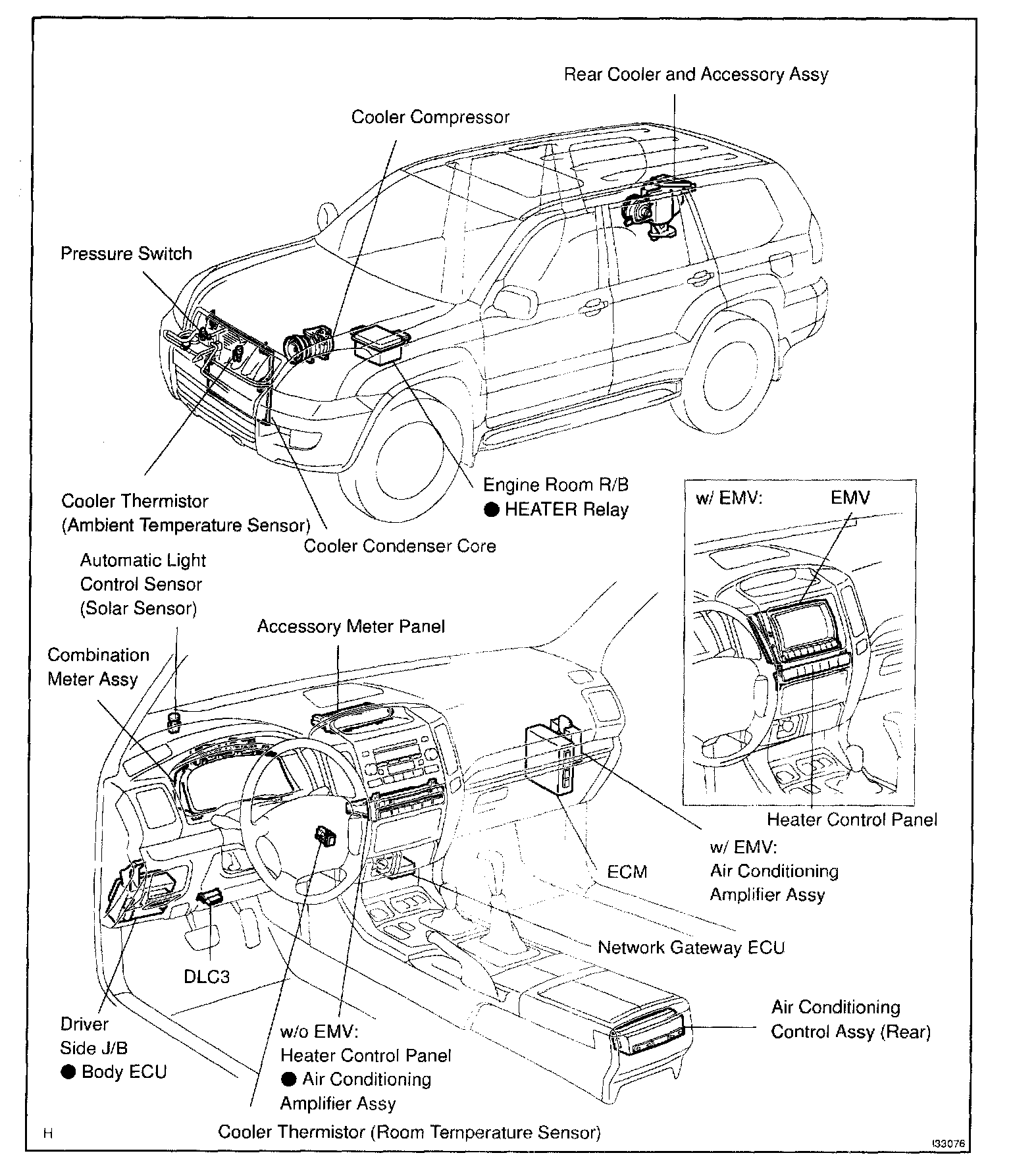

Air Conditioning System:

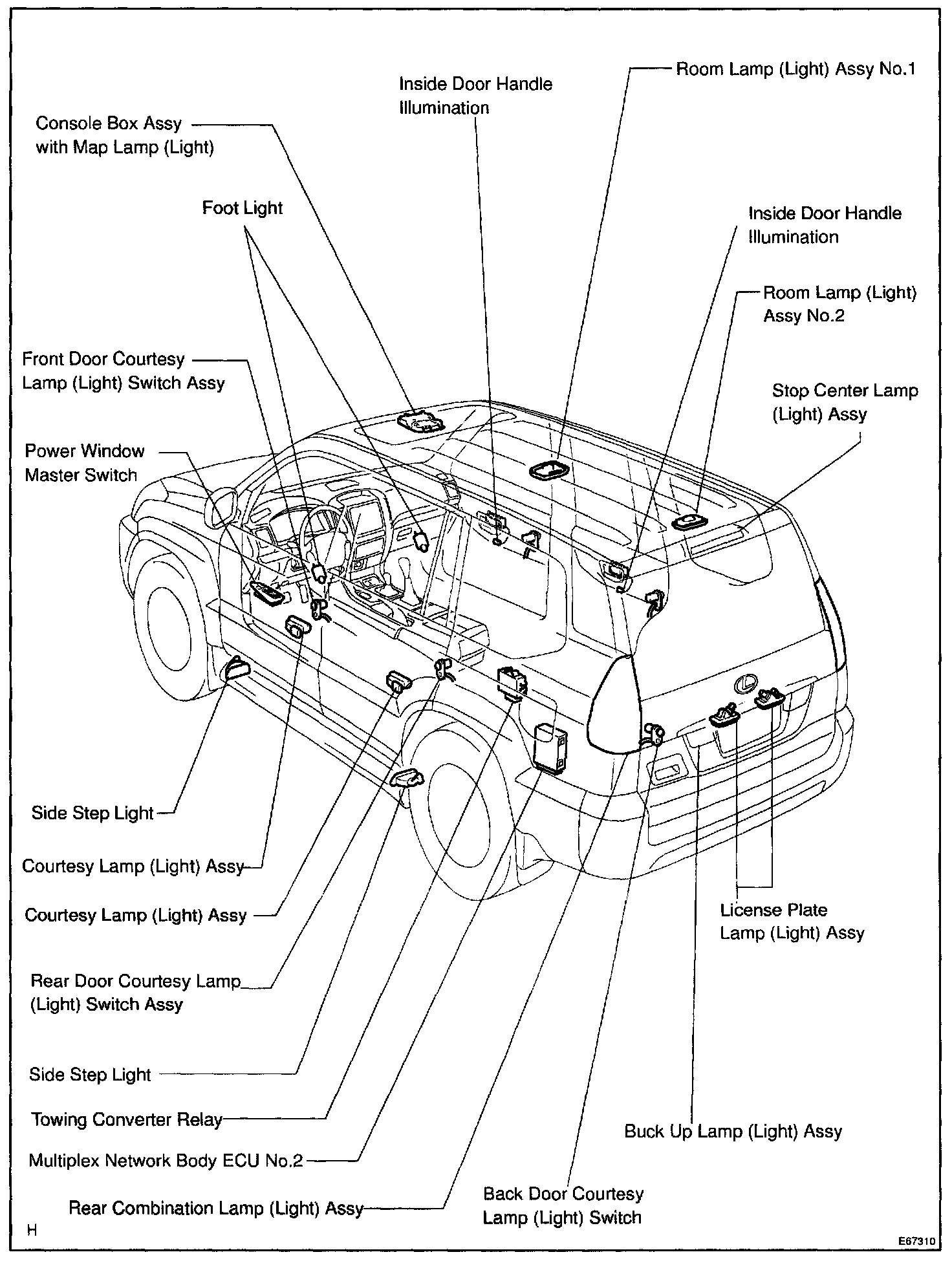

Lighting System:

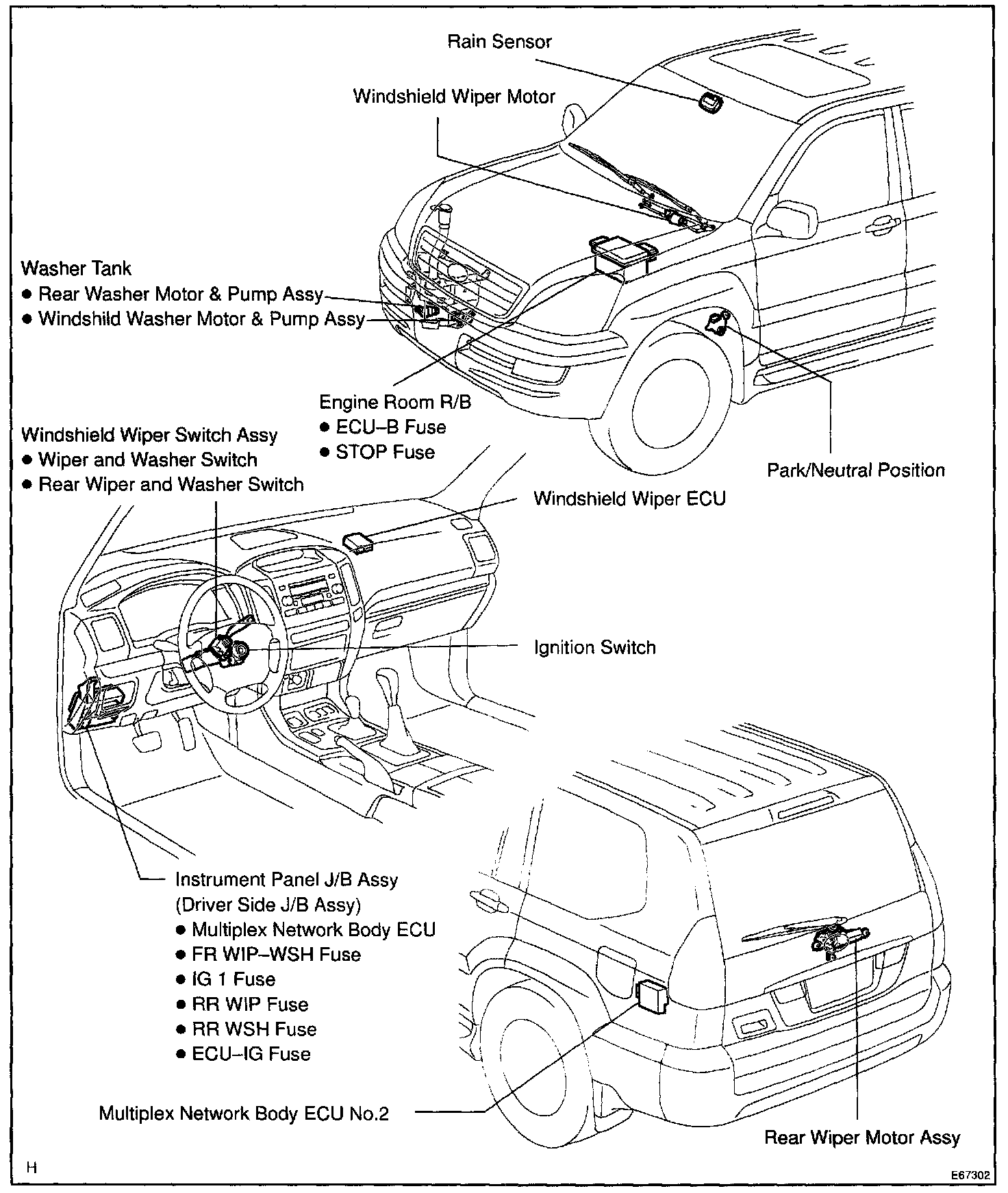

Wiper And Washer System Location:

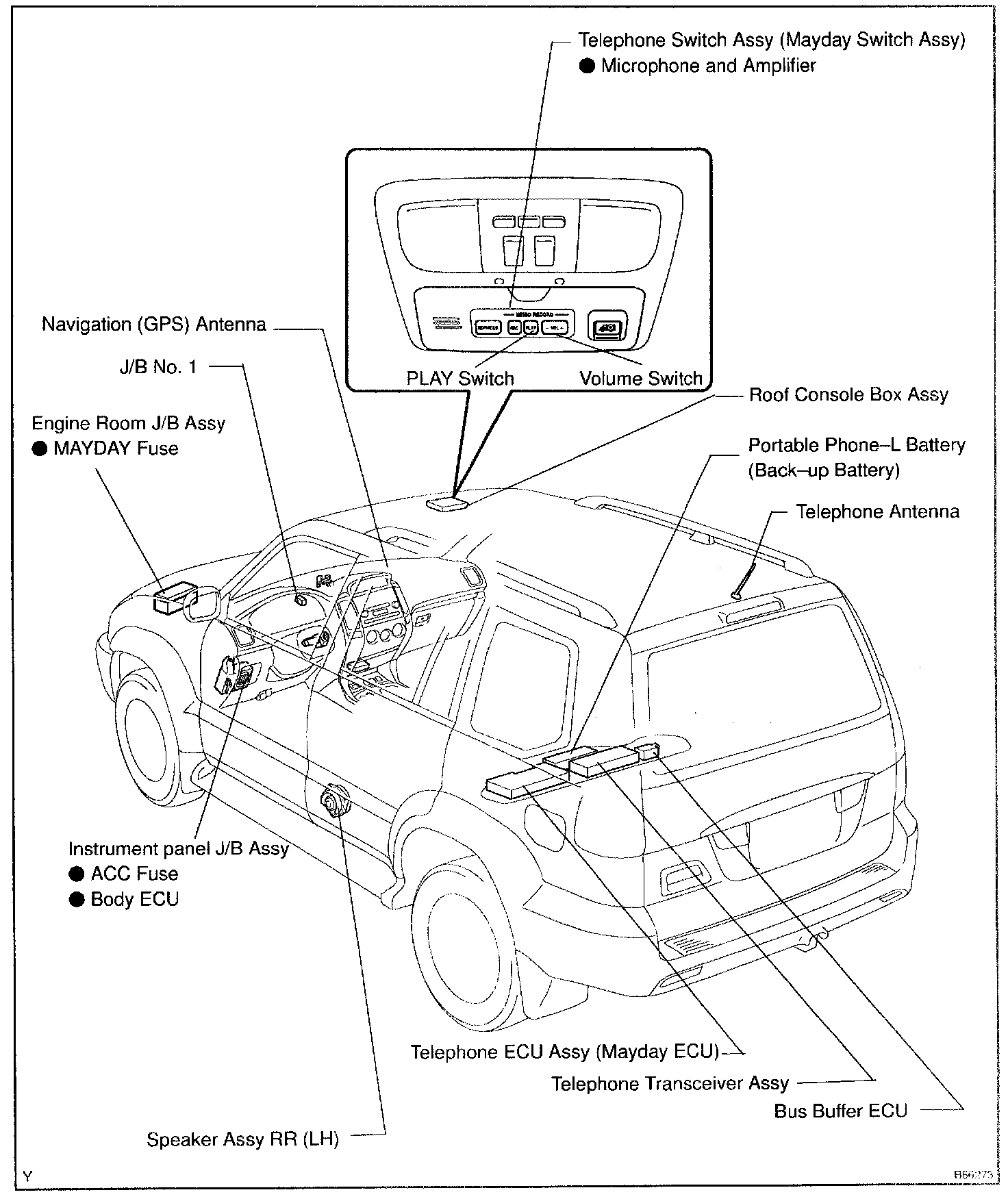

Lexus Link System:

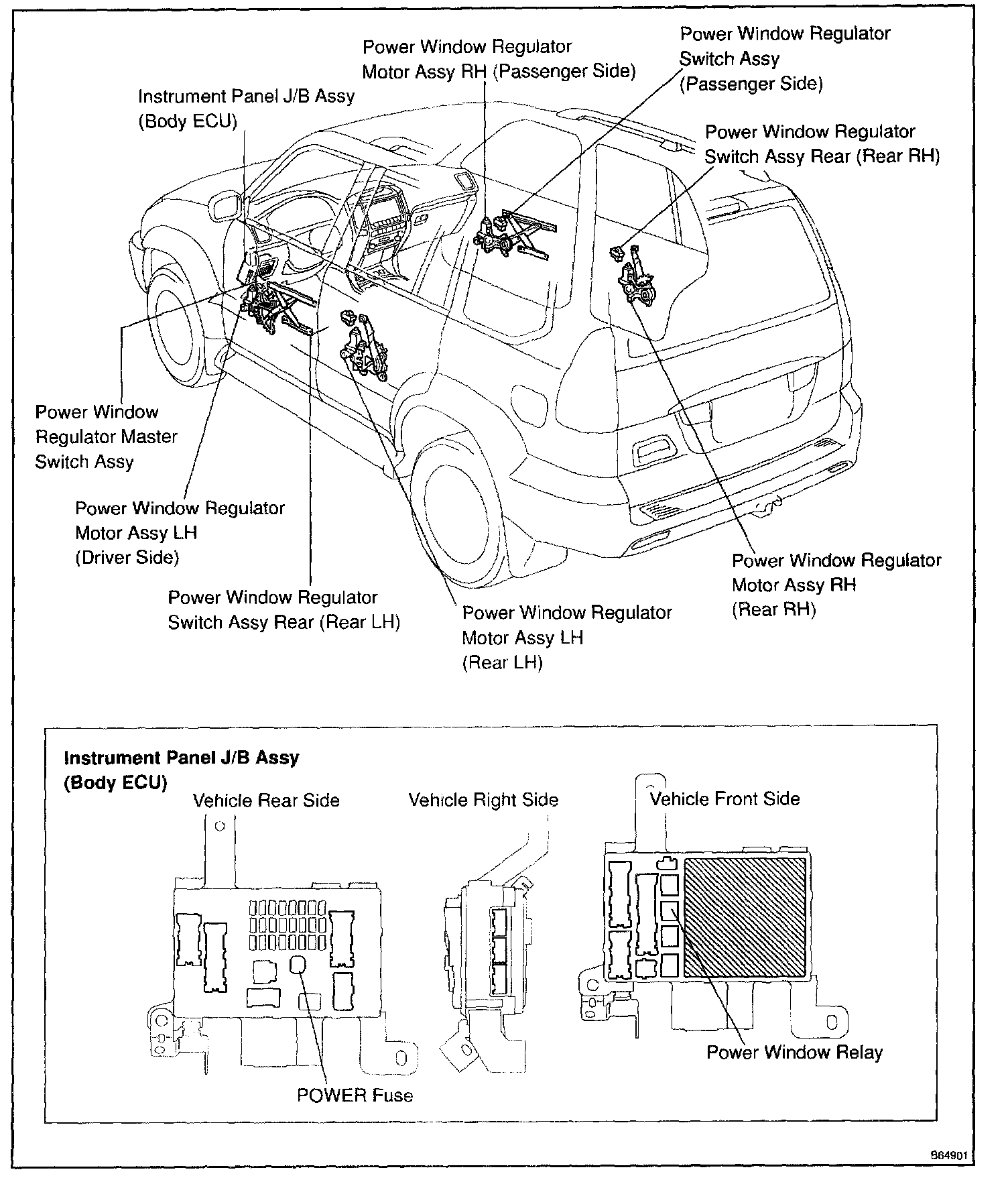

Power Window Control System:

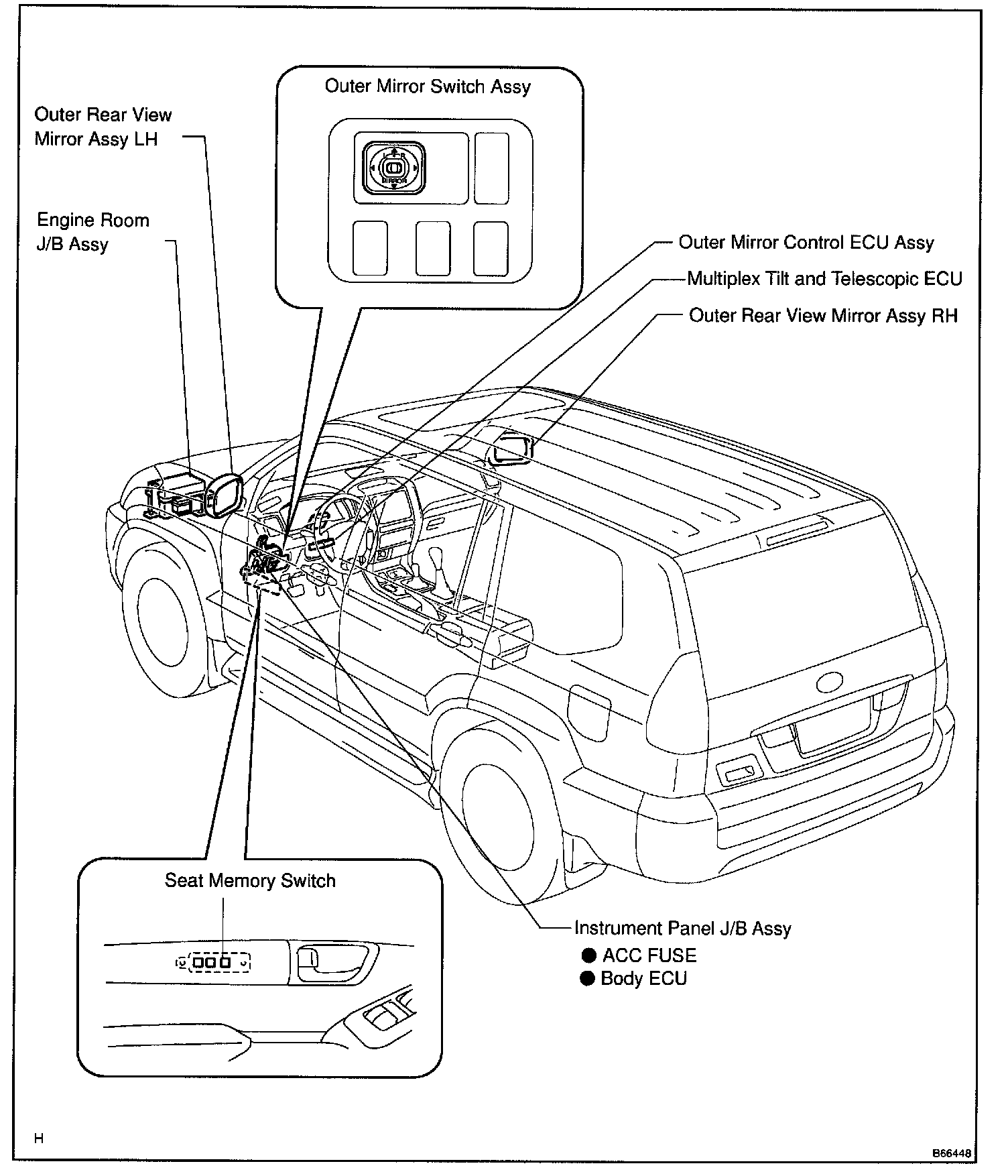

Power Mirror Control System (W/Memory):

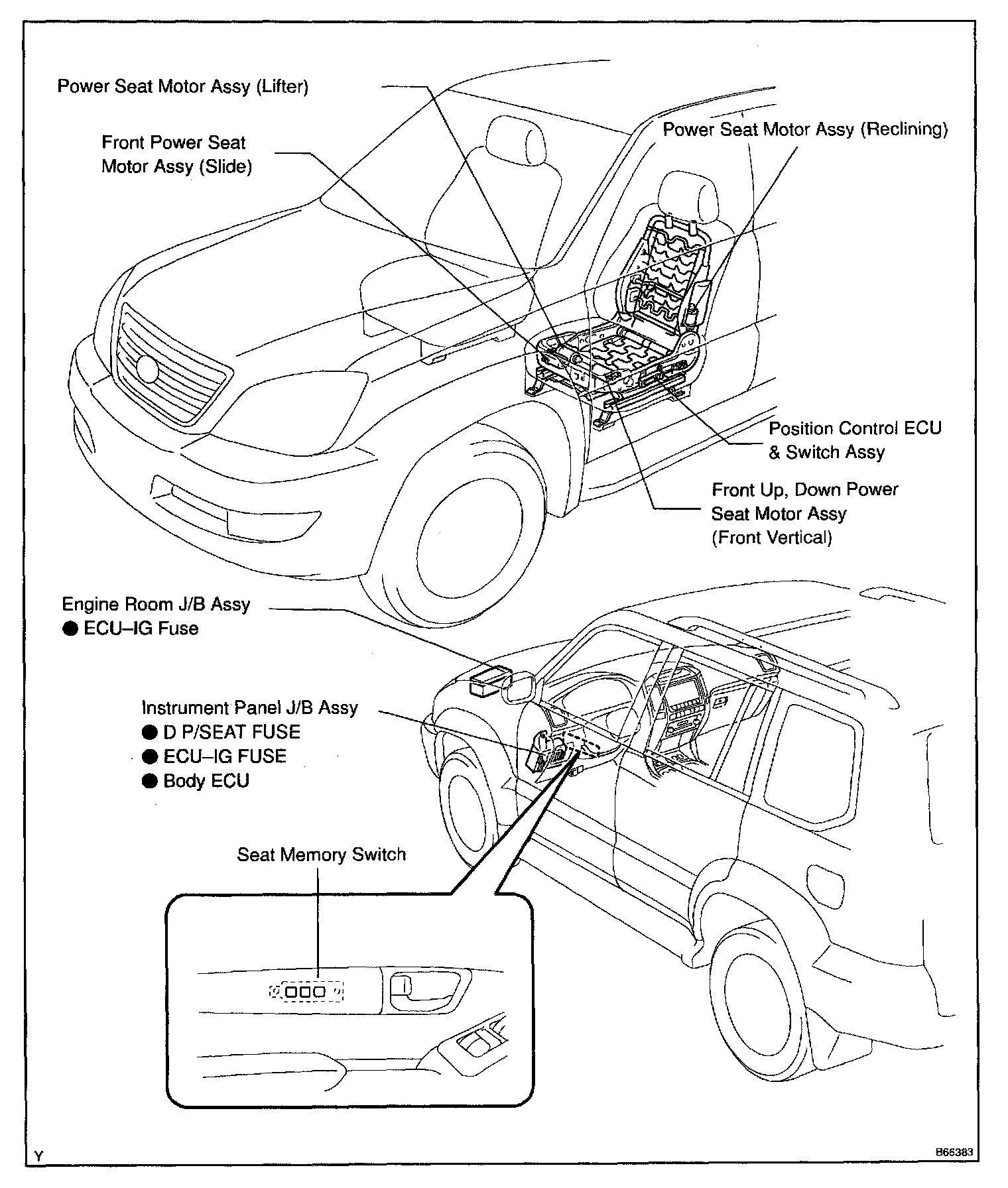

Front Power Seat Control System (W/ Memory):

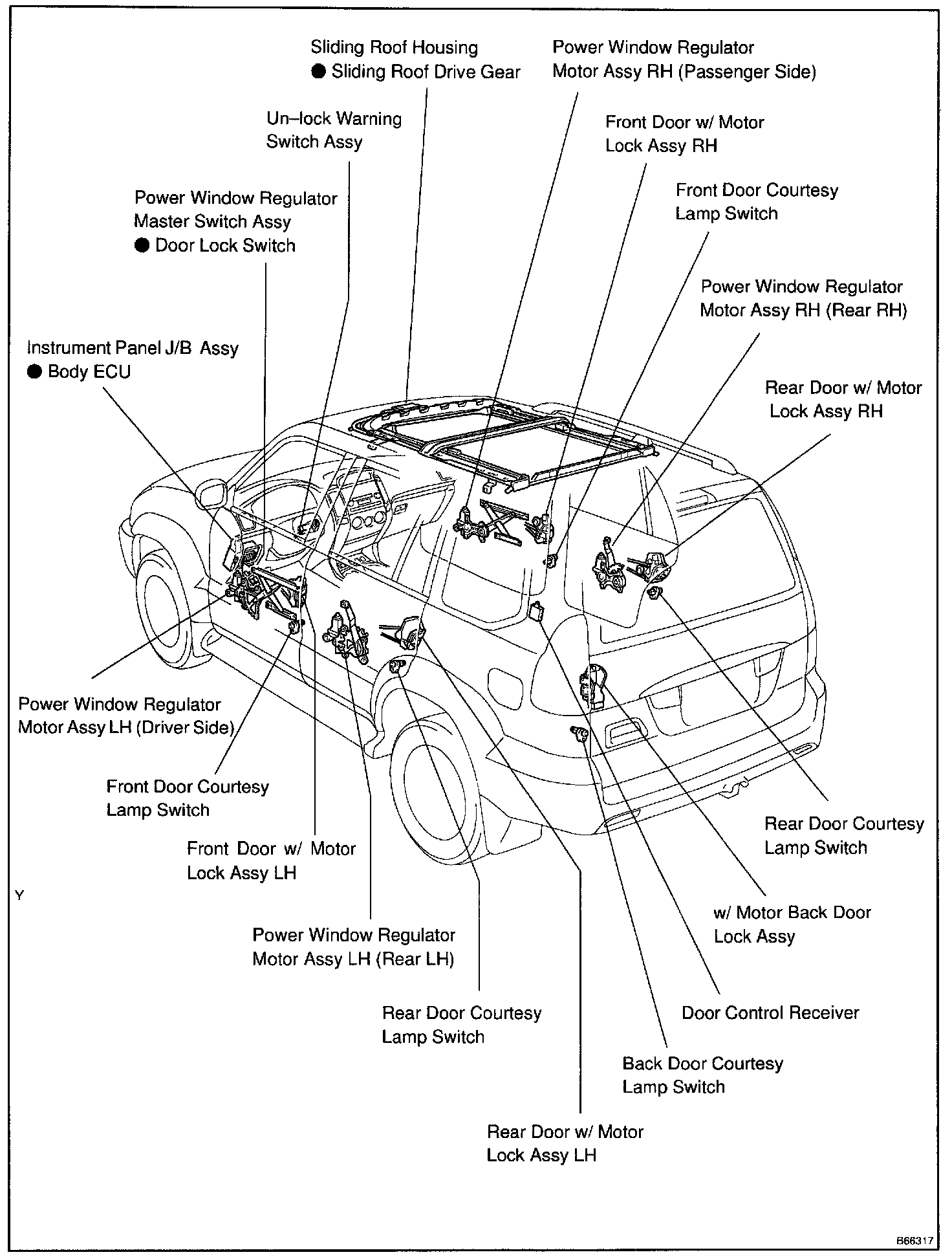

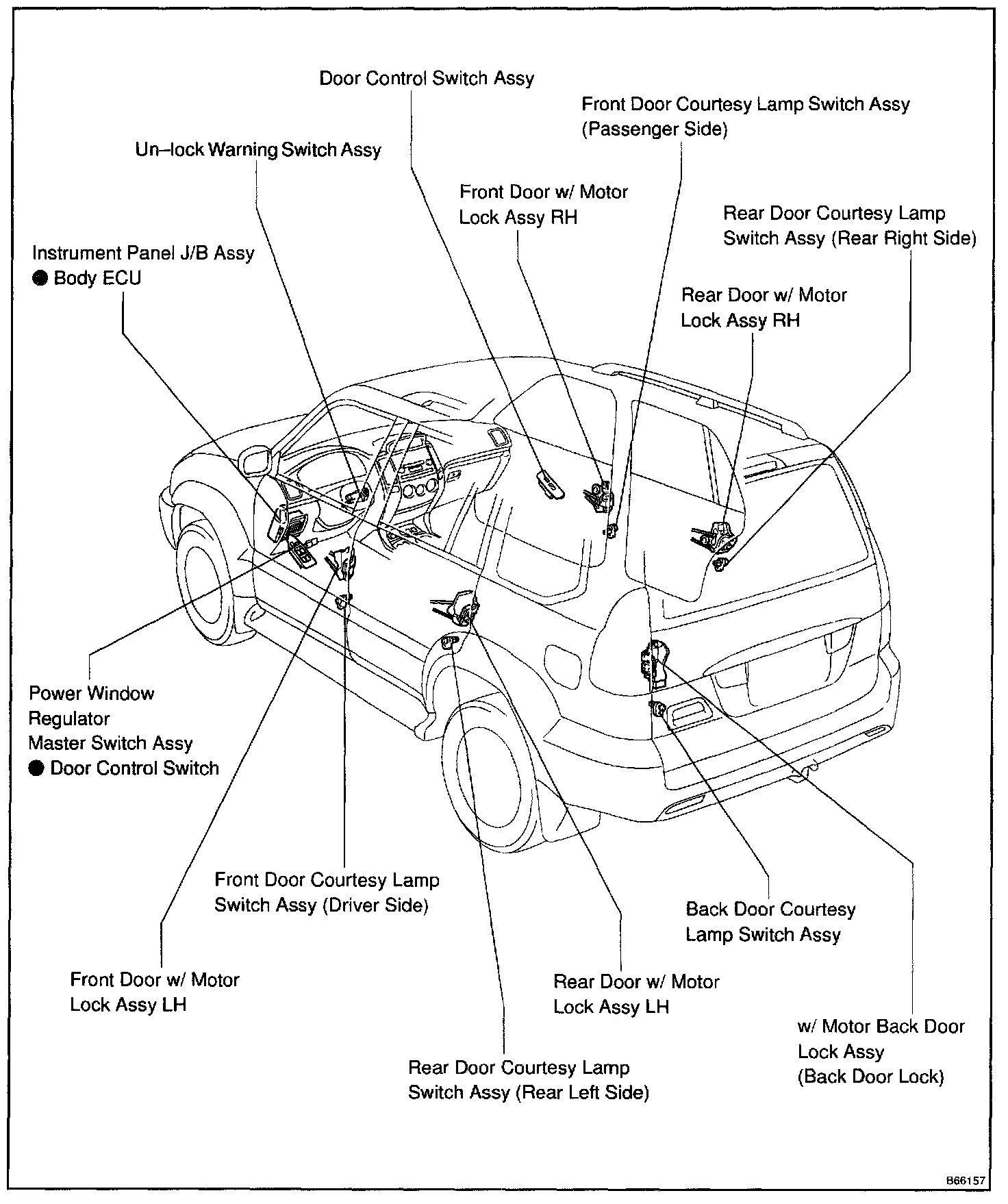

Power Door Lock Control System:

Wireless Door Lock Control System:

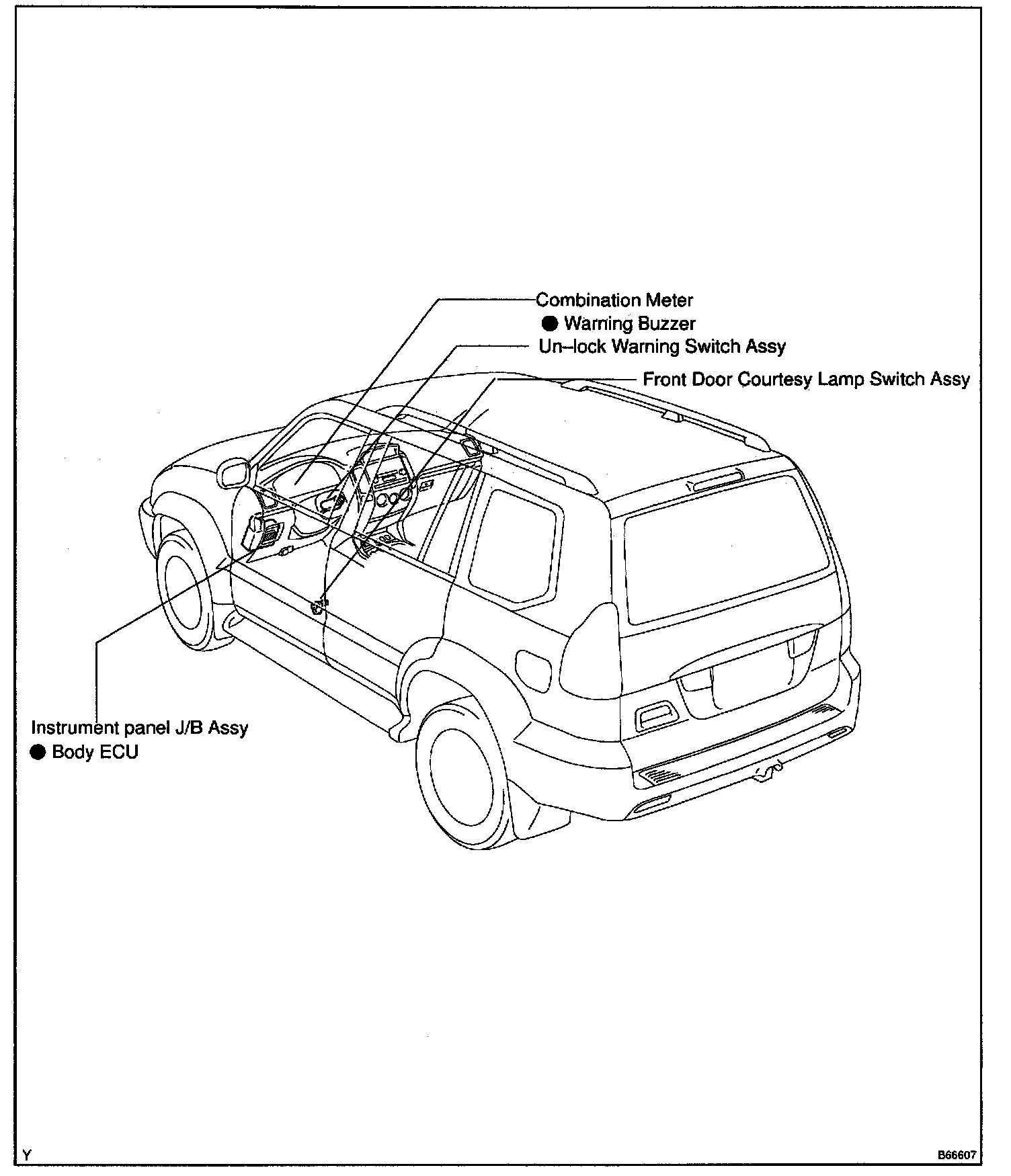

Key Reminder Warning System:

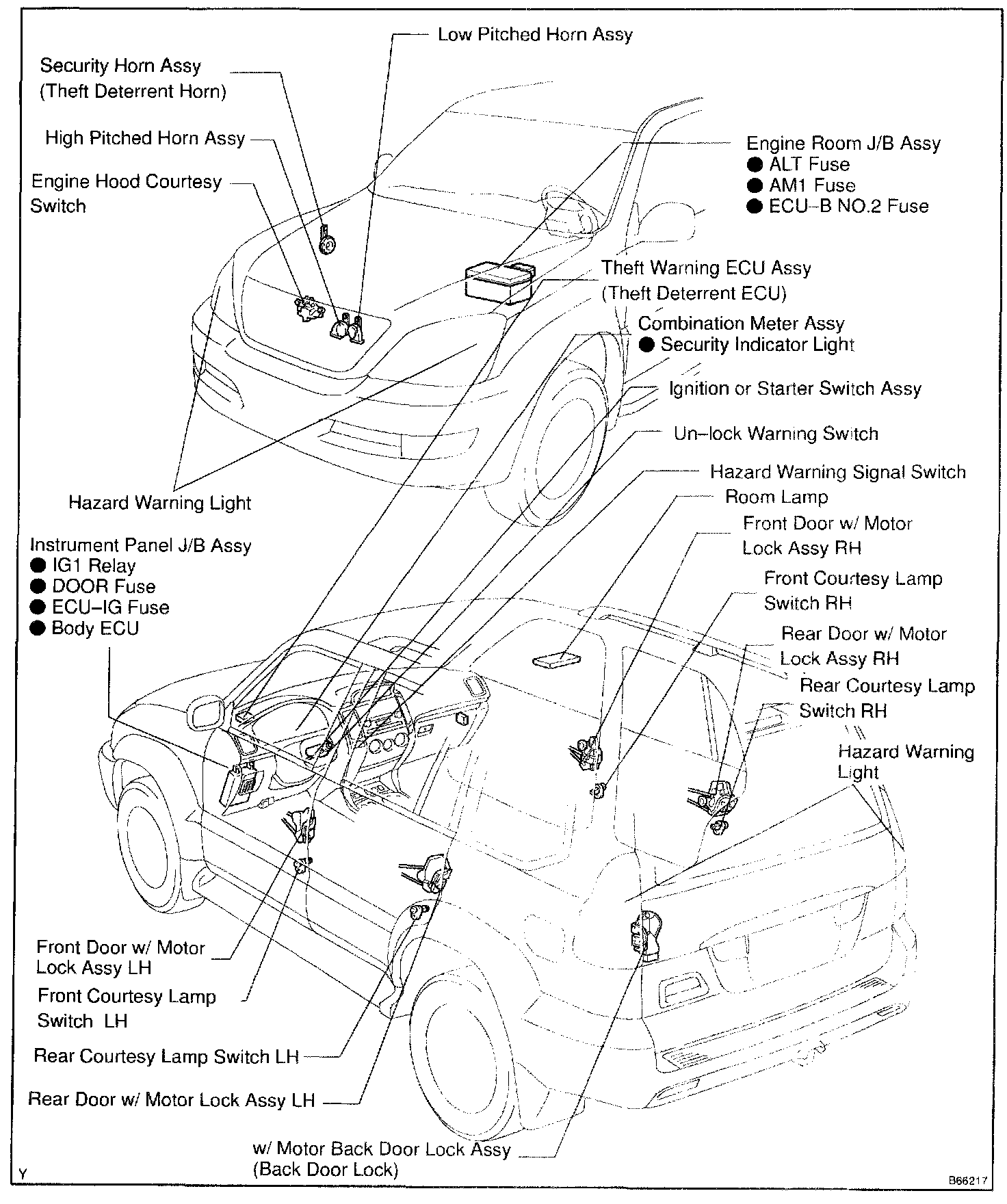

Theft Deterrent System:

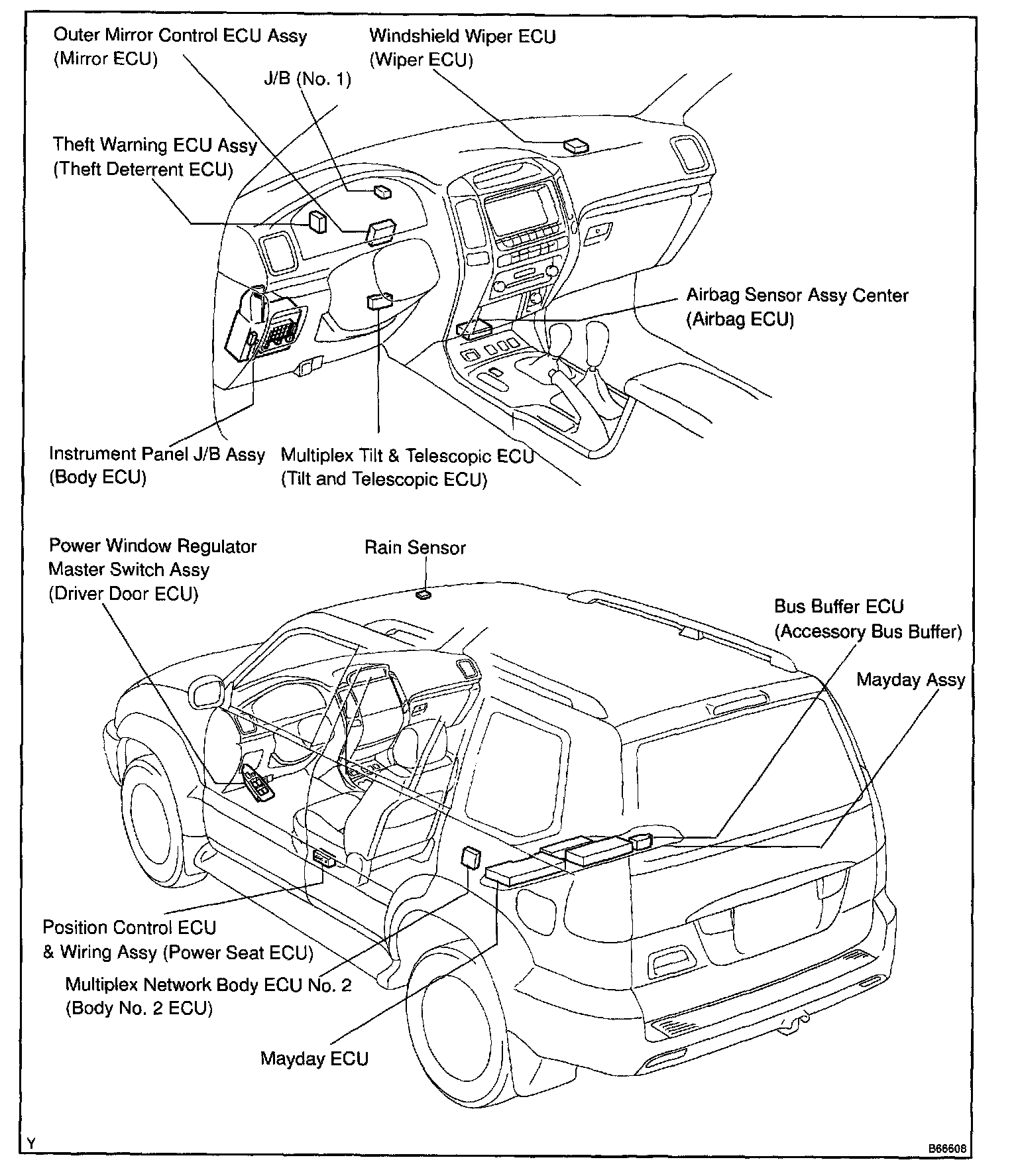

Multiplex Communication System:

Si - Wo:

A/C - Co:
