Torque Specifications

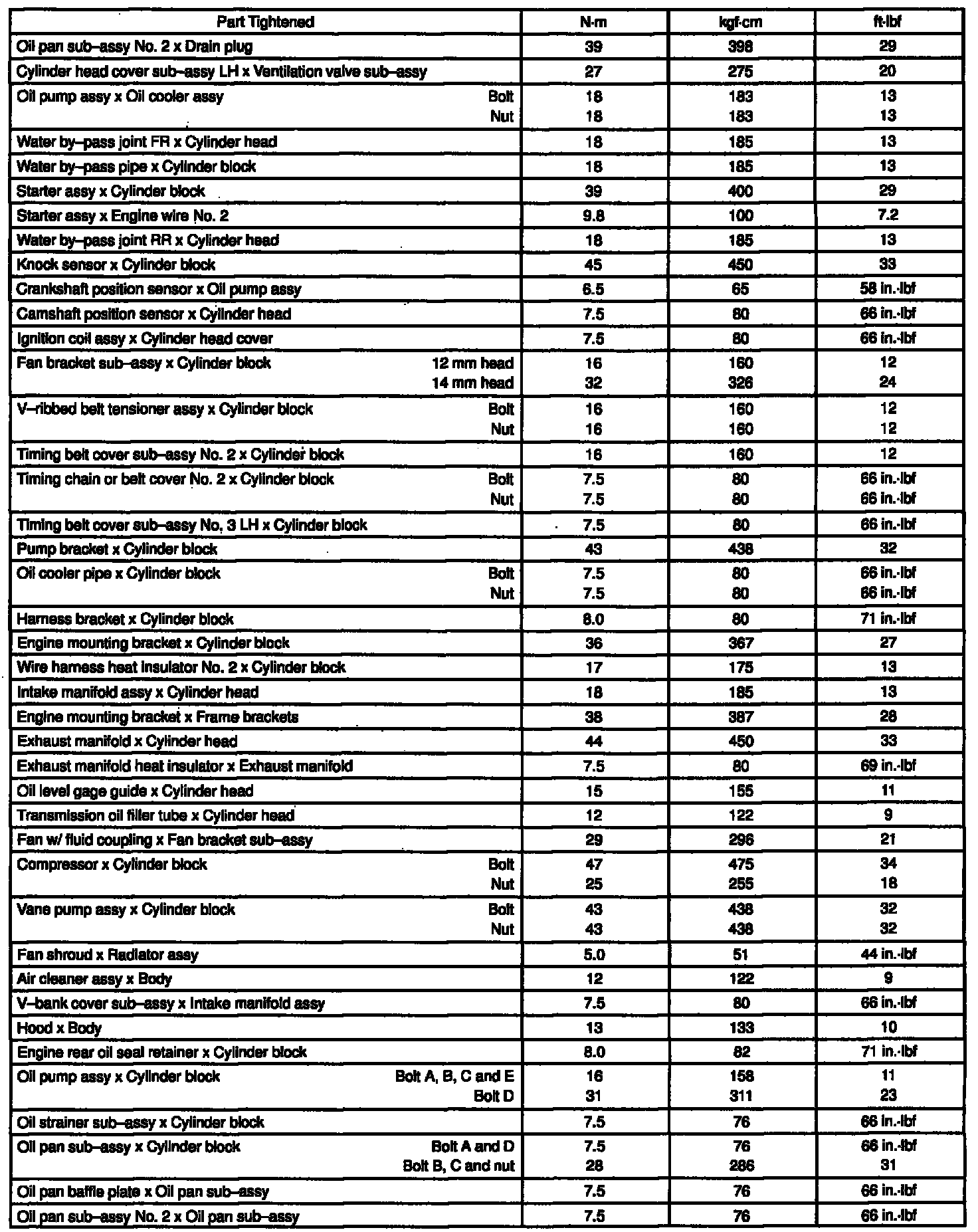

Part 1 Of 2:

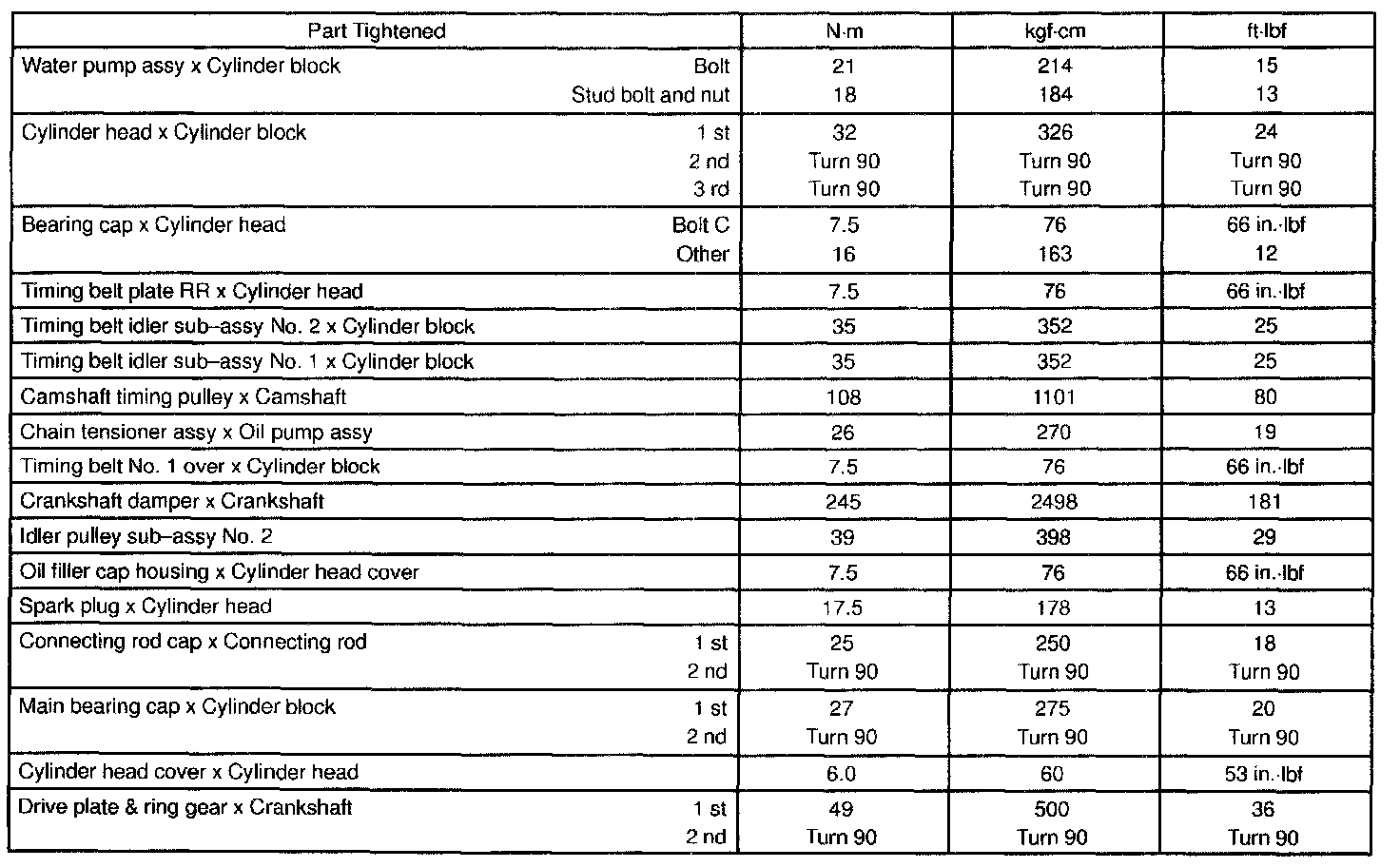

Part 2 Of 2:

TORQUE SPECIFICATION

Torque Sequence

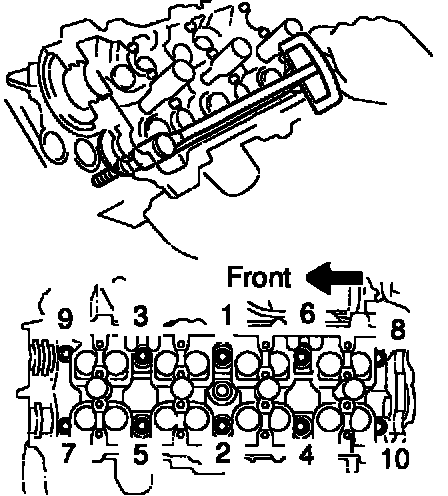

Left Cylinder Head

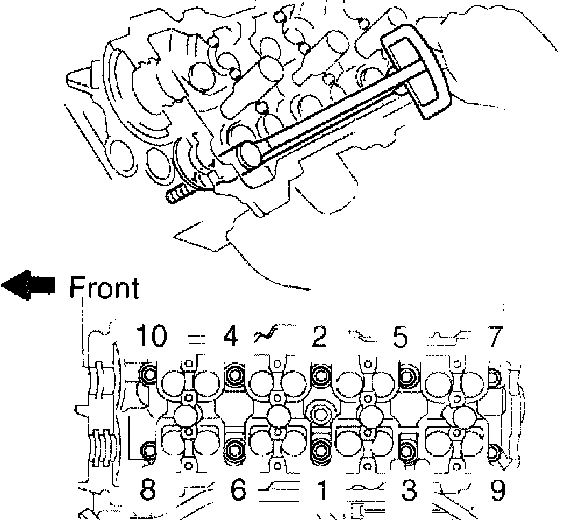

Right Cylinder Head




Install and uniformly tighten the 10 cylinder head bolts, and plate washers, in the sequence shown.

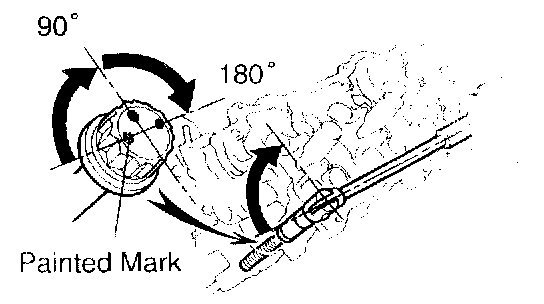

Mark the front of the cylinder head bolt head with paint.
Retighten the cylinder head bolts by 90° in the numerical order shown.
Retighten the cylinder head bolts by an additional 90°.
Check that the painted mark is now at a 180° angle to front.
