Diagnosis & Repair (With OBD II Scan Tool)

For wiring diagram, see Figure. For wire color identification, see WIRE COLOR IDENTIFICATION  table. For diagnosis and repair, see Fig 1-Fig 3 .

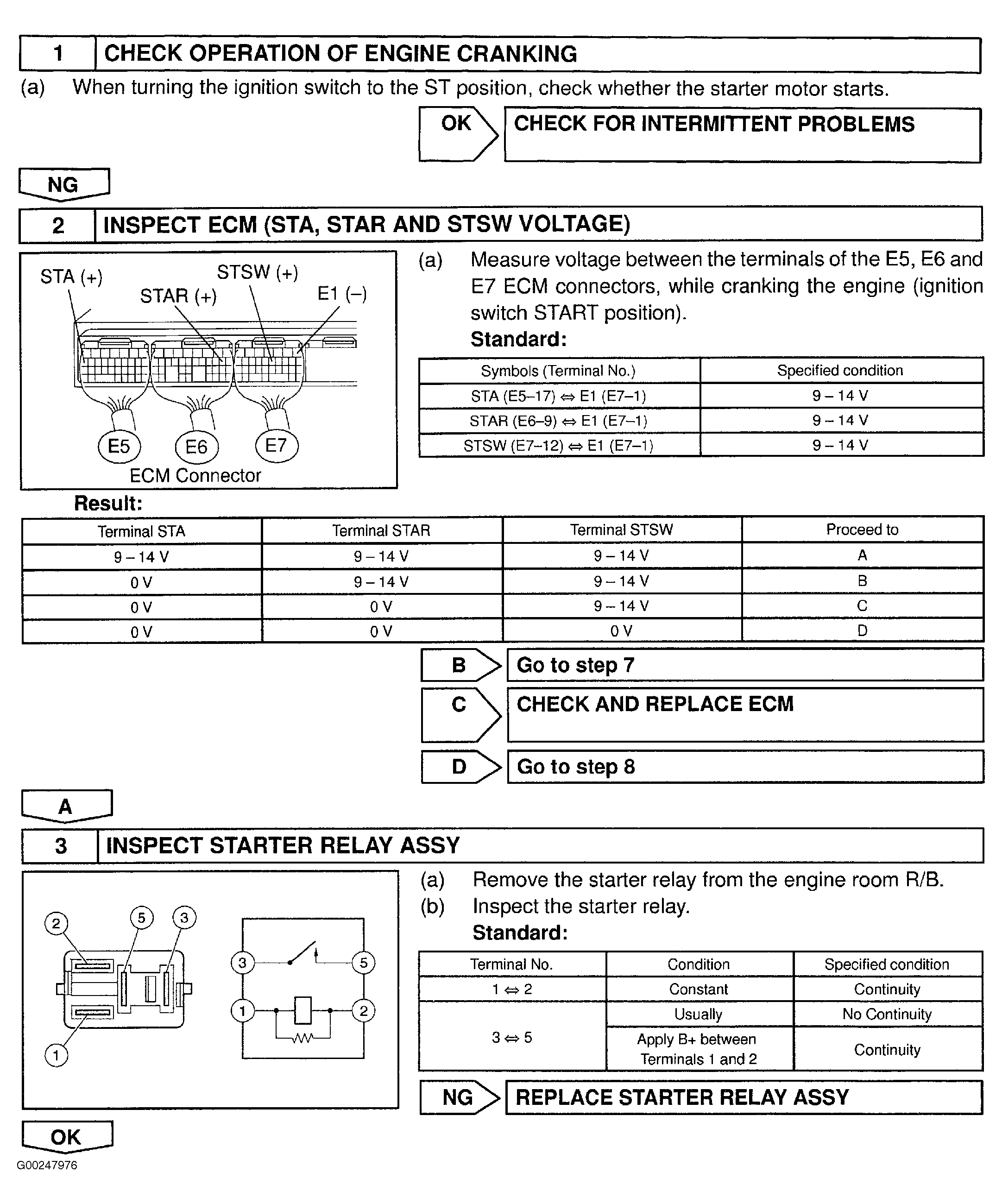

Fig 1: Diagnosis & Repair Of Cranking Holding Function Circuit (Step 1-3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Diagnosis & Repair Of Cranking Holding Function Circuit (Step 4-6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Diagnosis & Repair Of Cranking Holding Function Circuit (Step 7-9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
