Front Power Seat Control System: Location

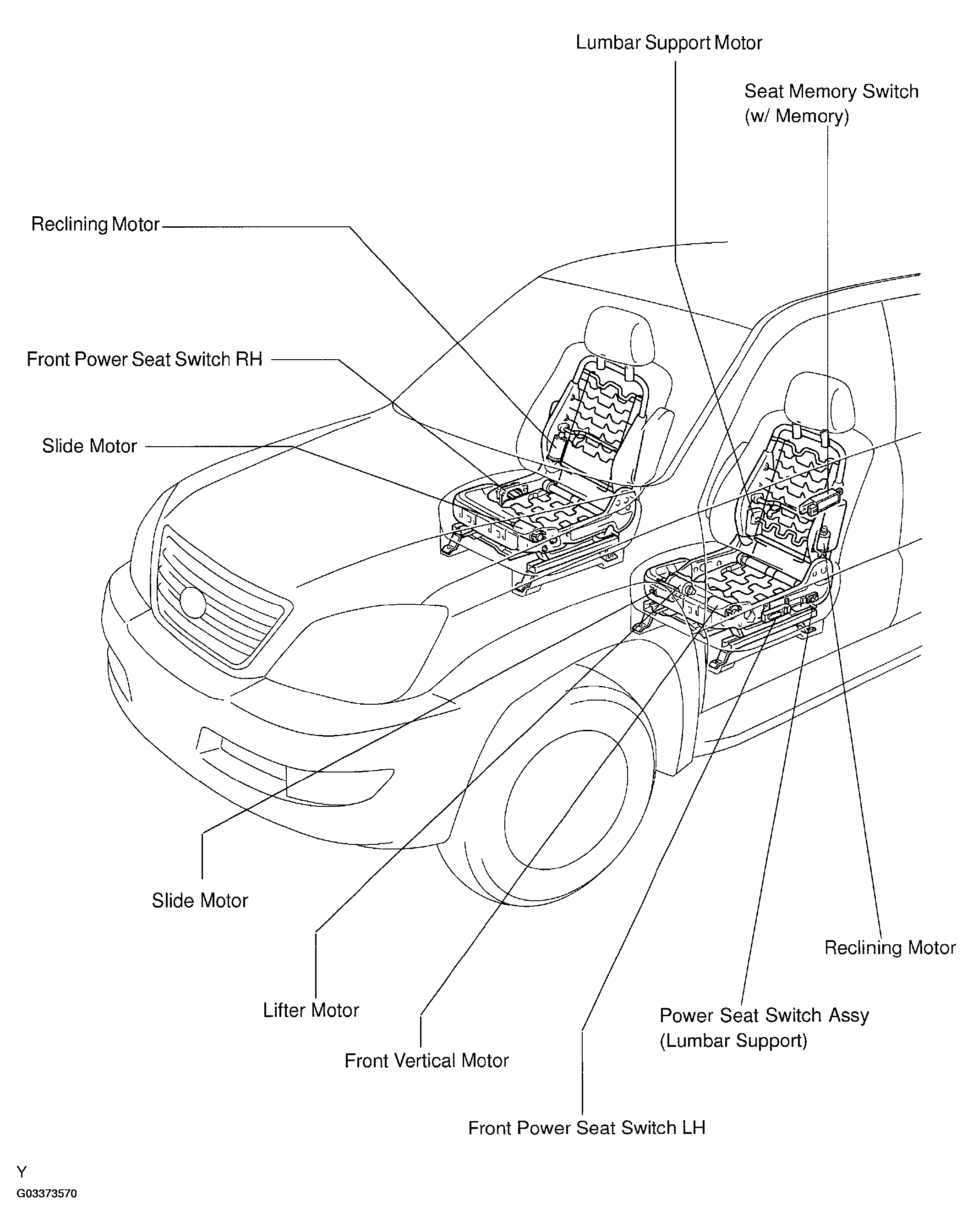

Fig 1: Locating Front Power Seat Control System
G03373570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
