Inspection Procedure

CHECK POWER WINDOW OPERATION (REAR RH)
1. Check that the door glass can be operated manually.
1. NG: OTHER PROBLEM (See MANUAL UP/DOWN FUNCTION DOES NOT OPERATE AT REAR RH )
2. OK: GO TO NEXT STEP
CHECK MANUAL UP/DOWN FUNCTION (REAR RH)
1. Turn the ignition switch ON.
2. Operate the power window switch.

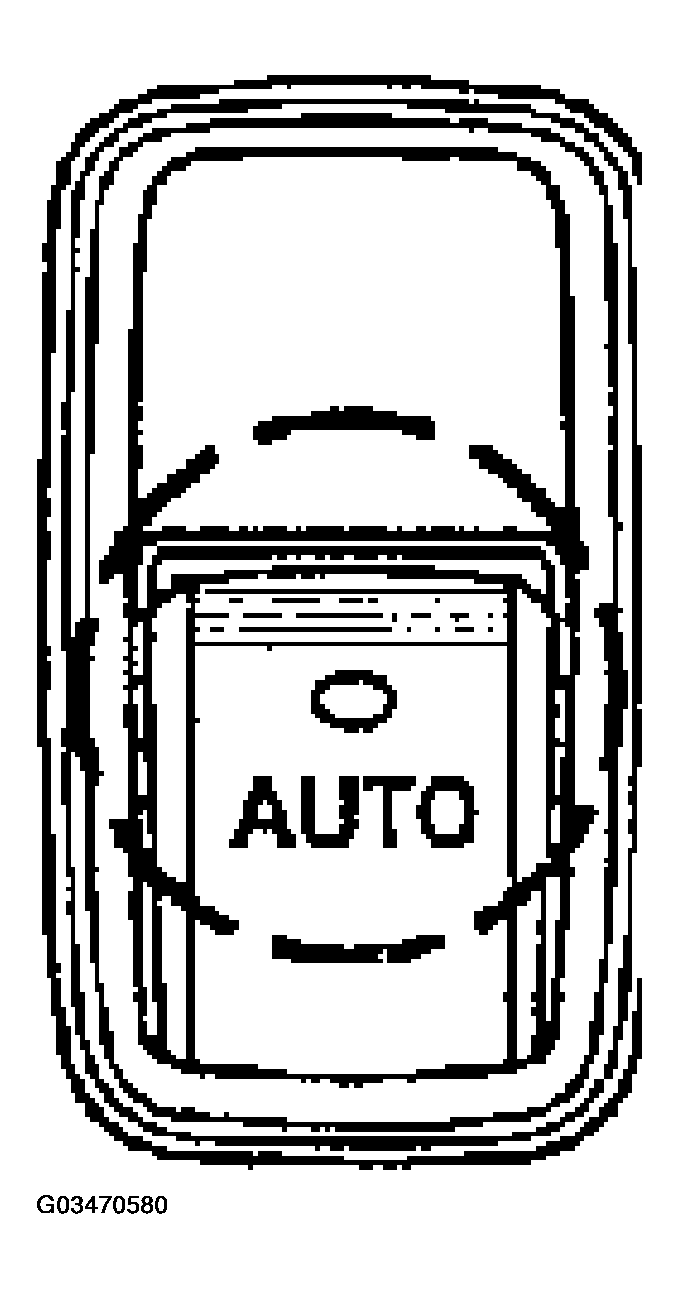

  Fig 1: Operating Power Window Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the blinking pattern of the illumination as shown in Fig 2 .
  1. If pattern (1) is displayed, proceed to A.
  2. If pattern (2) or (3) is displayed, proceed to B.
  3. If the normal pattern is displayed, proceed to C.

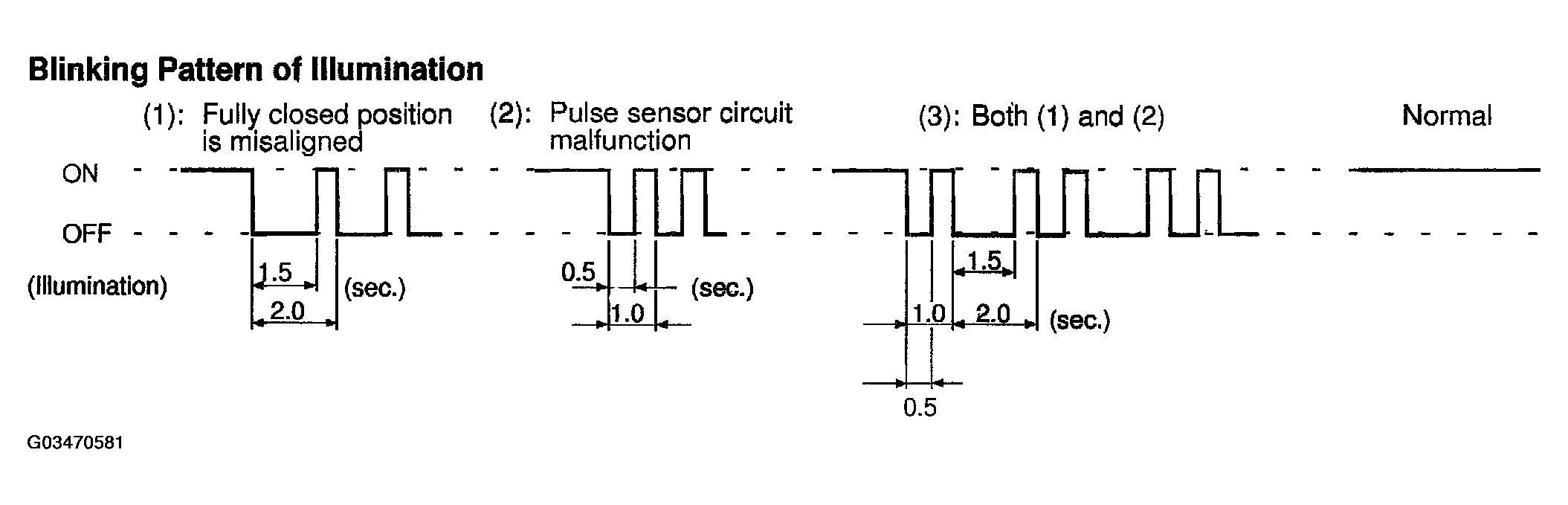

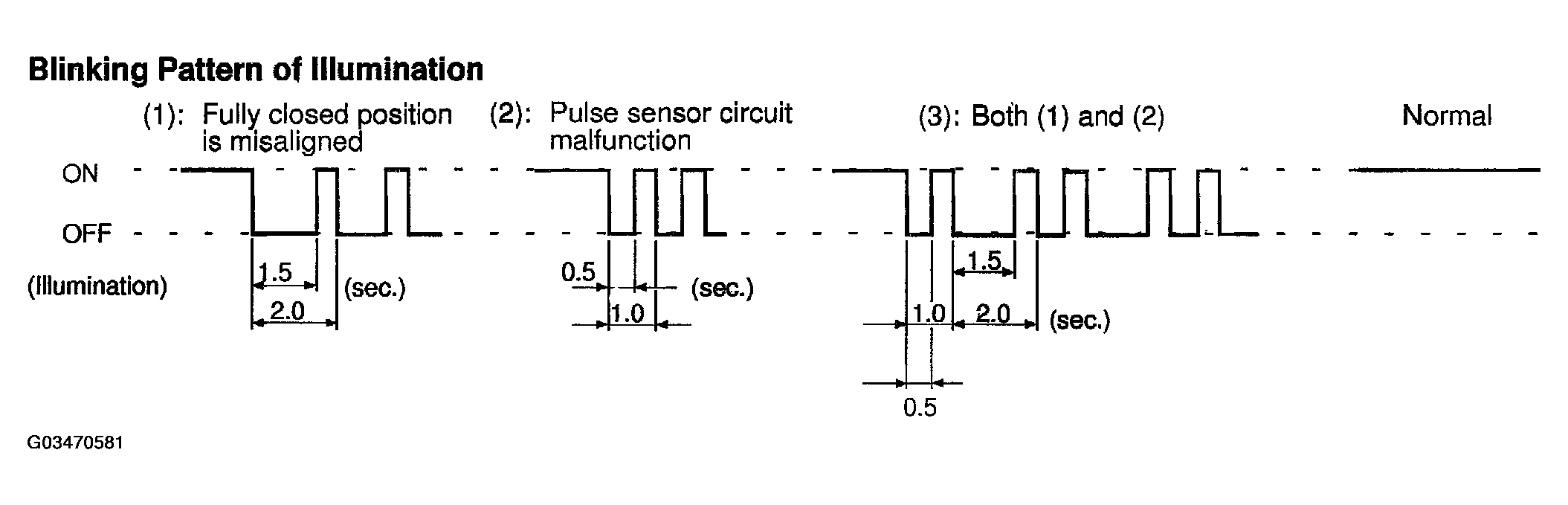

Fig 2: Checking Blinking Pattern Of Illumination
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. B: GO TO STEP 4
2. C: REPLACE POWER WINDOW REGULATOR SWITCH ASSY REAR (REAR RH)
3. A: GO TO NEXT STEP
RESET POWER WINDOW REGULATOR MOTOR (REAR RH)
1. Turn the ignition switch ON.
2. Open the door glass.
3. Fully pull up the power window switch until the door glass is fully closed.
4. Continue to hold the switch 1 second more even after the door glass is fully closed.
5. Check that the AUTO UP/DOWN function operates completely.
1. OK: END
2. NG: GO TO NEXT STEP

CHECK WIRE HARNESS (SWITCH <=> MOTOR)

Check the continuity between the wire harness side connectors.

Standard:

SPECIFIED CONDITION

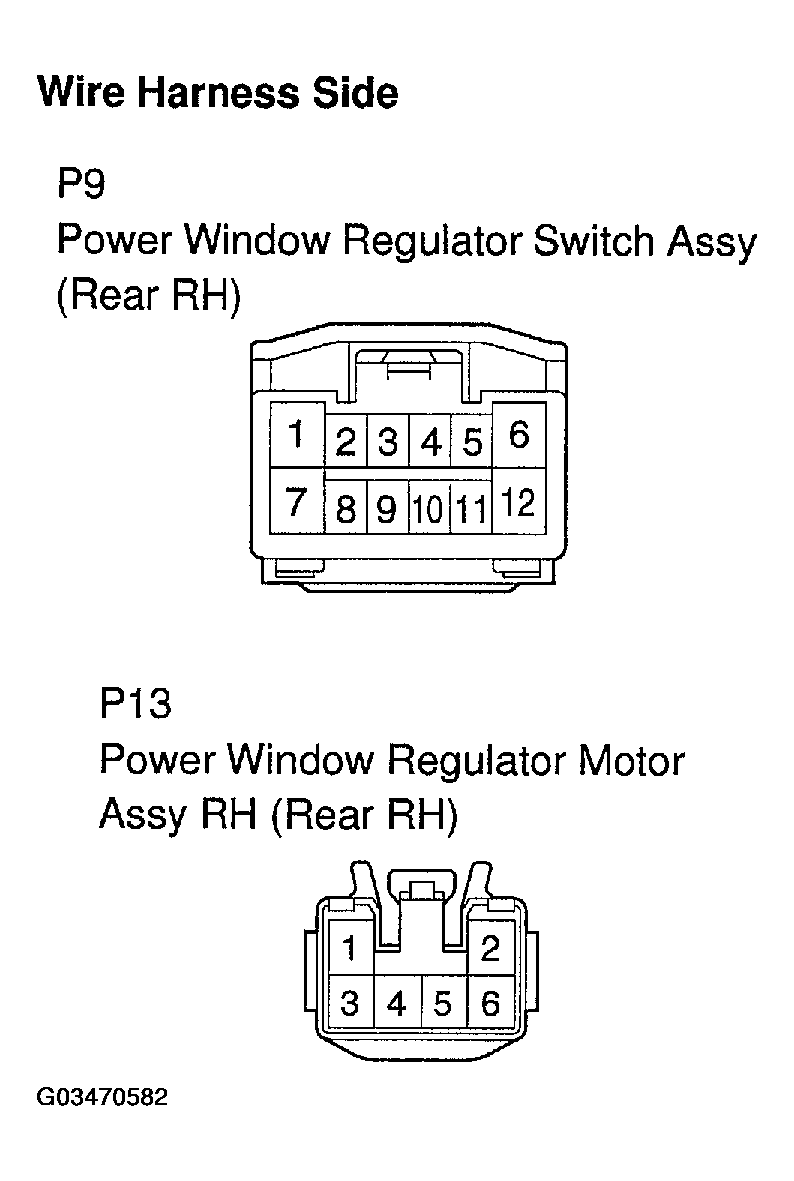

Fig 3: Checking Continuity Between Wire Harness Side Connectors
